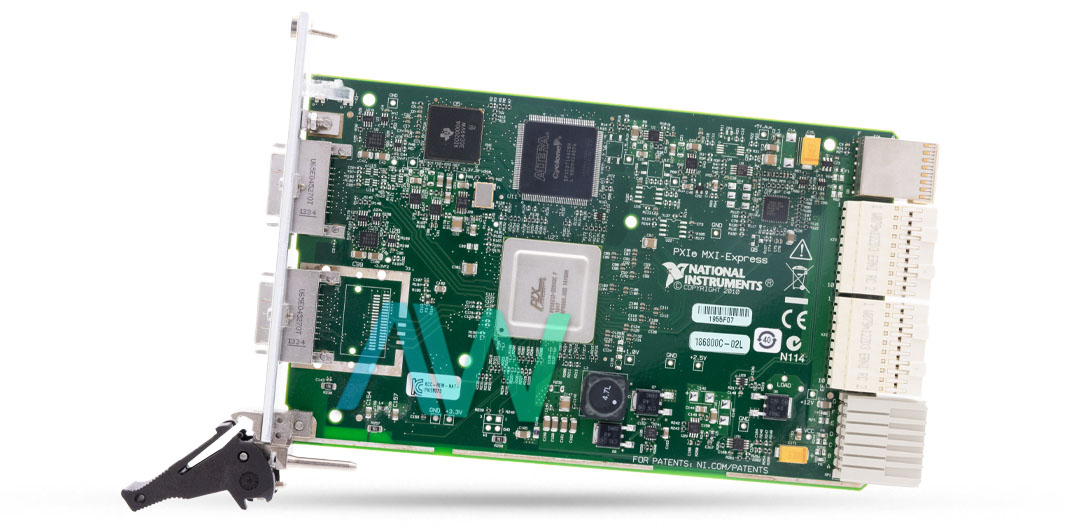

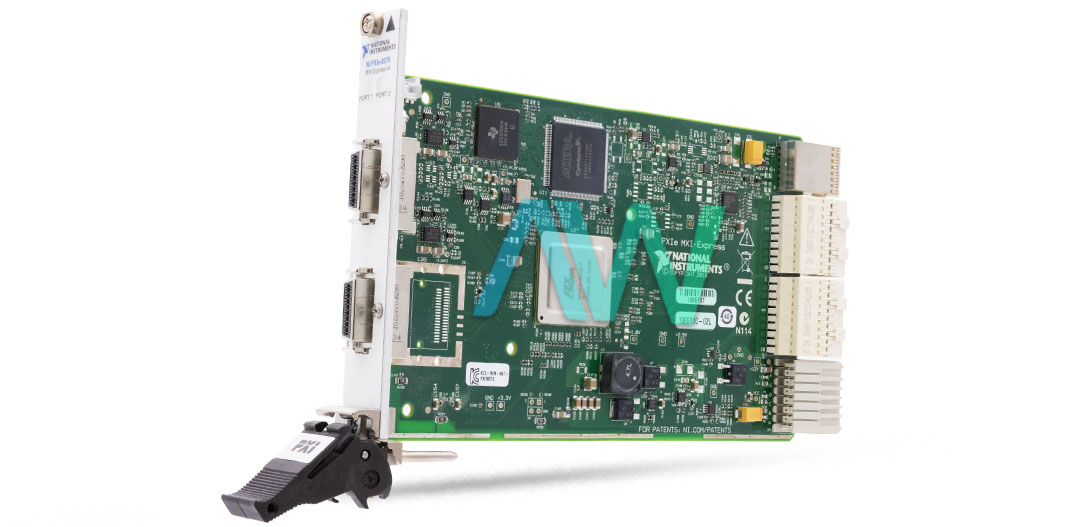

National Instruments 781040-01 PXI Remote Control Module.
The part number 781040-01 from National Instruments is the identifying part number for the PXI Remote Control Module (model PXIe-8375). With its high-speed Gen 2 x8 technology, this model can transfer data at up to 4GB/s, guaranteeing a quick data output and enabling the effective management of big datasets. This module completely complies with PICMG CompactPCI Express EXP.0 R1.0 Specification and PXI Express Hardware Specification, Rev. 1.0. Additionally, this module allows for a maximum connection length of 100 meters, which gives you the reach you need to link PXIe systems to host PCs.
This model fits into PXI Express or CompactPCI Express in a single slot with dimensions of 10.0 cm × 16.0 cm (3.9 × 6.3 in.) and a weight of 0.17 kg (0.37 lb) typical making this light and portable with easy maintenance as well. This module is designed to withstand random operational vibrations of 5 Hz to 500 Hz, 0.3 grms, and nonoperating vibrations of 5 Hz to 500 Hz, 2.4 grms with operating shocks of 30 g peak, half-sine, 11 ms pulse.
With normal operating currents of 1.25 mA and maximum currents of 2 A at +3.3 V, 1.5 mA typical and maximum current of 2.5 mA at +5 V, and 285 mA typical and maximum current of 450 mA at +12 V, this PXI Remote Control Module can minimize energy use while providing great performance. This model is non-condensing and runs in an ambient temperature range of 0 to 55 degrees Celsius. It also supports a relative humidity range of 10% to 90%. It is resistant to non-condensing storage temperatures between -40 and 71 degrees Celsius and relative humidity between 5% and 95%. It is environmentally beneficial because it is made for indoor use and may be put up to 2000 meters above the ground with a pollution degree of just 2.
For vibrations, it satisfies IEC-60068-2-64 and for shocks, IEC-60068-2-27 standards. Additionally, the model satisfies UL 61010-1, EN 61010-1, CAN/CSA C22.2 No. 61010-1, and IEC 61010-1 safety and electromagnetic compatibility requirements, guaranteeing safe and dependable performance in industrial settings with minimal electromagnetic interference.
| Part Number | 781040-01 |
| Model Name | PXIe-8375 |
| Part Type | PXI Remote Control Module |
| Dimensions | 10.0 × 16.0 cm (3.9 × 6.3 in.) |
| Maximum Cable Length | 100 m |
| Slot Requirements | One system slot (PXI Express or CompactPCI Express) |
| Maximum Altitude | 2,000 m |
| Pollution Degree | 2 |
| Ambient Temperature Range | 0 °C to 55 °C |
| Storage Temperature | -40 °C to 71 °C |
