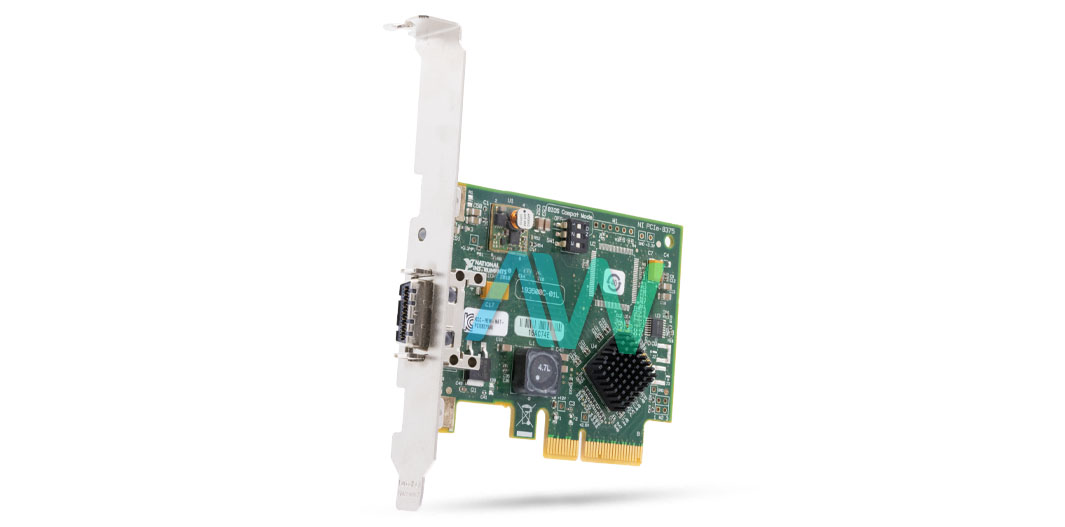

PCIe-8375 National Instruments Device for PXI Remote Control | Apex Waves | Image

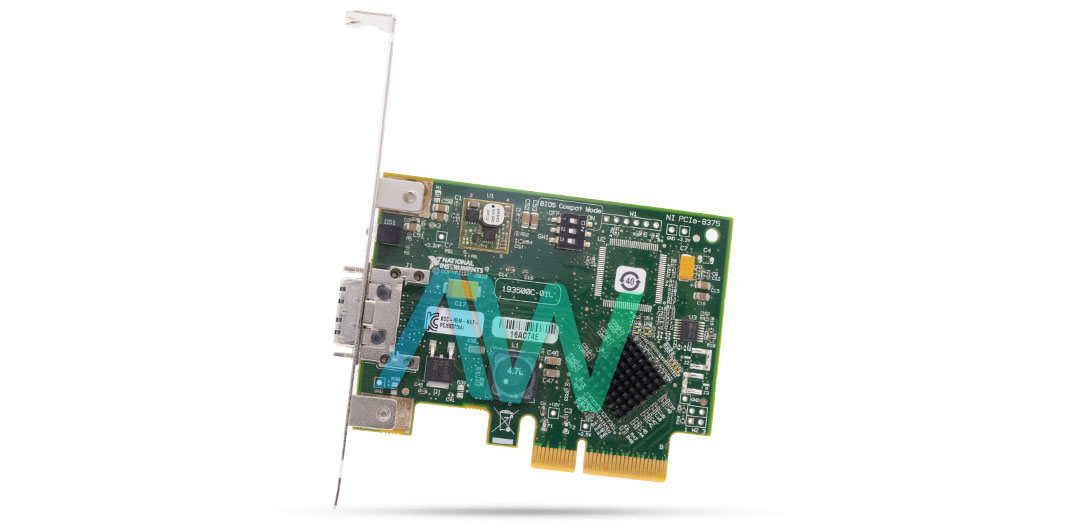

PCIe-8375 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8375 New
PCIe-8375 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCIe-8375 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8375 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8375 New
PCIe-8375 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCIe-8375 Device for PXI Remote Control

The PCIe-8375 (Part Number: 781041-01) is an MXI-Express x4 Device for PXI Remote Control. This device includes two fiber-optic ports, a superior port for associating with the host, and an inferior port for daisy-chain configurations. Just a single PCI Express space is needed in the host while using the daisy-chain design, particularly for gadgets additionally down the chain, the information throughput may be lower. There must be a PCI Express x4 space accessible for each PXI Express space the user needs to control, so the star topology needs the host PC. Each PXI Express frame is associated specifically to the NI PCIe-8375 introduced in the host PC. This topology has the most astounding throughput–at 838 MB per second. The device is fully compatible with the PCI Express specification 1.0a and 1.1.

The PCIe-8375 Device for PXI Remote Control provides a PCI Express clock that holds fast to the PCI Express Specification and uses a host PC. This model may not be good with frameworks with rebellious tickers, especially frameworks with timekeepers whose frequency tops more than 100 MHz. The connection between the PC and the skeleton is a PCI Express connection x4. This connection is a double simplex correspondence channel containing low-voltage, differentially determined flag sets. The connection can transmit at a rate of 10 Gbps toward every path; however, convention overhead and different wasteful aspects will decrease the achievable throughput.

This MXI-Express Controller is comprised of a PCI Express Switch and two fiber-optic MXI-Express x4 connectors comprised of two cables and a x4 card edge connector. The NI device is run using the PXI platform services software which contains the NI-DAQmx and NI-VISA drivers.

The NI device weighs 0.13 lb, and measures 3.5 x 2.72 in. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, and a noncondensing operating and storage humidity range of 10 to 90% and 5 to 95% respectively.

PCIe-8375 Mature Status has been declared by National Instruments, but the device will still be available for purchase and repairs by Apex Waves.

ModelPCIe-8375
ManufacturerNational Instruments
Part Number781041-01
SeriesMXI-Express x4 Series
TypeDevice for PXI Remote Control
Slot TypePCI Express x4
Slot RequirementsOne PCI Express Slot (x4 or wider)
Cable SupportMXI-Express x4 Fiber-Optic
Maximum Distance100 m
CompatibilityFully compatible with the PCI Express Specification 1.0a, 1.1
Sustained Throughput838 MB/s
LED Indicators1 Tri-color LED
Power Requirements+3.3 V, +3.3 VAux, +12 V - 550 mA, 0 A, 200 mA
Dimensions3.5 in. × 2.72 in.
Weight0.13 lb.
WarrantyThree Year Warranty
PCIe-8375 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-8375:

National Instruments PCIe-8375 Frequently Asked Questions



Question: Why does my PCIe-8375 lose and then re-establish connection when I reboot the PC?



Answer: If your PCIe-8375 loses and reestablishes connections repeatedly, there may be a problem with the fiber optic cable timing.



Question: What should I do if I get a flickering or blinking LED light when installing the NI PCIe-8375?



Answer: If you’re getting a flickering or irregular blinking LED when installing the NI PCIe-8375, this is indicative of a problem with RefCLk, which specifies the frequency range of the clock.



Question: What type of cable is provided with the PCIe-8375?



Answer: The PCIe-8375 proves a x4 PCI Express link over a fiber-optic cable to the PXIe-8375 remote control module for PXI system control.
