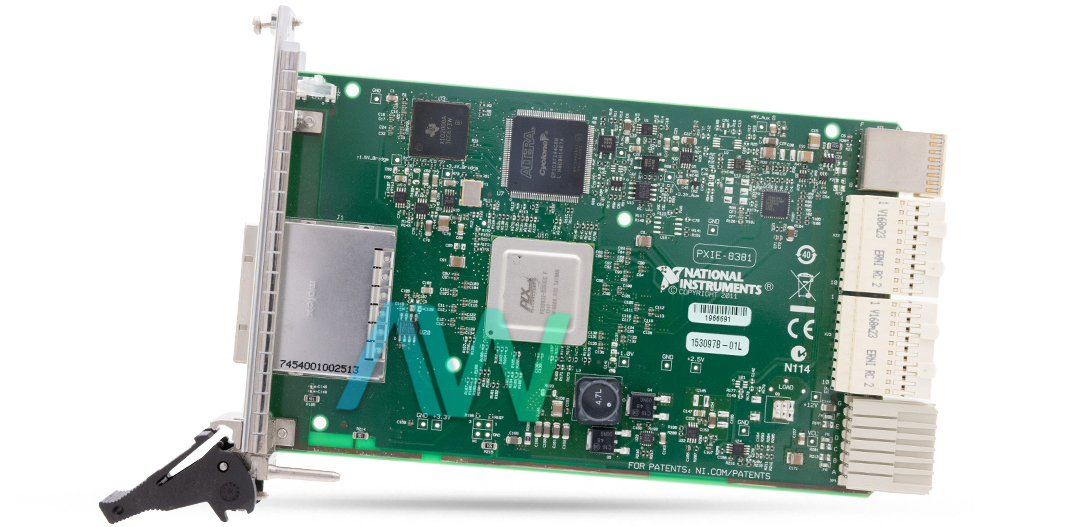

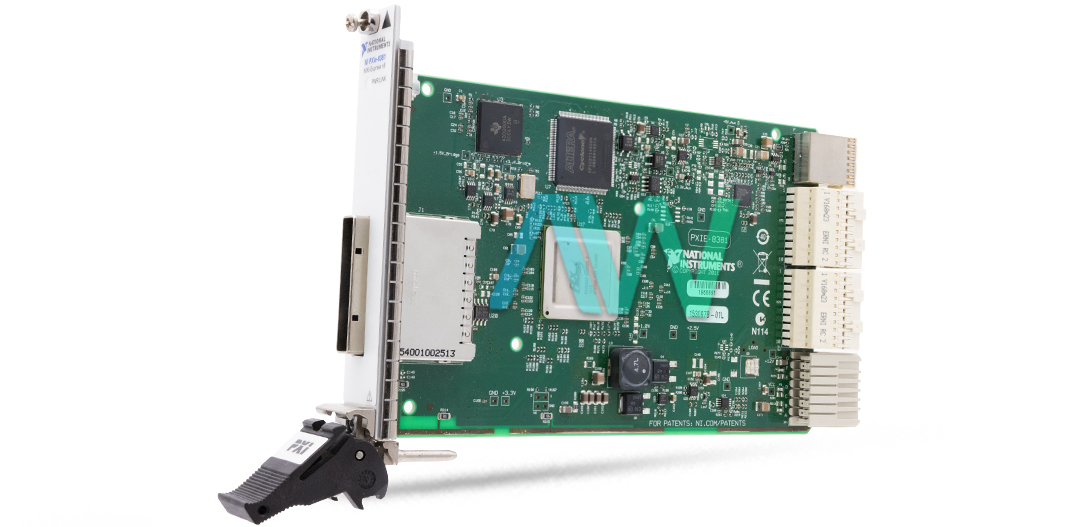

National Instruments 782362-01 Remote Control Module
The part number 782362-01 from National Instruments is the identifying part number for the PXIe-8381 Remote Control Module. This model features a genGen 2 x8 technology with a high-speed data transferring capability offering data transfer rates up to 4GB/s ensuring a rapid data output and facilitating efficient handling of large datasets. This module is fully compatible with PXI express hardware, revision 2.0, PICMG CompactPCI Express EXP.0 R2.0, and PCIe External Cable. Moreover, this module supports a maximum cable length of 5 meters providing the necessary reach for connecting the PXIe systems to host computers.
This Remote control module operates with a typical current of 750 milliamps at +3.3Volts, 1 milliamps at +5.0Volts, 300 milliamps at +12Volts, and 110 milliamps at +5110Volts, thus can minimize energy usage while delivering a high-performance. This model operates at 0 to 55 degrees Celsius ambient temperature and supports a relative humidity range from 10% to 90%, non-condensing. It can withstand storage temperatures of -45 to 71 degrees Celsius and relative humidity ranging from 5% to 95%,non-condensing. It is designed for indoor use and can be installed at a maximum altitude of 2000 meters with a pollution degree of 2 making it environmentally friendly.
This model fits into PXI Express or CompactPCI Express in a single slot with dimensions of 10.7 × 17.5 centimeters and a weight of 0.19 kilogram making this light and portable with easy maintenance as well. This module is designed to withstand operational vibrations of 30 g peak, half-sine, 11 ms pulse, and random vibrations from 5 Hertz to 500 Hertz, 0.3 grams.
It meets the IEC-60068-2-64 standard for vibrations and IEC-60068-2-27 for shocks. The model also complies with various safety and electromagnetic compatibility standards IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA C22.2 No. 61010-1, ensuring safe and reliable operation in industrial environments with minimum electromagnetic interference. The PXIe-8381 stands out as a reliable, high-performance solution for extending and enhancing the capabilities of PXI Express systems, ensuring efficient and high-speed data transfer in various test and measurement applications.
| Part Number | 782362-01 |
| Model Name | PXIe-8381 |
| Part Type | Remote Control Module |
| Dimensions | 10.7 cm x 17.5 cm |
| Weight | 0.19 kg |
| Maximum Cable Length | 5 m |
| Slot Requirements | One system slot (PXI Express or CompactPCI Express) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -40 °C to 71 °C |
| Relative Humidity (Operating) | 10% to 90%, non-condensing |
