National Instruments PXIe-8830MC PXI MultiComputing Processing Module
The National Instruments PXIe-8830MC (Part Number: 783564-33) is a MultiComputing Processing Module with an Intel Core i7 processor that enables at least two frameworks to trade information utilizing PCI Express innovation. Since this module has an Intel quad-core processor, the NI PXIe-8830MC can be associated with any fringe PXI Express opening. It keeps running on the LabVIEW Real-Time OS and can go about as a coprocessor to lessen the handling of the primary implanted controller in the framework.
The PXIe-8830MC offers 5 μs of complete latency among co-processing module and the principal CPU, 2 USB 2.0 ports with 1 Gigabit Ethernet LAN ports, more than 4 GB/s of hypothetical transmission capacity for information exchange, 4 GB of single-channel with 1600 MHz, and 4 physical and 8 legitimate centers.
Although semiconductor test frameworks such as the Semiconductor Test System (STS) do not consume vast informational collections, they do need to expend numerous informational collections in parallel to build their test execution or one section for each hour. An awesome supporter of the execution of the multi-site test is the parallel test evaluation (PTE) of a test framework, which is commonly orchestrated by a framework. Be that as it may, for a secluded approach like STS, the capacity to include an eight-center Intel Xeon processor and great multi-center test official programming, such as TestStand, gives a prudent way to deal with expanding PTE and, in this way, generation throughput for semiconductor test engineers.
Notwithstanding the key regions of use, the chassis and controller of the NI PXIe-8830MC are perfect for any substantial transfer speed or computational estimation and testing application, as well as any application that must scale into the future without abandoning execution.
| Model | PXIe-8830MC |
|---|---|
| Part Number | 783564-33 |
| Manufacturer | National Instruments |
| Type | PXI MultiComputing Processing Module |
| Processor | Intel Core i7 |
| Memory | 8 GB maximum |
| Slot Requirements | Two peripheral slot (PXI Express) |

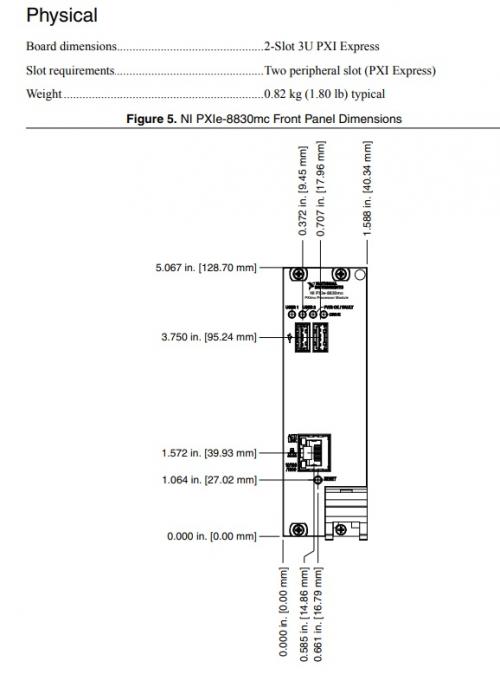

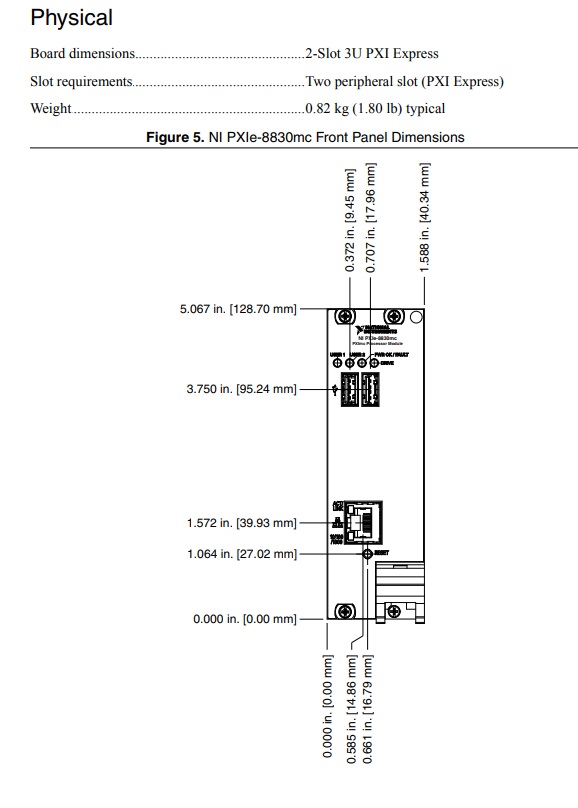

| Board Dimensions | 2-Slot 3U PXI Express |
| Weight | 1.80 lb. |
| Warranty | 2-3 Year Warranty |
| PXIe-8830MC Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8830MC:
National Instruments PXIe-8830MC Frequently Asked Questions
Question: What type of PXI Express backplane link does the PXIe-8830MC have?
Answer: The PXIe-8830MC has a Gen2 x8 PXI Express backplane link.
Question: What is the Ethernet Port block comprised of on the NI PXIe-8830MC?
Answer: The Ethernet Port block on the NI PXIe-8830MC is comprised of an Intel 1217-LM Gigabit Ethernet Connection.
Question: What is the power requirement for the PXIe-8830MC at +12 V?
Answer: AT +12 V, the power requirement for the PXIe-8830MC is 3750 mA (typical current) and 3940 mA (maximum current).
Question: What does the DRIVE icon indicate on the NI PXIe-8830MC?
Answer: The DRIVE icon on the NI PXIe-8830MC shows when the internal hard disk is being accessed.
