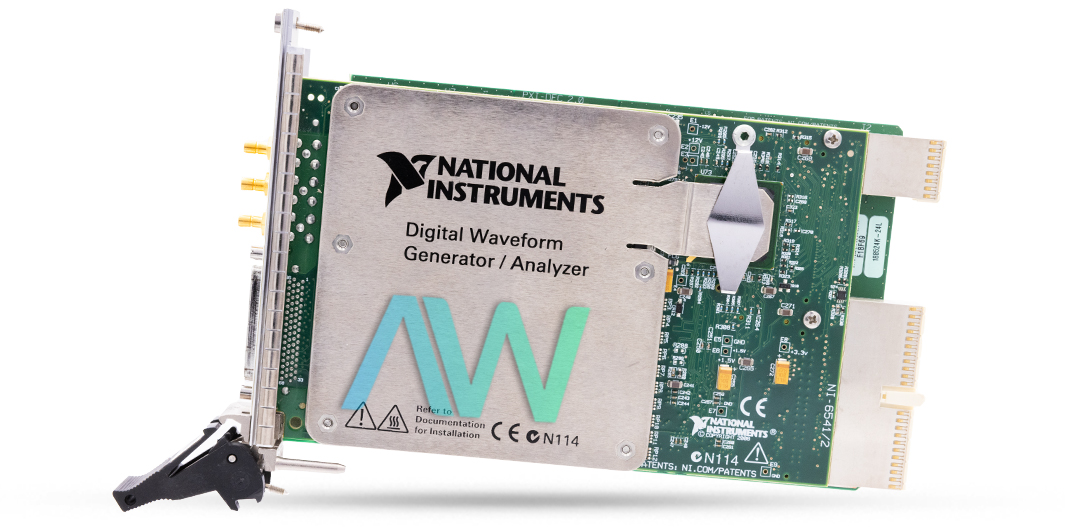

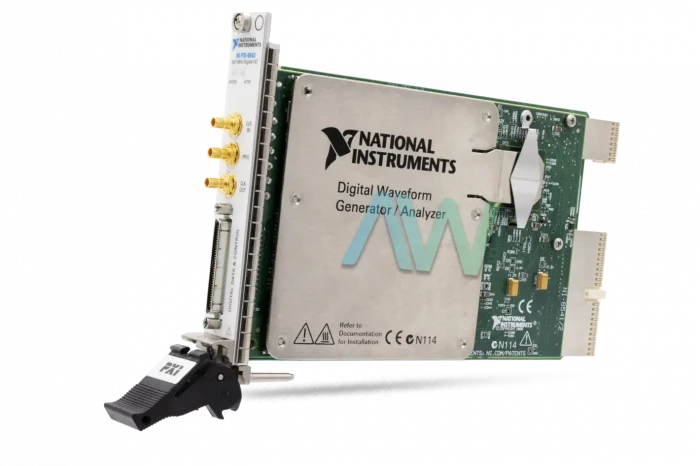

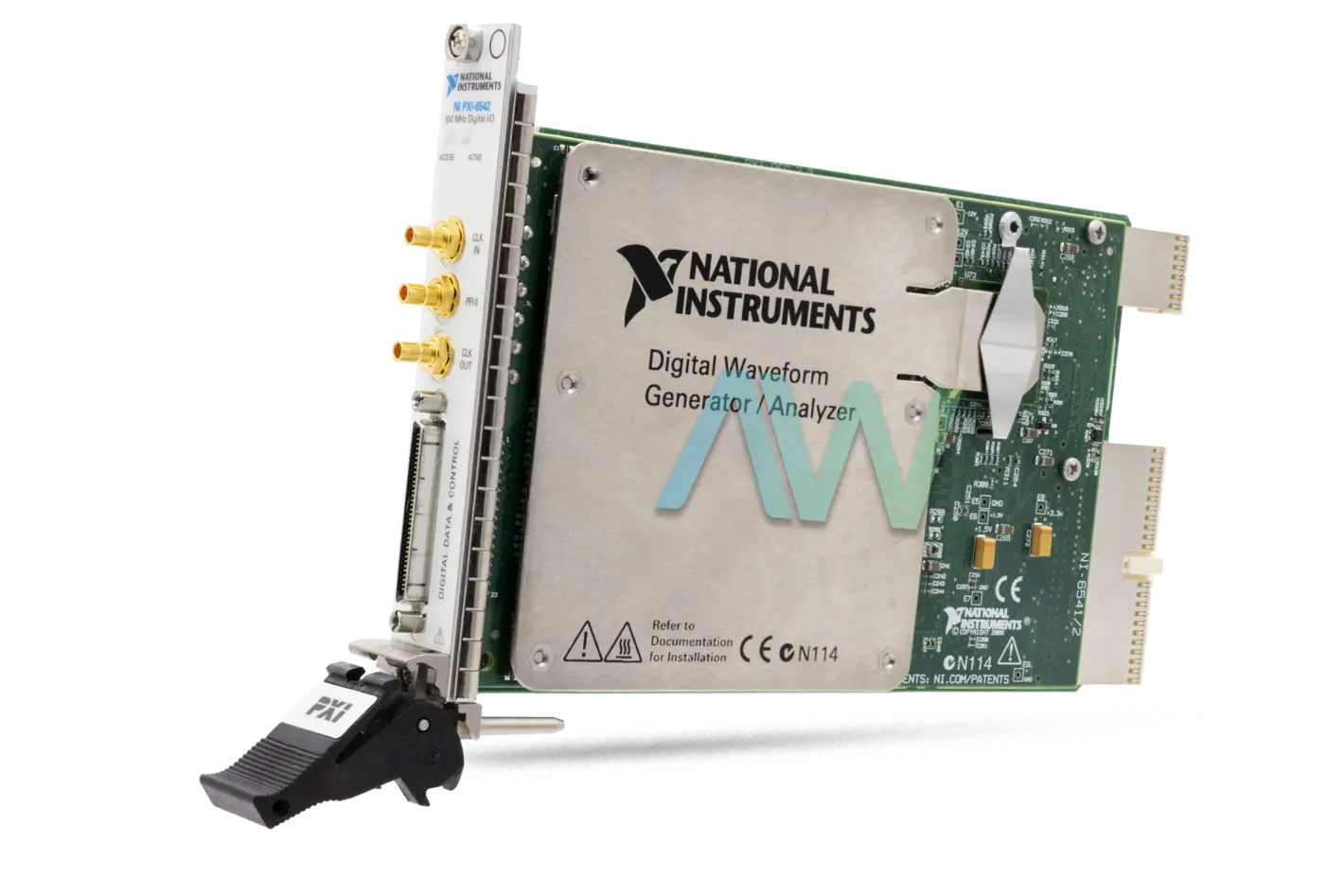

National Instruments PXI-6542 Digital Waveform Instrument
The NI PXI-6542 can be used with a Digital Waveform Editor, an intuitive programming instrument for making and altering advanced waveforms, that allows the user to import existing test designs from mainstream spreadsheets and VHDL recreation bundles into ASCII or dump value changes (VCD) formats. Once imported, the user can see the waveforms graphically and alter them intelligently for new gadgets or requirements and similarity. The user can likewise fabricate new waveforms with built-in padding patterns, such as, pseudo-irregular bit-streams (PRBS) and count patterns up/down. When the user is prepared to test their gadget, the waveforms will be transported in without issues in NI LabVIEW, LabVIEW SignalExpress, and C. The Digital Waveform Editor is incorporated with the 8 and 64 Mbit/channel memory models and is an extra feature for use with the 1 Mbit/channel version. The PXI-6542 1 Mbit version is represented by the Part Number 778953-01, the PXI-6542 8 Mbit version is Part Number 778953-02, and the PXI-6542 64 Mbit variation is Part Number 778953-03.
With the NI PXI-6542 Digital Waveform Instrument, the user can assemble firmly synchronized mixed signal test frameworks, so they can consolidate numerous gadgets to make models and firmly synchronized mixed signal test frameworks. For adjusted timing prerequisites, these PXI modules are synchronized in phase with the 10 MHz reference clock in the PXI back plane. If the user has an outer accuracy reference, they can import it through the SMB connector on the front board. The PXI 6542 offers 32 channels with per-channel bearing control, an interactive waveform and content editorial manager programming, 100 MHz maximum clock rate, NI Synchronization and Memory Core (SMC) gadget, and various other features.
The PXI-6542 has been rendered Obsolete and is no longer available from NI, but there are no "Last Time Buy Dates" with Apex Waves. As a result, the Digital Waveform Instrument will remain available for both purchase and repairs with us in perpetuity!
| Model | PXI-6542 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778953-01, 778953-02, 778953-03 |
| Series | NI-654x Series |
| Part Type | Digital Waveform Instrument |
| Digital Channels | 32 |
| I/O Connectors | SMB Jack, 68-Pin VHDCI |
| Total Power | 15 W (Typical), 20.5 W (Max) |
| Onboard Clock Frequency Range | 48 Hz to 100 MHz |
| Maximum Clock Rate | 100 MHz |
| Onboard Memory Size | 1, 8, or 64 Mbit |
| Dimensions | 21.6 cm × 2.0 cm × 13.1 cm |
| Weight | 12.1 oz (343 g) |
| Warranty | 2-3 Year Warranty |
| PXI-6542 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-6542:
National Instruments PXI-6542 Frequently Asked Questions
Question: Does the PXI-6542 interface with common transistor‑to‑transistor logic (TTL) voltage levels?
Answer: Yes, the PXI-6542 can interface with common TTL voltage levels.
Question: Is there a cable with VHDCI at one end for connecting to the PCI 6542 and SCSI, or something other than VHDCI at the other end?
Answer: The recommended cable is the NI 653X cable adapter with c68-c68-D4 or SHC68-c68-D4 cables to connect to SCSI accessories.
Question: What is the maximum cable length for the NI PXI-6542?
Answer: For the NI PXI-6542, we recommend no longer than 1 m cables.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-C68-D4 (Shielded Recommended) | 781013-01 (0.55 m) |
| 196275-01 (1 m) | ||
| 781293-01 (2 m) | ||
| 132625-03 (3 m) | ||
| C68-C68-D4 Cable (Unshielded) | 195949-01 | |
| SHC68-H1X38 (Shielded, Flying Lead) | 192681-1R5 | |
| Cable Adapter | 653x Cable Adapter | 195846-01 |
| Screw Terminal Block (Shielded) | SCB-68 HSDIO | 782914-01 |
| SCB-68A | 782536-01 | |
| Screw Terminal Block (Unshielded, DIN Rail Mount) | CB-2162 | 778592-01 |
| CB-68LP | 777145-01 | |
| CB-68LPR | 777145-02 | |
| Screw Terminal Block (Unshielded) | TBX-68 | 777141-01 |
| Breakout Box | SMB-2163 | 778747-01 |
| - | - | - |
*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.
*The SCB-68 / SCB-68A must use Direct Feedthrough Mode for configuration.
