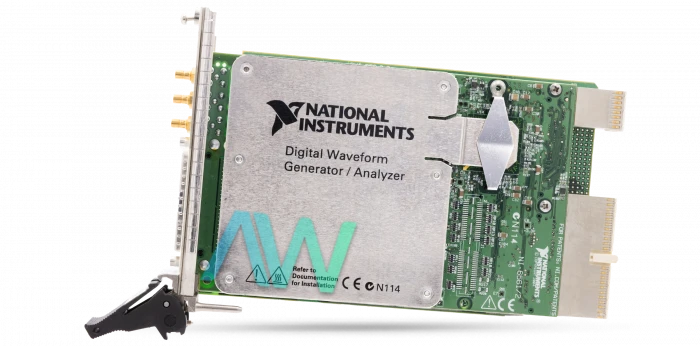

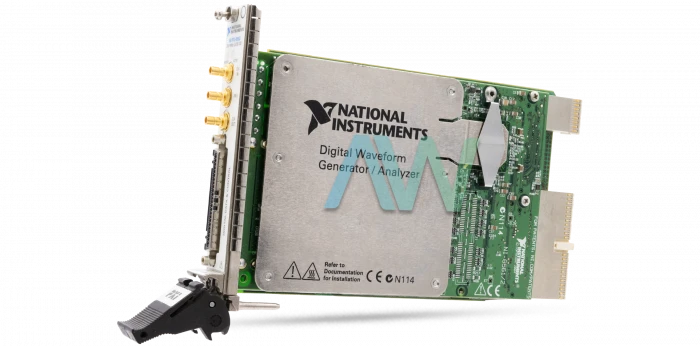

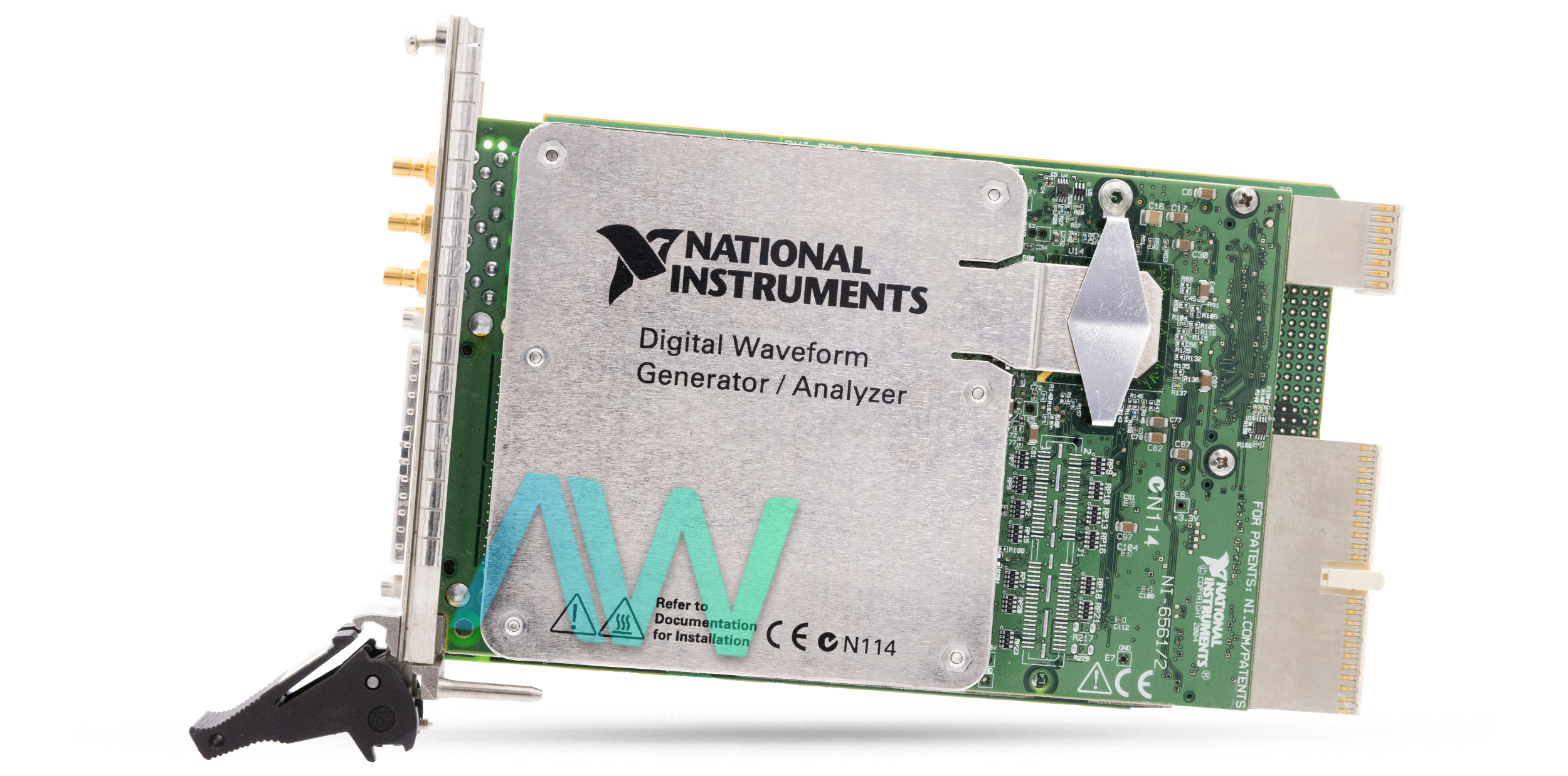

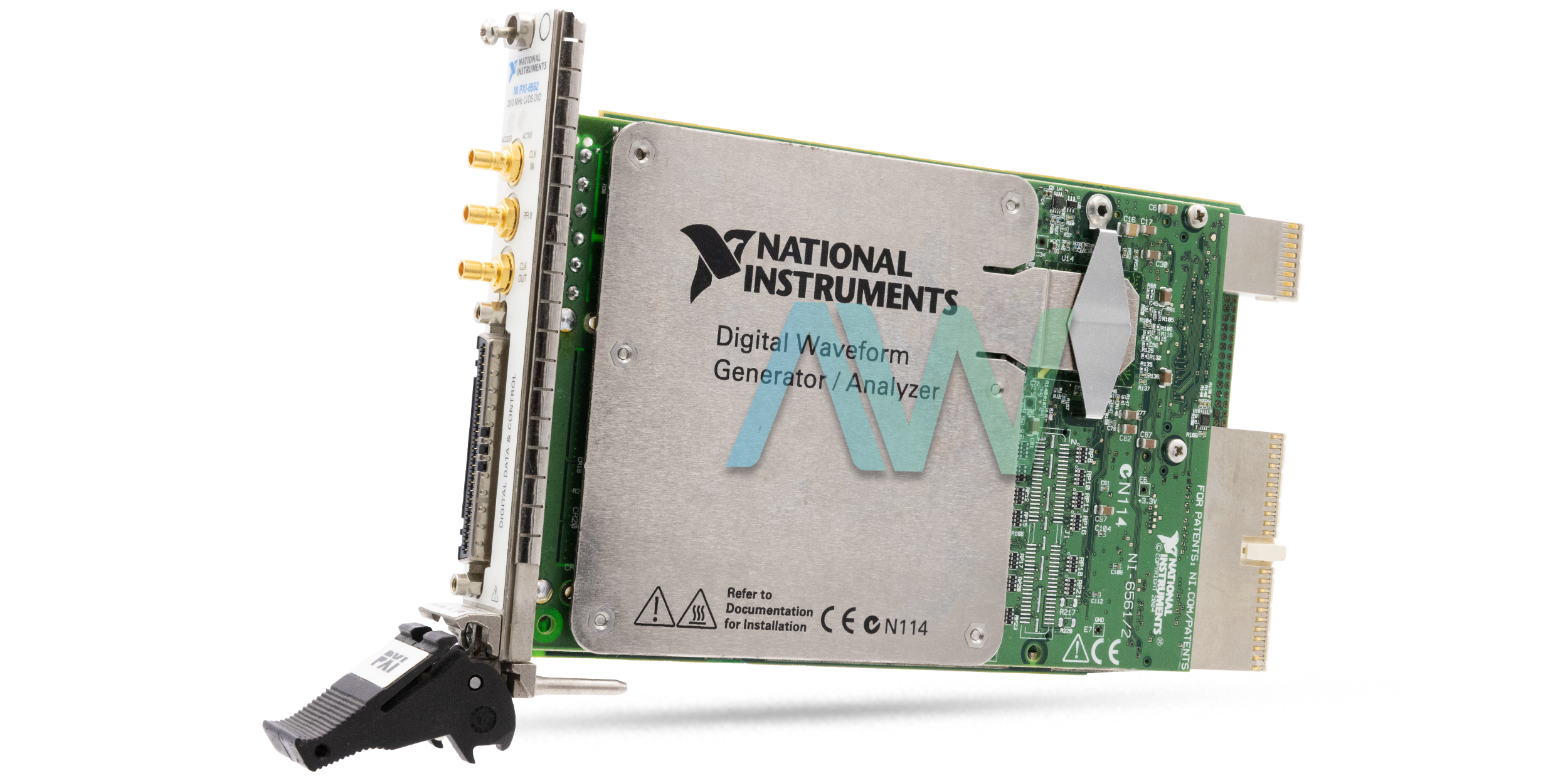

National Instruments PXI-6562 PXI Digital Waveform Instrument
The National Instruments PXI-6562 (Part numbers: 778994-01, 778994-02, and 778994-03) is a 200 Mb/s Digital Waveform Instrument for interfacing to LVDS electronics. This module highlights 100 clock rates individually. Single and double-data-rate modes are included and offer 16 channels with per-channel direction control (in single-data rate mode) and a deep onboard memory with triggering and pattern sequencing. It has an onboard memory of 2, 16, or 128 Mb/channel, and an onboard clock frequency range of 48 Hz to 200 MHz. They can be used with the National Instruments Digital Waveform Editor, an interactive programming apparatus for making and altering computerized waveforms. With the SMC, the user can make mixed-signal test frameworks with digitizers, arbitrary waveform generators, and other digital waveform generator/analyzers. Additionally, the user can synchronize numerous computerized gadgets to build low-skew multichannel frameworks for interfacing to high-pin-count digital ICs and electronics.
The new modules are built on the common Synchronization and Memory Core (SMC) architecture, so they firmly synchronize with other SMC-based measured instruments, such as the recently released 200 MS/s PXI digitizer and arbitrary waveform generator. Engineers additionally can utilize the SMC synchronization innovation to assemble high-channel-count frameworks by utilizing numerous LVDS modules. To rapidly make test applications with the NI PXI-6562, specialists can use two capable programming instruments: Express VIs in the NI LabVIEW 7.1 graphical improvement environment and the NI Digital Waveform Editor for making and altering test vectors.
The PXI-6562 allows the user to make and edit patterns interactively with the Digital Waveform Editor, import existing waveforms into National Instruments LabVIEW from VHDL reproduction and spreadsheet apparatuses in Value Change Dump (VCD) or ASCII groups, create new waveforms utilizing built-in fill designs, and edit waveforms intelligently in the UI. The device is equipped with 3 SMB jack and a 12X InfiniBand I/O connector.
The NI device weighs 12 oz, and measures 21.6 cm × 2.0 cm × 13.0 cm. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of -20 °C to 70 °C.
The status of the PXI-6562 has been declared Obsolete by the manufacturer National Instruments, but the PXI Digital Waveform Instrument will remain available in perpetuity for purchase and repairs with Apex Waves!
| Model | PXI-6562 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778994-01, 778994-02, 778994-03 |
| Type | PXI Digital Waveform Instrument |
| Onboard Clock Frequency Range | 48 Hz to 200 MHz |
| Channels | 16 |
| Onboard Memory | 2, 16, or 128 Mb/channel |
| Total Power | 16.4 W Max |
| I/O Connectors | SMB Jack, 12V InfiniBand Connector |
| Memory Architecture | SMC Technology |
| Warm-Up Time | 15 21.6 cm × 2.0 cm × 13.0 cm |
| Operating Temp Range | 0 °C to 55 °C |
| Storage Temp Range | -20 °C to 70 °C |
| Dimensions | 8.5 in. x 0.8 in. x 5.1 in. (21.6 cm × 2.0 cm × 13.0 cm) |
| Weight | 12 oz. (340 g) |
| Warranty | Three Year Warranty |
| PXI-6562 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
Associated part numbers for PXI-6562:
National Instruments PXI-6562 Frequently Asked Questions
Question: What is the difference between the three part numbers for the PXI-6562?
Answer: The three part numbers each have a different onboard memory size. The 778994-01 has 2 Mb/channel, the 778994-02 has 16 Mb/channel, and the 778994-03 has 128 Mb/channel.
Question: What is the maximum date rate of the NI PXI-6562?
Answer: The maximum date rate is 400 Mb/s.
Question: What is the input impedance of the PXI Digital Waveform Instrument?
Answer: The PXI-6562 has an input impedance of 100 Ohms.
Question: What is the maximum power requirement for the NI PXI-6562?
Answer: The maximum power requirement is 16.4 W.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHB12X-B12X (Shielded) | 192344-01 (1 m) |
| 192344-02 (2 m) | ||
| SHB12X-H3X24 (Shielded, Flying Lead) | 196236-1R5 (1.5 m) | |
| Breakout Box | SMA-2164 | 779323-01 |
