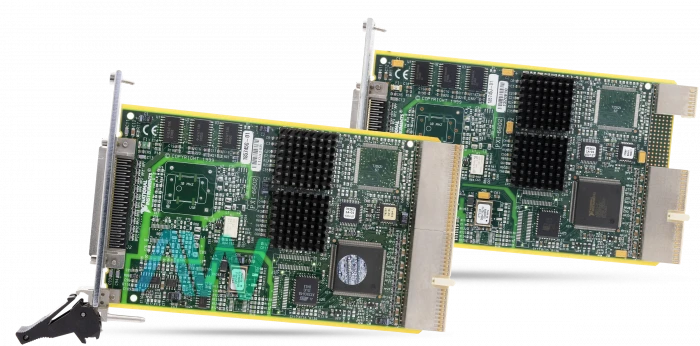

PXI-6602 National Instruments Counter/Timer Module | Apex Waves | Image

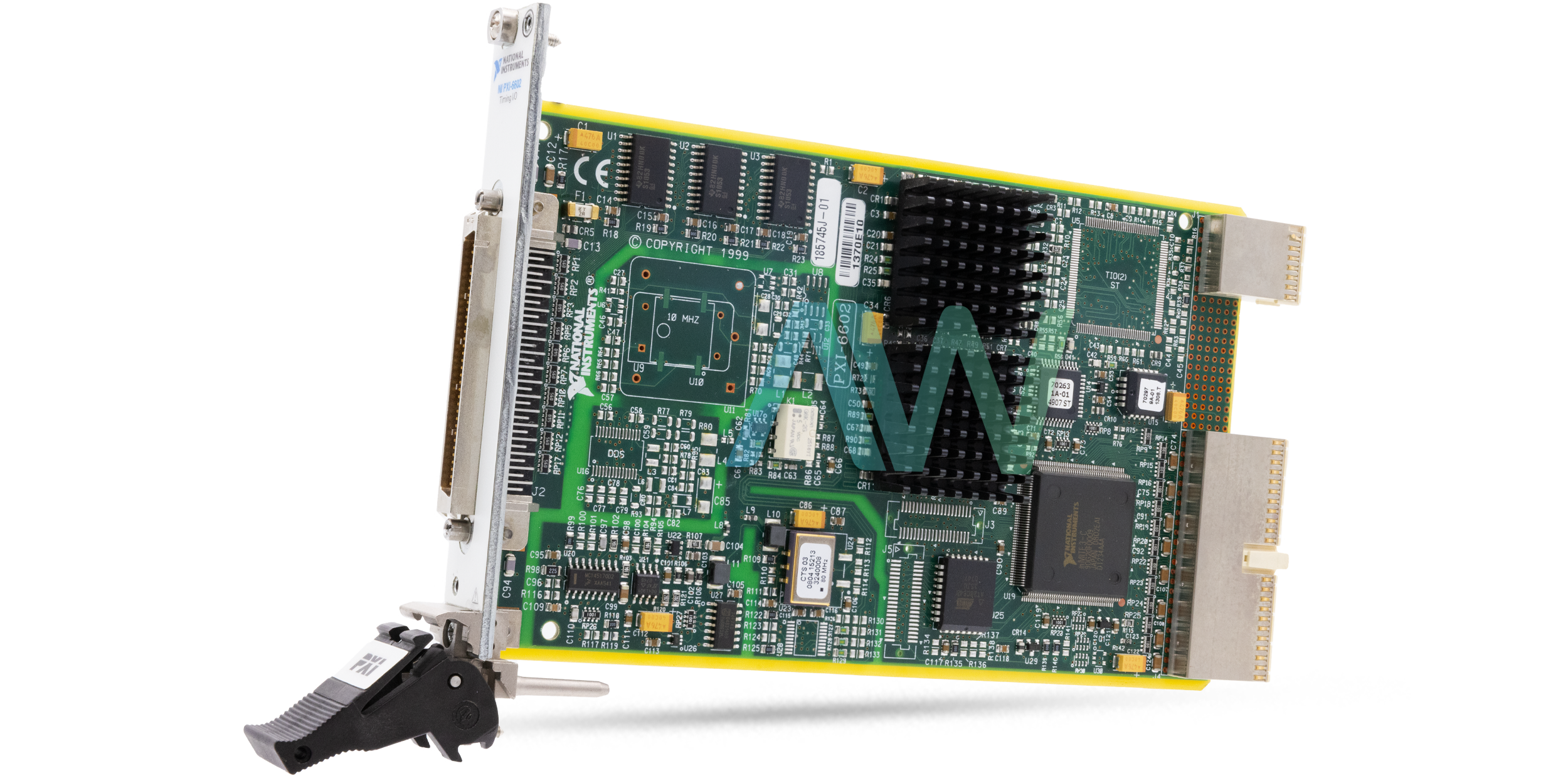

PXI-6602 National Instruments Counter/Timer Module | Apex Waves | Image
PXI-6602 New
PXI-6602 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

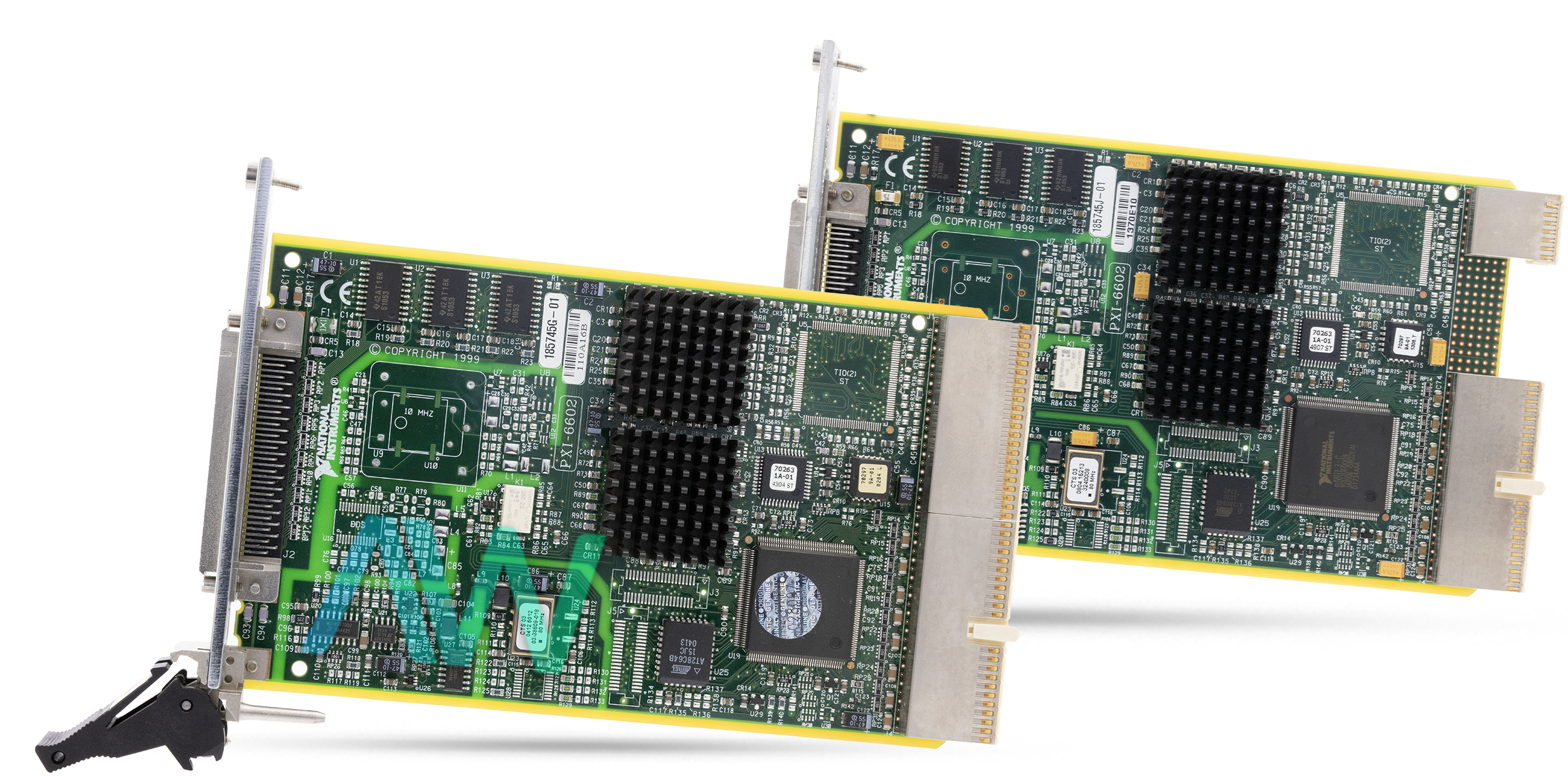

PXI-6602 National Instruments Counter/Timer Module | Apex Waves | Image

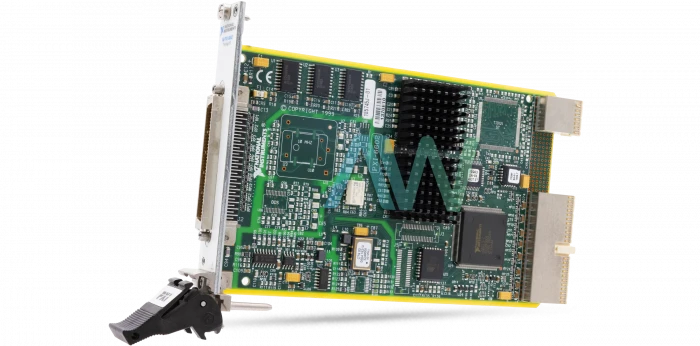

PXI-6602 National Instruments Counter/Timer Module | Apex Waves | Image
PXI-6602 New
PXI-6602 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6602 Counter/Timer Module

The PXI-6602 (Part number: 777557-01, 185745-01, 185745J-01, 185745M-01L) Counter/Timer Module manufactured by National Instruments has the capability to complete a wide variety of functions, including: frequency measurements, encoder position measurements, period measurements, event counting, pulse-train and pulse generation, and pulse-width measurements. Three high-speed DMA transfers can be accomplished at the same time, without needing DMA resources from the user’s computer. This Counter/Timer Module comes equipped with TTL/CMOS-compatible digital I/O, digital debouncing filters, six trigger lines, 32 bits resolution, static data transfer, and eight up/down counters/timers. It has a measure and source frequency of 80 MHz. Part number 185745-01 is for the board only kit version of the PXI-6602.

PXI-compatible products, such as the PXI-6602, can be used with CompactPCI devices. However, if the PXI-6602 was to be used in a CompactPCI Chassis, then only elementary plug-in device functions would be accessible. Functions explicitly for the PXI would not be obtainable.

One of the features offered on the PXI-6602 Counter/Timer Module is prescaling. This feature permits the counter to count a signal that is quicker than the counter’s highest timebase. The counters on the National Instruments PXI-6602 Counter/Timer module can provide 8X or 2X prescaling on every counter. The prescaling feature can also be deactivated if the user chooses. Every prescaler is comprised of a tiny, basic counter that counts to eight or two, then rolls over. This counter is created for this application because it can count signals that are quicker than the regular use counters. Prescaling is meant to be utilized with two counter period and frequency measurements when the measurement is performed on an ongoing, repeating signal.

The PXI-6602 is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. The NI device measures 6.3 inches x 3.9 inches in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–at a frequency range of 5 to 500 Hz.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-6602 is now Obsolete and is no longer available from National Instruments, the Counter/Timer Module will remain available with Apex Waves. Request your quote today!

ModelPXI-6602
ManufacturerNational Instruments
Part Numbers777557-01, 185745-01, 185745J-01, 185745M-01L
SeriesNI-660x
TypeCounter/Timer Module
Counters/Timers8
Measure Frequency80 MHz
Source Frequency80 MHz
TIming I/O8 Up/Down Counter/Timers
Base Clocks Available 100 kHz, 20 MHz, and 80 MHz
I/O Connector68-Pin Female, SCSI-II Type
Operating Temp Range 0 °C to 55 °C
Storage Temp Range–20 °C to 70 °C
Dimensions6.3 in. × 3.9 in. (16.0 cm × 10.0 cm)
WarrantyThree Year Warranty
PXI-6602 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Info

Associated part numbers for PXI-6602:

National Instruments PXI-6602 Frequently Asked Questions



Question: Would the PXI-6602 be the right device to perform encoder position measurements?

Answer: Yes, the Counter/Timer Module is designed to perform encoder position measurements.



Question: Does the PXI-6602 allow simultaneous DMA transfer?

Answer: Yes, it allows 3 simultaneous high-speed DMA transfers.



Question: Does the Counter/Timer Module have digital debouncing filters?

Answer: Yes, the NI PXI-6602 does have digital debouncing filters.



Question: Is the NI PXI-6602 device TTL/CMOS compatible?

Answer: The module includes TTL/CMOS-compatible digital I/O ports. These are configurable for input or output.
