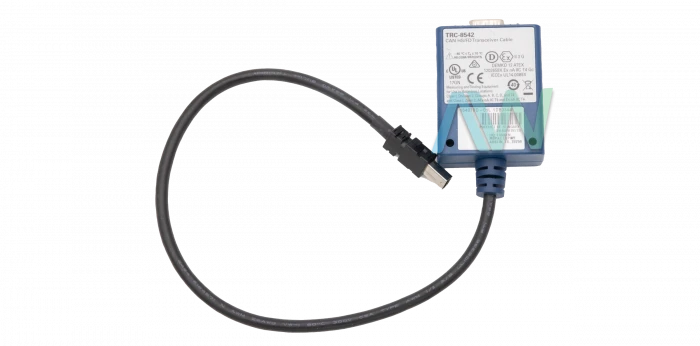

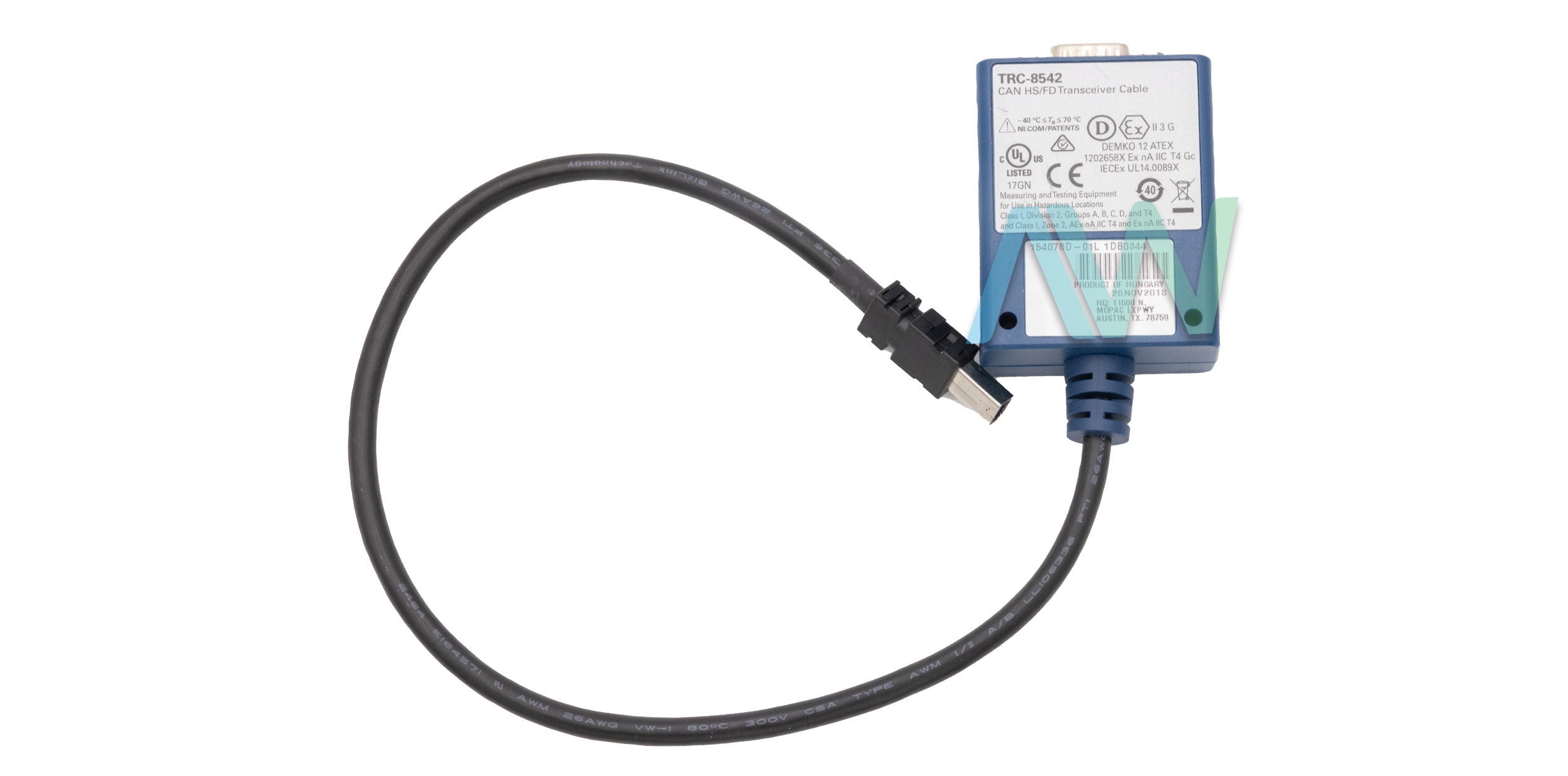

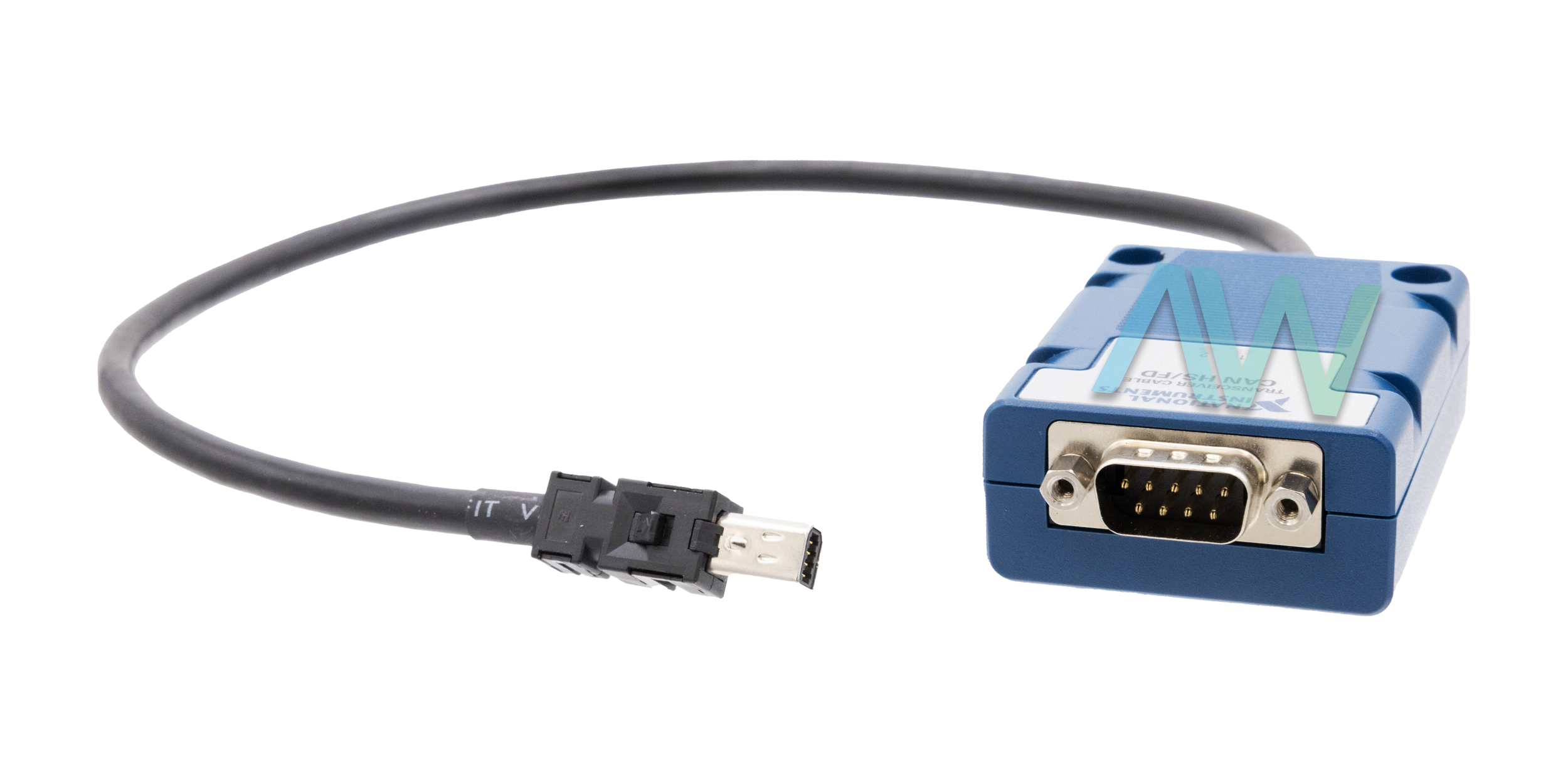

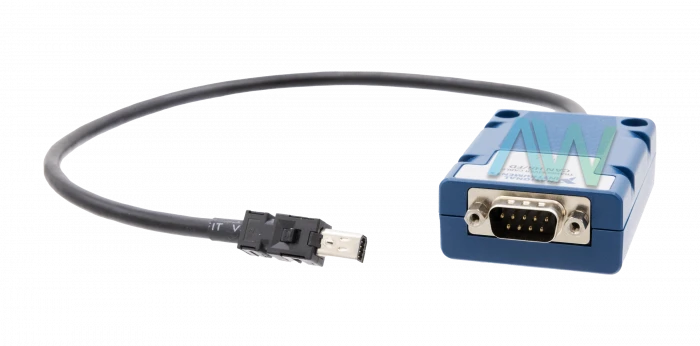

National Instruments 783699-02 Transceiver Cable.
The part number 783699-02 from National Instruments is the identifying part number for the TRC-8542 Transceiver Cable. This cable is a high-performance solution engineered especially for the CAN (Controller Area Network) communication system. This 783699-02 cable is equipped with NXP TJA1463 and TJA1043T transceiver. For the NXP TJA1463 transceiver, its certified maximum baud rate is 8 Mb per second with an input voltage limit of -27 V DC to +40 V DC and an output voltage limit of 5 V DC. While for the NXP TJA1043T transceiver, its maximum baud rate is 5 Mb per second with an input voltage range of -27 V DC to +40 V DC and an output voltage limit of 5 V DC. Additionally, the cable provides a Port-to-COM maximum voltage of -27 V DC to +40 V DC and a port-to-earth ground isolation voltage of 60 V DC continuous.
In terms of power consumption and thermal dissipation, it takes 550 mW maximum and 440 mW typically in active mode from the host system, thus ensuring that the TRC-8542 operates effectively without imposing significant power demands on the host system. This transceiver cable has a compact structure with physical dimensions of 447 mm to 462 mm (17.6 in. to 18.2 in.) and it weighs 70 g (2.5 oz) making it lightweight.
This transceiver cable is designed to operate at ideal temperature conditions. Its operating temperature is -40 to 70 degrees Celsius and its storage temperature is -40 to 85 degrees Celsius. While its operating relative humidity is 10% RH to 90% RH, noncondensing and storage relative humidity is 5% RH to 95% RH, noncondensing. This cable is dust and moisture resistant by having an ingress protection rating of IP40. It can be installed at a maximum altitude of 2000 meters with a pollution degree of 2 and can only be used indoors where nonconductive pollution occurs.
This cable is manufactured with operating shocks of 30 g, 11 ms half-sine; 50 g, 3 ms half-sine; 18 shocks at 6 orientations and operating random vibrations of 5 g RMS, 10 Hz to 500 Hz and sinusoidal vibration of 5 g, 10 Hz to 500 Hz thus allowing this module to work under critical conditions.
| Part Number | 783699-02 |
| Model Name | TRC-8542 |
| Part Type | Transceiver Cable |
| Maximum baud rate | 8 Mb/s |
| Thermal Dissipation | 550 mW max (active mode), 440 mW typical (active mode) |
| Weight | 70 g (2.5 oz) |
| Length | 447 mm to 462 mm (17.6 in. to 18.2 in.) |
| Operating Temperature Range | -40 °C to 70 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Ingress Protection | IP40 |
