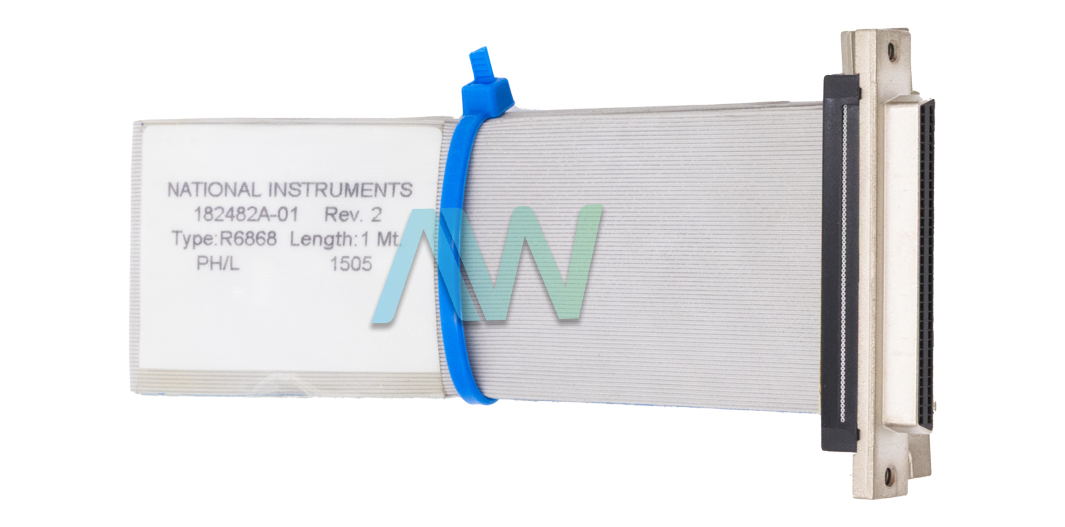

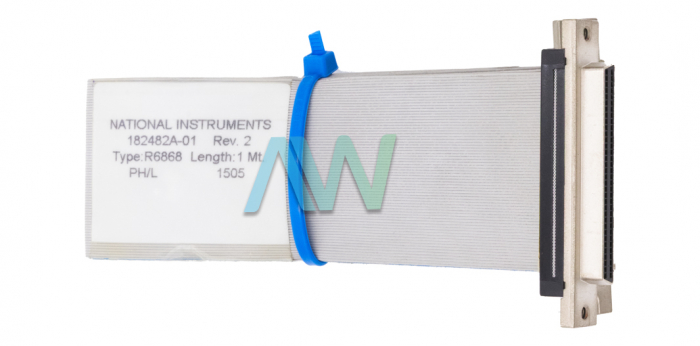

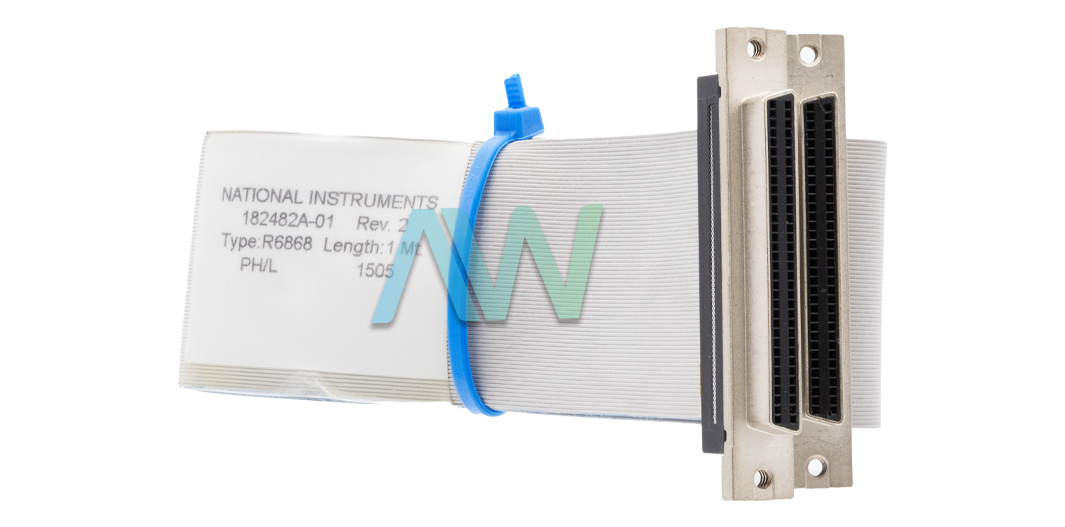

National Instruments R68F-68F Ribbon Cable
Featured with 68-Pin, Female to 68-Pin, Female connections, the R68F-68F is a Ribbon Cable from National Instruments. This Ribbon Cable is designed to provide one ribbon connection and is also called RC68-68 or R68-68 Cable. The R68F-68F Ribbon Cable is designed to work with 68-Pin digital I/O or data acquisition devices. You can use this cable with the devices from the E, X, and M Series as well.
The NI R68F-68F is offered in multiple variations, so users can select a cable with the connection types and cable length required for their application. The first version (Part Number: 182482-0R25) is 0.15 m and has 68-Pin, Female D-SUB to 68-Pin, Female D-SUB connections. Then, there is a 0.25 m cable (Part Number: 187252-0R25) with 68-Pin, Female VHDCI to 68-Pin, Female D-SUB connections. Next, there is a 1 m cable (Part Number: 182482-01) equipped with 68-Pin, Female D-SUB to 68-Pin, Female D-SUB connections. There is also a 0.5 m version (Part Number: 187252-0R5) with 68-Pin, Female VHDCI to 68-Pin, Female D-SUB connections. The last variation is another 1 m version (Part Number: 187252-01), but with 68-Pin, Female VHDCI to 68-Pin, Female D-SUB connections.
| Model | R68F-68F |
|---|---|
| Part Numbers | 182482-0R25, 187252-0R25, 182482-01, 187252-0R5, and 187252-01 |
| Manufacturer | National Instruments |
| Type | Ribbon Cable |
| Cable Length | 0.15 m, 0.25 m, 0.5 m, or 1 m |
| Back-End Connection | 68-Pin, Female D-SUB or 68-Pin, Female VHDCI |
| Front-End Connection | 68-Pin, Female D-SUB |
| Twisted Pairing | No |
| Number of Ribbon Connections | 1 |
| Warranty | 2-3 Year Warranty |
| R68F-68F Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
