National Instruments SCXI-1341 LAB/1200 Series Cable Assembly

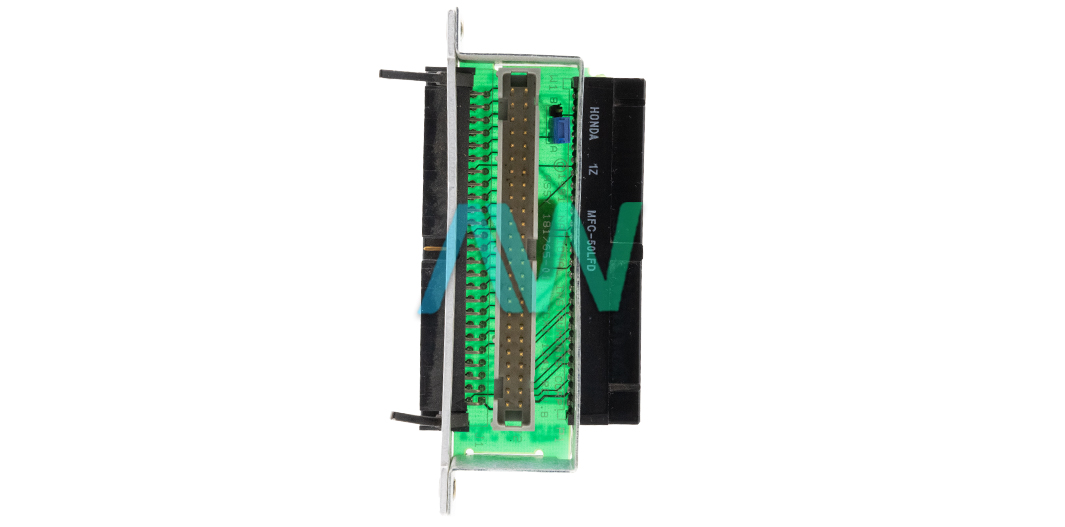

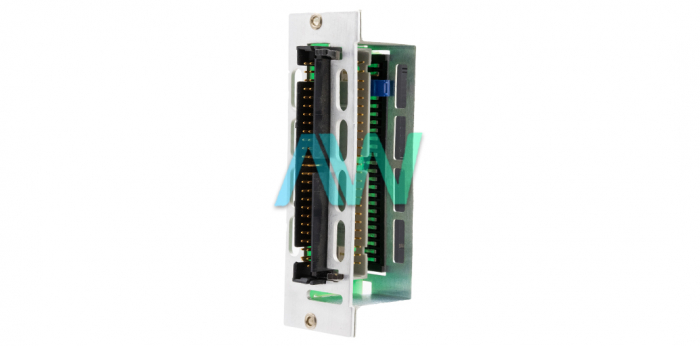

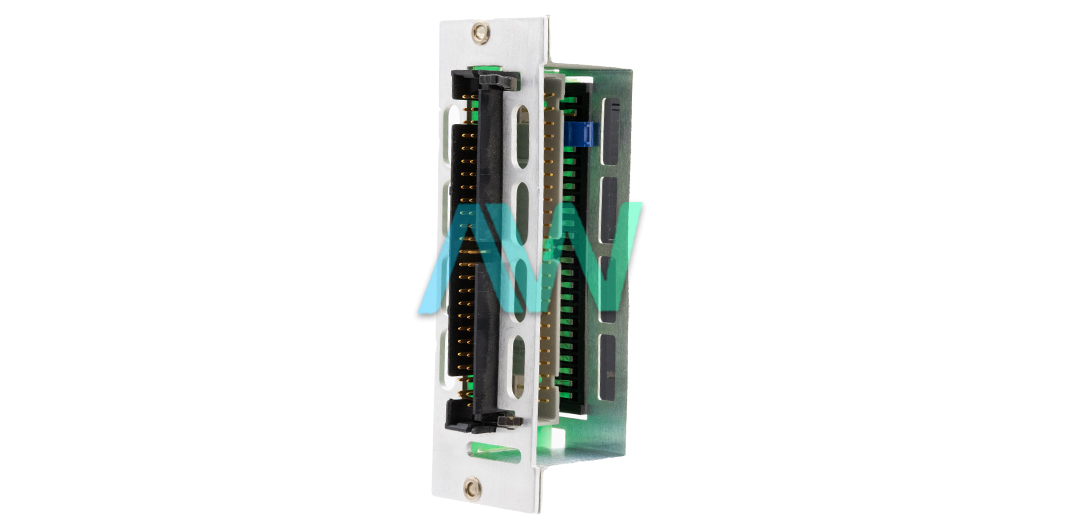

The main function of the National Instruments SCXI-1341 Lab/1200 Series Cable Assembly is to link Lab/1200 Series DAQ boards to SCXI modules so that SCXI systems can effectively acquire and control data. The assembly consists of an adapter board and a 50-conductor NB1 ribbon cable, which together provide smooth communication between the SCXI module and DAQ board. The Lab/1200 Series board's I/O connector is directly connected to the adapter board's back connector via a ribbon wire. A secure and dependable connection is made possible by the adapter board's female right-angle module connector, which interacts with the SCXI module's rear.
A male breakout connector on the SCXI-1341 adaptor board also provides access to the Lab/1200 Series board's unaltered signals. This feature allows for flexibility in system design, which is very helpful for users who need to connect additional devices or components. This breakout connector, for example, can be used to connect the SCXI-1180, which moves the pinout of the Lab/1200 Series board to the front of the SCXI chassis, making system integration and maintenance easier.
For users who want to create a strong connection between their SCXI modules and Lab/1200 Series DAQ boards, the SCXI-1341 Cable Assembly is necessary. Its superior build quality guarantees dependable signal integrity and low noise operation even in areas with strong electromagnetic interference. The SCXI system may be positioned closer to sensors and transducers thanks to the cable assembly's 10-meter communication range, which is essential for precise data collecting in a variety of industrial applications.
| Model Name | SCXI-1341 |
|---|---|
| Part Type | LAB/1200 Series Cable Assembly |
| Cable Type | 50-conductor NB1 ribbon |
| Adapter Board | Female right-angle with male breakout |
| Compatibility | Lab/1200 Series DAQ, SCXI modules |
| Cable Length | Up to 10 meters |
| Signal Integrity | Low-noise, high-quality |
| Multiplexing | Supports multiplexed mode |
| Extra Connectivity | Male breakout for additional DAQ devices |
