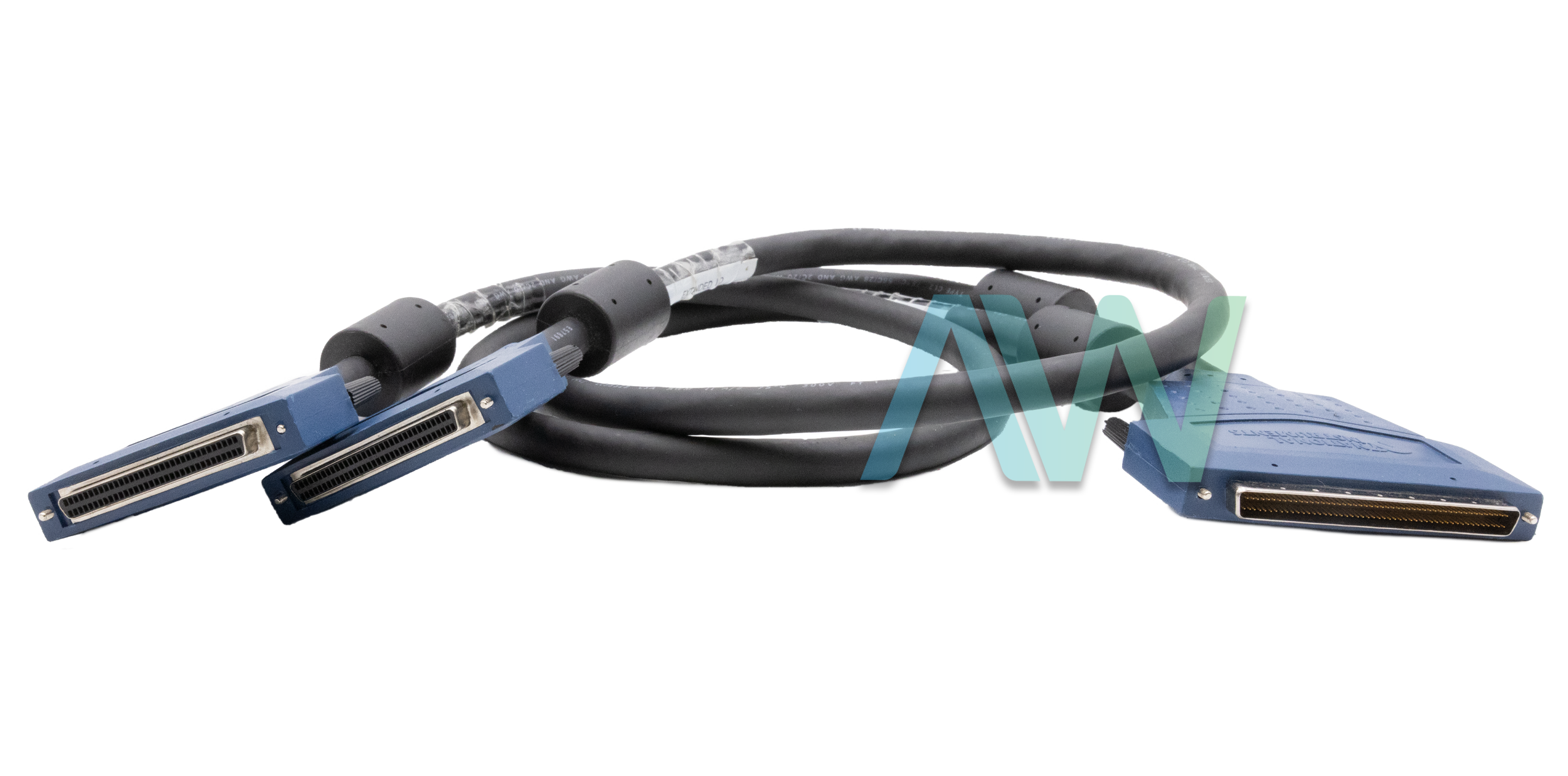

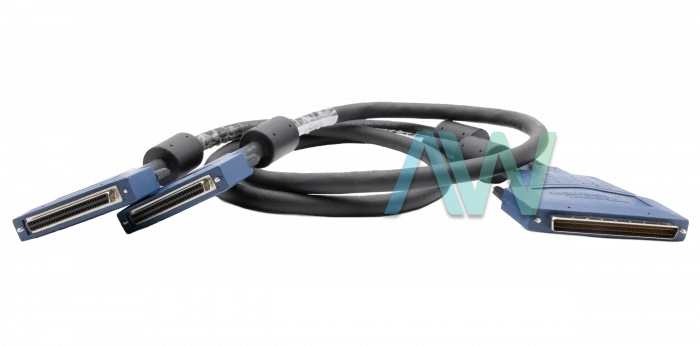

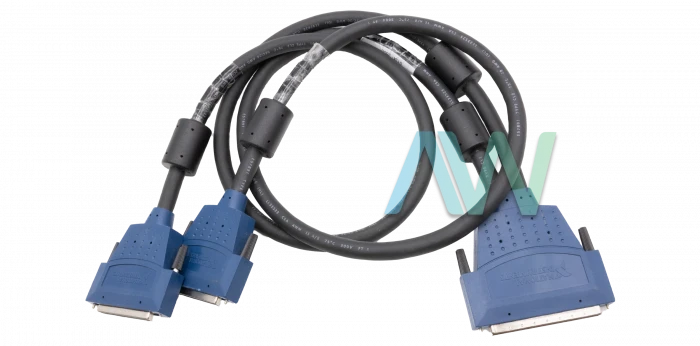

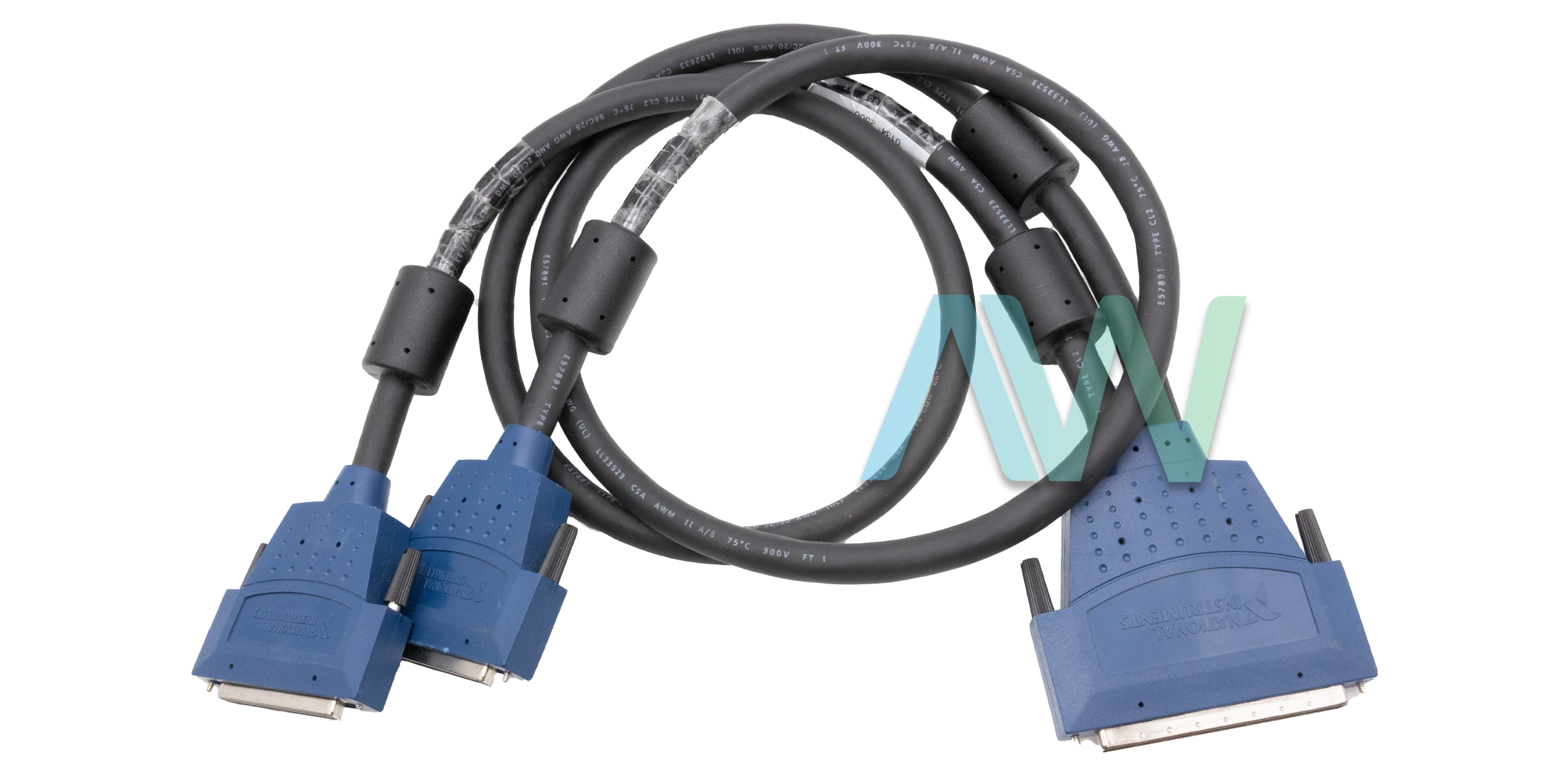

National Instruments SH1006868 Cable
The National Instruments SH1006868 (Part Numbers: 182849-01, 182849-02, 182849-05, 182849-10) is a Shielded Cable. This shielded cable is designed to provide connectivity to 100-pin E Series devices. The SH1006868 comes equipped with two female 68-pin 0.050 series D-type connectors. The SH1006868 comes in a variety of lengths; including 1m (part number 182849-01), 2m (part number 182849-02), 5m (part number 182849-05), and 10m (part number 182849-10).
This cable can be used with a variety of 100-pin devices from the E Series, including the NI-6071E, NI-6031E, NI-6033E, etc. With this cable, you will be able to incorporate a broad range of accessories into your system, such as the BNC-2115, BNC-2120, BNC-2090, TBX-68, CB-68LP, and others. In addition to devices with 64 analog input channels, the SH1006868 is compatible with devices which have 16 analog input channels and 32 digital I/O lines, such as the NI PCI-6025E. Since it is a shielded cable, the SH1006868 can be considered for applications where electrical noise or interference remains an issue.
The SH1006868 is no longer available directly from National Instruments, but the NI Cable will remain available in perpetuity with Apex Waves!
| Model | SH1006868 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 182849-01, 182849-02, 182849-05, 182849-10 |
| Type | Cable |
| Connectors | Two 68-Pin 0.050 Series D-Type Connectors |
| Cable Length | 1, 2, 5, or 10 m |
| Shielded? | Yes |
| Warranty | Three Year Warranty |
| SH1006868 Manual | User Manual and Maintenance Manual Available for Download |
Associated part numbers for SH1006868:
SH1006868 PDF Manuals
E-SERIES-CALIBRATION-PROCEDURE.PDF
SH1006868-DECLARATION-OF-CONFORMITY-PART-NUMBER-182849-01.PDF
SH1006868-DECLARATION-OF-CONFORMITY-PART-NUMBER-182849-02.PDF
SH1006868-DECLARATION-OF-CONFORMITY-PART-NUMBER-182849-05.PDF
SH1006868-DECLARATION-OF-CONFORMITY-PART-NUMBER-182849-10.PDF
