National Instruments SH96-96 Cable Assembly

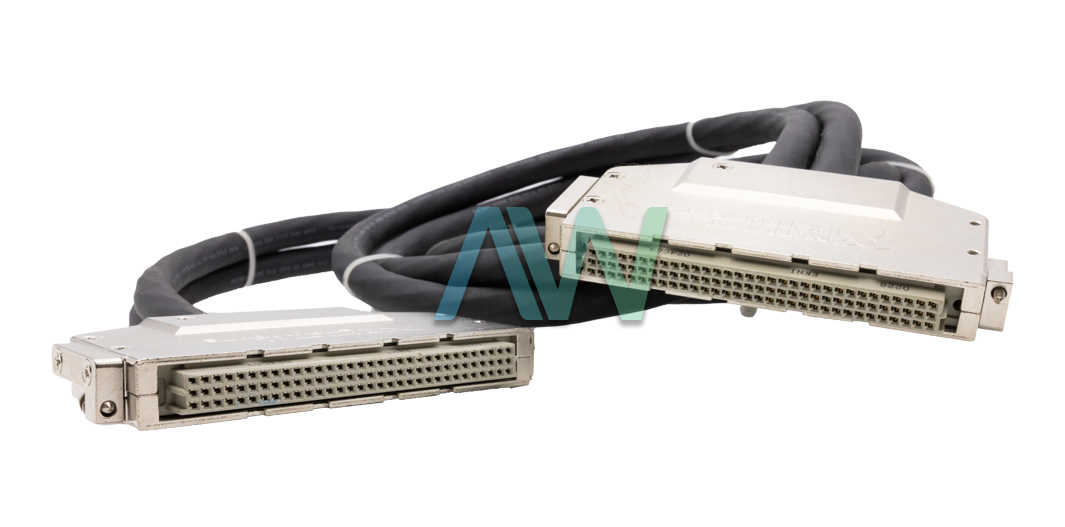

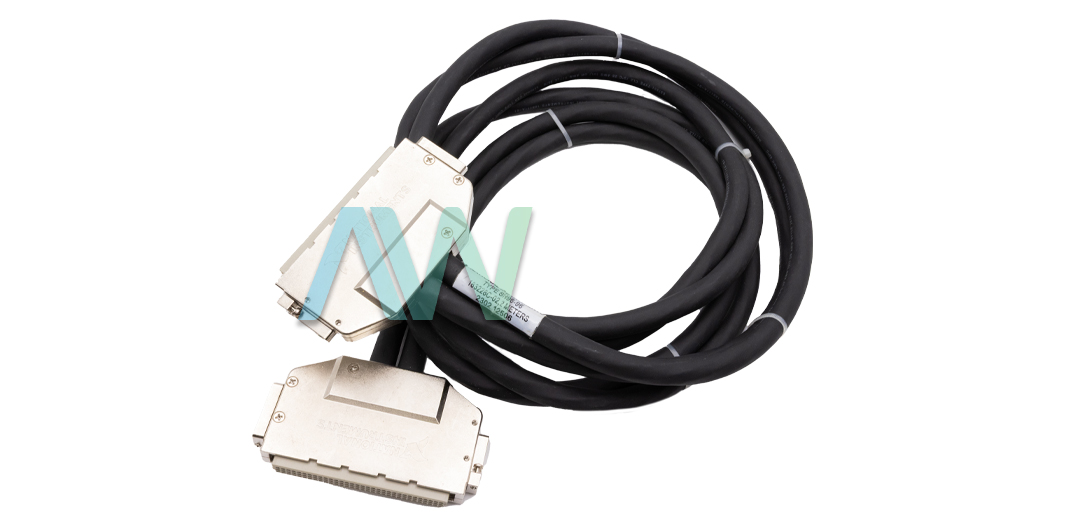

Designed to be used with the NI VXI-DIO-128, TBX-96, and other 96-pin devices, the SH96-96 (Part Numbers: 183228-02, 183228C-01) is a 2-meter Shielded Cable from National Instruments. This cable comes with one 96-pin connector on either end. Thus, the cable can be connected to a broad range of devices that come with 96-pin male connectors.

The SH96-96 is commonly used for connecting SCXI modules to TBX terminal blocks. The metallic adapter of this cable is designed to be fastened to the front panel connector of various SCXI modules, including the SCXI-1100, SCXI-1181, SCXI-1102, etc. The terminal blocks supported are the TBX-1303 and TBX-96.

The SH96-96 is considered an ideal solution in applications where precise handling and transmission of signals is required. When combining this cable and the above-mentioned terminal blocks, this allows for safe and efficient transmission of signals from field sensors or transducers to the relevant SCXI module.

ModelSH96-96
ManufacturerNational Instruments
Part Numbers183228-02, 183228C-01
TypeCable Assembly
Connectors96-pin
ShieldedYes
Cable Length2 m
Warranty2-3 Year Warranty
SH96-96 ManualUser Manual and Maintenance Manual Available for Download
