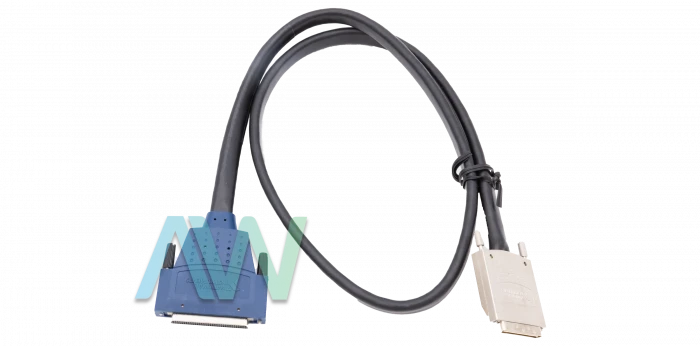

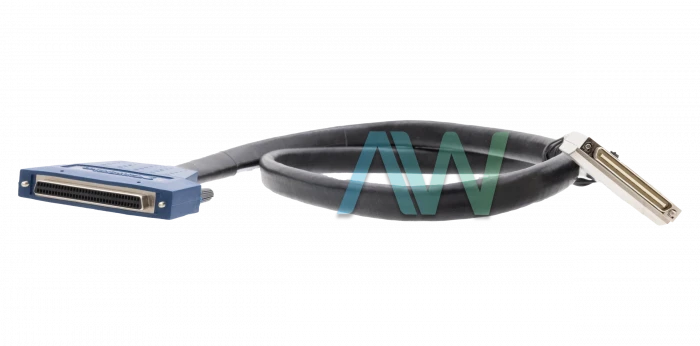

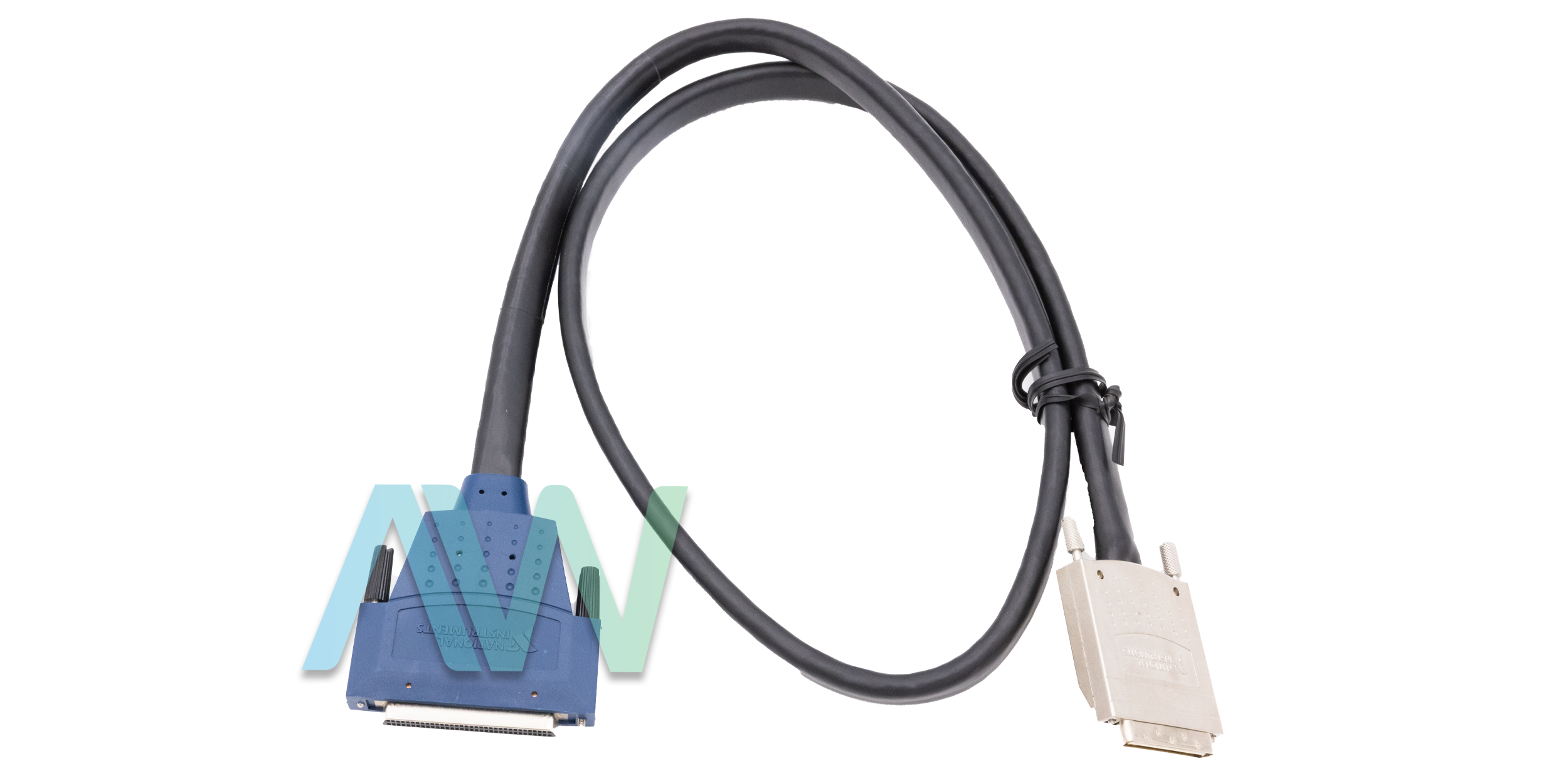

National Instruments SHC68-68-EPM Multifunction Cable
Designed for 68-pin accessories, the National Instruments SHC68-68-EPM is a shielded, high-performance cable. The length of this cable is 0.5 meters (Part Number: 192061-0R5), 1 meter (Part Number: 192061-01), 2 meters (Part Number: 192061-02), 5 meters (Part Number: 192061-05), or 10 meters (Part Number: 192061-10). This cable features a 68-Pin, Male VHDCI back-end connection and a 68-Pin, Female D-SUB front-end connection.
Users can deploy this cable to achieve connectivity between various devices and accessories, including devices from NI's M Series, X Series, and S Series (selected models only), as well as DAQCards. The SHC68-68-EPM Cable is designed with both digital twisted pairing and individually shielded analog input pairing, and can be used with high-performance NI devices. The digital twisted pairs of the cable offer a differential impedance of 107 ohms and a mutual capacitance of 14.5 pF/ft nominal. The nominal conductor DC resistance of this cable type measures 0.099 Ohms/ft at a temperature of 20 °C. In addition, the digital twisted pairs feature a nominal time delay of 1.55 ns/ft. The individually shielded analog input pairs of the SHC68-68-EPM have a differential impedance of 66 ohms and a mutual capacitance of 23.0 pF/ft (nominal). The nominal conductor DC resistance of these pairs measure 0.099 Ohms/ft at a temperature of 20 °C, and the nominal time delay is 0.83 ns/ft.
The NI SHC68-68-EPM Multifunction Cable is recommended for applications where high-speed and high-frequency signal transmission, offering unbeatable precision to meet various requirements. The shielding characteristic of this cable makes it an ideal solution for industrial applications where electromagnetic interference can affect the integrity of the signals.
| Model | SHC68-68-EPM |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 192061-0R5, 192061-01, 192061B-01, 192061B-02, 192061C-02, 192061-02, 192061-05, 192061-10 |
| Type | Multifunction Cable |
| Cable Length Options | 0.5 m, 1 m, 2 m, 5 m, or 10 m |
| Back-End Connection | 68-Pin, Male VHDCI |
| Front-End Connection | 68-Pin, Female D-SUB |
| Shielded? | Yes |
| Twisted Pairing? | Yes |
| Differential Impedance | Twisted Pairs: 107 ohms Analog Input Pairs: 66 ohms |
| Mutual Capacitance | Twisted Pairs: 14.5 pF/ft nominal Analog Input Pairs: 23.0 pF/ft nominal |
| Conductor DC Resistance | Twisted Pairs: 0.099 Ohms/ft nominal Analog Input Pairs: 0.099 Ohms/ft nominal |
| Twisted Pairing? | Yes |
| Warranty | Three Year Warranty |
| SHC68-68-EPM Manual | Manuals and Documentation Freely Available for Download |
Associated part numbers for SHC68-68-EPM:
National Instruments SHC68-68-EPM Frequently Asked Questions
Question: What is the cable capacitance for the SHC68-68-EPM?
Answer: The cable is comprised of 3 inner cables. For the leftmost cable, cable "A", the mutual capacitance is 75pF / meter, while the mutual capacitance for both of the other cables, "B and C", is 47.6pF / meter.
Question: In what temperature range does the cable operate in?
Answer: The NI SHC68-68-EPM cable should be utilized within the temperature range specified for the data acquisition product that it is connected to.
Question: What is the bend radius for the SHC68-68-EPM?
Answer: The bend radius for the Multifunction Cable s 6.5 in (165 mm). The outer diameter of this cable is 0.540 in (13.7 mm).
Question: What is the screw thread size of the cable?
Answer: The SHC68-68-EPM has a screw thread size of 2-56.
