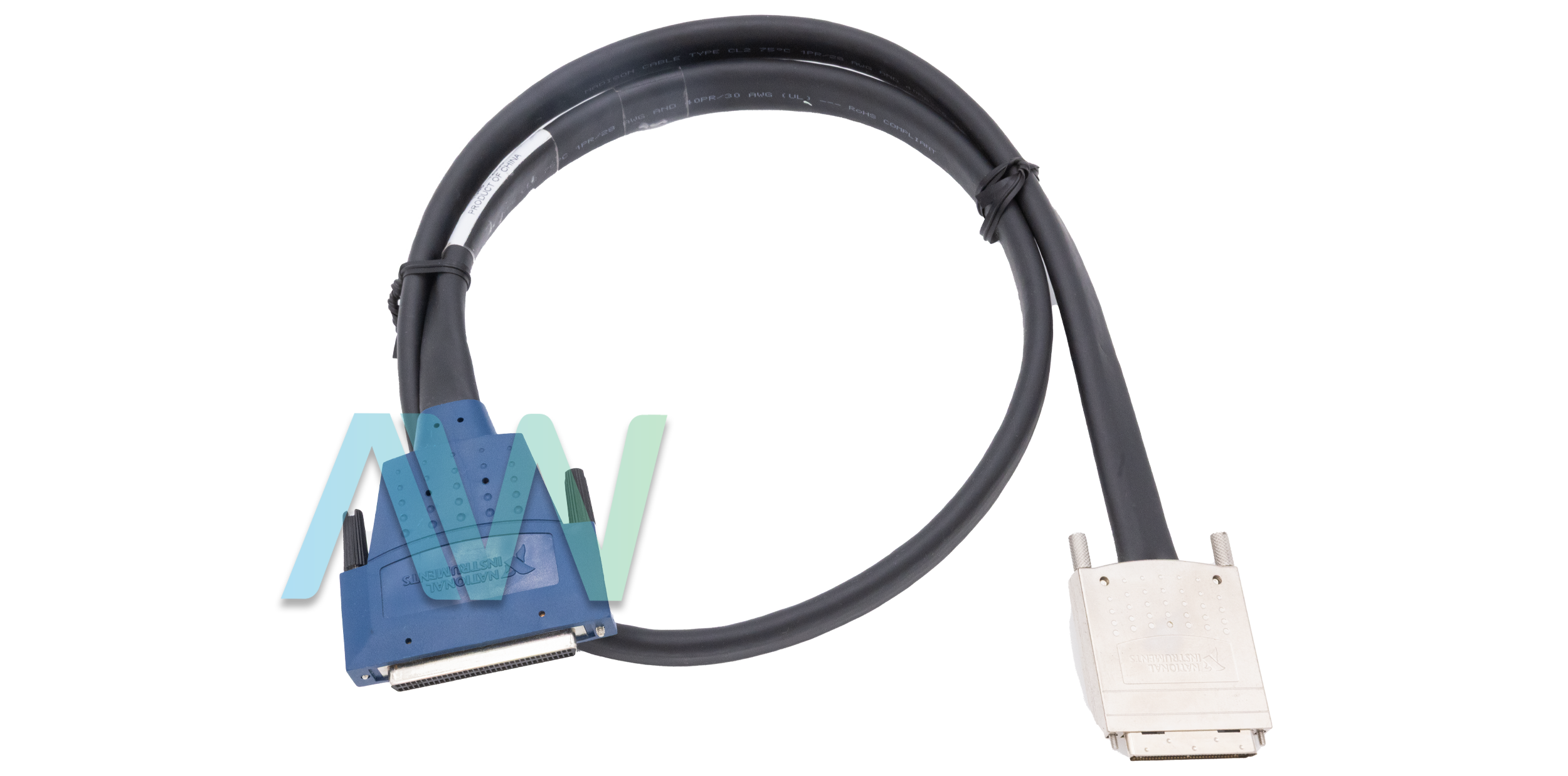

NI SHC68-68-RDIO Shielded Cable | In Stock Ships Today! | Image

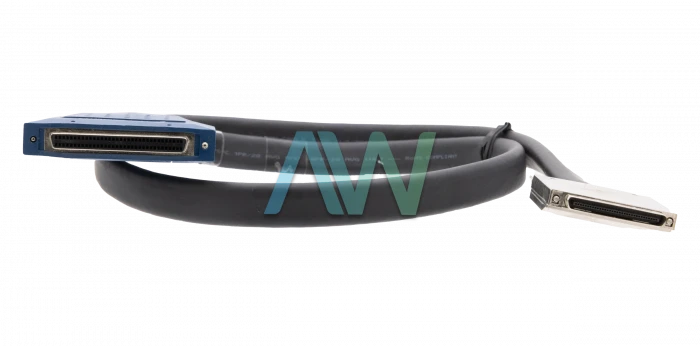

NI SHC68-68-RDIO Shielded Cable | In Stock Ships Today! | Image
SHC68-68-RDIO New
SHC68-68-RDIO Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

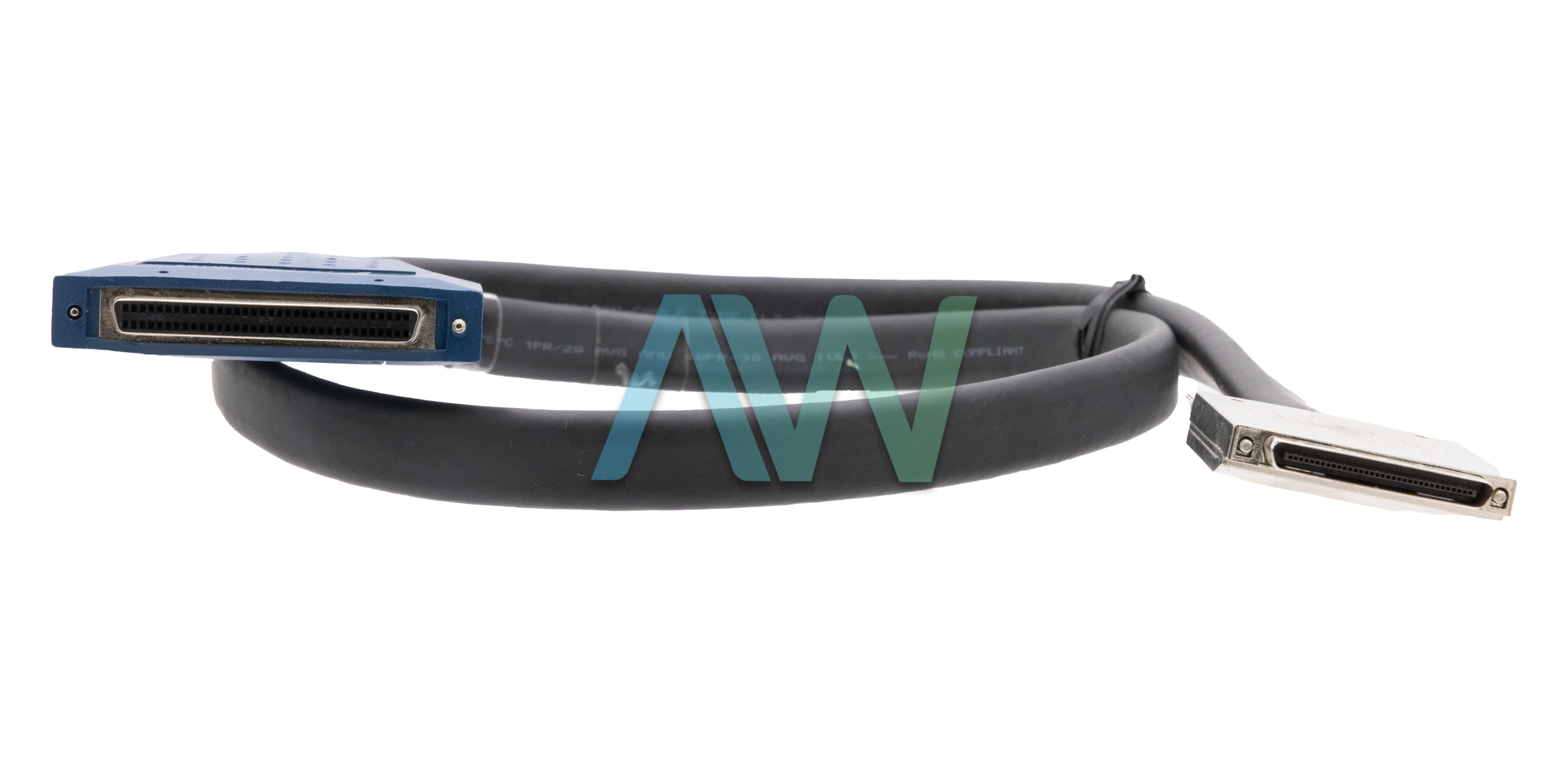

NI SHC68-68-RDIO Shielded Cable | In Stock Ships Today! | Image

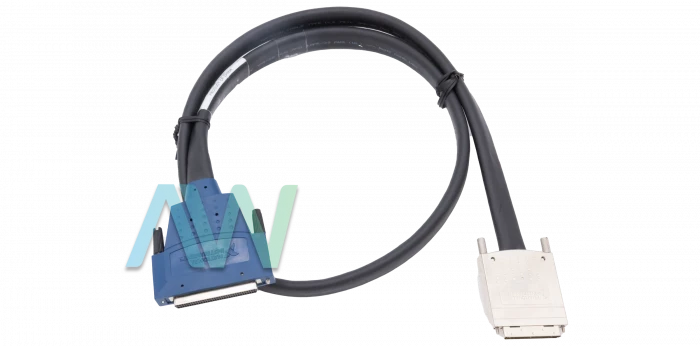

NI SHC68-68-RDIO Shielded Cable | In Stock Ships Today! | Image
SHC68-68-RDIO New
SHC68-68-RDIO Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SHC68-68-RDIO Cable

The National Instruments SHC68-68-RDIO (Part Numbers: 191667-01 and 191667-0R5) is a high-performance Shielded Cable. This product is specifically designed for R Series devices. You can use this cable with the digital input/output (I/O) connectors on the PXI/PCIe/PCI-781xR, 784xR, 785xR, and 783xR R Series devices. The SHC68-68-RDIO should not be utilized with the PXIe-785xR, PXIe-782xR, PXIe-784xR, or the USB R Series devices. The NI SHC68-68-RDIO features a combination of a 68-pin D-type female and a 68-pin VHDCI male connector. This shielded cable is available in 0.5 m or 1 m lengths and can be connected to 68-pin terminal blocks.

The National Instruments SHC68-68-RDIO Shielded Cable has external shielding, as well as twisted I/O lines– a combination of the technique utilized to ensure maximum noise immunity and signal integrity. You can also use the NI SHC-68-68-RDIO Cable with the NI cRIO-9151 Chassis to achieve expansion or signal conditioning for digital and analog I/O.

ModelSHC68-68-RDIO
ManufacturerNational Instruments
Part Numbers191667-01 and 191667-0R5
TypeCable
ConnectorsVHDCI 68-Pin Male Connector
8-Pin Female 0.050 D-Type Connector
Cable Lengths0.5 m or 1 m
ShieldedYes
Warranty2-3 Year Warranty
SHC68-68-RDIO ManualUser Manual and Maintenance Manual Available for Download

Associated part numbers for SHC68-68-RDIO:

National Instruments SHC68-68-RDIO Frequently Asked Questions



Question: Is the SHC68-68-RDIO Cable low leakage?

Answer: No, the NI Cable is not low leakage.



Question: What are the back and front end connectors of the SHC68-68-RDIO?

Answer: The front end connection is a 68-pin Female SCSI type, while the back end connection is 68-pin Male VHDCI



Question: Is the SHC68-68-RDIO shielded?

Answer: Yes, the cable is shielded.
