SHC68-C68-D4 Request for Availability

SHC68-C68-D4, 68-Pin Male VHDCI Connectors, 40 I/O Channels, Digital Cable

Rated 4.7/5 | 11 ratings

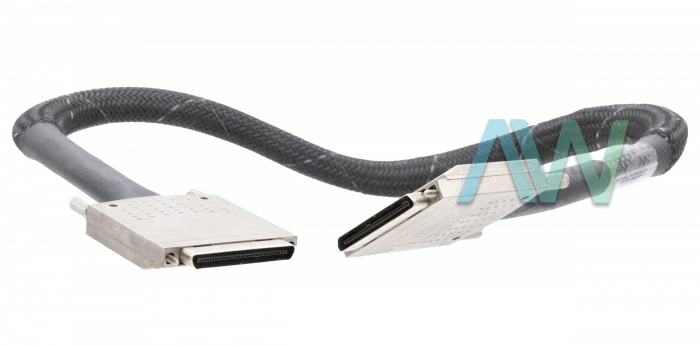

SHC68-C68-D4 National Instruments Digital Cable | Apex Waves | Image

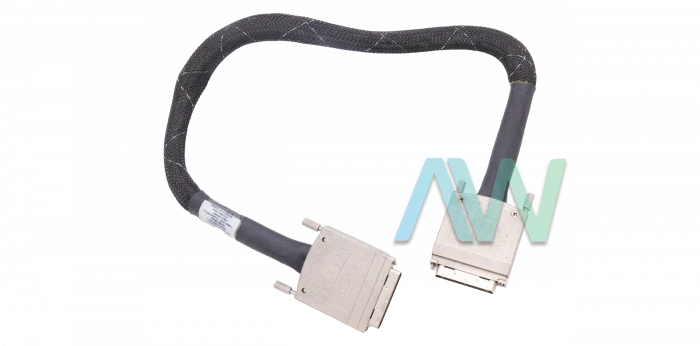

SHC68-C68-D4 National Instruments Digital Cable | Apex Waves | Image
SHC68-C68-D4 New
SHC68-C68-D4 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

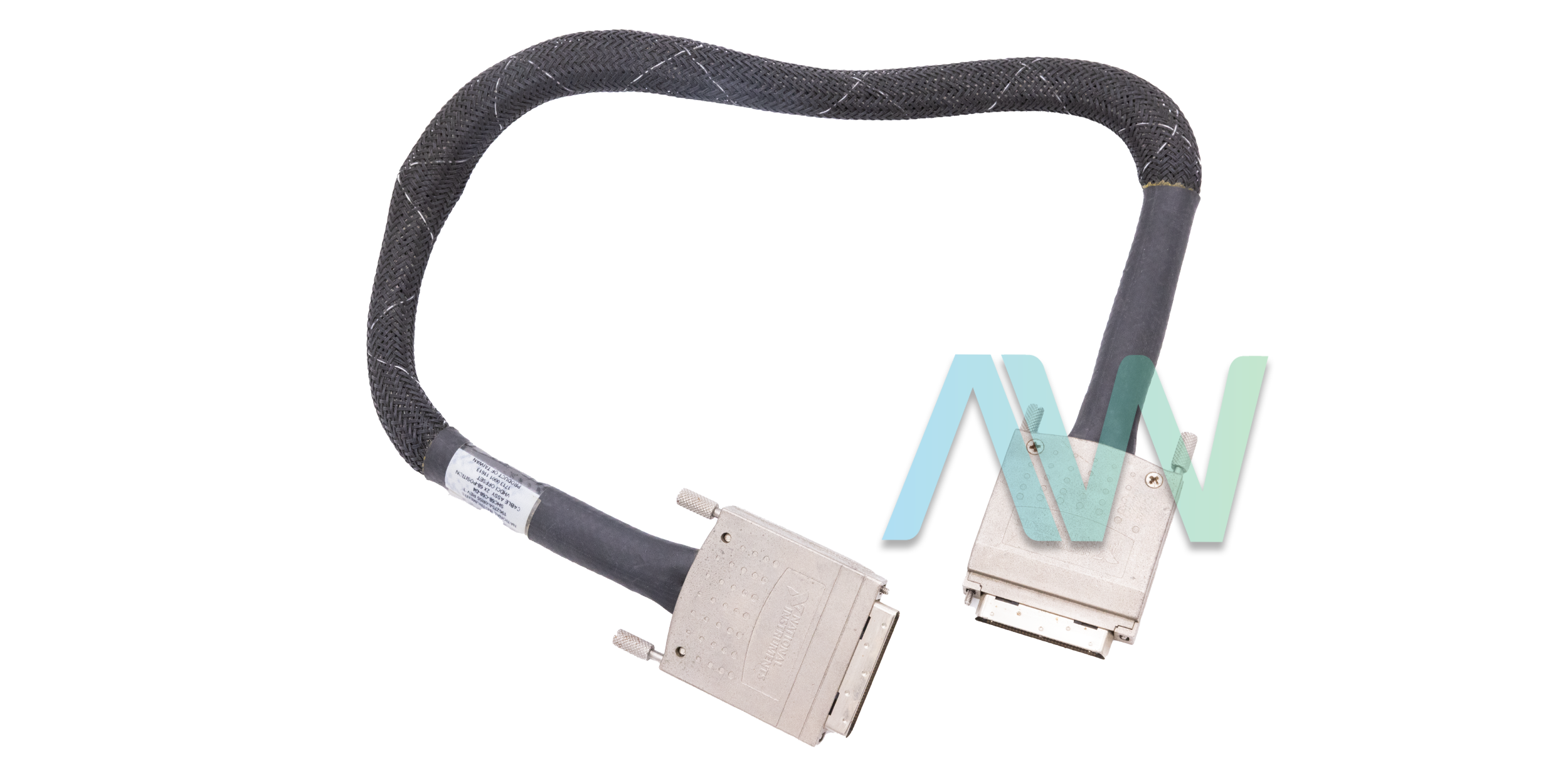

SHC68-C68-D4 National Instruments Digital Cable | Apex Waves | Image

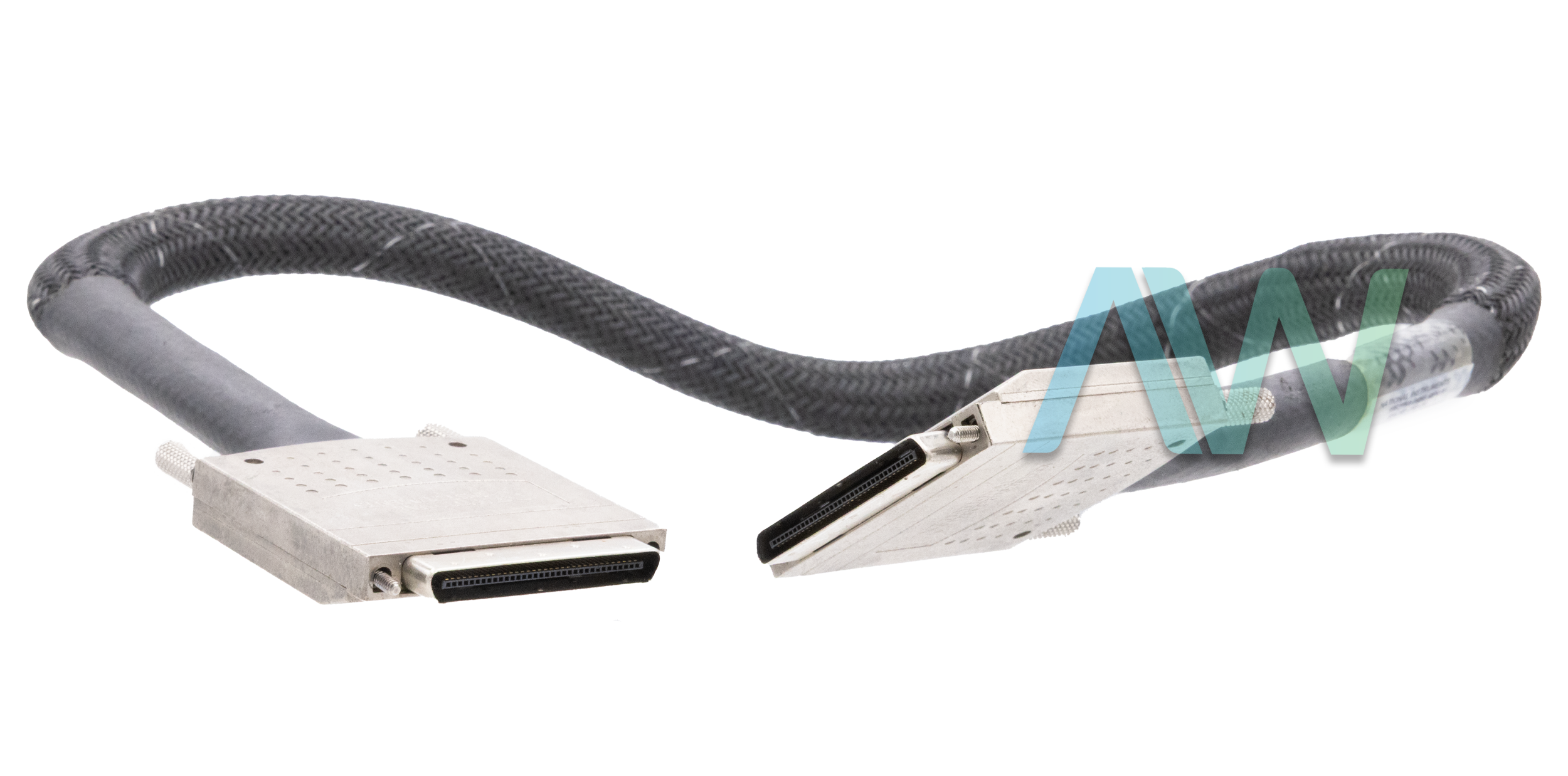

SHC68-C68-D4 National Instruments Digital Cable | Apex Waves | Image
SHC68-C68-D4 New
SHC68-C68-D4 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments SHC68-C68-D4 Digital Cable

The SHC68-C68-D4 (Part Numbers: 781013-01, 196275-01, 781293-01, 152870-01, 132625-03) is a Digital Cable rated to operate at a maximum resistance of 1 ohm. This cable comes with a pair of male, 68-pin VHDCI connectors – one for back-end and the other for front-end connections. With this cable, you can achieve interconnection between various National Instruments accessories and NI 654x, 655x, 6535/6/7 digital instruments. The NI SHC68-C68-D4 is often used with the SMB-2163 Terminal Block and CB-2162 Connector Block. Moreover, this cable can be used with a broad range of digital modules for FlexRIO, high-speed instruments with serial connectivity, and signal generator modules for FlexRIO. The cable is shielded and doesn’t have twisted pairing.

This cable is available in various options under different part numbers. Part number 781013-01 has a length of 0.55 meters,  while part number 196275-01 measures 1 meter in length. Part number 152870-01 has a length of 1 meter (with low leakage), part number 781293-01 measures up to 2 meters, and 132625-03 is 3 meters in length (with a lower DC resistance).

Since the SHC68-C68-D4 is a flexible cable, it can be used in a variety of custom test fixtures. The gauge of the wire utilized in the construction of this cable is 32 AWG; it can accommodate as many as 40 single-ended I/O channels. The maximum voltage of the cable measures ±30 VDC. The additional electrical specifications for the cable differ depending on which length variation is being discussed, with the exception of the characteristic impedance, which is 50 Ω ±10% across the board. The resistance of the Digital Cable measures 0.3 Ω, 0.5 Ω, and 1 Ω for the 0.55 m, 1 m, and 2 m cables respectively. Similarly, the capacitance is either 60 pF, 100 pF, or 200 pF depending on the length. The propagation delay is 2.7 ns for a length of 0.55 m, 4.9 ns for a 1 m cable, and 9.6 ns for a 2 m cable. The final electrical specification, the channel-to-channel skew, measures 50 ps for both 0.55 m and 1 m cables. For 2 m cables, the skew measures 75 ps.

ModelSHC68-C68-D4
ManufacturerNational Instruments
Part Numbers781013-01, 196275-01, 781293-01, 152870-01, 132625-03
TypeDigital Cable
Cable Lengths0.55 m, 1 m, 2 m, or 3 m
Back-End Connection68-Pin, Male VHDCI
Front-End Connection68-Pin, Male VHDCI
Shielded?Yes
Twisted Pairing?No
I/O Channels40 Single-Ended
Maximum Voltage±30 VDC
Characteristic Impedance50 Ω ±10%
Resistance0.55 m: 0.3 Ω
1 m: 0.5 Ω
2 m: 1 Ω
Wire Gauge Stranding7/0.08 mm (7/40)
Wire Gauge Size32 AWG
Weight0.55 m: 6.2 oz (175 g)
1 m: 9.0 oz (255 g)
2 m: 15.3 oz (435 g)
WarrantyThree Year Warranty
SHC68-C68-D4 ManualUser Manual and Maintenance Manual Available for Download

Associated part numbers for SHC68-C68-D4:

National Instruments SHC68-C68-D4 Frequently Asked Questions



Question: What safety standards does the SHC68-C68-D4 cable meet?

Answer: This shielded cable meets the requirements for the IEC 61010-1, EN 61010-1, • UL 61010-1, and CSA 61010-1 standards.



Question: What does "low leakage" mean?

Answer: A "low leakage" cable is one that properly contains the RF signals and is well insulated.



Question: What additional specifications should be observed when using the SHC68-C68-D?

Answer: When using the cable, be sure that any connected devices do not exceed their individual operating specifications.
