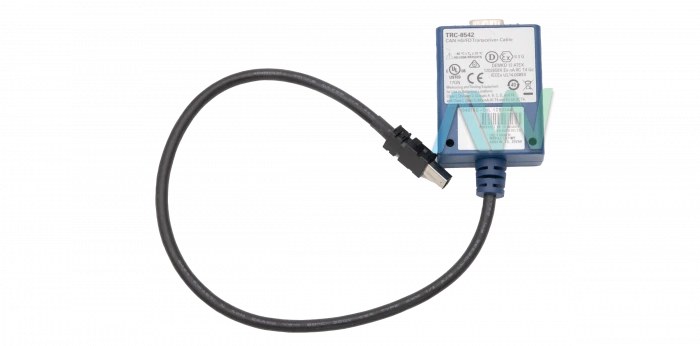

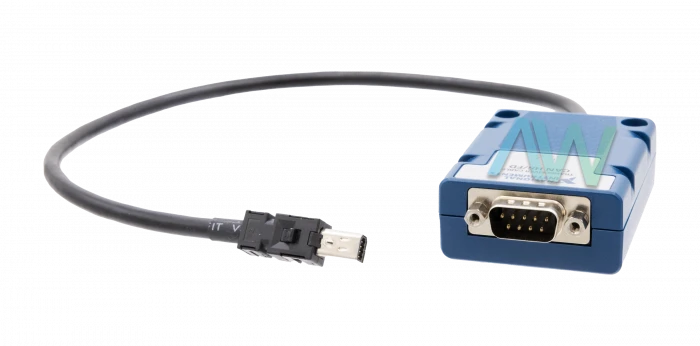

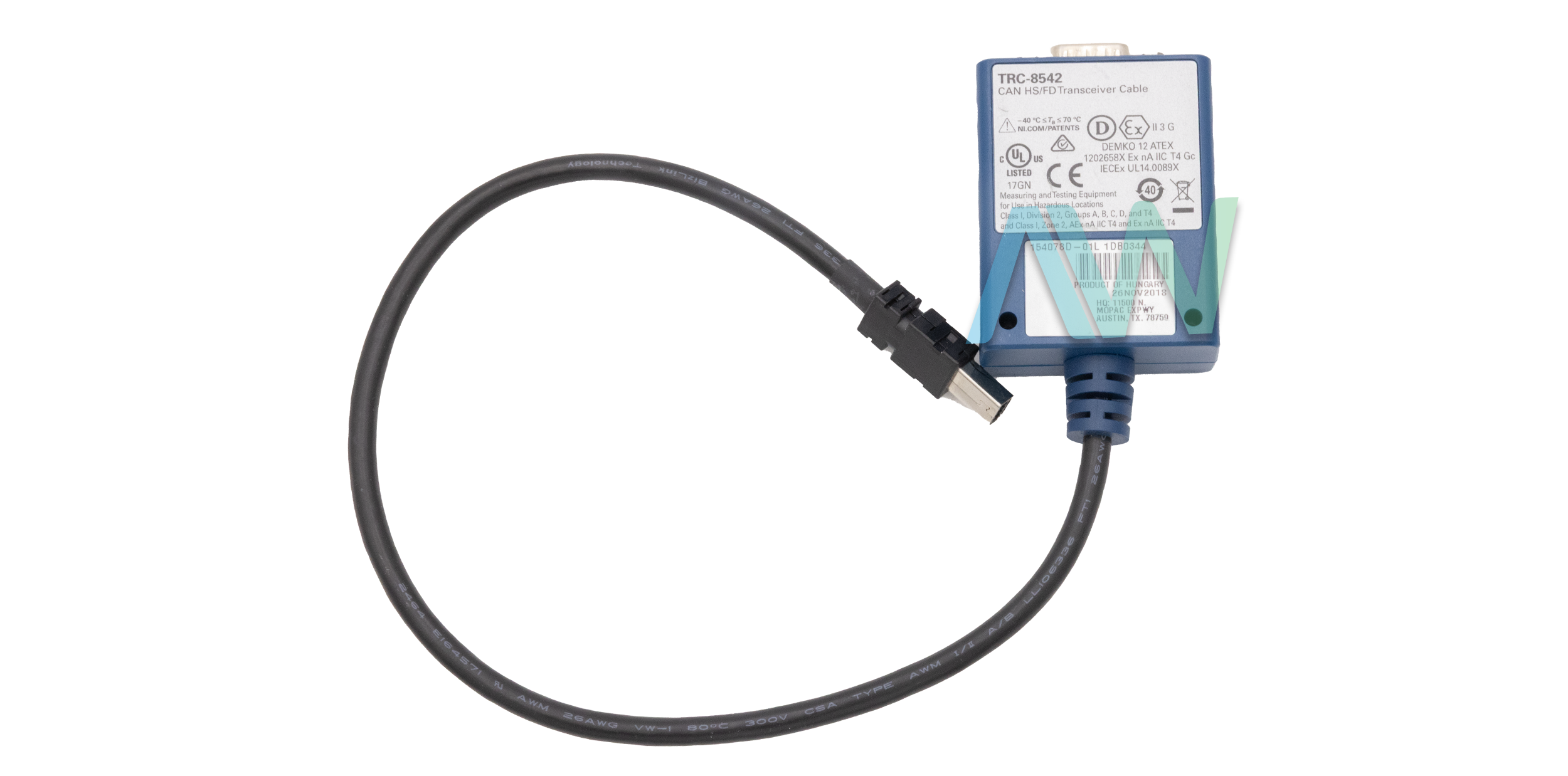

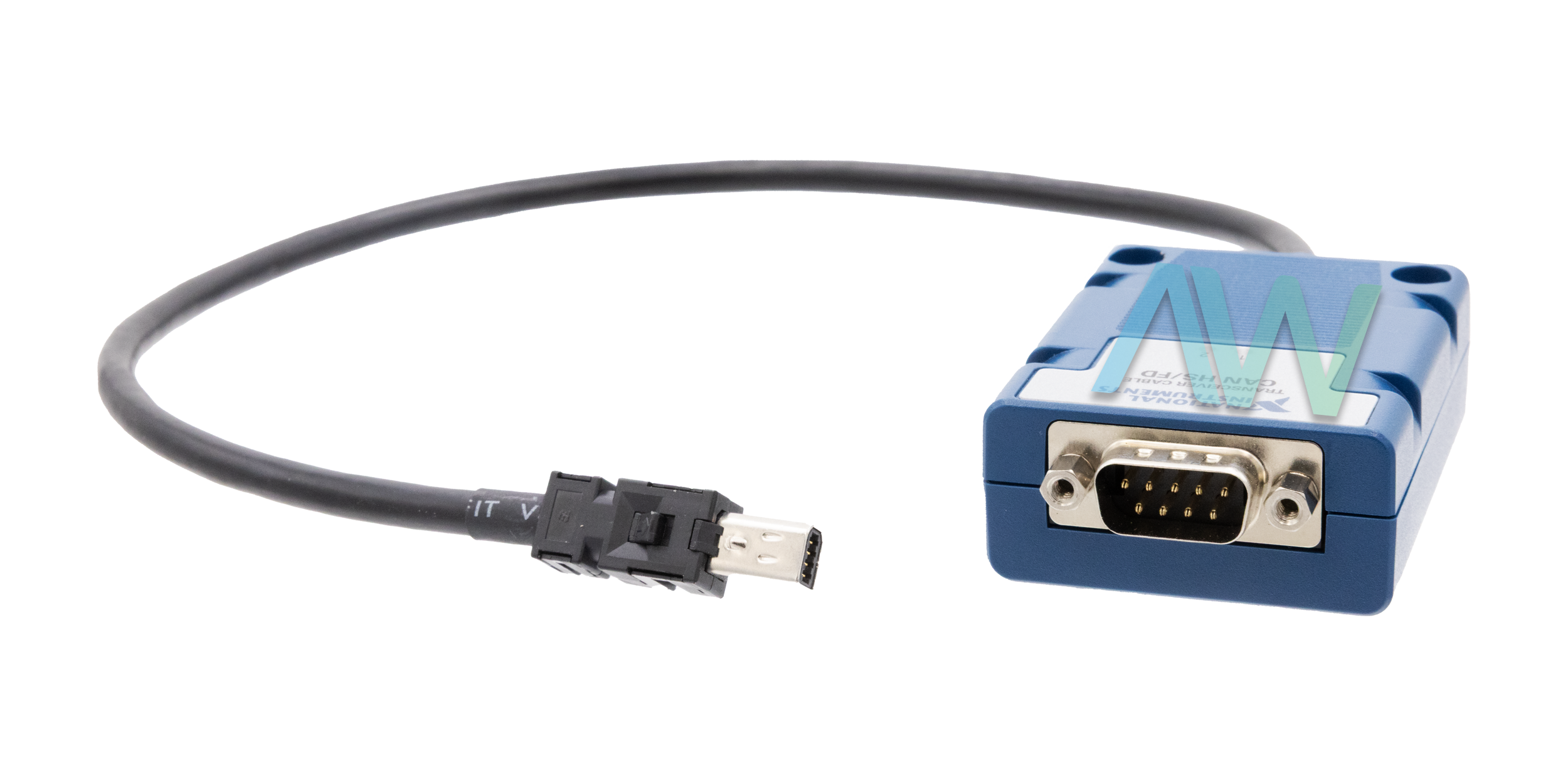

National Instruments TRC-8542 Transceiver Cable
The TRC-8542 (Part Numbers: 142689-01L, 154066-02, 783699-02, and 783699-03) is a CAN HS/FD (High-Speed/Flexible Data-Rate) Transceiver Cable from National Instruments. This Transceiver Cable brings great flexibility for the construction of a system where a CAN bus must be connected to the National Instruments PXIe-8510, NI-9860, or an XNET port on a CompactDAQ Controller. This cable comes equipped with an integrated transceiver (NXP TJA1043T). With this cable, you can achieve up to 5 Mbps maximum baud rate. The transceiver incorporated in this cable has -27 to +40 VDC input voltage limits for CAN_H (CAN HIGH) and CAN_L (CAN LOW) bus lines.
The output voltage limit for CAN HIGH and CAN LOW is 5 VDC. This Transceiver Cable does not require an external power source and does not draw power from the CAN bus since it is powered internally by the host. The NI TRC-8542 is intended to be used for measurement CAT I signals only. This Transceiver Cable consumes around 50 mW of maximum power in active mode.
| Model | TRC-8542 |
|---|---|
| Manufacturer | NI |
| Part Numbers | 142689-01L, 154066-02, 783699-02, and 783699-03 |
| Type | Transceiver Cable |
| Conformal Coating Available | Yes |
| CAN Physical Layer | High-Speed, Flexible Data-Rate |
| Transceiver | NXP TJA1043T |
| Maximum Certified Baud Rate | 5 Mbps |
| Length | 17.6 to 18.2 in. |
| Weight | 1 lb. |
| Warranty | 2-3 Year Warranty |
| TRC-8542 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
Associated part numbers for TRC-8542:
National Instruments TRC-8542 Frequently Asked Questions
Question: What is a TRC cable?
Answer: TRC stands for Test Reference Cord. Cables such as the TRC-8542 offer consistent results that meet certified cabling standards.
Question: What is the baud rate for the Transceiver Cable?
Answer: The maximum certified baud rate for the TRC-8542 is 2 Mbps
Question: What is the power consumption from the host of the TRC-8542?
Answer: When in active mode, the power consumption is typically 440 mW and is at maximum 550 mW.
Question: Does the TRC-8542 require external power?
Answer: No, the TRC-8542 is internally powered from the host.
