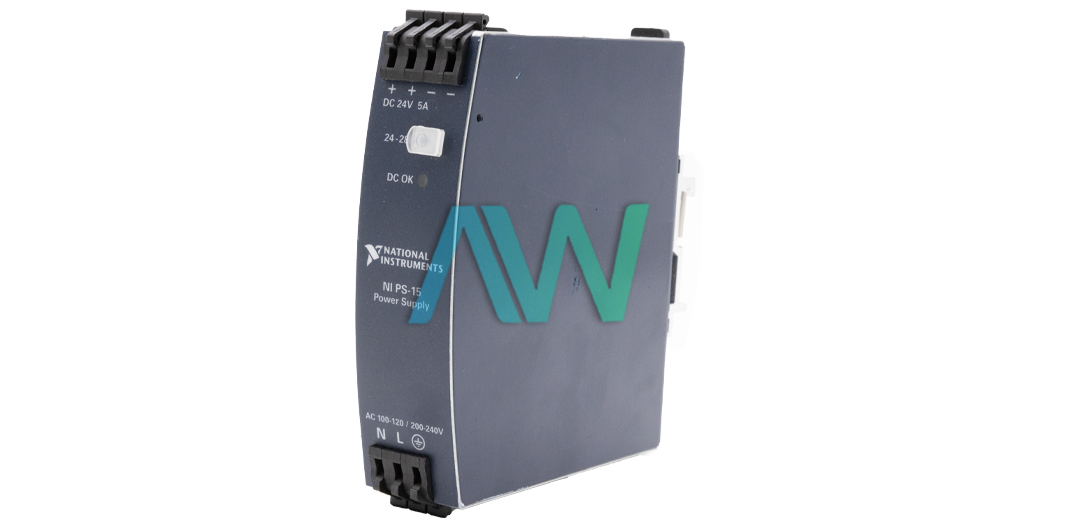

NI 781093-01 Industrial Power Supply | Apex Waves | Image

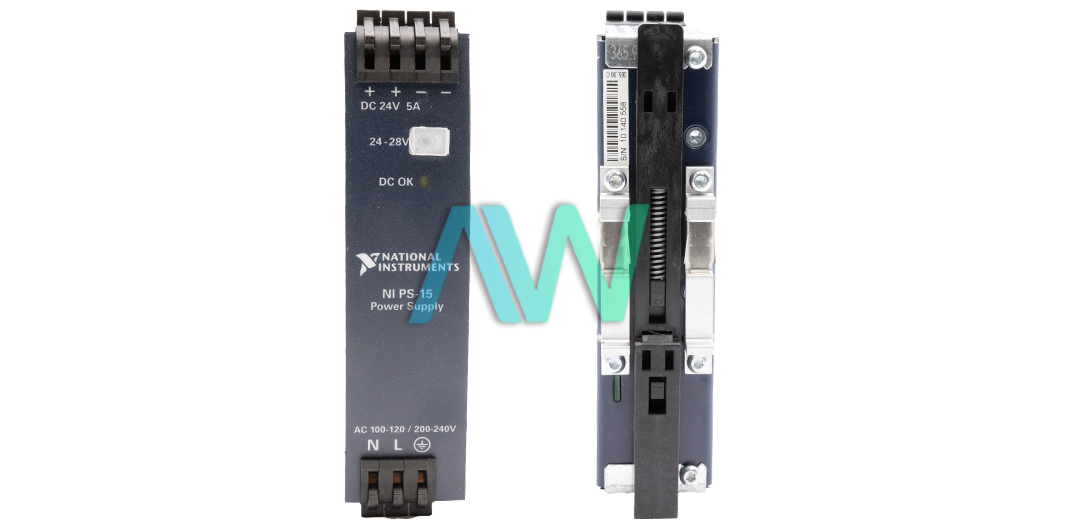

NI 781093-01 Industrial Power Supply | Apex Waves | Image
781093-01 New
781093-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

NI 781093-01 Industrial Power Supply | Apex Waves | Image
NI 781093-01 Industrial Power Supply | Apex Waves | Image
781093-01 New
781093-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 781093-01 Industrial Power Supply

National Instruments part number 781093-01 is an identifying part number for the PS-15, a DIN-Mountable Industrial Power Supply. The NI 781093-01 is an Industrial Power Supply designed to power CompactDAQ and CompactRIO systems, CompactRIO Single-Board Controllers, Smart Cameras, touch panel computers (TPCs), and more.

It includes DIN rail mounting and toolless spring-clamp terminals for easy field connectivity. The PS-15 provides 120 W output power and operates within a temperature range of -25 °C to +60 °C. It supports a 100 VAC to 240 VAC input to meet region-specific power cable requirements. Additionally, the 781093-01 offers a 20 percent power reserve for fluctuating loads, allowing for continuous use of the extra current at ambient temperatures below 45 °C. This NI Power Supply features four output terminals: two positive and two negative. The two negative terminals are internally connected, as are the two positive terminals.

This power supply offers versatile mounting options, including optional accessories for wall, panel, and side mounting. For a low-profile DIN-rail installation, users can combine the DIN-rail mounting bracket with the side mount kit.

The DIN-rail system and spring clamp terminals of the NI 781093-01 do not require tools, making the installation quick and easy. One standout feature of this Power Supply is its ability to continuously utilize the 20% output power reserves for ambient temperatures below 45°C. The AC 100-120 V/200-240 V Auto-select input ensures effortless worldwide usage and installation. Designed for enclosure installation, the National Instruments PS-15 Power Supply is versatile, catering to a wide range of applications including instrumentation equipment, communication, office, and industrial control.

Part Number781093-01
Model NamePS-15
Part TypeDIN-Mountable Industrial Power Supply
Output Power120 W
Power Reserve20 %
Temperature Range-25 to +70°C
Output Voltage24 to 28 V
Output Current5 A
Input Voltage90 to 132/
180 to 264 VAC
Weight500 g
