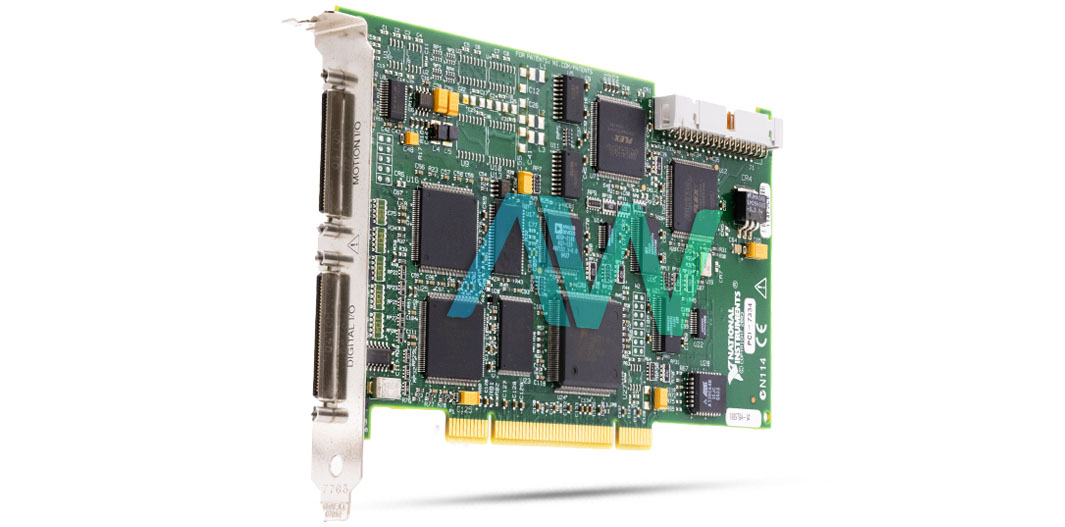

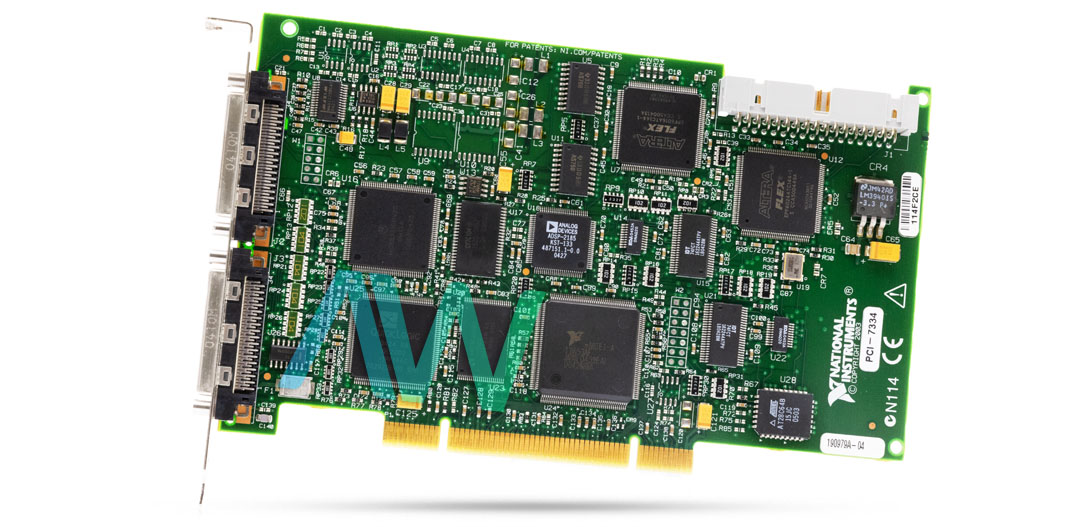

National Instruments PCI-7334 Motion Controller Device
Featured with advanced motion control, add-on motion VI libraries, and easy-to-use software tools, the National Instruments PCI-7334 (Part Numbers: 778417-01, 186307C-06) is a Stepper Motion Controller. This device is a combination of a stepper and servo motor controller for PCI bus computers. The NI PCI-7334 offers fully programmable motion control for four coordinated or independent axes of motion. With this Motion Controller, the user can work with complicated and arbitrary motion trajectories by using servo devices or stepper motors.
Servo axes offered by this Motion Controller can control servo hydraulics, servo valves, servo motors, and various other servo devices. Servo axes work in closed-loop mode only and utilize analog inputs or quadrative encoders for velocity and position feedback, along with providing ±10 V analog command outputs. The stepper axes incorporated in this device can contol stepper motors and operate in either open or closed-loop mode. The National Instruments PCI-7334 has a Motorola MC68331, 32-bit, real-time processor coupled with ADSP-2185 DSP (digital signal processor) and FPGAs.
This Motion Controller allows users to execute as many as 10 motion programs simultaneously in a real-time, multi-tasking enabled operating system environment. This device features non-dedicated user I/O with four analog inputs and 32 bit digital I/O. The external digital I/O and motion connectors provided on the NI PCI-7334 Motion Controller are 68-pin, high-density female VHDCI connectors. This device can easily be configured through software and doesn't require jumper adjustments. The device requires the presence of an Application Development Environment such as LabVIEW, LabWindows/CVI, or the FlexMotion software. Also, your computer should have a PCI/PXI slot or a 1394 port.The device has 3 connectors which transport to and from the motion system; they are: a 68-pin motion I/O connector-it contains 4 channels of 12-bit A/D inputs for analog input/feedback, a 68-pin digital I/O connector, a RTSI connector-which facilitates synchronization between various National Instruments products.
Each NI PCI-7334 requires:
-MID-7604 Stepper Motor Drive: 777936-01
-SHC68-C68-S 0.5 m Cable: 186380-0R5
-UMI-7764 Universal Motion Interface: 777978-02
-SH68-C68-S 2 m Cable: 186381-02
The Obsolete Status of the PCI-7334 has been announced by National Instruments, but the Motion Controller Device will remain available in perpetuity for both purchase and repairs with Apex Waves.
| Model | PCI-7334 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778417-01, 186307C-06 |
| HTS Code | 8471804000 |
| Type | Motion Controller Device |
| Mode | Stepper |
| Number of Axes | 4 |
| Trajectory Update Rate Range | 62.5 to 500 µs/sample |
| Maximum Update Rate. | 62.5 µs/axis |
| Maximum Step Frequency | 4 MHz (full, half, and microstep) |
| Encoder Input Rate | 20 MHz |
| Step Output Mode | Step and Direction or CW/CCW |
| Velocity Range | 1 to 4,000,000 steps/s |
| Number of Inputs | 3 Per Axis |
| Analog Inputs | 8 (12-bit Resolution, ±10 V range, 50 µs scan rate) |
| Digital I/O | 4 Ports (8-Bit) |
| PWM Outputs | 2 (32 KHz, 8-Bit) |
| Power Consumption | 5.7 W |
| Power Requirements | +5 V, +12 V, –12 V - 1 A, 30 mA, 30 mA |
| Motion I/O Connector | 68-Pin Female High-Density VHDCI |
| 32-bit Digital I/O Connector | 68-Pin Female High-Density VHDCI |
| Dimensions | 6.9 in. × 3.9 in |
| Weight | 0.25 lb. |
| Software Driver | NI-Motion |
| Warranty | Three Year Warranty |
| PCI-7334 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Submit a Quote Request for Pricing |
Associated part numbers for PCI-7334:
National Instruments PCI-7334 Frequently Asked Questions
Question: Is LabVIEW 8.5 with the PCI-7334 compatible with Motion 8.4?
Answer: Motion 8.4 is not compatible with LabVIEW 8.5 and the PCI-7334.
Question: What cables do I need to connect the PCI-7334 to one UMI and one SSR backplane?
Answer: To connect the Motion Controller Device to a UMI, you need the SH68-c68-S Cable with D-Type Connector. To connect to an SSR backplane, you need the SHC68-C68-S Cable with the SSR 8, 16, 24 Channel Cable Adapter.
Question: What type of a device is the NI PCI-7334?
Answer: The NI PCI-7334 is a 4-axis, stepper motion controller device, designed for point-to-point motion application.
