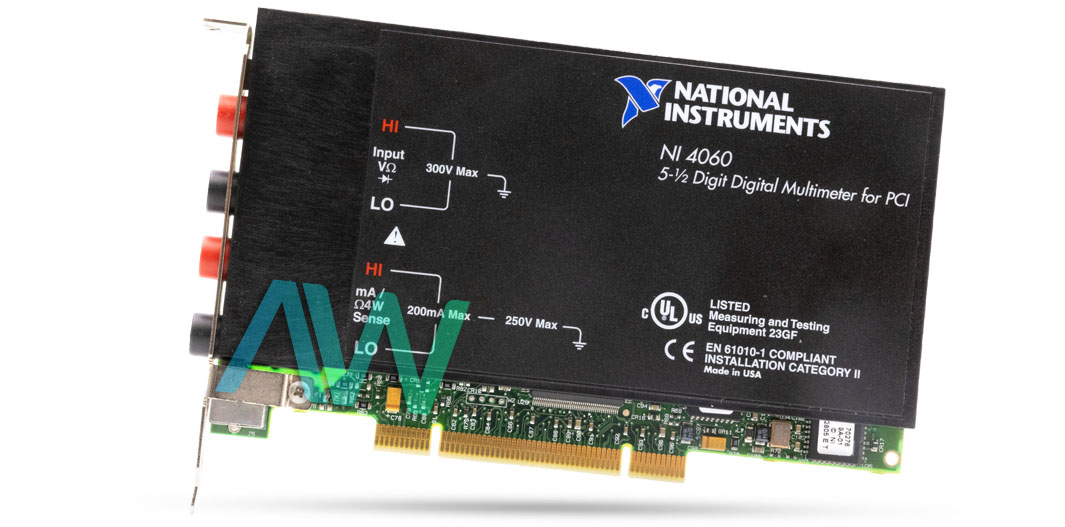

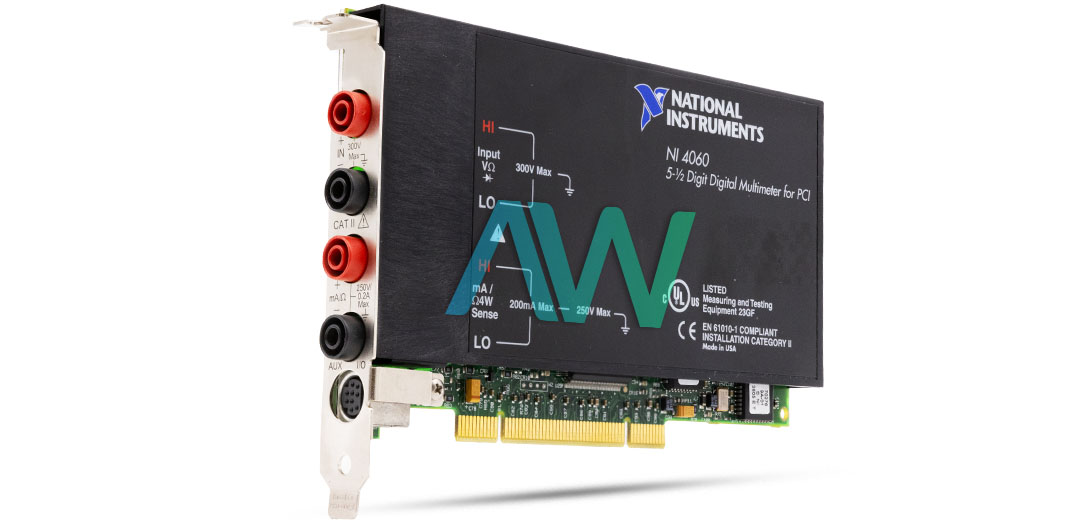

National Instruments 777559-01 Digital Multimeter Instrument Kit
National Instruments part number 777559-01 is an identifying part number for the PCI-4060, a Slave Bust Type Digital Multimeter Instrument Kit. This device can be installed in PC-based systems, and read voltage, resistance, and current measurements, just like any multimeter.
Additionally, it can perform temperature and frequency measurements. The device can also be used for conducting diode tests to measure both AC and DC parameters. The 777559-01 is a cost-efficient device, making it particularly suitable for OEMs and educational laboratories. This Digital Multimeter Device has two operation modes; AC and DC. The AC voltage range is 20 Vrms to 250 Vrms. Whereas the DC mode has a maximum resolution of up to 5.5 bits, and the voltage range for the DC mode is from +20 mV to +250V.
This device can measure resistance using 2-wire and 4-wire methods. In the 2-wire mode, users can select from a range of 200 Ω to 200 MΩ. The auto-range option is also available. In 4-wire mode, both pairs of terminals are utilized. The 4-wire mode eliminates the effects of lead resistance; with this feature, this digital multimeter can measure low valve resistance with precision. The measurement with this mode ranges from 200 Ω to 2 MΩ.
This Digital Multimeter can also be used to measure diodes. It can measure up to 2V in diode testing mode. In this mode, a diode is excited by the 777559-01, and a voltage drop is measured. The diode being tested is indicated as defective or reverse-biased if the reading is 2.20V. This multimeter comes with a recommended warm-up time of 30 minutes. Moreover, it has an input resistance of 1 Mohm and a bandwidth of 20 Hz to 25kHz.
| Part Number | 777559-01 |
|---|---|
| Model Name | PCI-4060 |
| Part Type | Slave Bus Type Digital Multimeter Instrument Kit |
| Driver Software | NI-DMM |
| Bandwidth | 20 Hz to 25 kHz |
| Input Resistance | 1 Mohm |
| Power Requirement | +5 VDC, 250 mA in operational mode |
| Maximum AC Input | 200 mA/250 V |
| Warm Up Time | 30 minutes |
| Working Voltage | 300 V maximum between either input terminal and earth ground |
