Modular Systems > National Instruments > PCI Multifunction Devices

PCI-6033E In Stock | Ships in 3-5 Days

Q: Does the NI PCI-6033E have DIP switches, potentiometers, or jumpers?

No, the DAQ does not have DIP switches, potentiometers, or jumpers, which makes it simple to calibrate and configure with software.

Q: Which types of cables can be used with the device?

The following cables can be used with the PCI-6033E: SH1006868, SH100100, and R1005050.

PCI-6033E, 24 Bit Counter/Timers, 64 Analog Input Channels, NI Multifunction DAQ

Rated 4.5/5 | 8 ratings

PCI-6033E National Instruments Multifunction DAQ | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

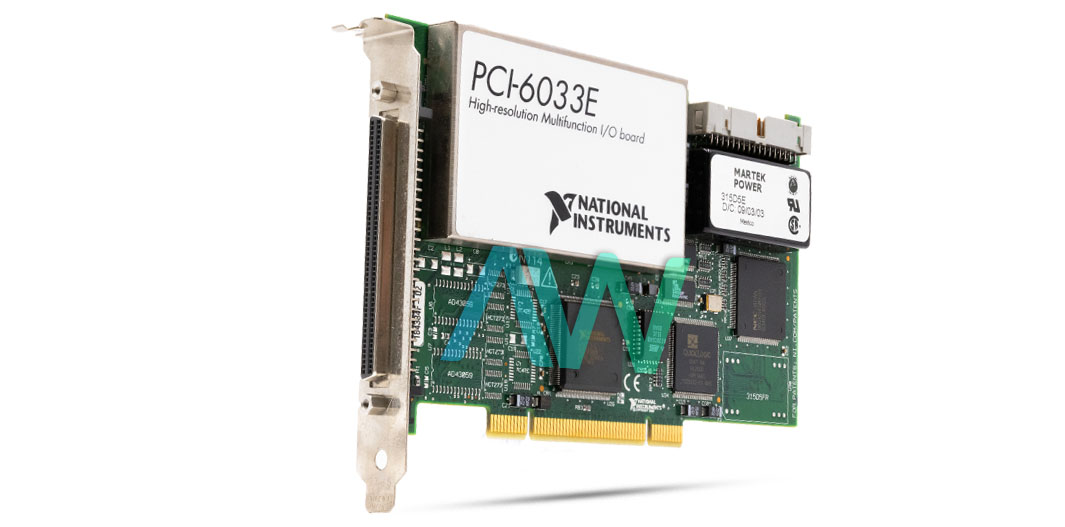

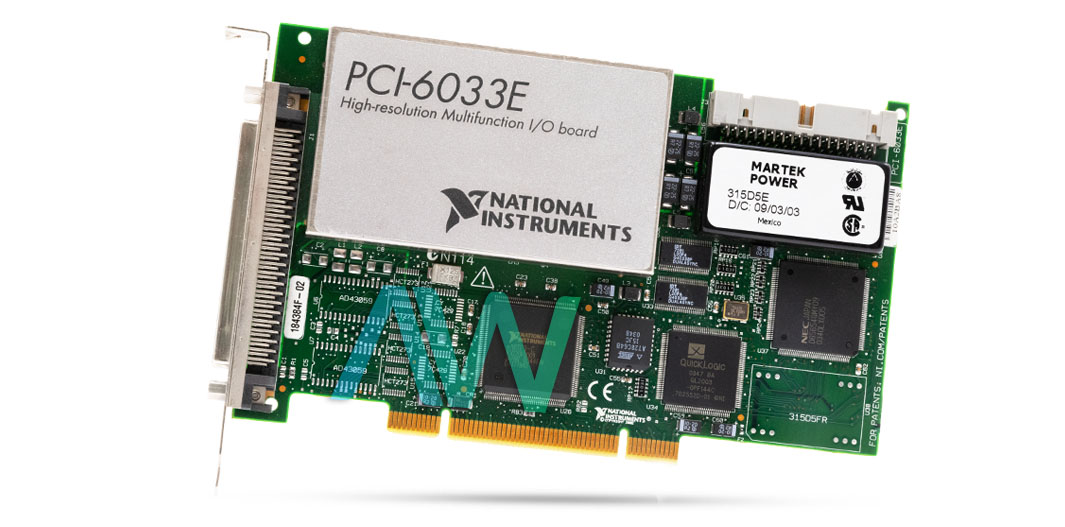

National Instruments PCI-6033E Multifunction DAQ

National Instruments' PCI-6033E (Part number: 777516-01) is a data acquisition (DAQ) device intended for a variety of industrial automation uses. It is appropriate for activities in research, design verification/test, production test, and laboratory automation since it has two 24-bit counters, digital I/O, and analog input.

With 64 single-ended or 32 differential channels (software-selectable per channel), the PCI-6033E provides flexibility for various measurement setups. Its 16-bit resolution and 100 kS/s maximum sampling rate per channel are made possible by its successive approximation analog-to-digital converter (ADC), which guarantees accurate conversion.

Each input on the device can withstand voltages up to ±11 V from ground thanks to input coupling that is set up for DC signals. With tolerances of ±25 V when powered on and ±15 V when powered off, robust overvoltage protection defends against any harm. A FIFO buffer with capacities ranging from 512 to 1,024 samples is included in the PCI-6033E for data handling. Three DMA channels are used to expedite data transfers and support interrupts, programmable I/O, and direct memory access. For effective data transport, DMA modes include scatter-gather.

Transfer characteristics are highly accurate, with differential nonlinearity (DNL) normally within ±0.5 LSB and relative accuracy typically within ±0.75 LSB. The PCI-6033E ensures that there are no missing codes, providing trustworthy data capture in a range of scenarios. When powered on, the amplifier has a high input impedance (100 GΩ in parallel with 100 pF), which minimizes signal distortion. With overload protection, the input impedance maintains a reasonable 820 Ω when the device is turned off. Measurement precision is improved by offset currents and low input bias.

Crosstalk between channels is minimal, with attenuation levels of –75 dB for adjacent channels and –90 dB for all others across the DC to 100 kHz frequency range. The PCI-6033E maintains maximum working voltages of 11 V channel-to-earth and 11 V channel-to-channel, suitable for Installation Category I environments. Storage temperatures vary from –20 to 70 °C, whereas operating temperatures are between 0 and 50 °C. For PCI and PXI devices, relative humidity tolerances are defined between 10 and 90.

The PCI-6033E is no longer available directly from National Instruments, but the Multifunction DAQ will remain available with Apex Waves in perpetuity for both purchase and repair services!

Model	PCI-6033E
Manufacturer	National Instruments
Part Number	777516-01
Series	E Series
Type	Multifunction DAQ
Analog Input Channels	64 Single-Ended or 32 Differential
Analog Input Resolution	16 Bits
Dimensions	6.9 in. × 4.2 in.
Weight	6.2 oz.
Warranty	Three Year Warranty
PCI-6033E Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote for Pricing
