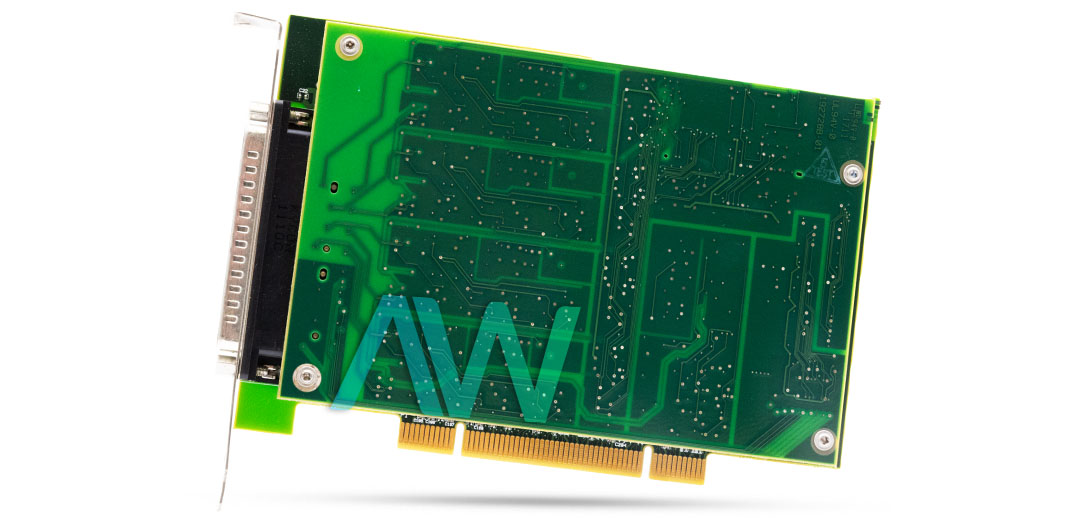

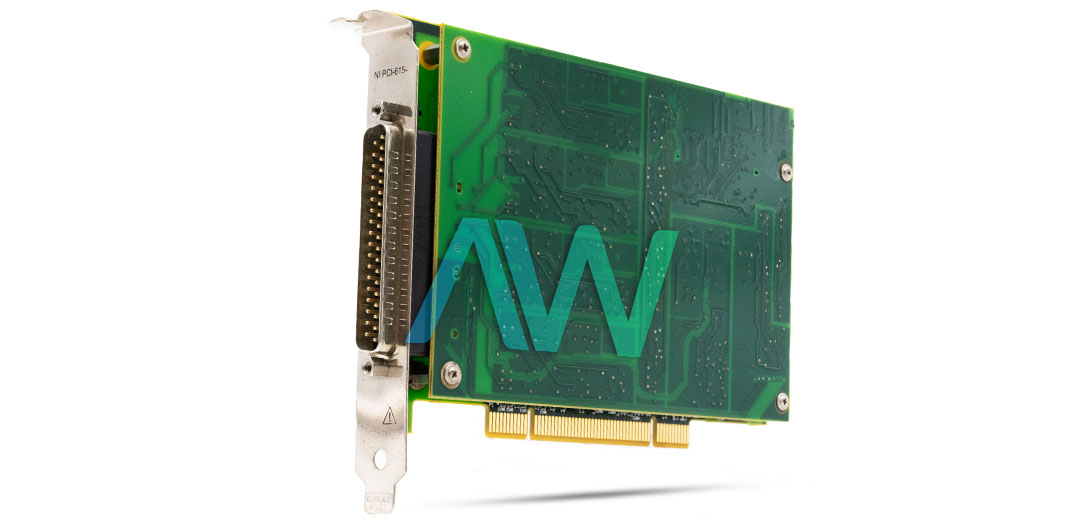

National Instruments PCI-6154 Multifunction I/O Device
Featured with Channel-to-Channel Isolation and Simultaneous Sampling, the National Instruments PCI-6154 (Part Number: 779340-01) is a Multifunction I/O Device. This model offers four Analog Inputs, four Analog Outputs, six Digital Inputs, and four Digital Outputs. Moreover, the NI PCI-6154 has two 32-bit counters and supports digital triggering. The two 32-bit general purpose counters/timers on this model come with 20 MHz, 80 MHz, and 100 KHz internal base clocks. These characteristics make the PCI-6154 an ideal solution for various applications, such as industrial control, automotive test, and continuous data logging.
The NI-DAQmx driver offered with this device helps with keeping the process of measurements and configurations simple. Each of the four analog inputs available on this Multifunction I/O Device operate under an overvoltage protection set at ±25 V. The analog inputs and outputs of the NI PCI-6154 support DC coupling and their maximum sampling rate remains around 250 kS/s. This device comes equipped with one D-SUB type 37-pin I/O connector. The four 16-bit differential channels offered by this device are 16-bit differential channels with ±10 to ±1 V input range.
This PCI based device can be employed in any 3.3 V or 5 V signaling environment and in typical conditions the NI PCI-6154 draws 1.3 A. This model has 5279 uV analog input absolute accuracy and D-Sub front connectors. The PCI-6154 measures voltage electrical signals. Moreover, this device also has a 1-Channel frequency generator with 10 MHz and 100 kHz Base Clocks, along with 1 to 16 Divisors.
Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PCI-6154 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!
| Model | PCI-6154 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779340-01 |
| Type | Multifunction I/O Device |
| Analog Input Channels | 4 (16-Bit, 250 kS/s) Isolated |
| Analog Output Channels | 4 (16-Bit, 250 kS/s) Isolated |
| Digital Input | 6 TTL Compatibility |
| Digital Output | 4 TTL Compatibility |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| Frequency Generator Channels | 1 |
| I/O Connector | 37-pin D-SUB |
| Power Requirements | +5 V - 1.3 A |
| Dimensions | 6.2 in. × 3.9 in |
| Weight | 0.44 lb. |
| Driver Software | NI-DAQmx |
| Warranty | 2-3 Year Warranty |
| PCI-6154 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6154:
National Instruments PCI-6154 Frequently Asked Questions
Question: How many DMA channels does the NI PCI-6154 have?
Answer: The NI PCI-6154 has 4 DMA channels, whereas most of the other Multifunction DAQ Devices in the S Series have 3.
Question: What is the input FIFO size of the Multifunction I/O Device?
Answer: The input FIFO size is 8,190 samples.
Question: Does the PCI-6154 have simultaneous sampling?
Answer: Yes, the PCI-6154 and all other S Series devices have simultaneous sampling.
Question: Which type of I/O connector does the NI PCI-6154 have?
Answer: The single I/O Connector is a 37-pin D-SUB type.
PCI-6154 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PCI-PCI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
INSTALLING-EMI-SUPPRESSION-FERRITES-FOR-THE-NI-PCI-6154-NOTE-TO-USERS.PDF
ISOLATED-M-S-SERIES-CALIBRATION-PROCEDURE.PDF
