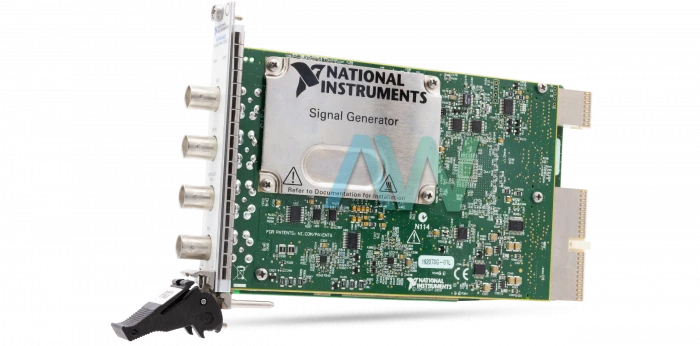

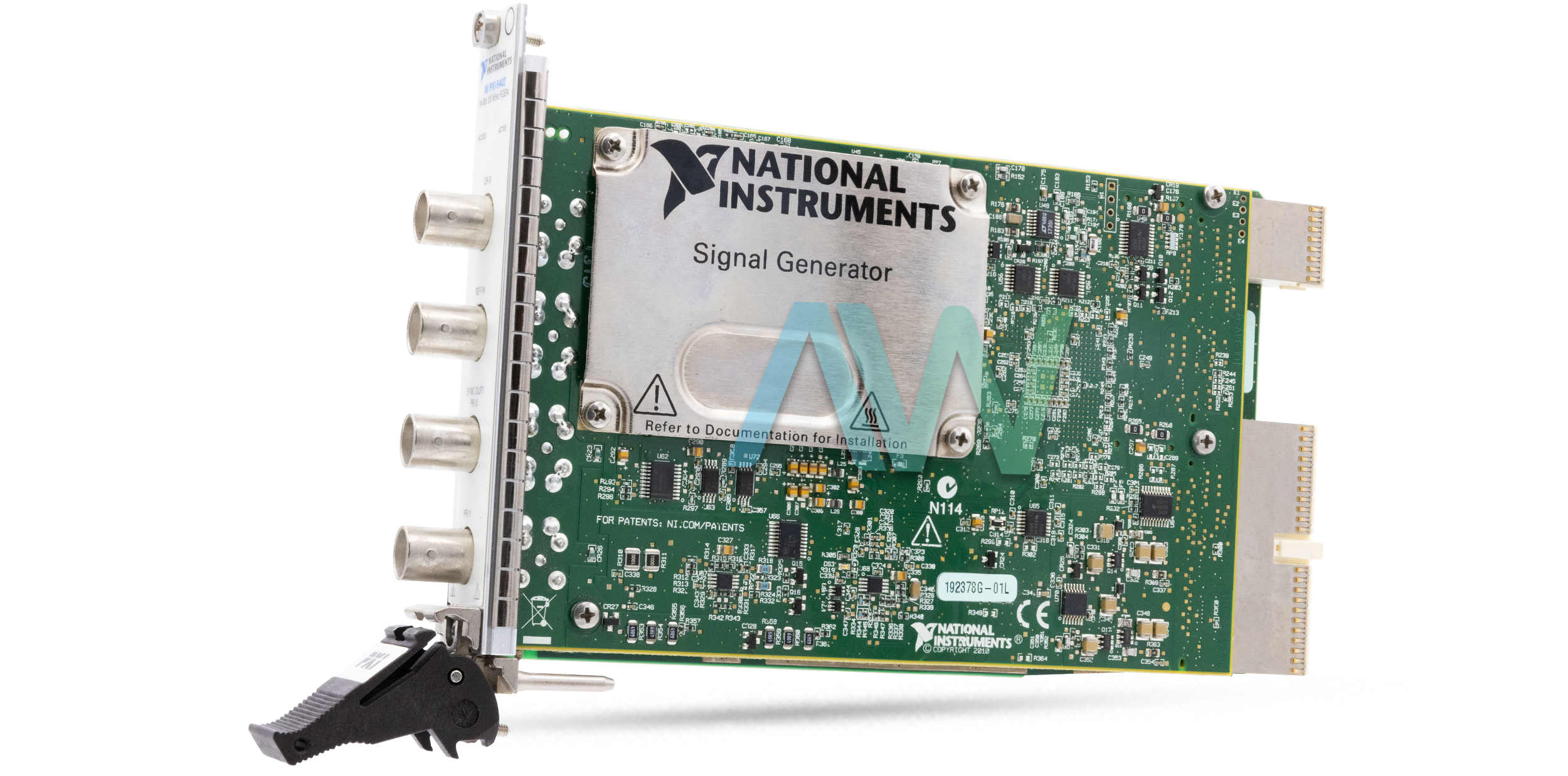

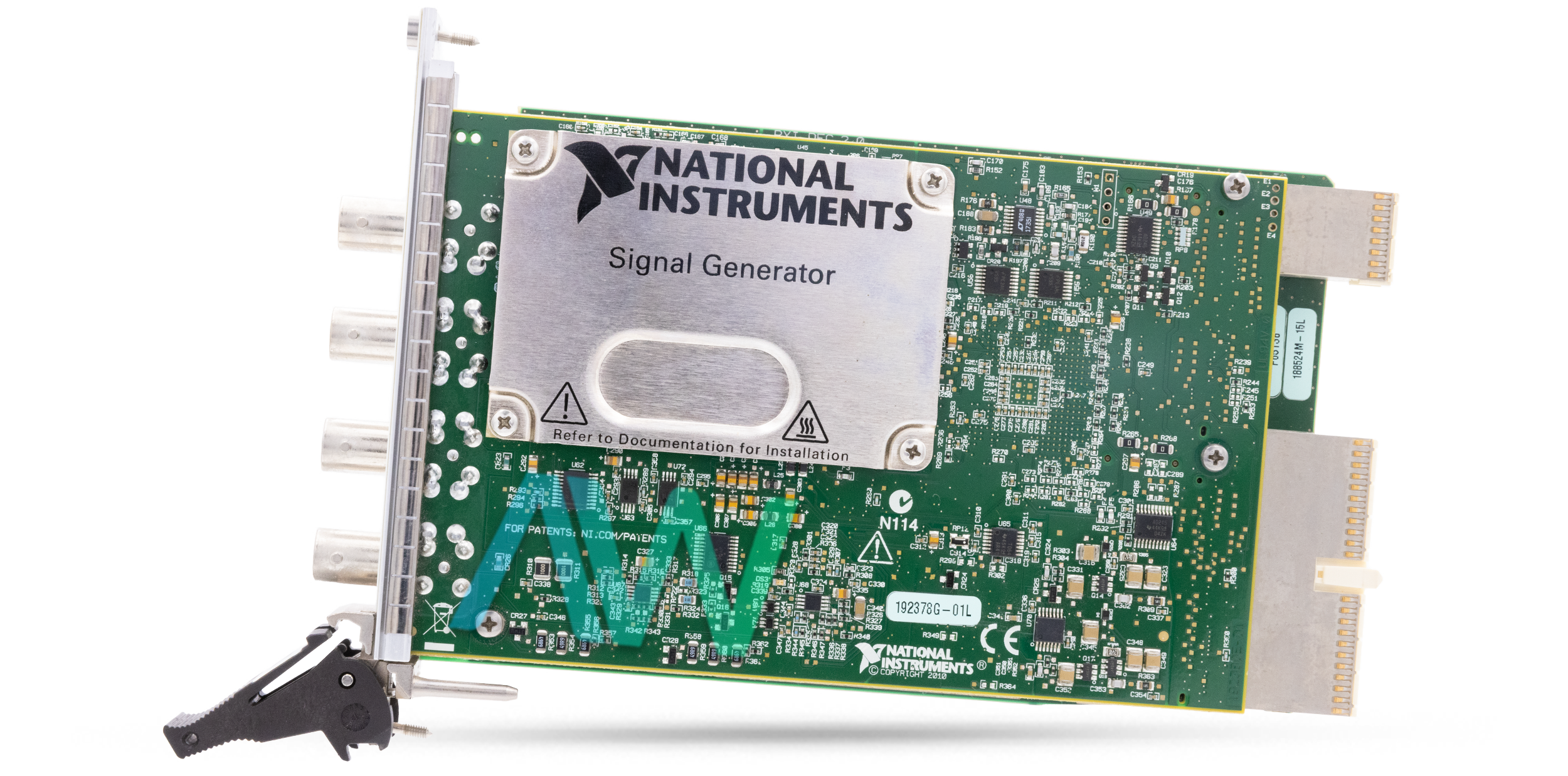

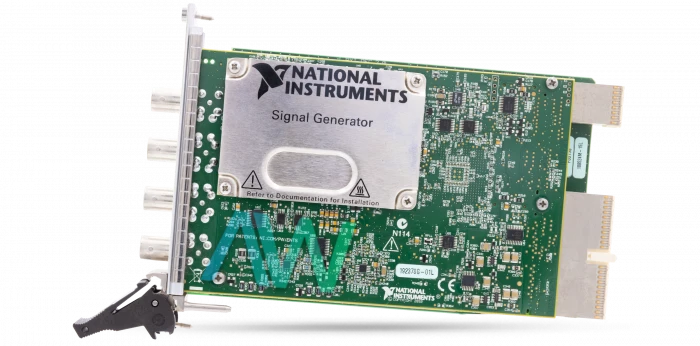

National Instruments PXI-5402 PXI Waveform Generator
The National Instruments PXI-5402 (Part Numbers: 779655-01, 192887E-01L) is a high-performance 20 MHz function generator designed for precise waveform generation in automated test and measurement applications. Equipped with a 14-bit digital-to-analog converter (DAC) and direct digital synthesis (DDS) technology, it delivers accurate and customizable waveforms with minimal distortion.
The PXI-5402 can generate a range of standard functions, such as sine, square, triangle, and ramp waves, in addition to DC signals and pseudorandom noise, with a maximum output voltage of ±5 V (ACpk + DC). With a 50 Ω load, its output amplitude ranges from 5.64 mVpk-pk to 10 Vpk-pk, and with a high-impedance load, it ranges from 11.28 mVpk-pk to 20 Vpk-pk. It provides versatility for a range of testing applications with software-selectable output impedance (50 Ω or 75 Ω) and adjustable phase (-180° to +180°). In order to generate complicated signals, additional PXI-5402 units can be coupled together as the device also supports waveform summation.
The PXI-5402 provides maximum frequencies of 20 MHz for typical functions and a frequency resolution of 0.355 μHz for accurate frequency management. For sine, square, and user-defined waveforms, it offers a maximum sample rate of 400 MS/s; for ramp, triangle, and noise signals, it offers a maximum sample rate of 100 MS/s.
The PXI-5402 has the ability to generate waveforms and also has synchronization functionality via its SYNC OUT/PFI 0 and PFI 1 ports. It supports single, continuous, stepped, and burst trigger modes and may function as both a trigger source and receiver. With minimum pulse widths of 25 ns, the device enables precise timing and low jitter (<2 MHz: 0.01% of period + 500 ps, average; ≥2 MHz: 0.1% of period + 70 ps).
Input and output connectors for synchronization and reference are included with the PXI-5402 to guarantee compatibility with external systems and devices. With a maximum input overload protection of ±10 V (ACpk + DC), it enables input voltages ranging from 0.2 Vpk-pk to 2.8 Vpk-pk for square waveforms and 0.63 Vpk-pk to 2.8 Vpk-pk for sine waves.
This PXI Waveform Generator is no longer available from National Instruments, the PXI-5402 will remain available in perpetuity for both purchase or repairs with Apex Waves!
| Model | PXI-5402 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779655-01, 192887E-01L |
| Type | PXI Waveform Generator |
| Maximum Bandwidth | 20 MHz |
| Maximum Update Rate | 100 MS/s |
| Analog Output Resolution | 14 Bits |
| Output Channels | 1 |
| Front Panel Connectors | BNC Female |
| Operating Temp Range | 0 ºC to +45 ºC |
| Storage Temp Range | –25 ºC to +85 ºC |
| Dimensions | 8.5 × 0.8 × 5.1 in. (21.6 × 2.0 × 13.0 cm) |
| Weight | 12.4 oz (351 g) |
| Warranty | Three Year Warranty |
| PXI-5402 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for Pricing |
