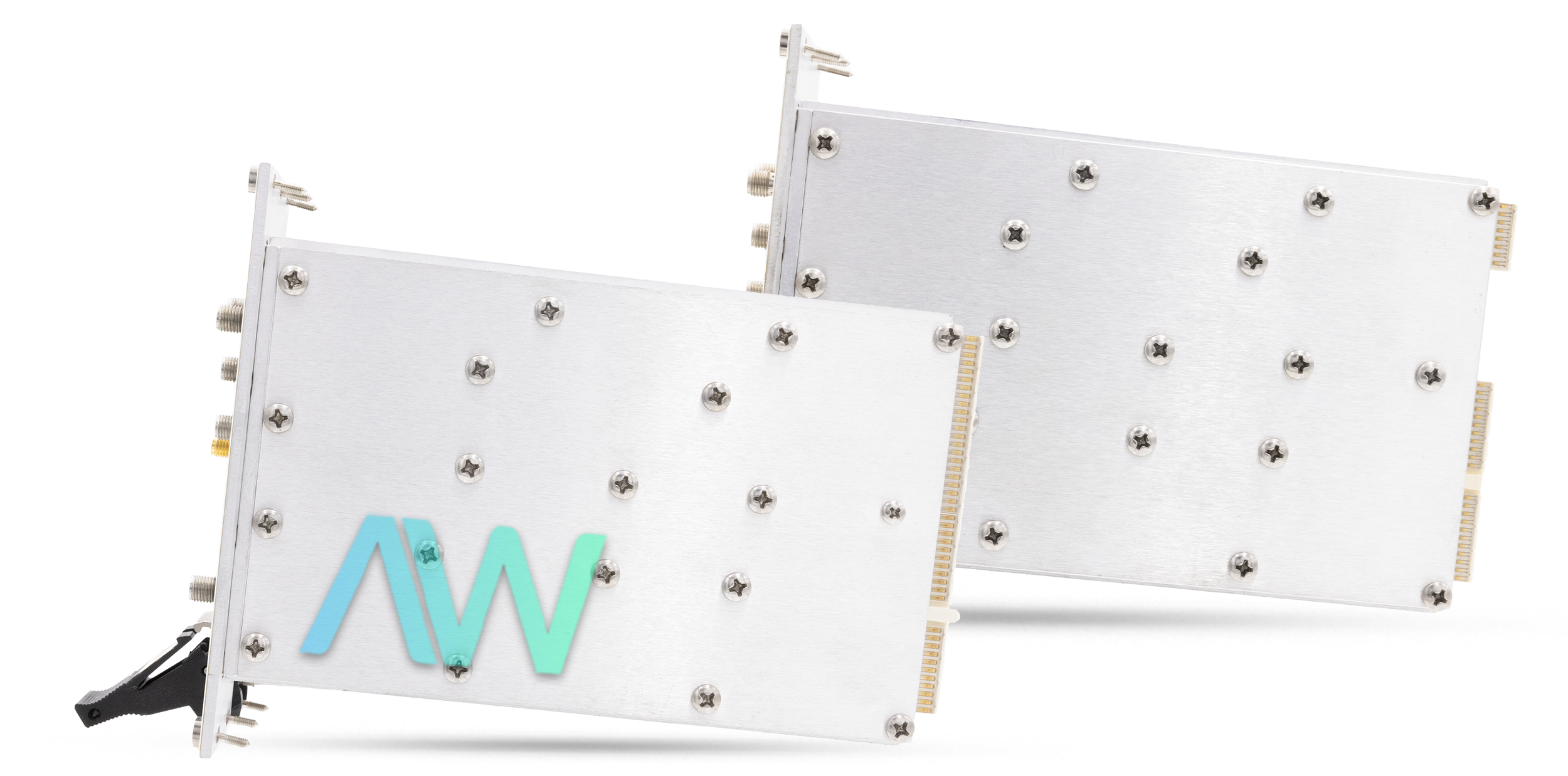

PXI-5600 National Instruments Downconverter | Apex Waves | Image

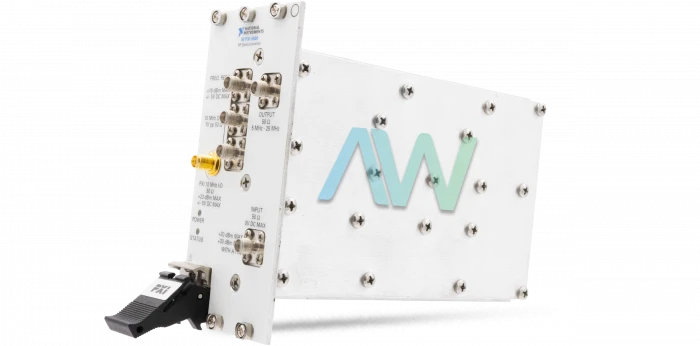

PXI-5600 National Instruments Downconverter | Apex Waves | Image
PXI-5600 New
PXI-5600 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

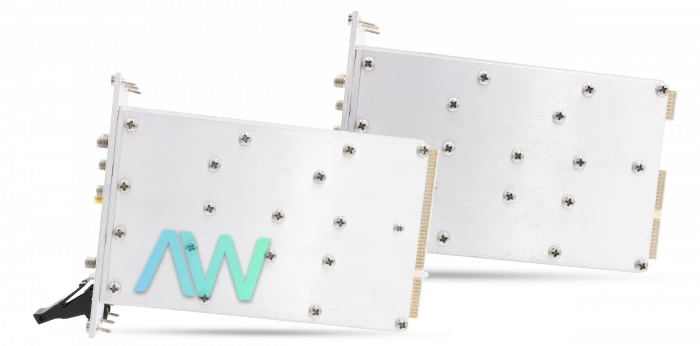

PXI-5600 National Instruments Downconverter | Apex Waves | Image

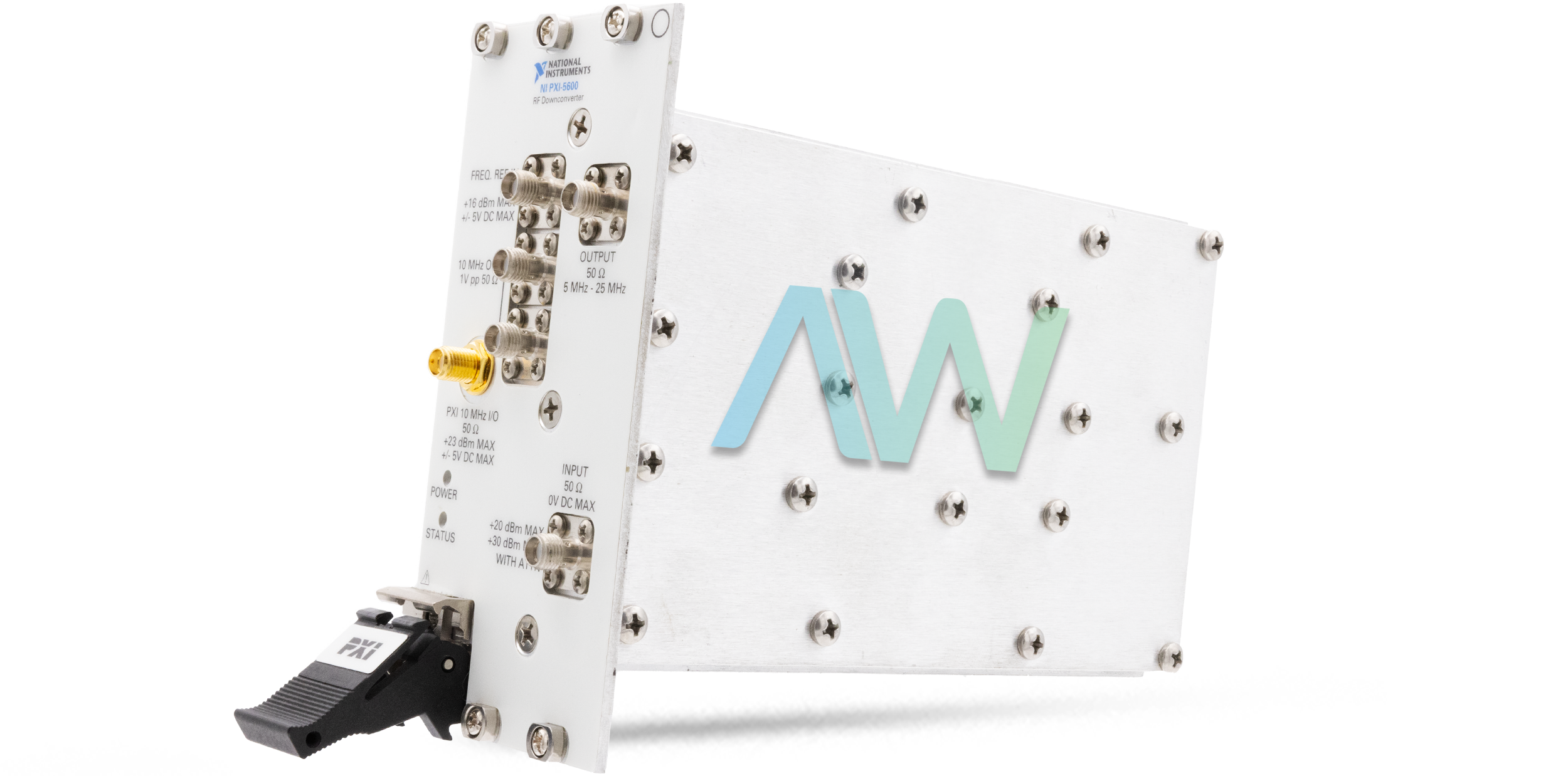

PXI-5600 National Instruments Downconverter | Apex Waves | Image
PXI-5600 New
PXI-5600 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-5600 Downconverter

The National Instruments PXI-5600 (Part Number: 778283-01) is a broadband RF Downconverter, capable of frequency downconversion in a minimized 3U PXI module. The NI PXI-5600 highlights a wide real-time bandwidth capacity of 20 MHz, an exceptionally stable time base, and great integration with PXI digitizers for RF signal analysis applications. The PXI-5600 gives remarkable frequency performance over its working scope of 9 kHz to 2.7 GHz, with a minimum tuning resolution of 1 MHz. It provides a typical noise density of <-140 dBm/Hz (20 MHz to 1 GHz), <-137 dBm/Hz (1 GHz to 2 GHz), and <-135 dBm/Hz (2 GHz to 2.5 GHz), while the typical phase noise is -90 dBc/Hz at a 10 kHz offset.

The NI PXI-5600 Downconverter also offers an Ultra-High Stability Timebase (10 MHz OCXO). The PXI-5600 offers an exceptionally stable timebase with a frequency stability of ±20 ppb and frequency accuracy of ±50 ppb, making it helpful for a range of automated applications where precise frequency synchronization is required.

The noise and distortion characteristics of the PXI-5600 are consistent and repeatable over an extensive range of time and temperatures. For instance, at a 1 MHz measurement bandwidth, a -30 dBm input signal typically has a single, unaveraged measurement repeatability of under 0.2 dB. The PXI-5600 utilizes a software compensation strategy that reduces amplitude error to under 0.2 dB over a 20 ˚C change.

The PXI-5600 operates using the NI-RFSA driver software, which supports the PXI-5660 RF Vector Signal Analyzer system, which includes the PXI-5600 as its RF Downconverter. Installing the software requires the presence of an Application Development Environment (ADE) such as LabVIEW, LabWindows/CVI, or C/C++. Additionally, the Spectral Measurements Toolkit (SMT) is required for frequency-domain analysis, while the Modulation Toolkit is optional for advanced modulation analysis. The device has six connectors: FREQ REF IN, 10 MHz OUT, PXI 10 MHz I/O, OUTPUT, and INPUT connectors. It has a recommended warm-up time of 20 minutes and should be calibrated at least once a year.

This model offers 20 MHz real-time bandwidth, a High-Stability Timebase (10 MHz OCXO), ±20 ppb frequency stability, ±50 ppb frequency accuracy, >80 dB spurious-free dynamic range, <-135 dBm/Hz average noise density, and +30 dBm full-scale input range (with RF attenuation enabled), +20 dBm (with RF attenuation disabled). The device has the dimensions: 8.5 x 2.4 x 5.1 in. (21.6 cm × 6.0 cm × 13.0 cm).

The PXI-5600 is no longer available from the manufacturer National Instruments, but the RF Downconverter will remain available in perpetuity with Apex Waves for purchase and repair services.

ModelPXI-5600
Part Number778283-01
ManufacturerNational Instruments
TypeRF Downconverter
Frequency Range9 kHz to 2.7 GHz
Real-Time Bandwidth20 MHz
Input Range+30 dBm
Front Panel ConnectorsSMA Female I/O Connectors
Linearity10 MHz to 1 GHz: 0 dBm Minimum
1 GHz to 2 GHz: 2 dBm Minimum
2 GHz to 2.7 GHz: 4 dBm Minimum
Dynamic Range10 MHz to 1 GHz: 135 dB Minimum
1 GHz to 2 GHz: 136 dB Minimum
2 GHz to 2.7 GHz:  134 dB Minimum
Operating Temp Range0 °C to 50 °C
Storage Temp Range-20 °C to 70 °C
Dimensions8.5 in. × 2.4 in. × 5.1 in. (21.6 cm × 6.0 cm × 13.0 cm)
WeightCombined Unit: 41.1 oz (1,165 g)
WarrantyThree Year Warranty
PXI-5600 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information

Associated part numbers for PXI-5600:

National Instruments PXI-5600 Frequently Asked Questions



Question: What is the dynamic range of the PXI-5600?

Answer: The dynamic range of the RF Downconverter is 80 dB.



Question: Which driver software should be used with the NI PXI-5600?

Answer: The device comes with the NI-TUNER driver software.



Question: How many channels does the PXI-5600 have?

Answer: The Downconverter has 1 RF input channel and 1 IF output channel.



Question: How long is the calibration interval for the RF Downconverter?

Answer: The recommended calibration interval for the PXI-5600 is 1 year.
