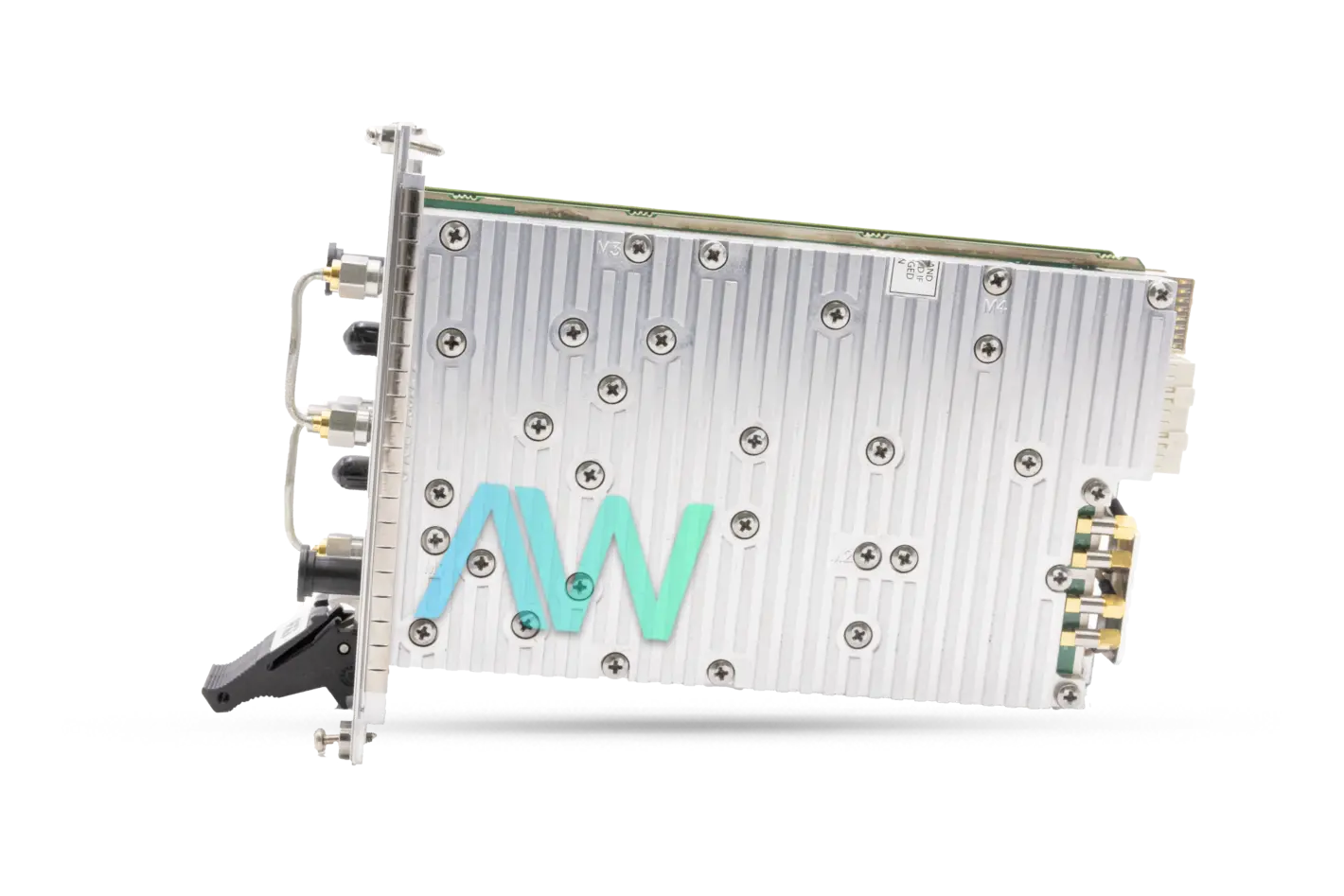

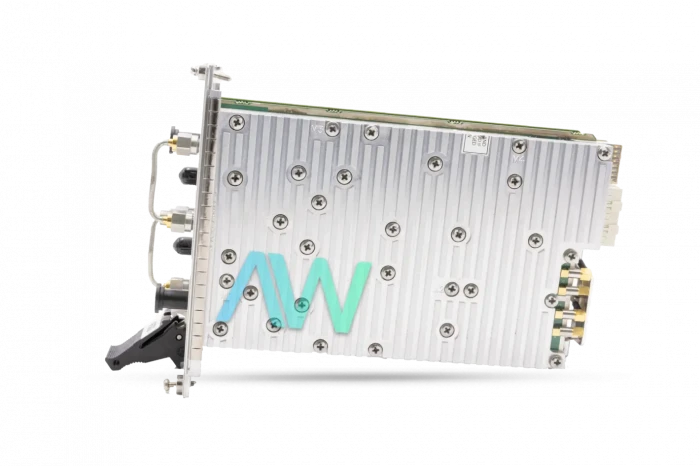

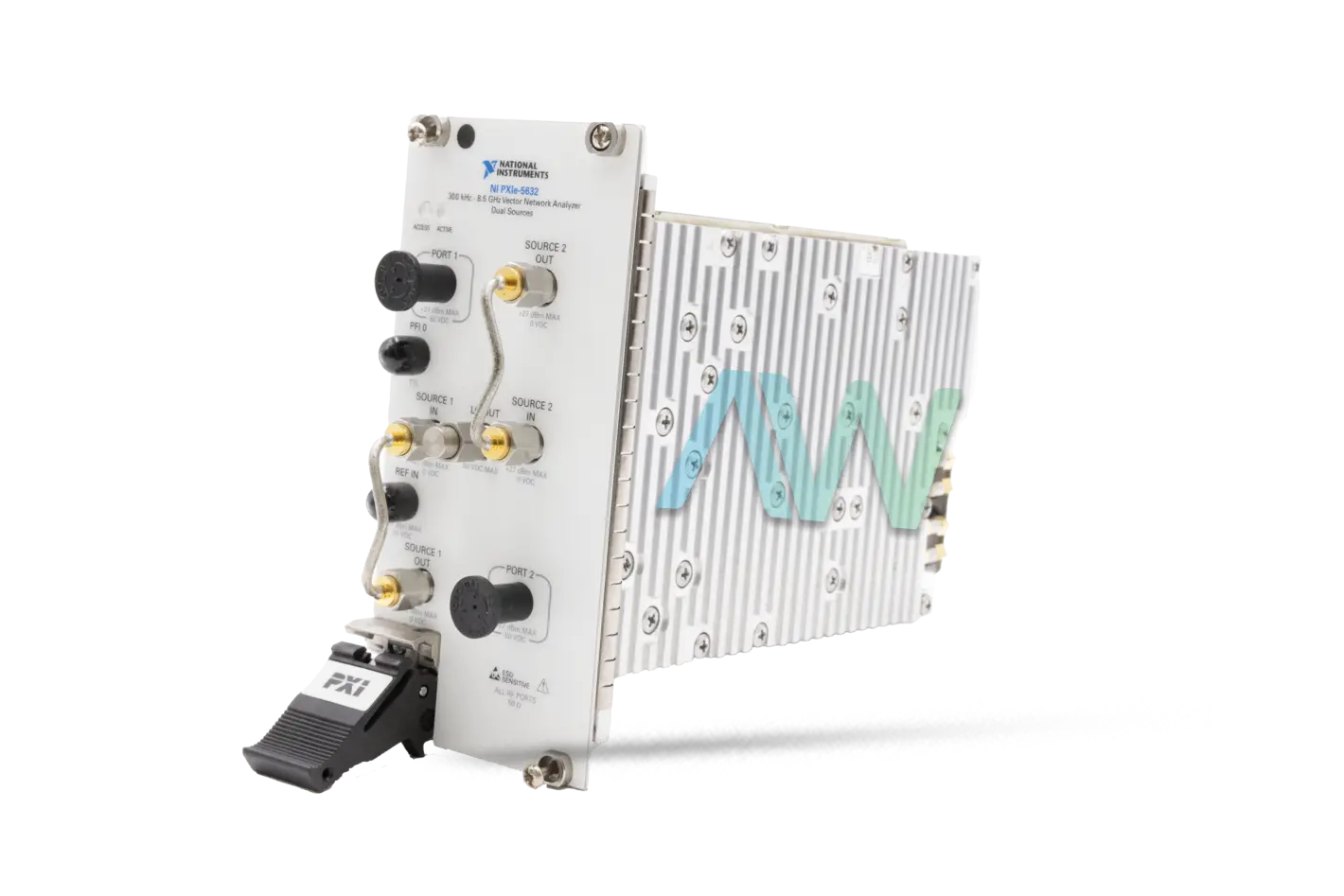

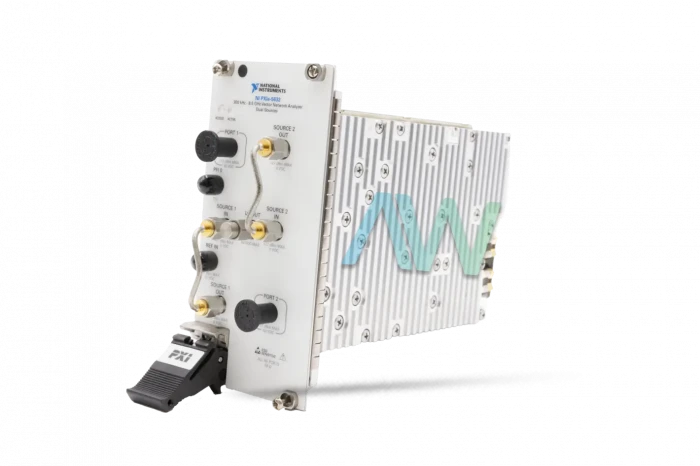

National Instruments PXIe-5632 PXI Vector Network Analyzer
With full vector analysis, reference plane extension support, and full vector analysis features, the National Instruments PXIe-5632 (Part Numbers: 782299-01 and 782299-02) Vector Network Analyzer is an ideal testing instrument for users’ validation and production operations. The NI PXIe-5632 VNA operates on a frequency range from 300 KHz to 8.5 GHz and has independent frequency bandwidths from 10 Hz to 500 KHz. These specifications allow the users to balance measurement speed and accuracy within their applications. The low latency trigger allows users to achieve pulsed s-parameter measurements, including measurements requiring an extended power range. Part number 782299-02 features Time Domain Analysis capabilities.
The PXIe-5632 VNA facilitates seamless incorporation into test systems that combine a range of RF and mixed signal I/O devices without increasing the test equipment footprint. With the flexible APIs for both NI LabVIEW and LabWindows/CVI software, users can quickly perform automated tests or use the full options featured on the soft front panel to perform user calibration and make measurements right out of the box. This analyzer utilizes 50 Ω connectors (Type-K or Type-N).
The PXIe 5632 offers a power step resolution of 0.01 dB. The typical decibel measurement of the system dynamic range for the receiver depends on the frequency. 500 kHz to <3 MH has 100 dB typically, while 3 MHz to <1.5 GHz has 105 dB. 1.5 GHz to <6 GHz has 115 dB, 6 GHz to <8 GHz has 110 dB, and 8 GHz to 8.5 GHz has 90 dB. The powerful architectural design features dedicated ADCs, low latency triggers, power level control, dual sources, and source loops. The PXIe-5632 VNA dimensions are 8.5 in. × 2.4 in. × 5.1 in. and the model weighs 45.0 oz.
| Model | PXIe-5632 |
|---|---|
| Part Numbers | 782299-01 and 782299-02 |
| Manufacturer | National Instruments |
| Type | PXI Vector Network Analyzer |
| Sources Supported | 2 |
| Maximum Source Power | 15 dBm |
| Frequency Range | 300 kHz to 8.5 GHz |
| Dimensions | 8.5 x 2.4 x 5.1 in. |
| Weight | 45.0 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-5632 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-5632:
National Instruments PXIe-5632 Frequently Asked Questions
Question: Which instrument driver should be used with the NI PXIe-5632 VNA?
Answer: The NI PXIe-5632 VNA can be used with the NI-VNA instrument driver.
Question: What is the difference between the part numbers of the PXIe-5632?
Answer: Part number 782299-01 is the standard version of the PXIe-5632, while part number 782299-02 features time domain analysis.
Question: Which S parameter measurements does the NI PXIe-5632 support?
Answer: The NI PXIe-5632 supports all S-parameter measurements.
Question: What are the power requirements for the PXIe-5632?
Answer: The PXIe-5632 requires 6.2 A typical at 3.3 VDC and 3.3 A typical at 12 VDC.
Question: How long is the calibration interval for the NI PXIe-5632?
Answer: The NI PXIe-5632 should be calibrated every year.
| Part Number | Attributes |
| 782299-01 | Standard Version |
| 782299-02 | Time Domain Analysis Feature |
PXIe-5632 PDF Manuals
PXIE-5632-LETTER-OF-VOLATILITY.PDF
MAINTAIN-FORCED-AIR-COOLING-NOTE-TO-USERS.PDF
NI-PXIE-5632-GETTING-STARTED-GUIDE.PDF
PXIE-5632-CALIBRATION-PROCEDURE.PDF
PXIE-5632-LETTER-OF-VOLATILITY.PDF
TIME-DOMAIN-ANALYSIS-FOR-NI-VECTOR-NETWORK-ANALYZERS-ACTIVATION-INSTRUCTIONS.PDF
