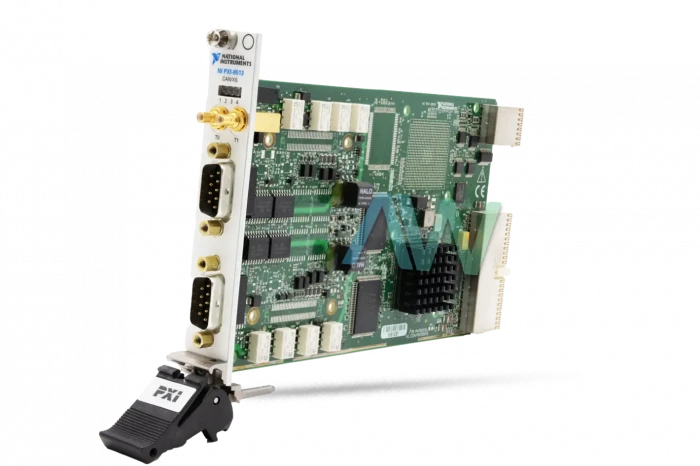

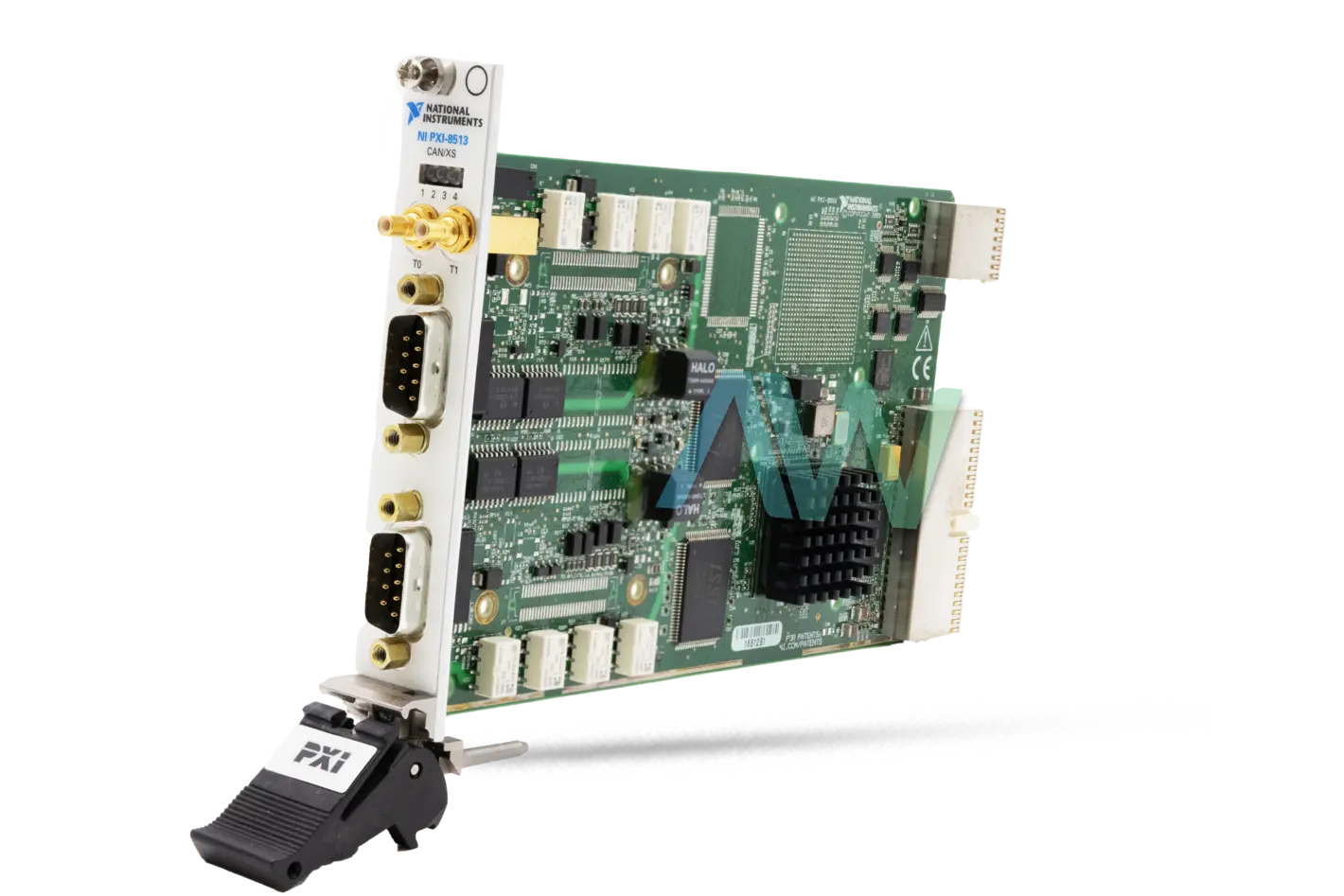

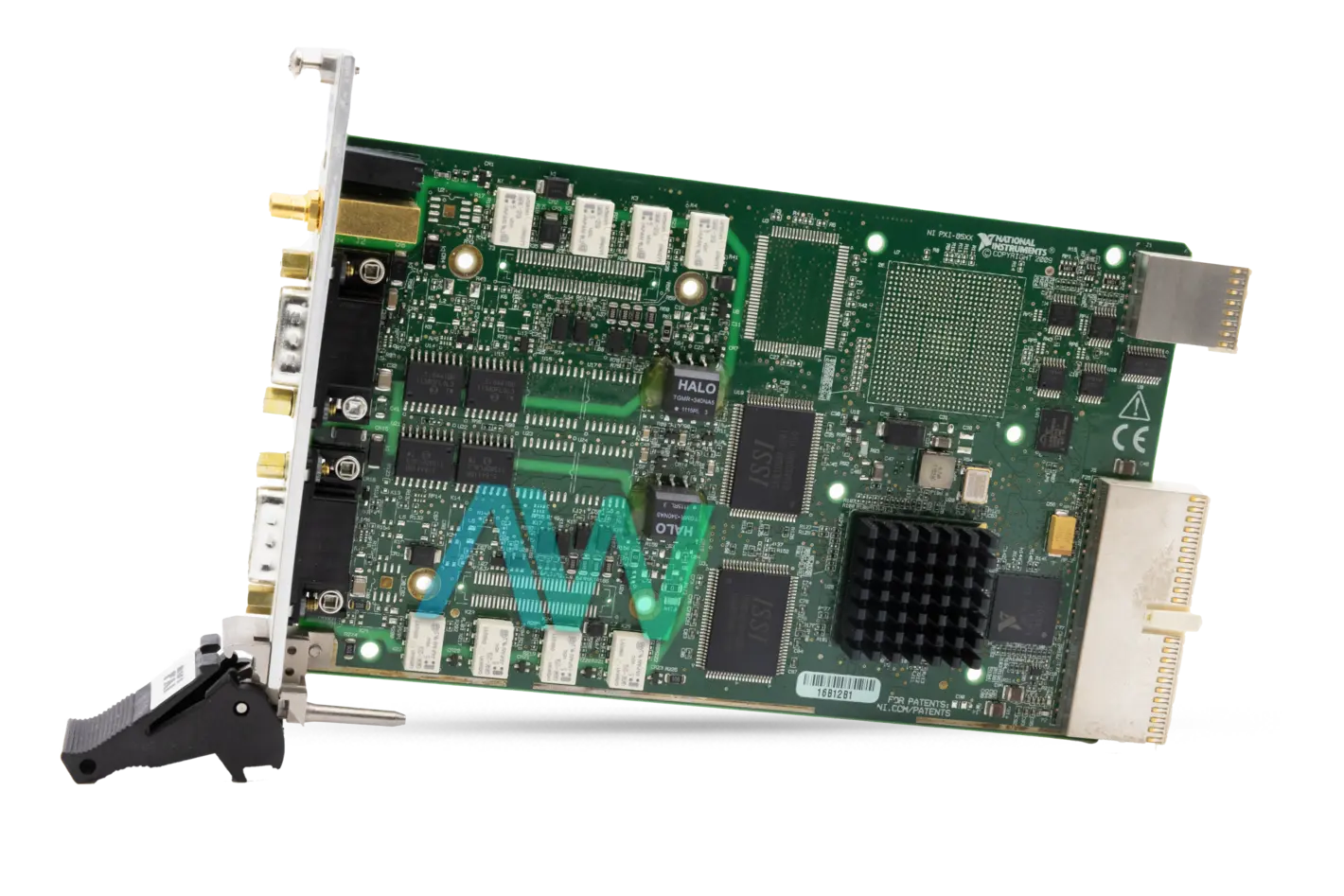

National Instruments PXI-8513 PXI CAN Interface Module
The PXI-8513 (Part Number: 780688-01, 194923D-42L), Software Selectable, 1 Port CAN Interface Module has a microsecond time stamp and outside time base support. The NI PXI-8513 has 1 port. The NI PXI 8513 CAN Interface Module also has PXI/RTSI activation that permits NI-XNET interfaces to integrate with many NI PCI gadgets and PXI for a wide assortment of altered applications, going from synchronized data acquisition and bus level estimations to the insertion of issues and large distributed frameworks. For National Instruments NI-XNET interfaces utilized as a part of the NI CompactDAQ and NI CompactRIO chassis, the user can achieve triggering and synchronization with different modules through sharing a similar clock on the hardware backplane. The device is equipped with a 9-pin male D-SUB for its port. It has 7 I/O trigger lines.
The NI PXI-8513 has a DMA motor with NI-XNET gadget, patent pending, that lessens framework latency, a typical point for PC-based CAN interfaces, from milliseconds to microseconds. The engine enables the installed processor to move frames and signals between the interface and the client program without interfering with the CPU, freeing up processing time from the host for processing complex models and applications.
The NI PXI 8513 includes a NI-XNET Database Editor, which is a standalone tool for creating and maintaining integrated network databases that contain signals, frames, and network parameters. NI-XNET Products use the ASAM FIBEX (Field Bus Exchange) standard as the database essential storage format. In addition to FIBEX, the NI-XNET Database Editor can import NI-CAN database format (. NCD) and CANdb format (. DBC) and convert them to FIBEX. The device has NXP TJA1041 or TJA1043, NXP TJA1054A or TJA1055T, and NXP AU5790 or ON Semiconductor NCV7356 transcievers.
The NI device weighs 3.5 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and -20 °C to 70 °C respectively, non-condensing operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
| Model | PXI-8513 |
|---|---|
| Part Number | 780688-01, 194923D-42L |
| Manufacturer | National Instruments |
| Type | PXI CAN Interface Module |
| Ports | 1 or 2 |
| Trigger Lines | 7 input/output |
| I/O Connector | 9-pin male D-SUB for each port |
| Dimensions | 6.3 x 3.9 in. |
| I'O Compatibility | TTL |
| Warranty | Three Year Warranty |
| PXI-8513 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8513:
National Instruments PXI-8513 Frequently Asked Questions
Question: What is the power-on state of the NI PXI 8513?
Answer: The PXI CAN Interface Module has a power-on state of input (High-Z).
Question: How many clock lines are on the PXI-8513?
Answer: The device is equipped with a single clock line.
Question: What is the maximum baud rate for the Low-Speed/Fault-Tolerant version of the NI PXI-8513?
Answer: The Low-Speed/Fault-Tolerant version of the Interface Module has a maximum baud rate of 125 kbps.
PXI-8513 PDF Manuals
NI-PXI-8513-AND-NI-PXI-8513-2-REVISION-NOTIFICATION.PDF
NI-XNET-HARDWARE-AND-SOFTWARE-MANUAL.PDF
NI-XNET-HARDWARE-AND-SOFTWARE-USER-MANUAL-AND-SPECIFICATIONS.PDF
PCI-PXI-851X-X-LETTER-OF-VOLATILITY.PDF
