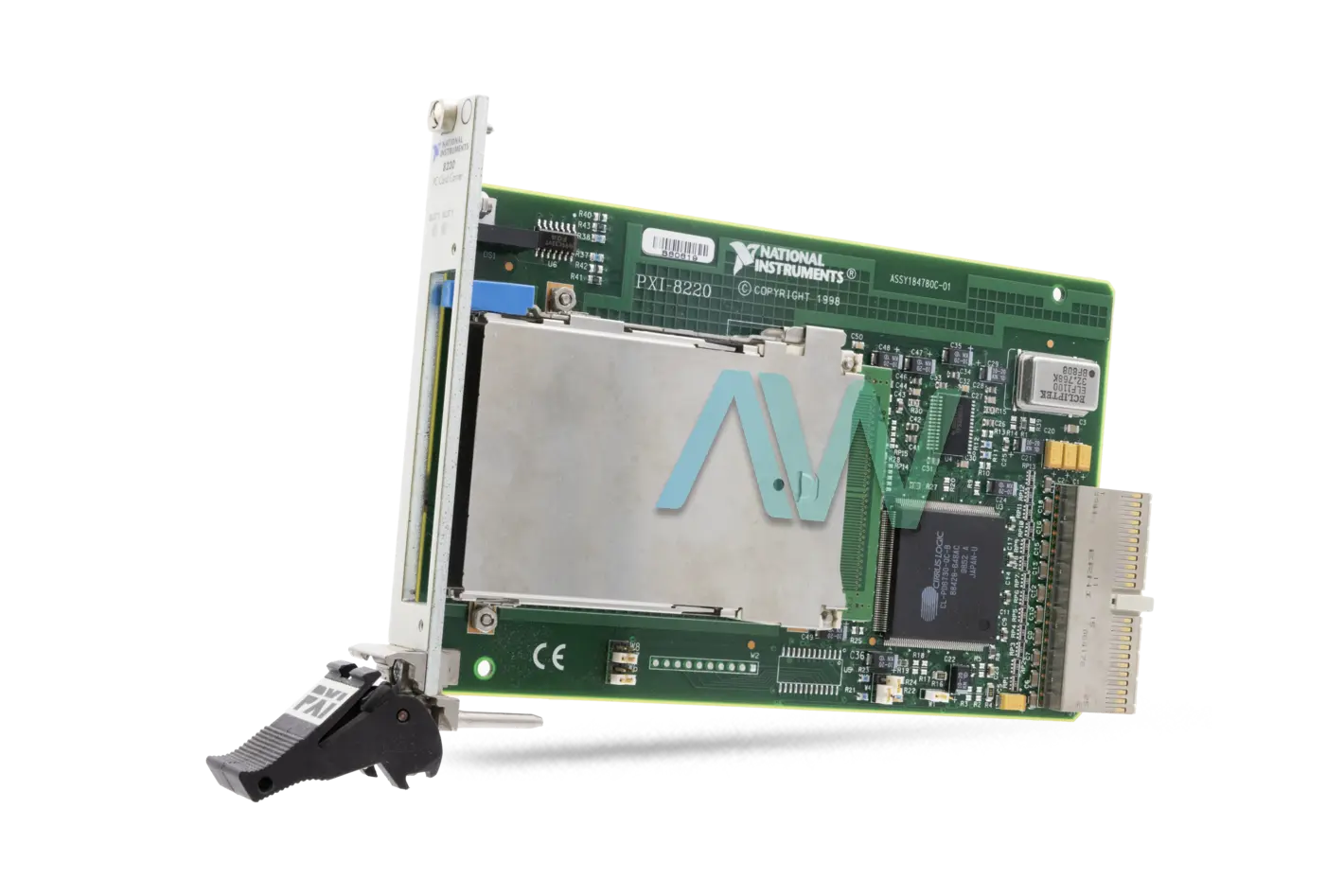

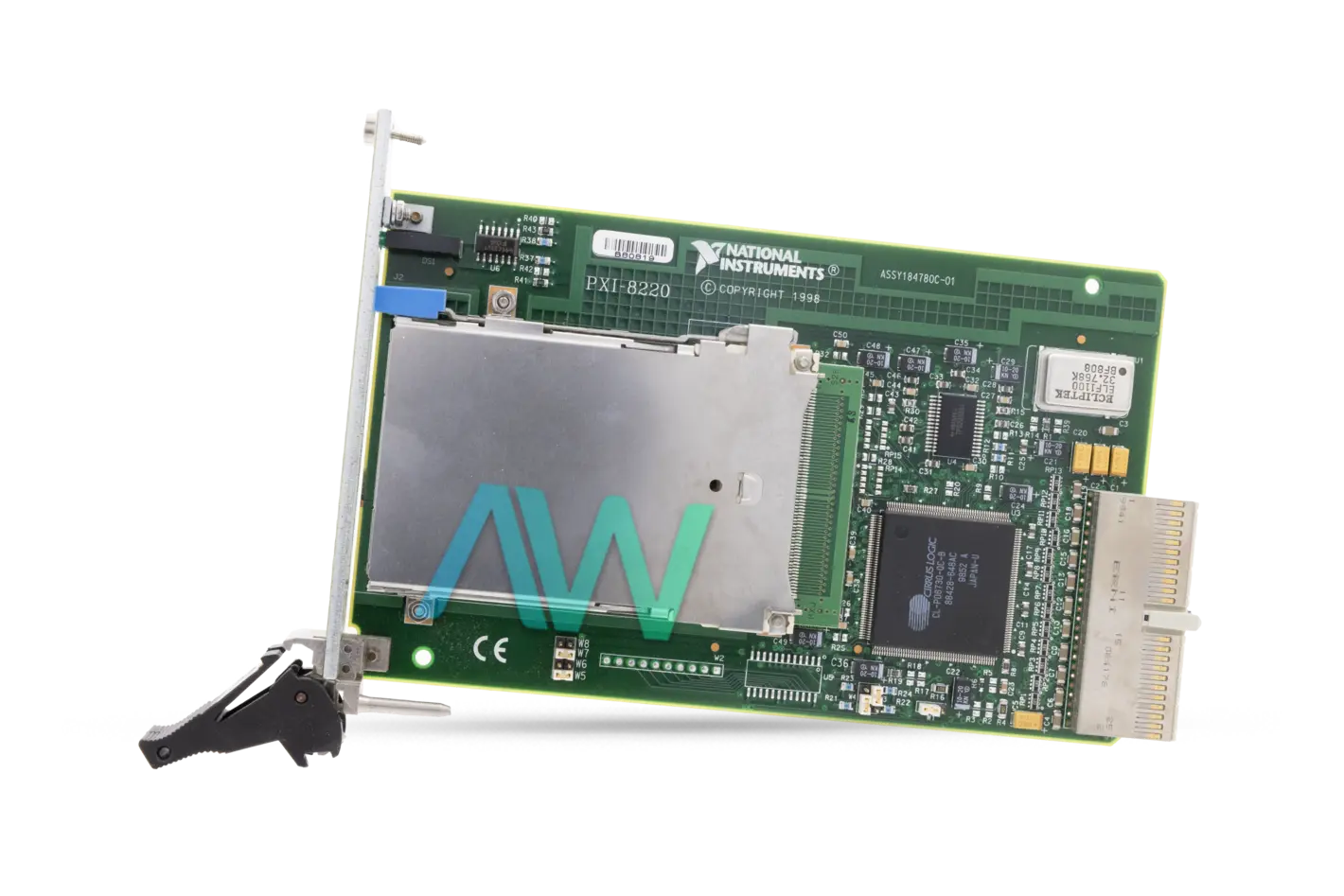

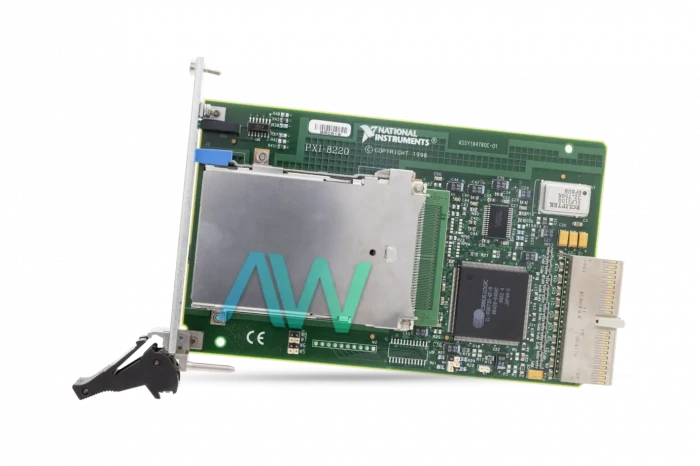

National Instruments PXI-8220 PC Card Carrier

The National Instruments PXI-8220 (Part Number: 777689-01) is a 2-Slot PC Card Carrier. This model features a 2-Slot PC Card adapter in a single-slot PXI module. Thus, it can accept two PC cards, providing the user with more options for expanding their PXI and CompactPCI systems. The NI PXI 8220 can also be used to add any functionality available in PCMCIA plug-ins. This module can be used with the legacy PXI embedded controllers, such as the NI PXI-8150, PXI-8150B, and PXI-8170 Series.

The PXI-8220 is fully compatible with the PCMCIA (16-bit) and can handle 16-bit PCMCIA PC Cards as well. This module can control two entirely independent PC card sockets. It accepts either one type III PC card or two type I or type II PC cards. For handling PCMCIA PC Cards, this PC Card Carrier comes with a distinctive feature of the PXI specification called Serialized IRQ. The Serialized IRQ works by implementing standard ISA interrupt requests in PXI or CompactPCI systems. This arrangement offers a reliable chasm of communication between ISA legacy components like PCMCIA with PCI controllers and components.

The PXI-8220 Card adapter has two independent LED status indicators. These indicators confirm that the PC Card being used is correctly configured and installed. This module comes with an integrated supply that provides the required power to either 3.3 or 5 V PC Cards. The NI PXI-8220 comes equipped with two 68-pin PC Card sockets, weighs around 140 g (5 oz), and has dimensions of 16.0 by 10.0 cm.

PXI-8220 Obsolete Status has been announced by National Instruments, but the carrier will still be available for purchase and repairs by Apex Waves.

ModelPXI-8220
Part Number777689-01
ManufacturerNational Instruments
TypePC Card Carrier
Slots2
I/O ConnectorTwo 68-pin PC Card Sockets
LED Indicators2
Dimensions6.3 x 3.9 in.
Weight5 oz.
Warranty2-3 Year Warranty
PXI-8220 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-8220:

National Instruments PXI-8220 Frequently Asked Questions



Question: What are the total power requirements for the PXI-8220?



Answer: The total power requirements for the PXI-8220 are 1 W and the PC Card requirements, maximum.



Question: Which controllers is the NI PXI-8220 compatible with?



Answer: The NI PXI-8220 is compatible with these Controllers: the PXI-8170 Series, PXI-8150, and PXI-8150B Controllers.



Question: What type of cards does the PXI 8220 accept?



Answer: The PXI 8220 will accept either two Type I/II cards or a single Type III card.



Question: Is it possible to utilize more than one PXI-8220 simultaneously?



Answer: No, it is not possible because the PXI-8220 involves non-shareable Serialized Interrupt Implementations.
