National Instruments 779755-01 PXI Controller

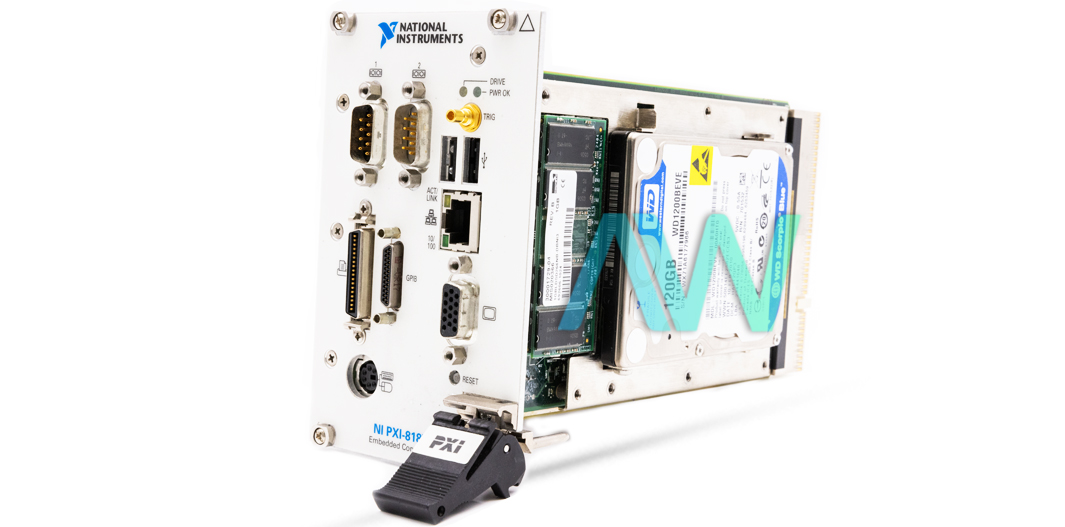

National Instruments part number 779755-01 is an identifying part number for the PXI-8187, a 2.5 GHz Pentium 4-M Processor, PXI Controller. With Windows XP Operating system the NI 779755-01 is an embedded controller that is designed for PXI CompactPCI systems. This model is perfect for data acquisition and modular instrumentation applications. All peripherals are located on the front panel, including one VGA (15-pin DSUB), two 16550 RS-232 serial ports, one 10/100 Ethernet port, one USB 2.0 port, one PS/2 (5-pin Din) port, one parallel port (36-pin champ), and one GPIB (25-pin Micro D).
The device features one system slot and three controller expansion slots. This device allows users to install any compatible operating system via a USB CD-ROM or, in some cases, from a network. This 3U-size embedded PXI controller requires one system slot and three expansion slots. It operates with the NI-DAQ driver software, which is compatible with software packages and application development environments (ADEs) like LabVIEW, LabWindows/CVI, Measurement Studio, and NI-VISA. The NI 779755-01 is an integrated microprocessor with standard and extended PC peripherals.
It includes specialized software tools that allow users to restore the hard drive to its factory condition from a protected area on the drive. This area stores an image of the hard disk as it was at delivery, accessible via a hotkey during boot. Users can also recover the factory-installed OS using the provided installation disc with an external CD-ROM. Additionally, users can replace the default operating system with a different one if desired. National Instruments has announced obsolete status for 779755-01, however, it is still available for purchase on the Apex Waves website.
| Part Number | 779755-01 |
|---|---|
| Model Range | PXI-8187 |
| Part Type | PXI Controller |
| CPU | 2.5 GHz Pentium 4-M |
| Slot Requirements | 1 system slot and 3 controller expansion slots |
| Standard RAM | 256 MB |
| Compatibility | Fully compatible with PXI specification |
| Driver Software | NI-DAQ |
| Board Dimensions | 3.2 in. × 5.1 in. × 8.5 in. |
| Weight | 2.2 lb |
Associated part numbers for 779755-01:
