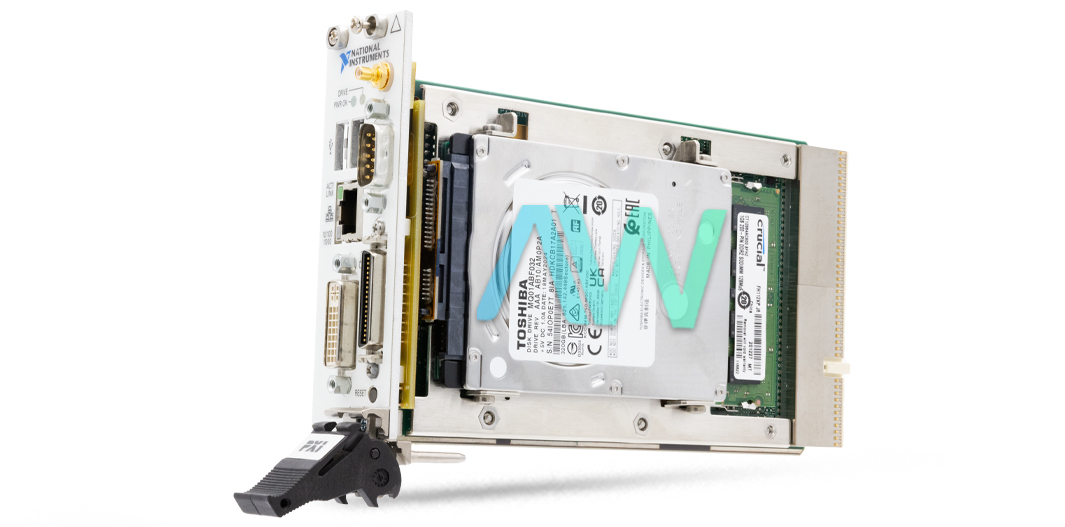

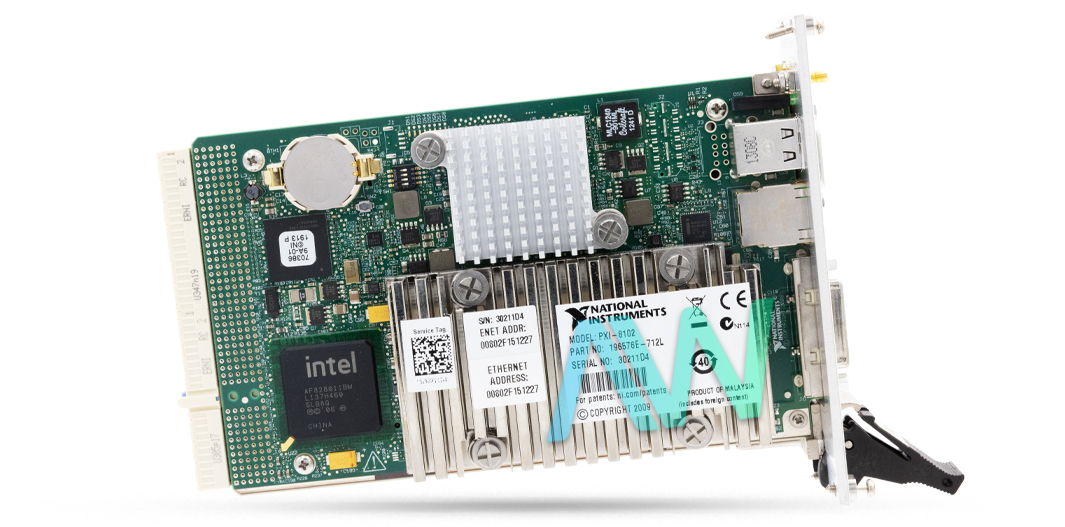

National Instruments 781149-01 PXI Controller
National Instruments part number 781149-01 is an identifying part number for the PXI-8102, a PXI Controller with 1.9 GHz Dual-Core Processor. The NI 781149-01 is an embedded controller featuring an Intel Celeron T3100 processor, designed for PXI and CompactPCI systems. It is ideal for modular instrumentation and data acquisition (DAQ) applications. The PXI-8102 offers 10/100/1000BASE-TX (Gigabit) Ethernet, two Hi-Speed USB ports, an integrated hard drive, and various other peripheral I/O options.
The NI PXI-8102 is equipped with backed-up memory to store BIOS configuration information and allows users to upgrade the total amount of installed RAM by replacing the SO-DIMM. It can boot from various devices, including the internal hard drive, a network PXE server, an external SCSI CD-ROM or hard drive, a USB hard drive or CD-ROM, or an external floppy disk drive. Users can connect a PS/2 keyboard or mouse via a USB Y-splitter cable, and peripherals with USB connectors can be directly plugged into the PXI-8102's USB ports. This controller operates with the NI-DAQmx driver software, which is compatible with software packages and application development environments (ADEs) such as LabVIEW, LabWindows/CVI, NI-VISA, and Measurement Studio.
The device hardware can be configured using the Measurement & Automation Explorer (MAX) tool. The part number 781149-01 includes a variety of connectors: a 24-pin DSUB, a 9-pin DSUB, an RJ45, a 36-pin champ, a USB 4-pin Series A stacked receptacle (2 ports), and an SMB connector. This controller features a DVI-I video interface connector on the front panel. For users who prefer to use a VGA monitor, a DVI-to-VGA adapter is included. This National Instruments device comes standard with a 1.9 GHz dual-core processor and 1 GB of RAM, which can be upgraded to 4 GB.
| Part Number | 781149-01 |
|---|---|
| Model Range | PXI-8102 |
| Part Type | PXI Controller |
| CPU Cores | 2 |
| CPU | Intel Celeron T3100 (1.9 GHz) |
| L2 Cache | 1 MB |
| Ethernet | 10/100/1000BASE-TX (Gigabit) |
| Operating Temperature | 5 to 50 °C |
| Weight | 1.42 lb. |
| Dimensions | 1.59 x 5.14 x 8.51 in. |
