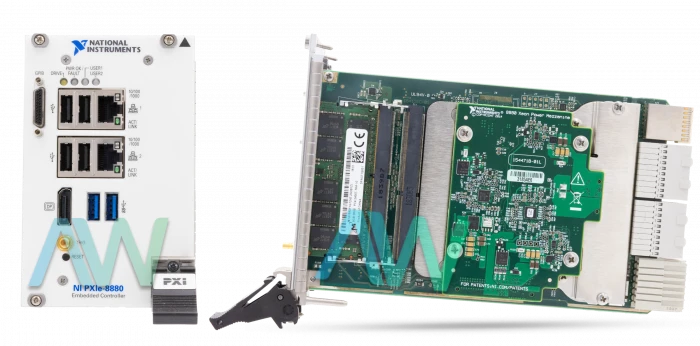

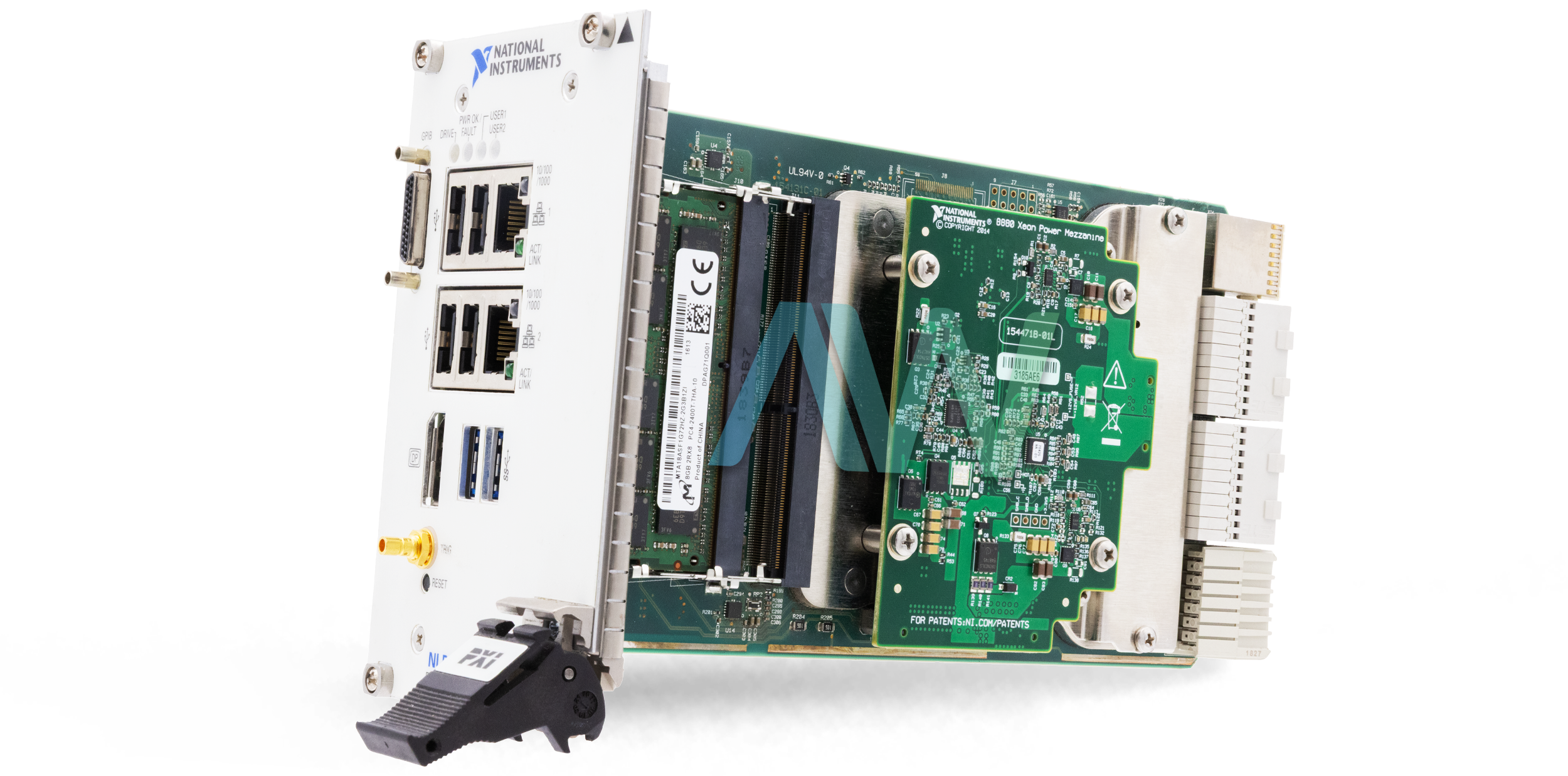

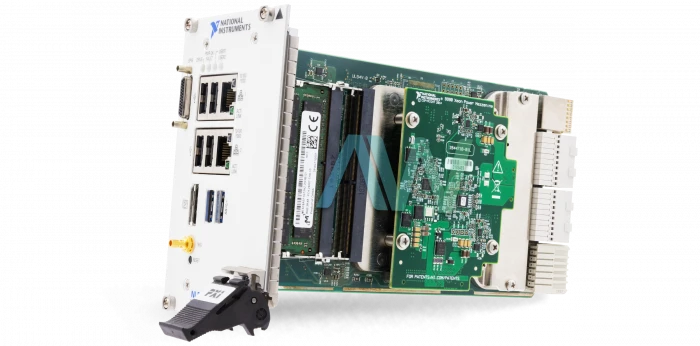

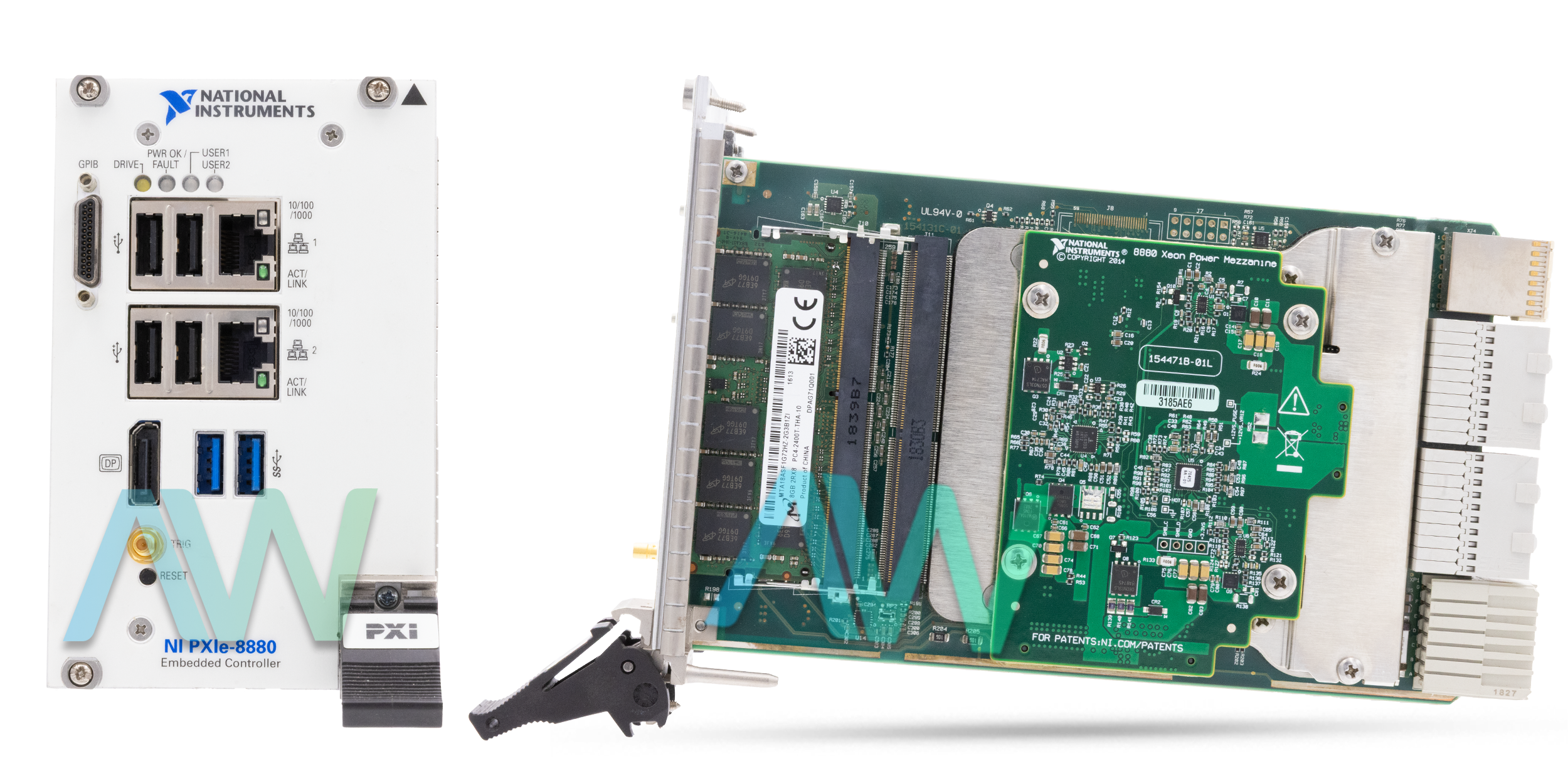

National Instruments 783513-05 PXI Express Embedded Controller
The National Instruments 783513-05 is a component within the PXIe-8880 Model series, serving as an embedded controller designed for PXI Express systems. It is engineered to handle processor-intensive tasks, particularly in RF, modular instrumentation, and data acquisition applications.
With two 10/100/1000BASE-TX (Gigabit) Ethernet ports, two USB 3.0 ports, and four USB 2.0 ports integrated, this controller offers a wide range of communication possibilities. Along with other peripheral I/O functions, its inbuilt hard drive increases its adaptability for a range of industrial automation applications.
Utilizing a triple channel DDR4 memory operating at 1866 MHz and an eight-core Intel Xeon E5-2618L v3 processor, the 783513-05 provides exceptional performance even in the most demanding settings. Its processing power is further increased by the integrated solid-state drive.
The PXI Express-compatible chassis, such as the NI PXIe-1085, can be effortlessly integrated with the small and robust design of the 783513-05 to create a computer system that is fully compatible with PCs. DisplayPort 1.2 visual output, several USB ports, a PCI-based GPIB controller, Ethernet connectors, a reset button, and PXI Express triggers are among its basic I/O capabilities.
Guaranteeing dependable performance in a range of test and measurement scenarios, the 783513-05 has a suggested working temperature range of 0 to 50°C. Its versatility is improved by its compatibility with software programs like NI-DAQmx, TestStand, and LabVIEW.
The main features of the 783513-05 are its 2.3 GHz processor clock speed, 8 GB of standard memory that can be expanded to 24 GB, and 24 GB/s of maximum system bandwidth. The controller has USB, RJ45, and DisplayPort interfaces in addition to 240 GB of SSD storage.
Physically, the 783513-05 is a four-wide, three-unit PXI Express module that needs to be installed in one system slot and three controller expansion slots. It weighs about 1.5 kg (3.4 lb) and is completely compliant with PXI Express Specification 1.0.
| Part Number | 783513-05 |
|---|---|
| Model Name | PXIe-8880 |
| Part Type | PXI Express Embedded Controller |
| Processor Clock | 2.3 GHz |
| Standard Memory | 8 GB |
| Maximum Memory | 24 GB |
| Bandwidth | 24 Gb/s |
| Standard Storage | 240 GB, SSD |
| Ethernet | 2GbE |
| USB Ports | 4 USB 2.0, 2 USB 3.0 |
| Manufacturer | National Instruments |
