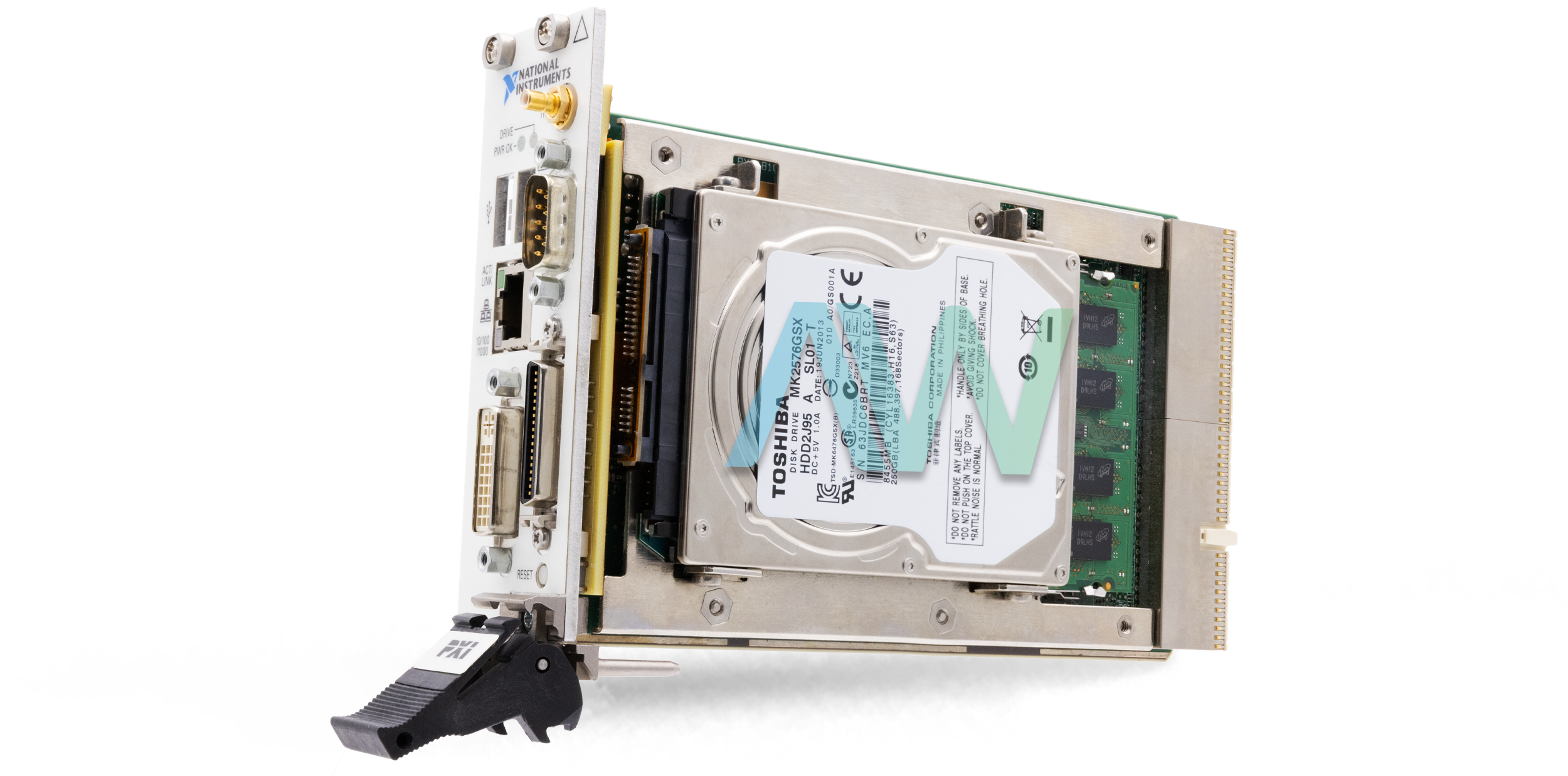

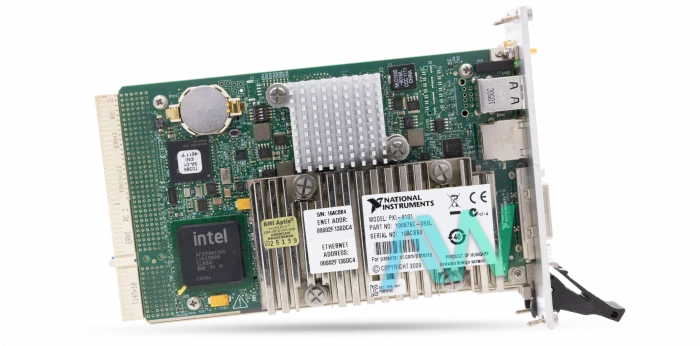

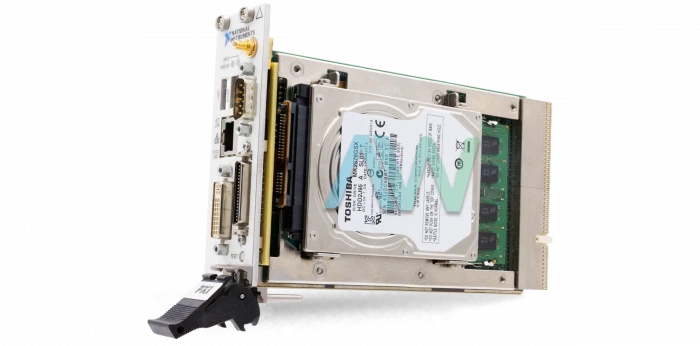

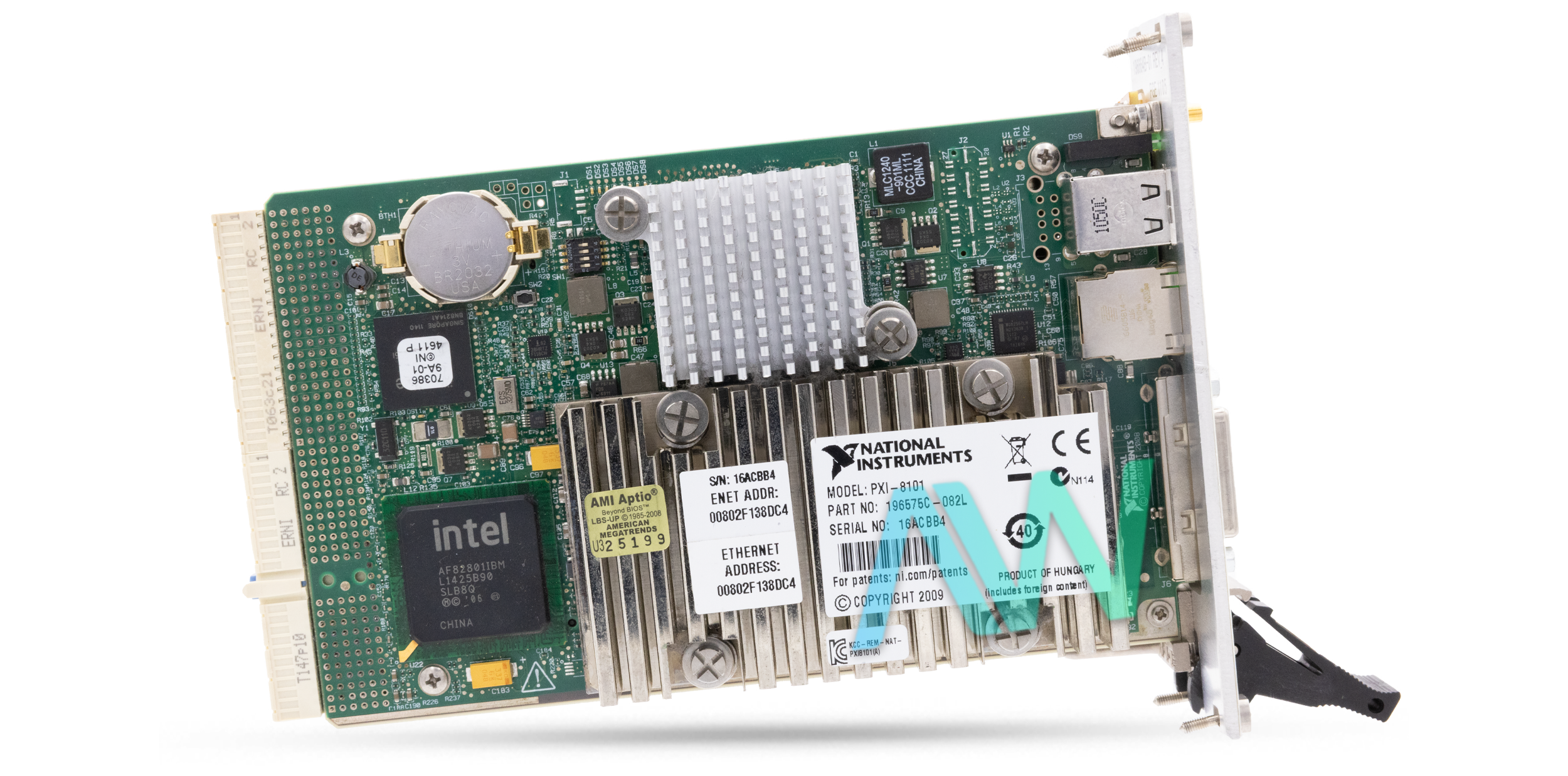

National Instruments PXI-8101 PXI Controller
Featured with the 2.0 GHz Intel Celeron 575 Processor, the National Instruments PXI-8101 (Part Numbers: 780955-01, 780955-02, 780956-33, and 780955-33) is a 2-slot embedded Controller designed for PXI systems. This controller is used to create a portable PC-based platform for data acquisition, test and measurement, and industrial control applications. This model features two Hi-Speed USB ports, a 10/100/1000BASE-TX (Gigabit) Ethernet port, as well as an integrated hard drive. By using state-of-the-art packaging, this controller integrates standard I/O features in a single unit. By type, the PXI-8101 is a modular PC and is designed in 3U-size form factor.
This controller comes with a pre-installed OS and allows the user to install a different OS as well. With this controller, the user will be able to make changes in configuration settings through the BIOS setup program, which includes numerous menus for enabling or disabling NI PXI-8101 controller features. However, in most cases, users will find the default settings well suited for most of their applications. To couple with any PXI backplane trigger line, the National Instruments PXI-8101 comes equipped with a front panel SMB connector.
The NI device operates using the NI-DAQmx driver software, which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Microsoft Visual Basic, Visual C++, Visual Studio .NET, NI-VISA, and Measurement Studio. The instrument is equipped with a variety of I/O connectors such as: a 24-pin DVI-I video connector, a 9-pin D-SUB (RS-232 serial port), an RJ45 Ethernet port, a 36-pin Champ (IEEE 1284 parallel port), an SMB trigger connector, and a stacked USB 4-pin Series A receptacle.
The NI PXI-8101 has two front panel LEDs that show PC status to keep the user purged with real-time information. In addition, a controller reset push button is also provided on the front panel that can be used for issuing a total reset command to the controller. For fast data storage at high rates, the National Instruments PXI-8101 features one 2.5 in. SATA notebook type internal hard disk drive. This model also supports more flexible options as it comes with USB storage support. The device weighs 1.42 lbs., with the dimensions: 1.59 x 5.14 x 8.51 in.
PXI-8101 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8101 |
|---|---|
| Part Numbers | 780955-01, 780955-02, 780956-33, 780955-33 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Slots | 2 (1 system + 1 expansion) |
| CPU | Intel Celeron 575 (2.0 GHz) |
| Installed RAM / Max | 1 GB / 4 GB DDR2 SO-DIMM |
| Hard Drive | 2.5 in. SATA, 80 GB minimum |
| Ethernet | 10/100/1000BASE-TX Gigabit |
| OS Compatibility | Windows XP, Vista, 7, and LabVIEW Real-Time |
| Dimensions | 1.59 x 5.14 x 8.51 in. |
| Weight | 1.42 lb. |
| PXI-8101 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8101:
National Instruments PXI-8101 Frequently Asked Questions
Question: What is the difference in the part numbers for the PXI-8101 Controller?
Answer: The PXI-8101 has compatibility available for different operating systems. Part number 780955-01 is designed for Windows XP and part number 780955-02 is designed for Windows Vista. Part number 780956-33 has storage of 4 GB or greater, while part number 780955-33 has storage of 80 GB or greater.
Question: Which software types are standard on the PXI-8101?
Answer: The controller typically comes with a pre-installed Microsoft Windows operating system, along with NI software tools such as NI-VISA and NI-DAQmx. Drivers for built-in I/O ports and other supported hardware are also included on the internal storage under the c:images directory for user installation as needed.
Question: What is the standard memory size for the PXI 8101?
Answer: The standard memory size is 1 GB.
Question: How many hi-speed USB ports does the NI PXI-8101 have?
Answer: The PXI Controller has 2 hi-speed USB ports.
PXI-8101 PDF Manuals
