National Instruments PXI-8105 PXI Controller
Featuring an Intel Core Duo Processor T2500 with dual-channel 667 MHz DDR2 RAM, the National Instruments PXI-8105 (Part Numbers: 779917-01, 779917-00, 779918-00, 779918-01, 779918-02, 192893A-712) is a high-performance embedded controller for use in PXI systems. This controller comes a 667 MHz Front-Side Bus and extensive hardware resources that make it an ideal choice for intensive applications. The processor incorporated in the PXI-8105 has two computing engines or cores located in one physical package.

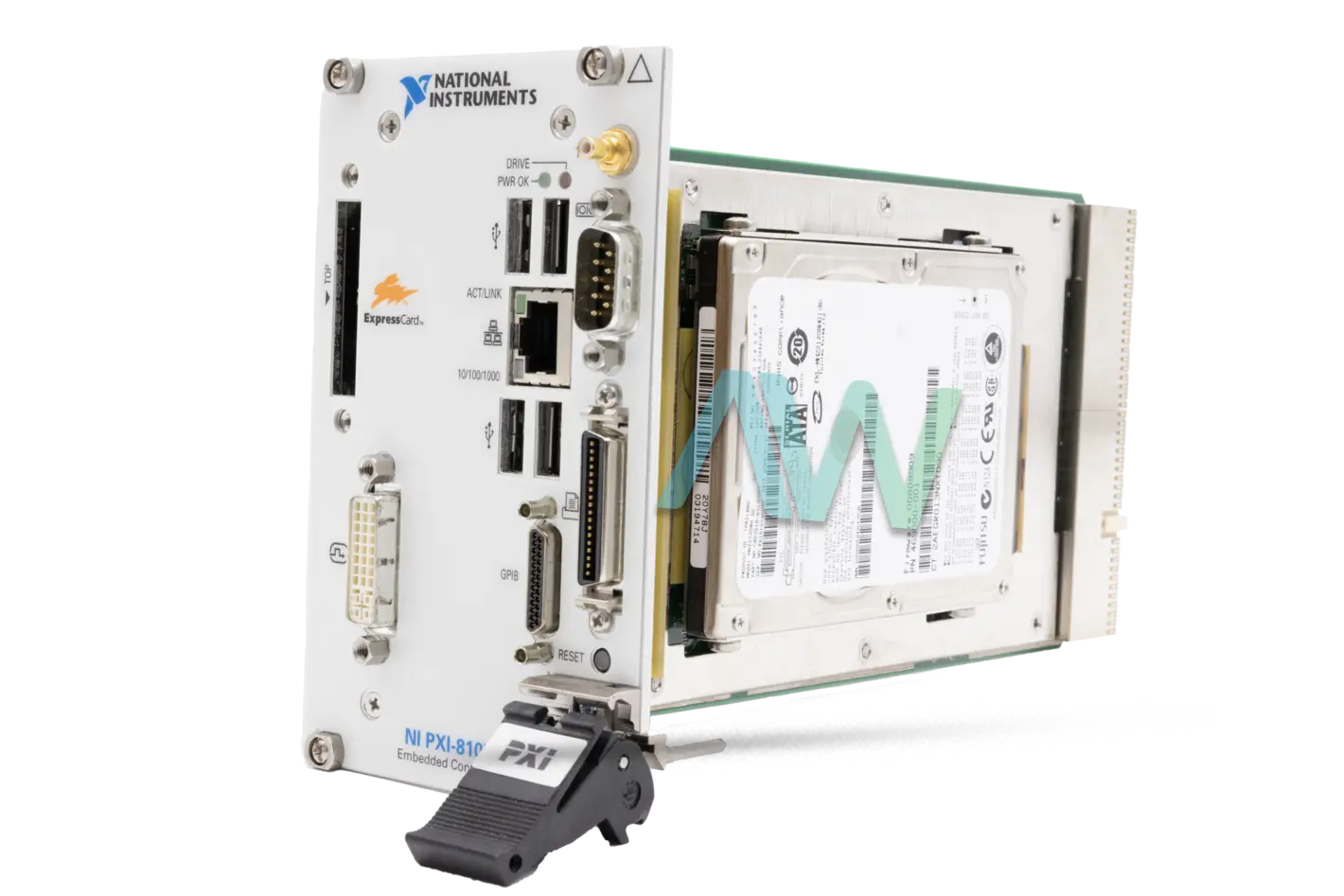

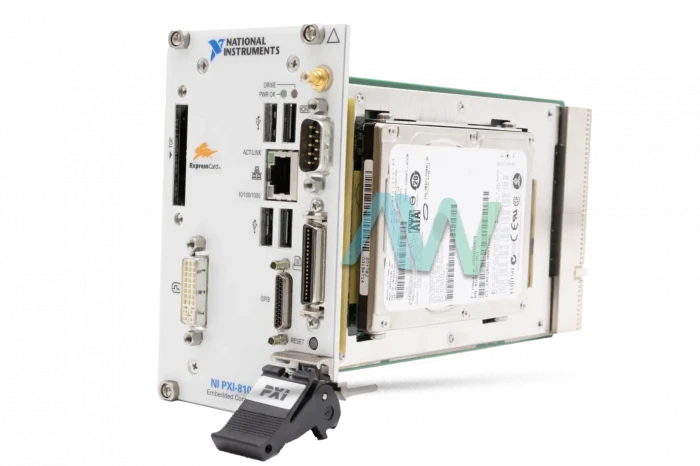

The dual-core processor incorporated in this controller can execute two computing tasks simultaneously. This makes it possible - the execution of two applications such as Microsoft Excel and NI LabVIEW. However, this feature can only be used in environments where multiple applications can run in parallel such as Windows XP. To deliver maximum flexibility, performance, and stability the NI PXI-8105 has incorporated the Intel 945GM Express chipset. As far as its I/O capabilities are concerned, this model has 4 x Hi-Speed USB ports, 1 x Serial port (RS232), 1 x GPIB (IEEE 488) controller, 1 x 10/100/1000 BASE-TX Ethernet, 1 x ExpressCard/34 slot, and 1 x Watchdog/trigger SMB.

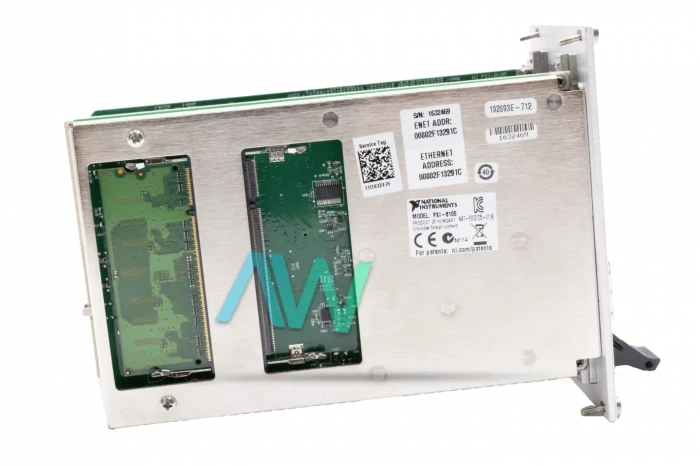

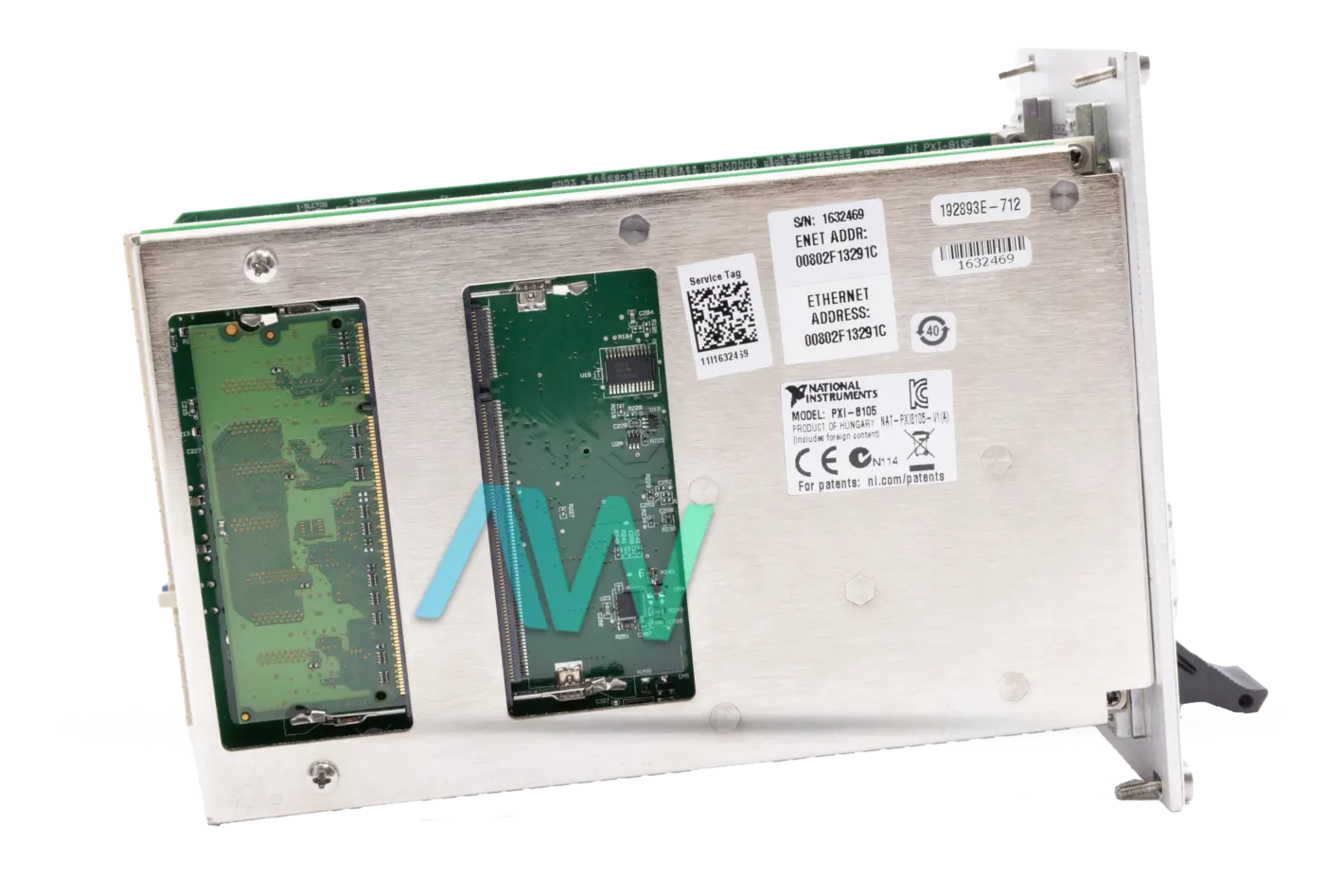

In its default configuration, the National Instruments PXI-8105 is offered with Windows XP Professional preloaded. However, this embedded controller allows the installation of user-defined or multiple operating systems as well. By using the ExpressCard/34 slot, users can also add another gigabit Ethernet port to their system. The NI PXI-8105 has two SO-DIMM sockets that can be upgraded to 2 GB. For its deployment, this model requires one system slot and three controller expansion slots. The device has a weight of 2.1 lbs., with the dimensions: 3.2 x 5.1 x 8.5 in.
The device operates on the NI-DAQ hardware driver which is compatible with NI application software/application development environments such as LabVIEW, LabWindows/CVI, and Measurement Studio. The device is also compatible with the NI Modular Instruments package which provides specialized drivers such as Express Vis, NI-RFSG, NI-RFSA, NI Switches, DMMs, High-Speed DIO, and a lot more.
The Obsolete Status of the PXI-8105 has been announced by National Instruments, but the controller will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PXI-8105 |
|---|---|
| Part Numbers | 779917-00, 779917-01, 779918-00, 779918-01, 779918-02, 192893A-712 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| CPU | Intel Core Duo Processor T2500 (2.0 GHz dual-core) |
| Standard Memory | 512 MB |
| Hi-Speed USB Ports | 4 |
| Compatible With | PXI Specification |
| Operating Temp Range | 5 to 50 °C, 0 to 55 °C (Extended Temp Option) |
| Storage Temp Range | –20 to 65 °C, –40 to 70 °C (Extended Temp Option) |
| Relative Humidity Range | 10% to 90% (Operating), 5% to 95% (Storage) Noncondensing |
| Slot Requirements | 1 System Slot, 3 Controller Expansion Slots |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.1 lb. |
| Warranty | Three Year Warranty |
| PXI-8105 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-8105:
National Instruments PXI-8105 Frequently Asked Questions
Question: What is the difference between the various part numbers for the PXI-8105?
Answer: The first part number, 779917-00, is the base model with Localized Windows XP or another OS. The next part number, 779917-01, has Windows XP Professional (English) installed. Part number 779918-00 is the extended temperature model with Localized Windows XP or another OS installed. Finally, part number 779918-01 is the extended temperature model with Windows XP Professional (English). The basic models have an operating temperature range from 5 to 50 degrees C and a storage temperature ranging from -40 to 65 degrees C. The extended temperature models have an operating temperature range from 0 to 55 degrees C and a storage temperature ranging from -40 to 85 degrees C.
Question: Are there certain Chassis that the NI PXI-8105 is not compatible with?
Answer: The PXI Controller will not work in the PXI-1020 or PXI-1025 Chassis.
Question: Does the Ethernet Controller on the PXI-8105 need crossover cables?
Answer: No, the Ethernet Controller does not need crossover cables because it can accomplish a crossover automatically.
Question: What is the part number for the parallel port adapter cable compatible with the PXI-8105?
Answer: The compatible parallel port adapter cable can be found under part number 777169-01.
PXI-8105 PDF Manuals
ARCHIVED--NI-PXI-8105-8106-LETTER-OF-VOLATILITY.PDF
ARCHIVED--NI-PXI-8105-INSTALLATION-GUIDE.PDF
ARCHIVED--NI-PXI-8105-USER-MANUAL-AND-SPECIFICATIONS.PDF
ARCHIVED--NI-PXIE-8105-USER-MANUAL-AND-SPECIFICATIONS.PDF
PXI-EXPRESS-EMBEDDED-CONTROLLERS-PRODUCT-FLYER.PDF
PXI-8105 Diagrams
