Modular Systems > National Instruments > PXI Controllers

PXI-8108 In Stock | Ships in 3-5 Days

Q: Is changing theBIOS settings necessary to configure the model correctly?

No, changing the BIOS settings on the PXI-8108 settings is not necessary. In fact, many users do not need to utilize the BIOS setup because the Controller comes with default settings that will work for most configurations.

Q: Why are there four part numbers for the NI PXI-8108?

The NI PXI-8108 has several part numbers with different temperature ranges and software installed. For example, part number 780446-04 has Windows 7 32-bit installed and is the basic model. Part number 780447-04 also has Windows 7 32-bit installed but has an extended temperature range. Part number 780446-02 is the basic model with Windows Vista installed and part number 780447-02 is the extended temperature model with Windows Vista.

Q: What temperature ranges are available for the PXI Controller?

The basic NI PXI-8108 model has an operating temperature range of 5 to 50 degrees C and a storage temperature range of -40 to 65 degrees C. The extended temperature version of the NI PXI-8108 has an operating temperature range from 0 to 55 degrees C and a storage temperature from -40 to 70 degrees C.

Q: Is the PXI-8108 RT compatible with the PXI-1050 chassis?

Yes, the PXI-1050 and PXI-8108 are compatible since they are both PXI (not PXIe).

PXI-8108, 2.53 GHz Dual-Core Processor, 80 GB SATA, PXI Controller

Rated 4.6/5 | 5 ratings

National Instruments PXI-8108 PXI Controller | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

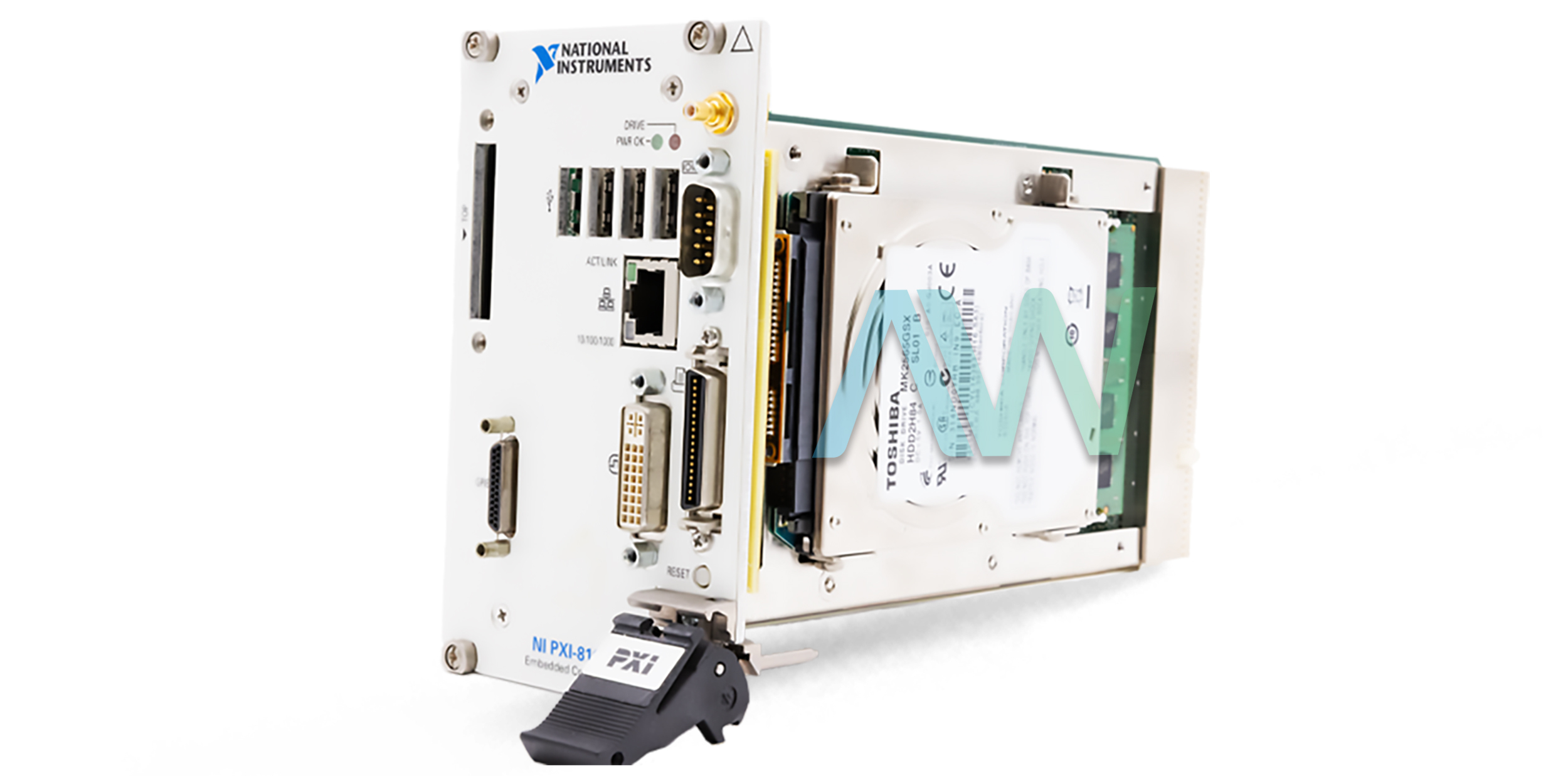

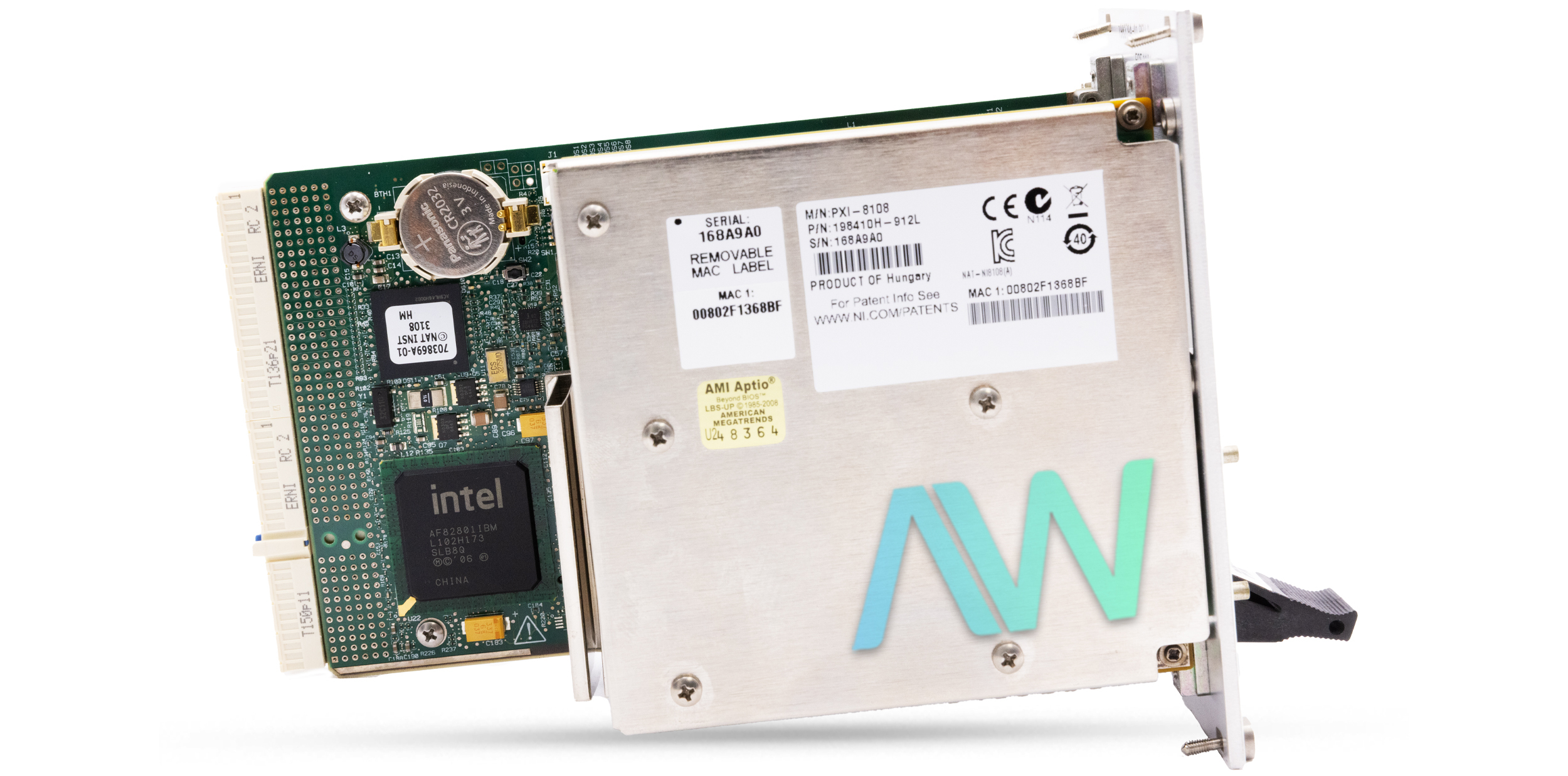

National Instruments PXI-8108 PXI Controller

Featured with an Intel Core 2 Duo T9400 processor (2.53 GHz dual-core), 6 MB L2 cache, single-channel 800 MHz DDR2 RAM, and an 80 GB SATA (5400 rpm) hard drive, the National Instruments PXI-8108 (Part Numbers: 780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01) is a microprocessor-based embedded controller. This controller is offered with a pre-installed operating system and officially supports Windows 7 Professional, Windows Vista Business, and Windows XP Professional. While Windows 10 can be successfully installed on the controller, peripheral drivers may not achieve optimal functionality.

For video processing, this model is equipped with a Mobile Intel GM45 Express Chipset with an integrated graphics processing unit (GPU). This allows the NI PXI-8108 to deliver solid graphics performance, but it does not provide advanced 3D rendering capabilities for high-end applications. The onboard graphics eliminate the need for a separate graphics card.

For connecting an external monitor, the embedded controller includes a DVI-I video connector, which supports both VGA and digital monitors. A VGA connector requires a DVI-I to VGA adapter, which is included in the shipping kit. Dual-monitor support is not available using only the onboard graphics, so simultaneous VGA and DVI output requires additional hardware, such as an ExpressCard-based graphics adapter.

The PXI-8108 is compatible with several software tools, including LabVIEW, Measurement Studio, LabWindows/CVI, Microsoft Visual Basic, Visual C++, and Visual Studio .NET, along with the NI-DAQmx driver. The device features multiple I/O interfaces with their corresponding external connectors: Video I/O interface: DVI-I (24-pin DSUB), Serial interface: COM 1 (9-pin DSUB), Ethernet interface: LAN (RJ45), Parallel interface: Parallel port (36-pin champ), USB interface: Four USB 2.0 ports (4-pin Series A stacked receptacle), PXI trigger interface: Trigger (SMB), GPIB Controller interface: GPIB (25-pin Micro D), Expansion Slot: ExpressCard/34

This controller utilizes single-channel 800 MHz DDR2 SDRAM (PC2-6400), supporting memory-intensive applications that require moderate memory bandwidth. Users needing additional memory can upgrade the pre-installed 1 GB RAM to a maximum of 4 GB using a single DDR2 SO-DIMM module.

PXI-8108 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.

Model	PXI-8108
Manufacturer	National Instruments
Part Numbers	780446-04, 780447-04, 780446-02, 780447-02, 780446-01, 780447-01
HTS Code	8471500000
Type	PXI Controller
CPU	Intel Core 2 Duo T9400 (2.53 GHz dual core)
L2 Cache	6 MB Shared
Standard RAM	1 GB DDR2 SO-DIMM (Upgradeable to 4 GB)
Dimensions	3.2 x 5.1 x 8.5 in.
Weight	2.02 lb.
Hard Drive	80 GB SATA (5400 rpm)
Memory Configuration	Single-Channel DDR2
Operating Temperature Range	0 °C to 55 °C

Associated part numbers for PXI-8108:

National Instruments PXI-8108 Frequently Asked Questions

Question: What are the drivers used for the PXI-8108?

Answer: The drivers used are NI-VISA and NI-488.2.

Question: Is changing theBIOS settings necessary to configure the model correctly?

Answer: No, changing the BIOS settings on the PXI-8108 settings is not necessary. In fact, many users do not need to utilize the BIOS setup because the Controller comes with default settings that will work for most configurations.

Question: Why are there four part numbers for the NI PXI-8108?

Answer: The NI PXI-8108 has several part numbers with different temperature ranges and software installed. For example, part number 780446-04 has Windows 7 32-bit installed and is the basic model. Part number 780447-04 also has Windows 7 32-bit installed but has an extended temperature range. Part number 780446-02 is the basic model with Windows Vista installed and part number 780447-02 is the extended temperature model with Windows Vista.

Question: What temperature ranges are available for the PXI Controller?

Answer: The basic NI PXI-8108 model has an operating temperature range of 5 to 50 degrees C and a storage temperature range of -40 to 65 degrees C. The extended temperature version of the NI PXI-8108 has an operating temperature range from 0 to 55 degrees C and a storage temperature from -40 to 70 degrees C.

Question: Is the PXI-8108 RT compatible with the PXI-1050 chassis?

Answer: Yes, the PXI-1050 and PXI-8108 are compatible since they are both PXI (not PXIe).
