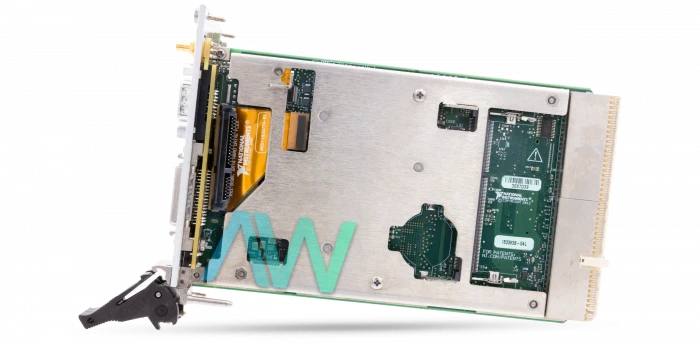

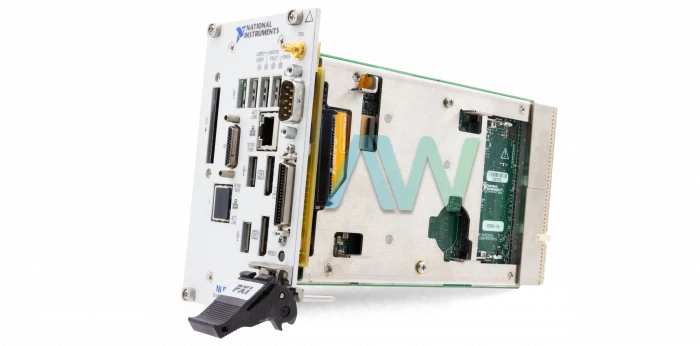

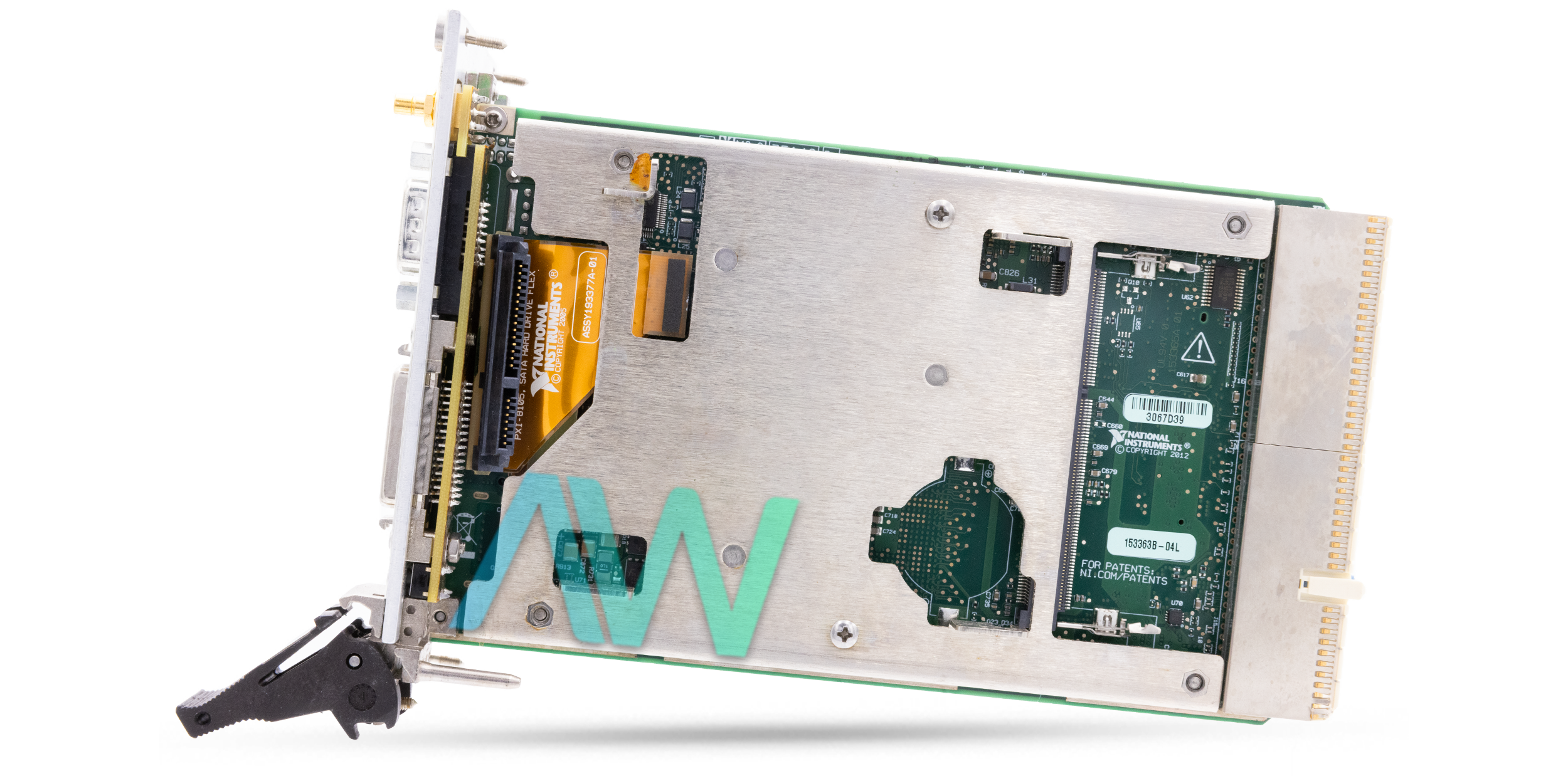

National Instruments PXI-8115 Dual-Core Embedded Controller
The PXI-8115 (Part numbers: 781862-00, 781860-33, 781862-33, 781860-04, 781862-04, 781860-01, and 781862-01) is a Dual-Core Embedded Controller for PXI manufactured by National Instruments. This model has standard I/O capabilities and can be used in conjunction with a PXI-compatible chassis, such as the NI PXI-1042. The I/O on every module includes two DisplayPort video outputs, a parallel port, six high-speed USB 2.0 ports, a reset button, two Gigabit Ethernet ports, one RS-232 serial port, and a PCI-based GPIB controller. The National Instruments PXI-8115 is a 3U-sized module with a 1333 MHz memory controller, supporting single-channel DDR3 SO-DIMM memory.
The PXI-8115 is compatible with software packages such as LabVIEW, Measurement Studio, LabWindows/CVI, and NI-VISA. It also supports NI-DAQmx for use with data acquisition hardware. The user can link a monitor to the controller to display startup messages such as the MAC address and IP address. However, the other computer must have LabVIEW, LabVIEW RT, or other necessary drivers installed. An important fact to note is that the user can record the PXI-8115 Dual-Core Embedded Controller’s MAC address to identify the model.
The National Instruments PXI-8115 allows users to upgrade the installed RAM by replacing the SO-DIMM memory module. Supported options include 2 GB (Part Number: 781734-2048), 4 GB (Part Number: 781735-4096), and 8 GB (Part Number: 781736-8192). The PXI-8115 Dual-Core Embedded Controller features an ExpressCard/34 slot for expansion. While some ExpressCard modules can be inserted while the system is powered on, hot-swapping compatibility depends on the module type and driver support.
The controller includes multiple external connectors, such as a 9-in DSUB for RS-232, two RJ45 Gigabit Ethernet ports, a 36-pin champ parallel port, and a 25-pin Micro D GPIB connector. The device weighs 1.32 kg and measures 3.2 × 5.1 × 8.5 in. in physical dimensions. It has a standard operating temperature range of 5 °C to 50 °C, with an extended temperature option supporting 0 °C to 55 °C.
PXI-8115 Maintenance Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8115 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781862-00, 781860-33, 781862-33, 781860-04, 781862-04, 781860-01, 781862-01 |
| Series | PXI Controllers |
| Type | Dual-Core Embedded Controller |
| CPU | Intel® Core™ i5 2510E (2.50 GHz dual core processor) |
| RAM | 2 GB Standard; 8 GB Maximum |
| Board Size | PXI 3U-size module |
| Warranty | Three Year Warranty |
| PXI-8115 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for More Information |
Associated part numbers for PXI-8115:
National Instruments PXI-8115 Frequently Asked Questions
Question: What is the difference between all of the part numbers of the PXI-8115?
Answer: The PXI-8115 is available in different configurations based on operating system and temperature options. Part number 781860-00 has no pre-installed operating system, while part number 781862-00 has no OS but includes the Extended Temperature option. Part number 781860-33 comes with Real-Time Embedded software, while part number 781862-33 includes Real-Time Embedded software with the Extended Temperature option. Part number 781860-04 is configured for Windows 7, and part number 781862-04 is also made for Windows 7, but with the Extended Temperature option. Part number 781860-01 is made for use with Windows XP FES, while part number 781862-01 is also for Windows XP FES, but includes the Extended Temperature option.
Question: How many USB ports does the PXI-8115 have?
Answer: The PXI Controller has 6 Hi-Speed USB ports.
Question: Should the chassis be plugged in before installing the controller?
Answer: Yes, you need to plug in the chassis before installing the NI PXI-8115. The power cord grounds the chassis and protects it from electrical damage. Make sure the power switch is turned off.
Question: Why am I unable to see the video on the NI PXI-8115?
Answer: If you can’t see the video on the PXI-8115, it usually means the video card output is set past the limits of the monitor. You will need to boot Windows in Safe Mode and reset the video driver to lower settings.
Question: Does the PXI-8115 have a trigger bus input/output?
Answer: Yes, the controller is equipped with both trigger bus input and output.
PXI-8115 PDF Manuals
NI-PXI-8115-INSTALLATION-GUIDE.PDF
NI-PXI-8115-USER-MANUAL-AND-SPECIFICATIONS.PDF
PXI-1031-PXI-1031DC-SPECIFICATIONS.PDF
