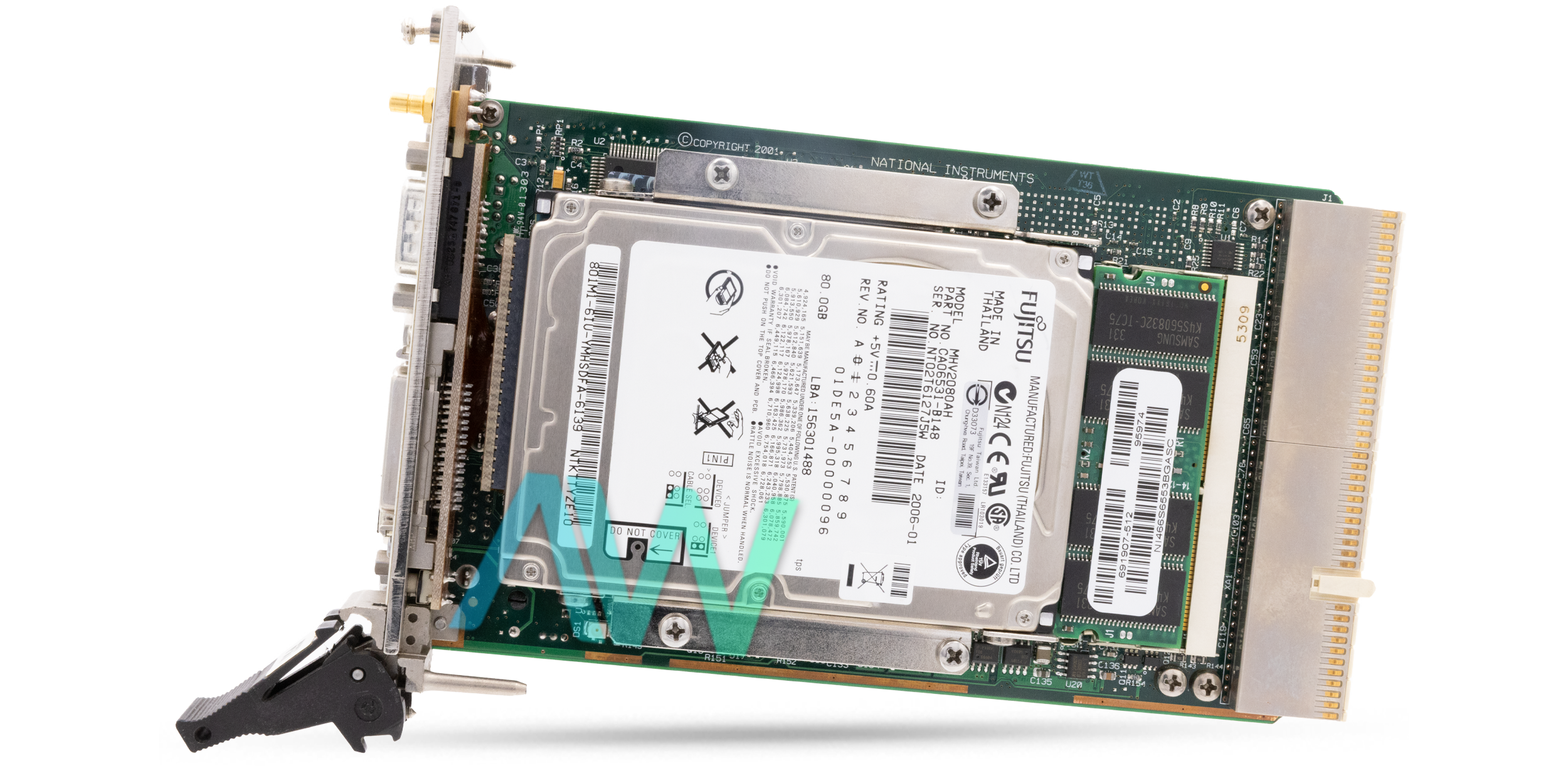

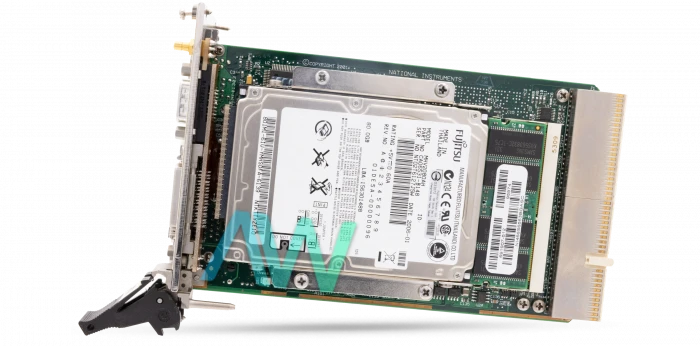

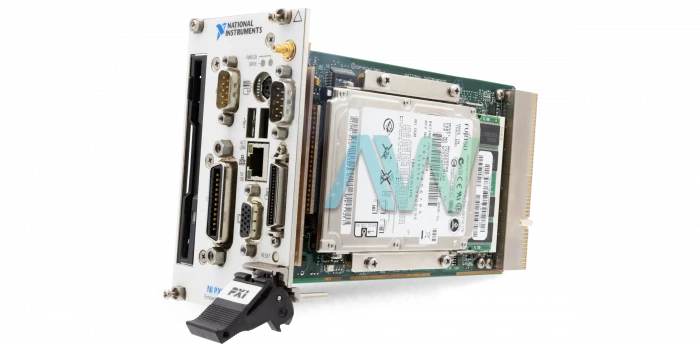

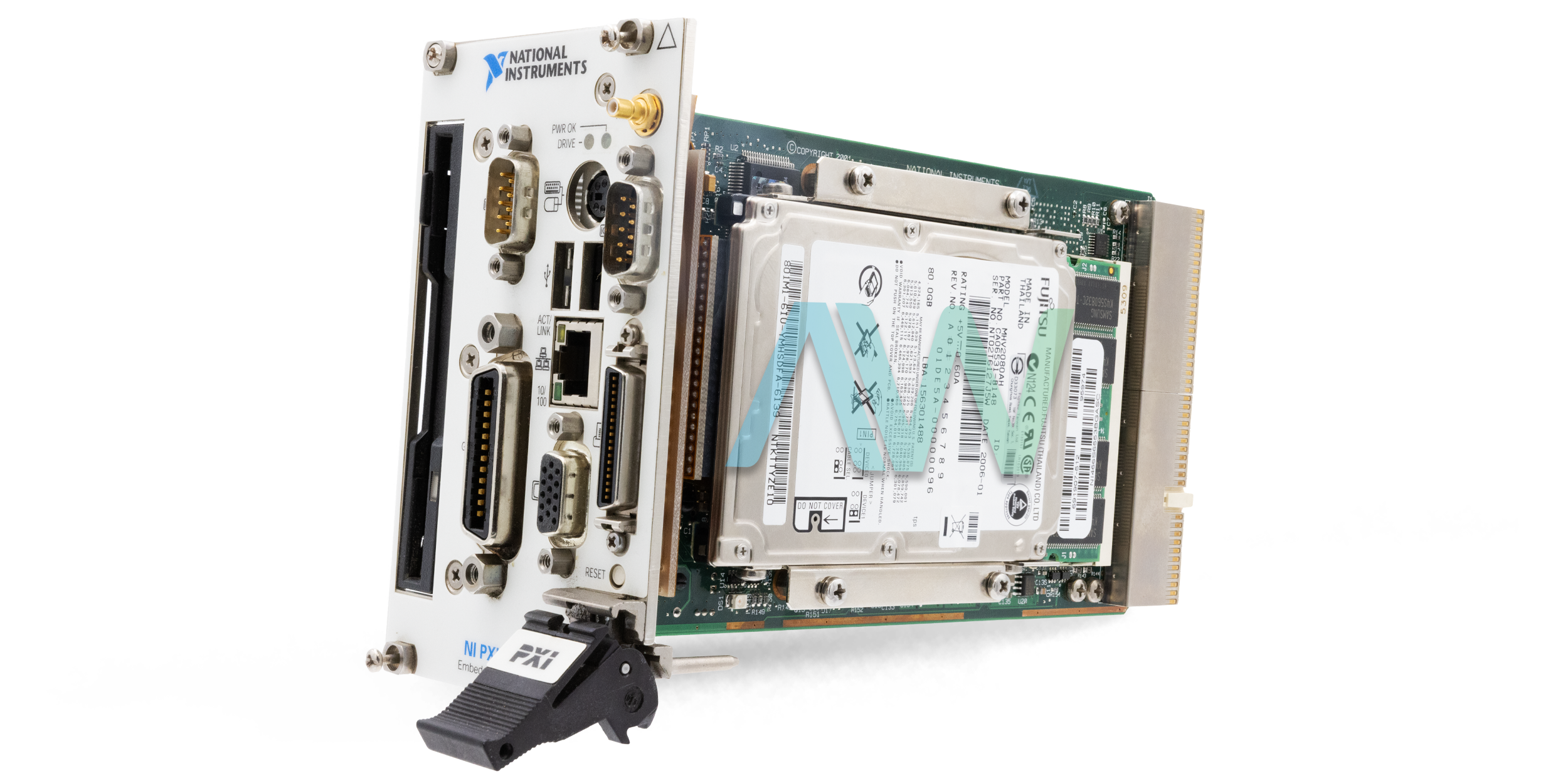

National Instruments PXI-8176 PXI Embedded Controller
The PXI-8176 (Part Numbers: 778468-00, 778468-01, 778468-02, 187317K-012 and 187317D-612) is a Pentium III Embedded Controller for CompactPCI and PXI. This high-performing Embedded Controller can be combined with a PXI chassis, such as the PXI-1020 or PXI-1025 for a small PC platform ideal for data acquisition. The NI PXI-8176 Controller has an internal USB-to-PS/2 adapter, which is activated automatically when the Controller is installed in the PXI-1020 or PXI-1025 Chassis. The PXI 8176 is one of the best performing models of the NI 8171 Series with a 1.26 GHz Pentium III processor, and a GPIB interface.
Several features of this model include PXI slots for measurement modules, a hard drive and floppy drive, two USB ports, and a VGA with dynamic memory video technology (DMVT). With DMVT, the result is stellar graphics and memory performance via Direct AGP and extremely efficient memory. The device is equipped with 1 system slot and 3 controller expansion slots. The NI PXI 8176 Embedded Controller can be used with the NI-DAQ driver software provided by National Instruments, and software packages/application development environments (ADES) such as the NI LabVIEW, LabWindows/CVI, Measurement Studio software, and NI-VISA.
The National Instruments PXI-8176 has 128 MB of SDRAM, but this can be upgraded to 256 MB. This Embedded Controller has 1280 x 1024 resolution at 24-bit color and 1600 x 1200 resolution at 256 colors, and requires one system slot and three controller expansion slots. This model also has several accessories available for purchase at an additional cost, including: an external USB CD-ROM for software installation and upgrades, an IEEE 1284 parallel port adapter cable, and a parallel port converter cable to modify from a Type C connector to a DB-25 connector. The device weighs 2.6 lbs., with the dimensions: 3.2 x 5.1 x 8.5 in.
The status of the PXI-8176 has been announced as Obsolete by National Instruments, but this controller will be available for purchase and repairs in perpetuity from Apex Waves.
| Model | PXI-8176 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778468-01, 778468-00, 778468-02, 187317D-612, 187317K-012 |
| Series | NI 8171 Series |
| Part Type | PXI Embedded Controller |
| SDRAM | 128 MB |
| MTBF | 169,000 h |
| Slots | 1 System Slot, 3 Controller Expansion Slots |
| Interfaces | 100BaseTX Ethernet interface, GPIB (IEEE 488.2) Interface (optional) |
| Operating Temp Range | 0 to 50 °C |
| Storage Temp Range | –20 to 65 °C |
| Dimensions | 3.2 x 5.1 x 8.5 in. |
| Weight | 2.6 lb. |
| Warranty | Three Year Warranty |
| PXI-8176 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for More Information! |
Associated part numbers for PXI-8176:
National Instruments PXI-8176 Frequently Asked Questions
Question: What is the difference between the part numbers for the PXI-8176?
Answer: The first part number, 778468-01, is for Windows 2000 operating systems. Part number 778468-00 is for localized OS systems, while part number 778468-02 is for the Windows XP OS.
Question: If I have an NI PXI-8176 Controller with a 16 GB hard drive, can I replace the disk with a larger one?
Answer: Yes, the hard drive can be upgraded. However, one thing to keep in mind is that an 8.5 mm thick HD is suggested because a HD bigger than 9.5 mm will cover slot 2 in the chassis.
Question: While using a PXI-8176 Controller with a PXI-1010 Chassis, it runs slowly and takes a few minutes to load LabVIEW. How do I fix the loading problem?
Answer: If the PXI-8176 has 128 MB RAM or less, the RAM can be upgraded to 256 or 512 MB to improve the speed.
Question: What is the typical power for the PXI-8176?
Answer: The typical power for the Embedded Controller is 30 W.
Question: What type of floppy drive does the controller have?
Answer: The NI PXI-8176 has an internal floppy drive that measures 3.5 in. and has 1.44 MB of memory.
