National Instruments PXI-8196 Embedded Controller

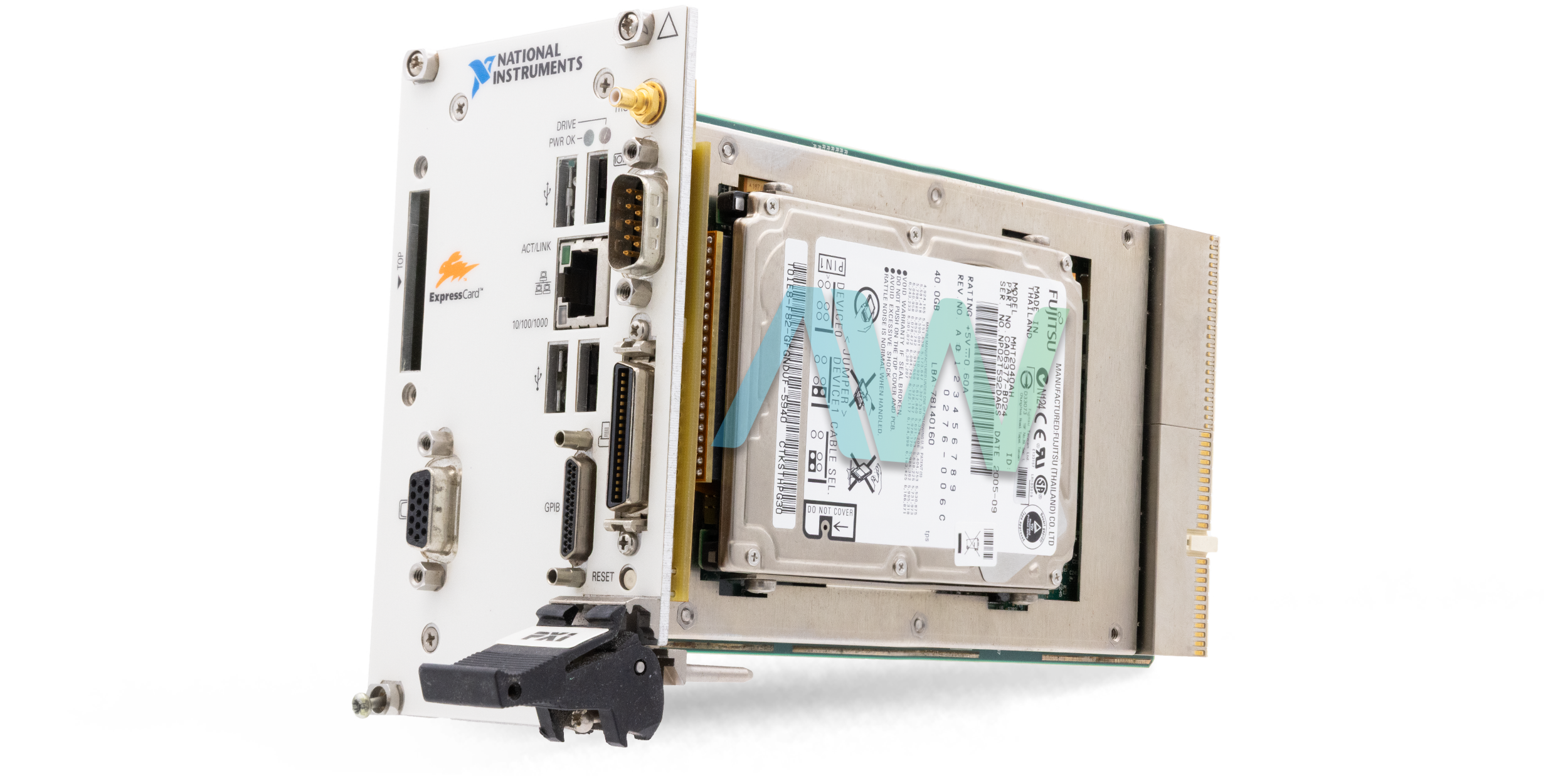

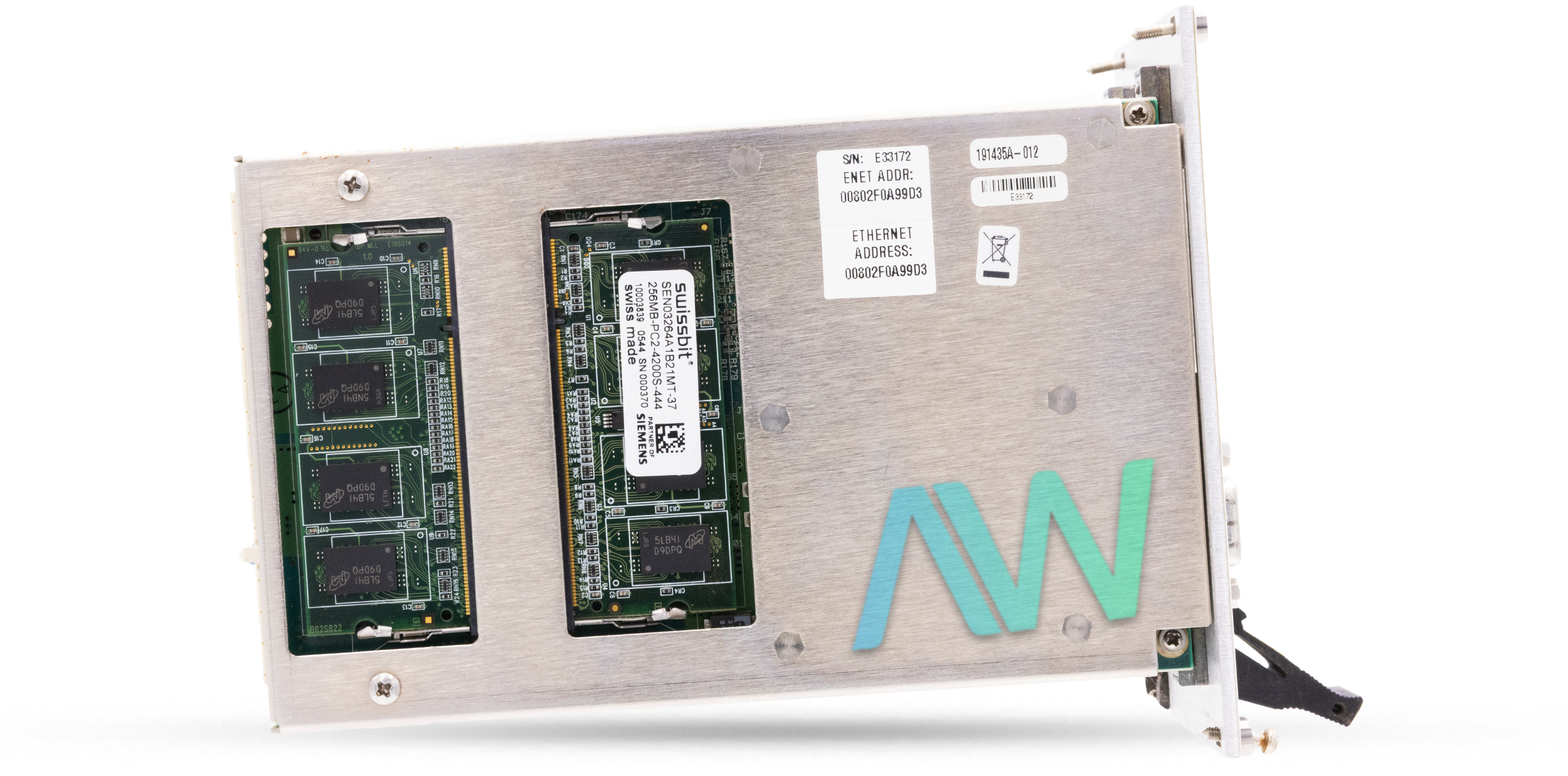

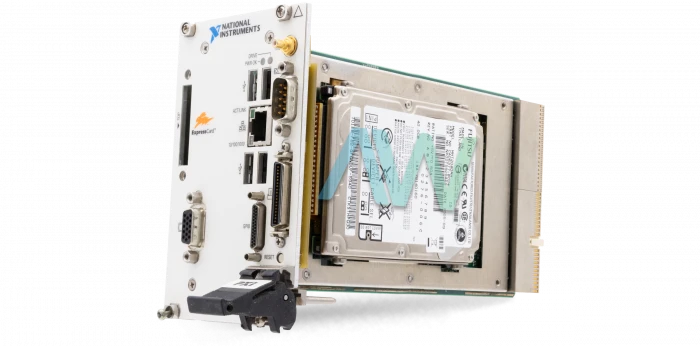

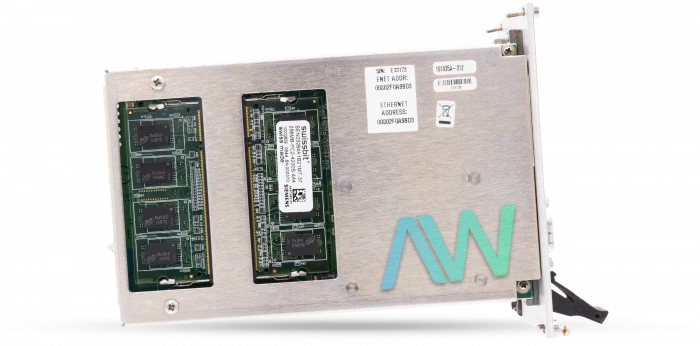

The National Instruments PXI-8196 is a high-performance, microprocessor-based Embedded Controller designed for use in PXI systems. This controller (Part Numbers: 779911-00, 779911-01, 779912-00, 779912-01) is powered by a 2.0 GHz Intel Pentium M 760 processor and includes 512 MB of DDR2 SDRAM, expandable to 1 GB or 2 GB using two DDR2 SO-DIMM modules. It also features a 30 GB or larger internal hard drive with a Fast Ultra ATA100 interface, making it well-suited for data-intensive applications.

The PXI-8196 includes an integrated Intel Graphics Media Accelerator 900 and provides an external SMB connector that can function as either a trigger input/output or watchdog timer. This SMB connector allows users to pass timing and trigger signals to and from the PXI trigger bus within a PXI system. Additionally, the PXI-8196 is equipped with a PCI-based GPIB controller and an ExpressCard/34 slot for system expansion.

This Embedded Controller is offered in two environmental configurations. The standard version operates within a temperature range of 5 to 50 °C, while the extended-temperature version supports an operating range from 0 to 55 °C. Both models are reliable solutions for a range of demanding industrial and laboratory settings.

The PXI-8196 supports a variety of National Instruments software platforms, including LabVIEW, Measurement Studio, and LabWindows/CVI. It is also compatible with NI-VISA, a uniform API used to communicate with and control a wide range of instruments across serial, GPIB, VXI, and PXI interfaces.

In terms of connectivity, the PXI-8196 provides a broad set of standard and extended I/O options. These include a VGA port (15-pin DSUB) for video output, a COM1 serial port (9-pin DSUB), an Ethernet port (RJ45), a parallel port (36-pin champ), and a USB interface consisting of four stacked 4-pin Series A ports. It also includes a GPIB interface (25-pin Micro D), a trigger input/output port (SMB), and an ExpressCard/34 slot. While the PXI-8196 does not have a native PS/2 connector, a PS/2 keyboard and mouse can still be used with the help of a USB Y-splitter cable.

While National Instruments has announced the PXI-8196 as Obsolete, the PXI controller remains available for purchase with Apex Waves. Our comprehensive and continued support services assist with factory calibration or board/component level repairs in perpetuity.

ModelPXI-8196
Part Numbers779911-00, 779911-01, 779912-00, 779912-01
ManufacturerNational Instruments
HTS Code8471500150
TypePXI Controller
Slot Requirements1 System Slot and 3 Controller Expansion Slots
CPU2.0 GHz Pentium M 760
Standard RAM512 MB DDR2 SDRAM
Maximum RAM Capacity2 GB (2 x 1 GB DDR2 SO-DIMMs)
Hard Drive InterfaceUltra ATA100 (30 GB or larger)
Operating TemperatureStandard: 5 to 50 °C, Extended: 0 to 55 °C
Dimensions3.2 x 5.1 x 8.5 in.
Weight1.7 lb.
WarrantyThree Year Warranty
PXI-8196 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-8196:

National Instruments PXI-8196 Frequently Asked Questions



Question: Why are there multiple part numbers for the PXI 8196 Controller?

Answer: The PXI 8196 Controller has several operating systems available, as well as a bade model and an extended temperature model. Part number 779911-01 is the base model with Windows XP (English) installed and part number 779912-01 is the extended temperature model with Windows XP (English) installed. Part number 779911-00 is the base model with Localized OS, while part number 779912-00 is the extended temperature model with Localized OS.



Question: What is the Dual-Channel DDR2 RAM maximum on the NI PXI-8196?

Answer: The Dual-Channel DDR2 RAM on the NI PXI-8196 Embedded Controller is 2 GB maximum.



Question: Does the PXI-8196 have a GPIB Interface?

Answer: Yes, the controller does have a GPIB (IEEE 488.2) Interface.



Question: What is the typical current for the NI PXI-8196 at +5 V voltage?

Answer: The typical current at +5 V is 5.0 A, and the maximum current is 7.0 A
