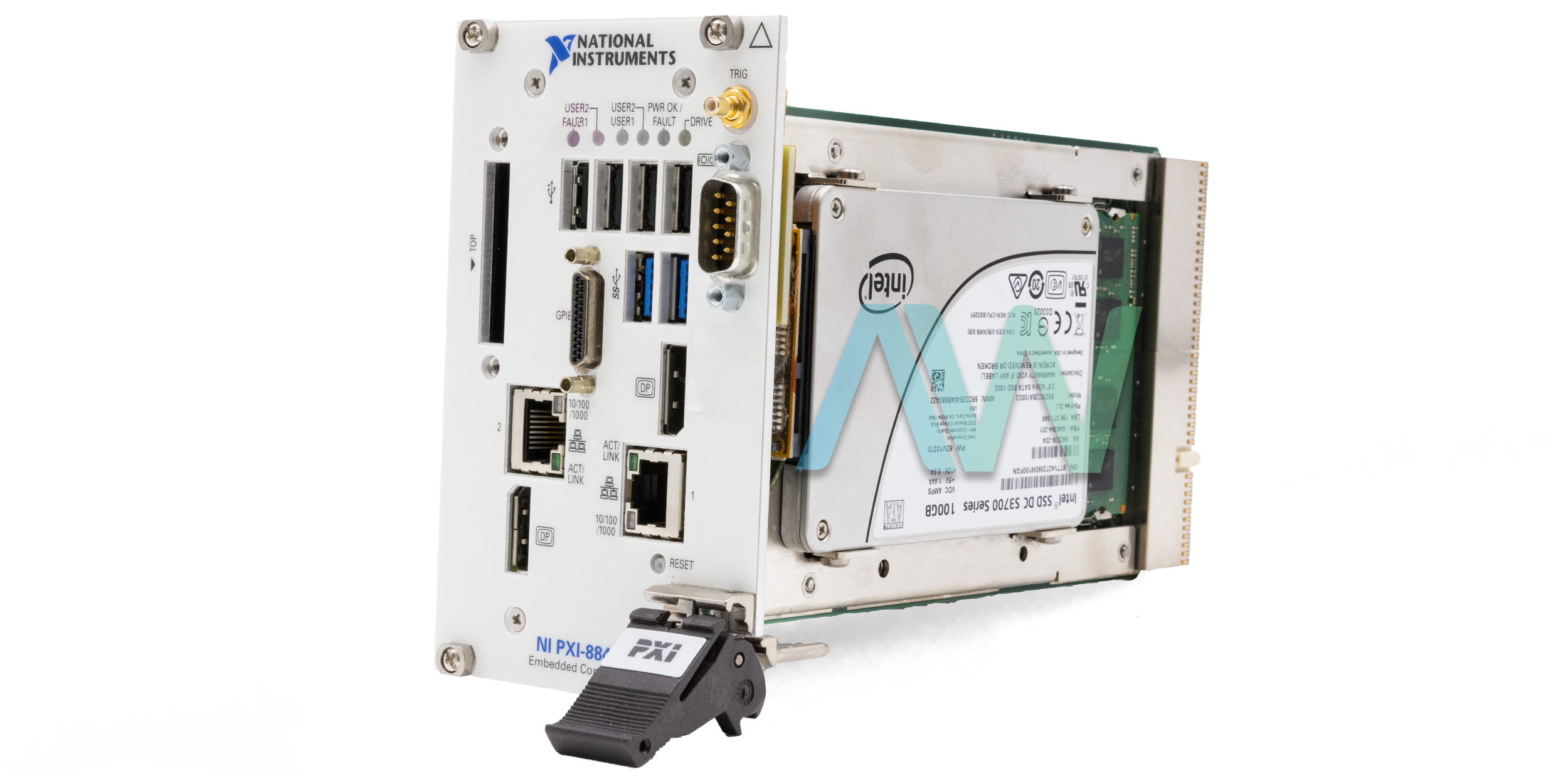

PXI-8840 NI PXI Controller | In Stock Ships Today | Image

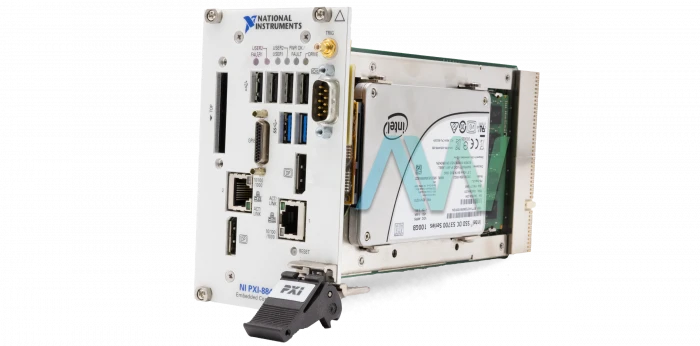

PXI-8840 NI PXI Controller | In Stock Ships Today | Image
PXI-8840 New
PXI-8840 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

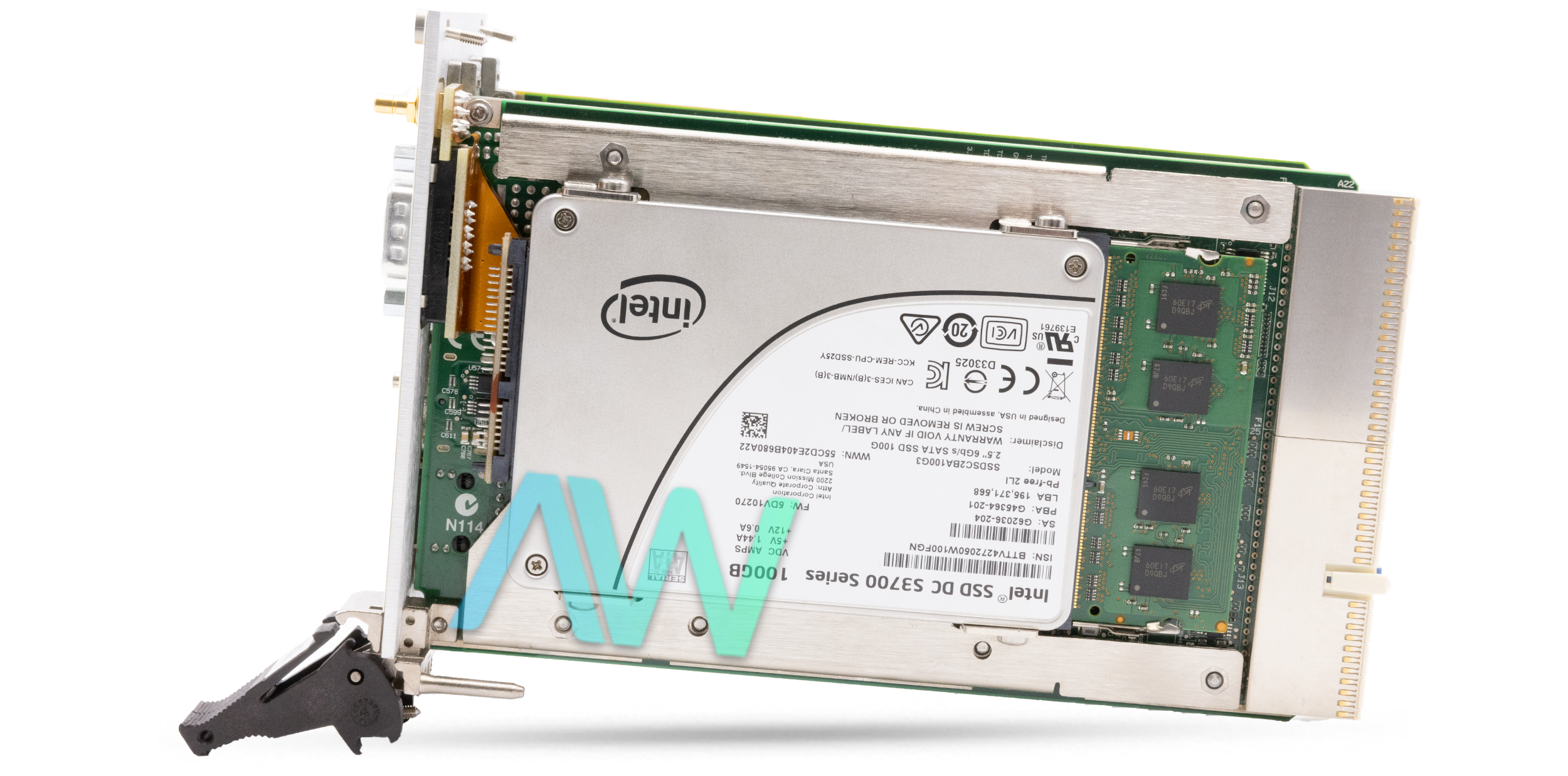

PXI-8840 NI PXI Controller | In Stock Ships Today | Image

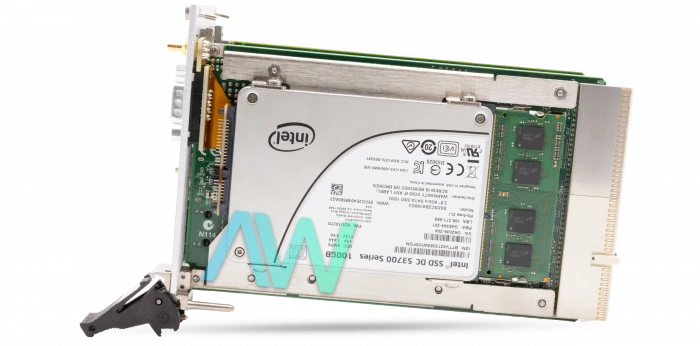

PXI-8840 NI PXI Controller | In Stock Ships Today | Image
PXI-8840 New
PXI-8840 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-8840 PXI Controller

The PXI-8840 (Part Numbers: 785780-04, 785780-01, 785780-33, 785543-01, 784193-04, 784193-33, and 155186B-112L) with a 2.6 GHz Quad-Core Processor is an inserted controller for PXI frameworks with an on-die L2 cache of 3 MB. The maximum system bandwidth for the device is 8 GB/s for the Intel Core i7- 5700EQ processor and 2 GB/s for the Intel Core i5-4400E processor. It can be utilized for applications for measured instrumentation with escalated handling and data acquisition. The PXI 8840 Controller incorporates two Ethernet ports (Gigabit) 10/100/1000BASE-TX, two USB 3.0 ports, and four USB 2.0 ports, as well as an integrated hard disk, 1 RS-232 serial port, 1 ExpressCard/34 slot, and other types of peripheral I/O.

The SMB connector on the NI PXI 8840 quad-core front board can associate with or from any PXI backplane trigger line. A trigger portion process is expected to keep two resources from associating with a similar trigger line, resulting in the trigger being double-driven and possibly damaging the hardware. Quad-core processors contain four cores, or computing engines, in one physical package. To expand the quantity of threads that you can process, the NI PXI 8840 consolidates Intel Hyper-Threading technology that takes every one of the four physical cores and splits the into two virtual cores, for a sum of eight virtual cores These eight virtual cores can execute eight computing tasks, which is advantageous in multitasking conditions like Windows 7. The PXI 8840 includes multithreaded framework development environments, such as NI LabVIEW that can take full advantage of the processing cores on the NI PXI 8840 via naturally separating their tasks independent threads.

In this model, applications must be architected to make four autonomous execution threads by implementing progress strategies, including: task parallelism, data parallelism, and pipelining. Notwithstanding, Intel introduced Turbo Boost technology to provide execution benefits to a wide range of uses without requiring the application to be optimized for multicore processors. The four-wide 3U PXI module weighs 2.77 lb. It has a recommended operating temperature range of 5 °C to 50 °C with an extended temperature option of 0 °C to 55 °C, storage temperature range of -40 °C to 65 °C also with an extended temperature option of -40 to 71 °C.

While the PXI-8840 is no longer available from National Instruments (NI), the PXI Controller will remain available in perpetuity with Apex Waves.

ModelPXI-8840
Part Numbers785780-01, 785780-04, 785780-33, 784193-04,
785543-01, 784193-33, 155186B-112L
ManufacturerNational Instruments
TypePXI Controller
Processor CoreIntel Core i5 or i7
Maximum Controller Bandwidth132 MB/s
On-die L2 Cache3 MB
Standard Storage320 GB, HDD
Ethernet2 GbE
USB PortsFour USB 2.0 Ports, Two USB 3.0 Ports
Standard Memory4 GB
Board DimensionsFour-Wide 3U PXI Module
Weight2.77 lb.
WarrantyThree Year Warranty
PXI-8840 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Information

Associated part numbers for PXI-8840:

National Instruments PXI-8840 Frequently Asked Questions



Question: Why are there so many part numbers for the PXI-8840 Controller?

Answer: The PXI Controller has several different part numbers with varying specifications. First, part number 785780-01 has an Intel Core i5 Processor and a Windows 10 64-bit Controller OS. Second, part number 785780-04 has an Intel Core i5 Processor and a Windows 7 64-bit Controller OS. Next, part number 785780-33 has an Intel Core i5 Processor and a LabVIEW Real-Time Controller OS. Part number 784193-04 has an Intel Core i7 Processor and a Windows 7 64-bit Controller OS. Part number 785543-01 has an Intel Core i7 Processor and a Windows 10 64-bit Controller OS. Lastly, part number 784193-33 has an Intel Core i7 Processor and a LabVIEW Real-Time Controller OS.



Question: Does the NI PXI-8840 have a removable hard drive?

Answer: No, the PXI Controller does not have a removable hard drive.



Question: What are the slot requirements?

Answer: The slot requirements for the PXI-8840 are one system slot and three controller expansion slots.



Question: What is the driver software used with the PXI-8840?

Answer: The driver software is called NI-DAQmx.
