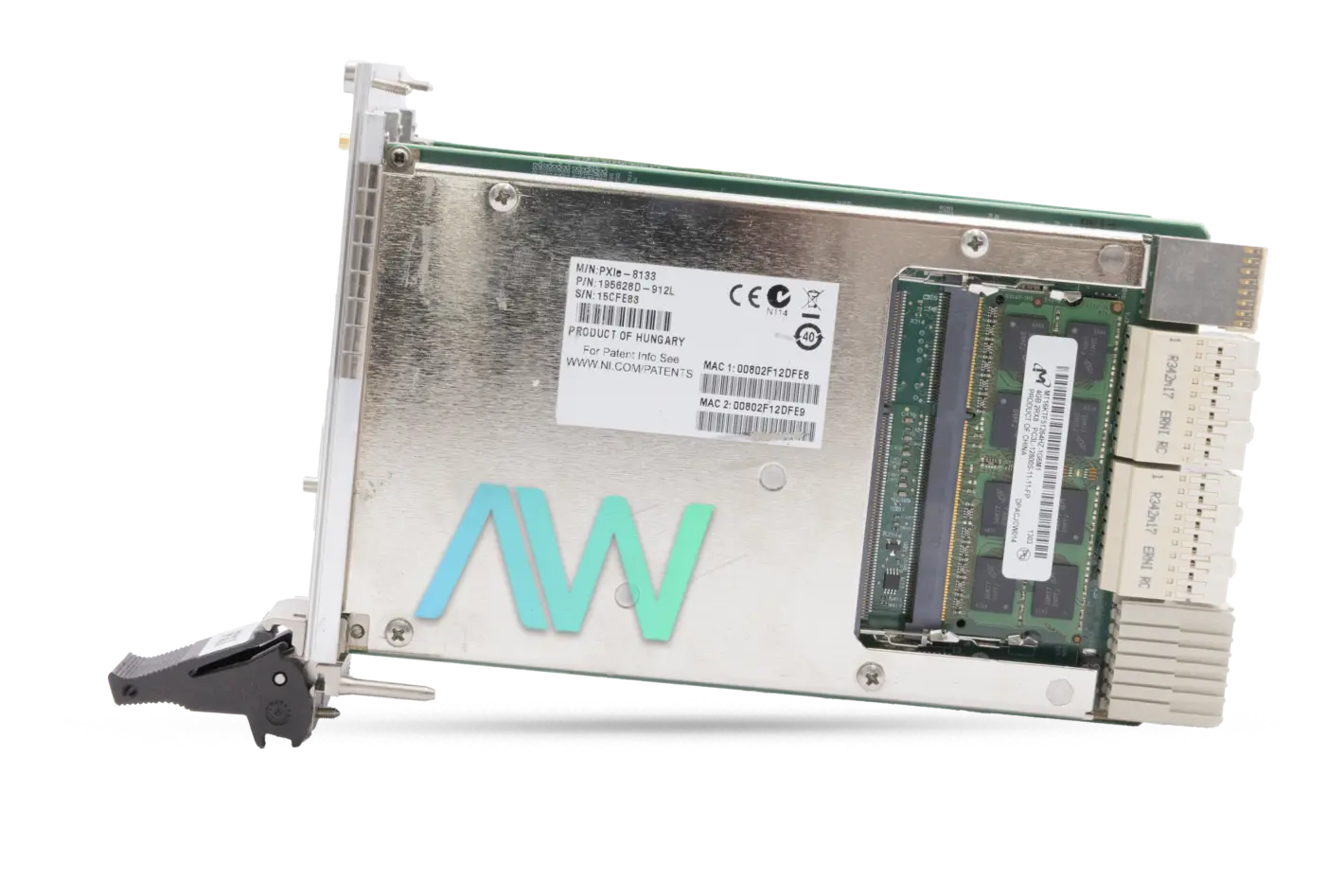

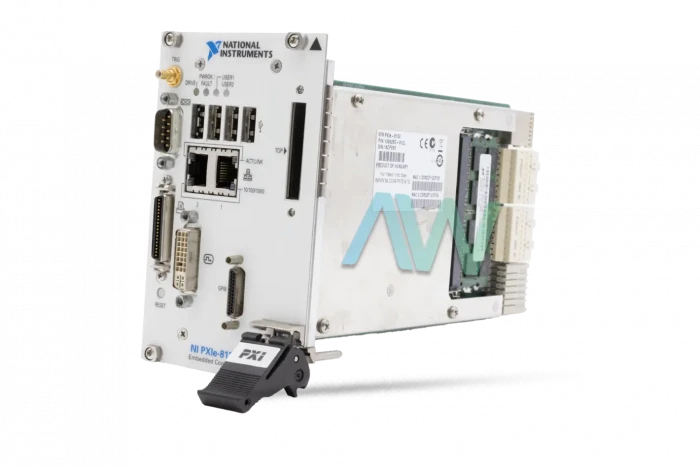

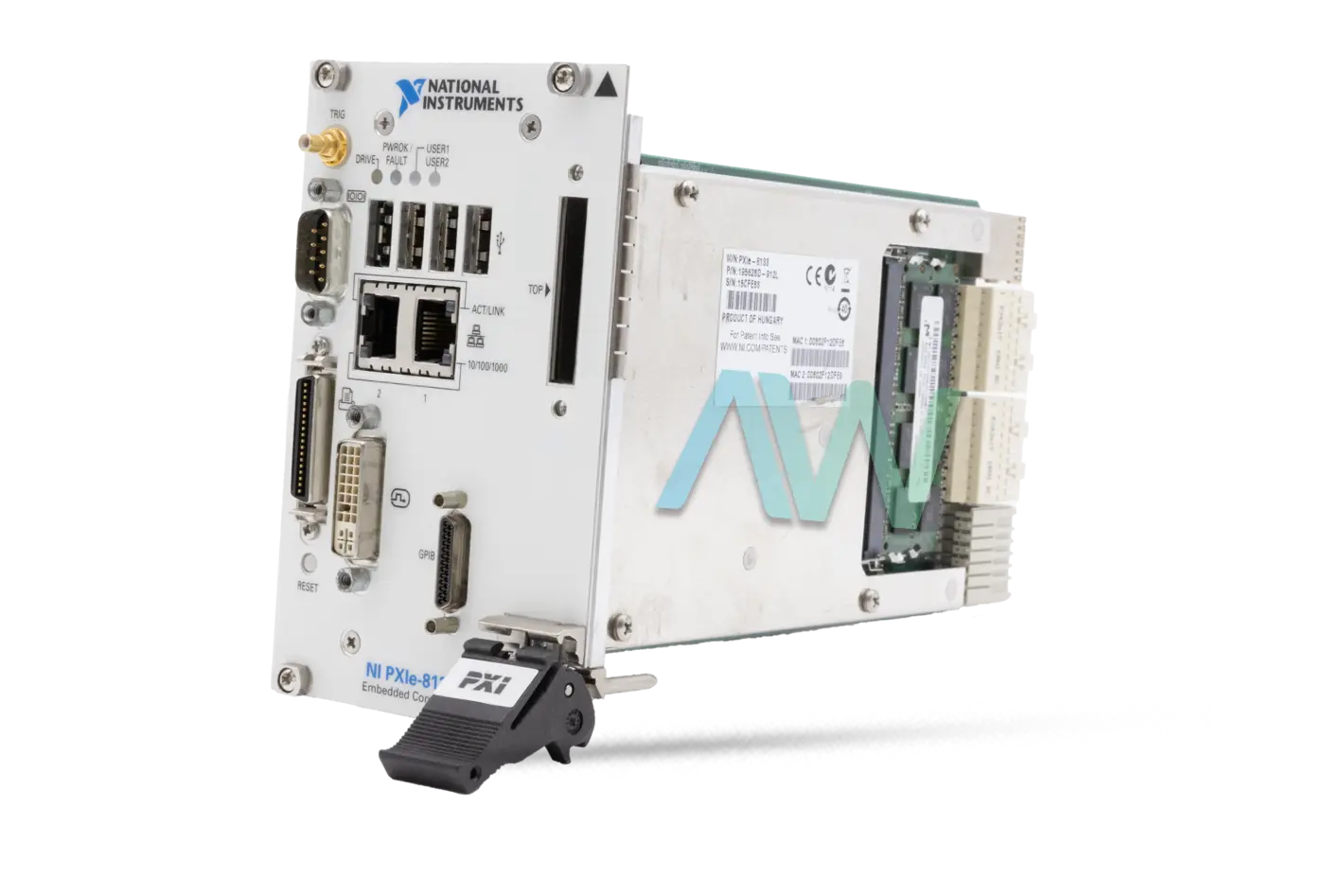

National Instruments PXIe-8133 PXI Controller
The PXIe-8133 (Part Numbers: 781478-01, 781478-04, 781479-04, 781479-01) is a Quad-Core, Intel Core i7-820QM Embedded Controller for PXI and CompactPCI frameworks. The device is equipped with a four-wide 3U PXI Express module. The SMB connector on the NI PXIe-8133's front board can interface with or from any PXI Express backplane trigger line. A trigger allocation process is expected to keep two assets from associating with a similar trigger line, resulting in the trigger being double-driven and possibly harming the equipment. The device operates with a maximum system bandwidth of 8 GB per second.
The PXIe-8133 incorporates the quad-core Intel Core i7 Processor. To expand the quantity of threads that the Controller can process, the Controller fuses Intel Hyper-Threading innovation that takes every one of the four physical cores and parts them into two virtual cores, for a sum of eight virtual cores. These eight virtual cores can execute eight figuring assignments, which is beneficial in multitasking conditions, such as Windows 7. The National Instruments PXIe-8133 operates using the NI-DAQmx driver hardware and the NI-VISA driver. Multithreaded framework improvement software packages, such as NI LabVIEW, LabWindows/CVI, Measurement Studio, Microsoft Visual Basic, Visual C++, Visual Studio .Net can take a full favorable position of the processing cores on the PXIe-8133 by automatically separating their tasks into independent threads.
The National Instruments PXIe-8133 Embedded Controller has a 1.73 GHz base CPU frequency, and is enabled with Intel Turbo Boost technology. The frequency consequently increments in view of the application type- for instance, when running applications that produce just a single processing thread, the CPU puts the three unused cores into an idle state and increases the dynamic core's clock frequency up to 3.06 GHz. The device has a weight of 2.87 lbs, and it has an operating temperature range of 5 to 50 °C; with an ideal storage temperature of –40 to 65 °C.
National Instruments has announced the Obsolete Status of the PXIe-8133, but the PXI Controller will still be available for purchase and repairs in perpetuity with Apex Waves!
| Model | PXIe-8133 |
|---|---|
| Part Numbers | 781478-01, 781478-04, 781479-04, 781479-01 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor | Intel Core i7-820QM Quad-Core Processor |
| System Bandwidth | 8 GB/s maximum |
| Serial Ports | One RS-232 Port |
| Hard Drive | 120 GB |
| Parallel Port | One |
| Slot Requirements | 1 system slot, 3 controller expansion slots |
| Operating Temp Range | 5 to 50 °C (0 to 55 °C Extended Temp Option) |
| Storage Temp Range | –40 to 65 °C (–40 to 71 °C Extended Temp Option) |
| Compatible With | PXIe Specification 2 GB/s maximum |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 2.87 lb. |
| Warranty | Three Year Warranty |
| PXIe-8133 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8133:
National Instruments PXIe-8133 Frequently Asked Questions
Question: What is the CPU frequency for the PXIe-8133 Controller?
Answer: The PXIe-8133 Controller has a CPU frequency of 1.73 GHz (base) or 3.06 GHz (single-core Turbo mode).
Question: What are the PXIe-8133 drivers?
Answer: The PXIe-8133 drivers are NI-VISA and NI-488.2.
Question: What are the differences between the four part numbers for the NI PXIe-8133?
Answer: The NI PXIe-8133 has a base model and an extended temperature model, as well as different installed OS available. Part number 781478-01 is the base model with Windows XP installed, while part number 781478-04 is the base model with Windows 7 (32-Bit) installed. Part number 781479-04 is the extended temperature model with Windows 7 (32-Bit) installed and part number 781479-01 is the extended temperature model with Windows XP installed.
Question: What is the maximum memory size option for the NI PXIe 8133?
Answer: The NI PXIe 8133 has a maximum memory size option of 8 GB.
