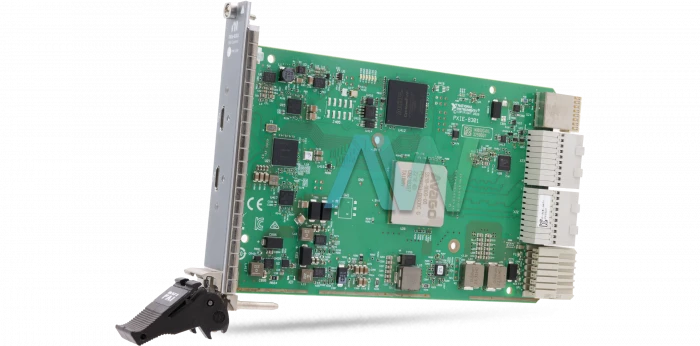

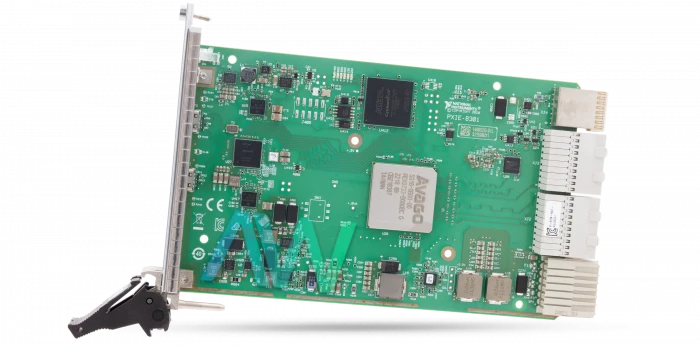

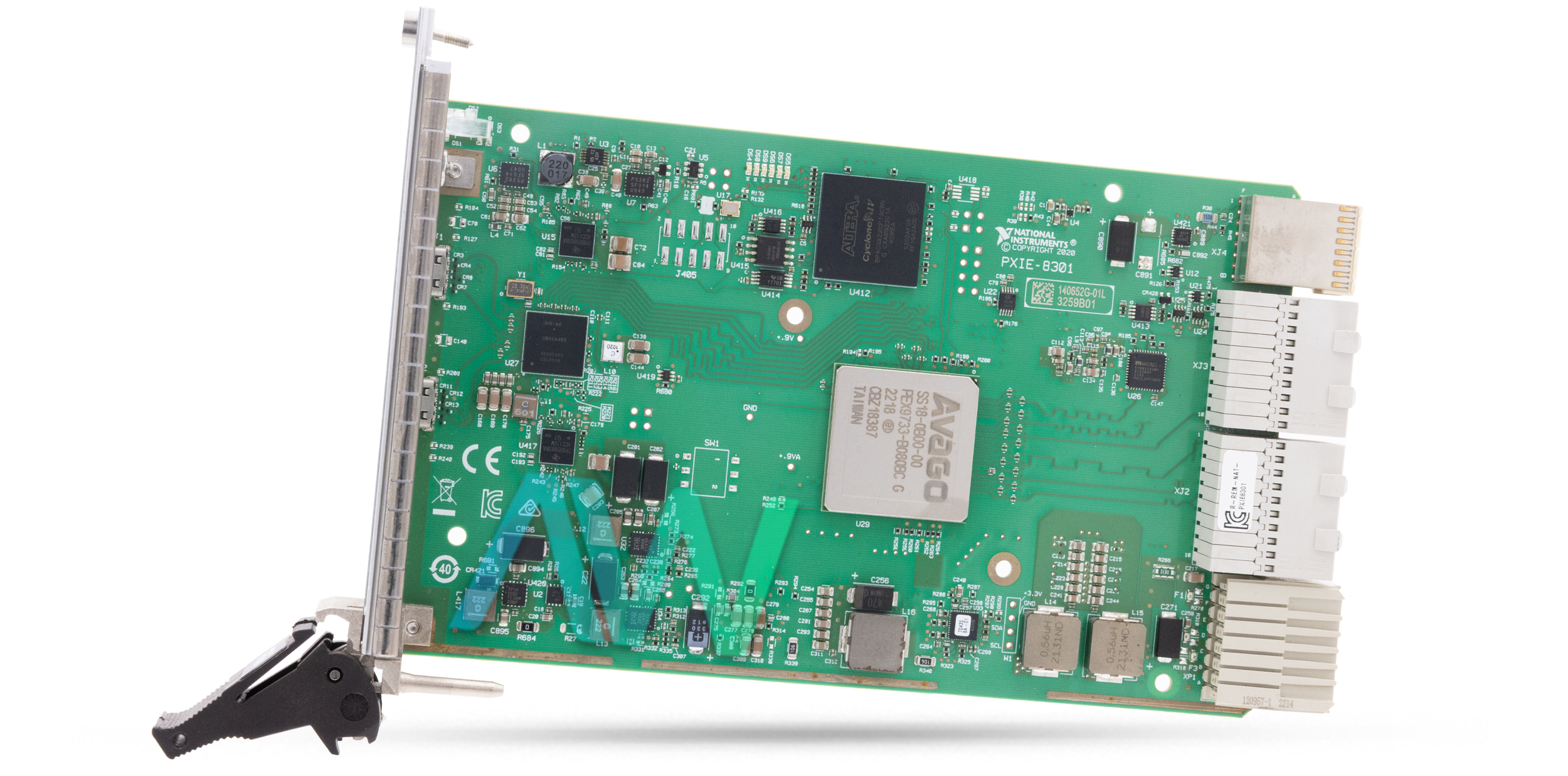

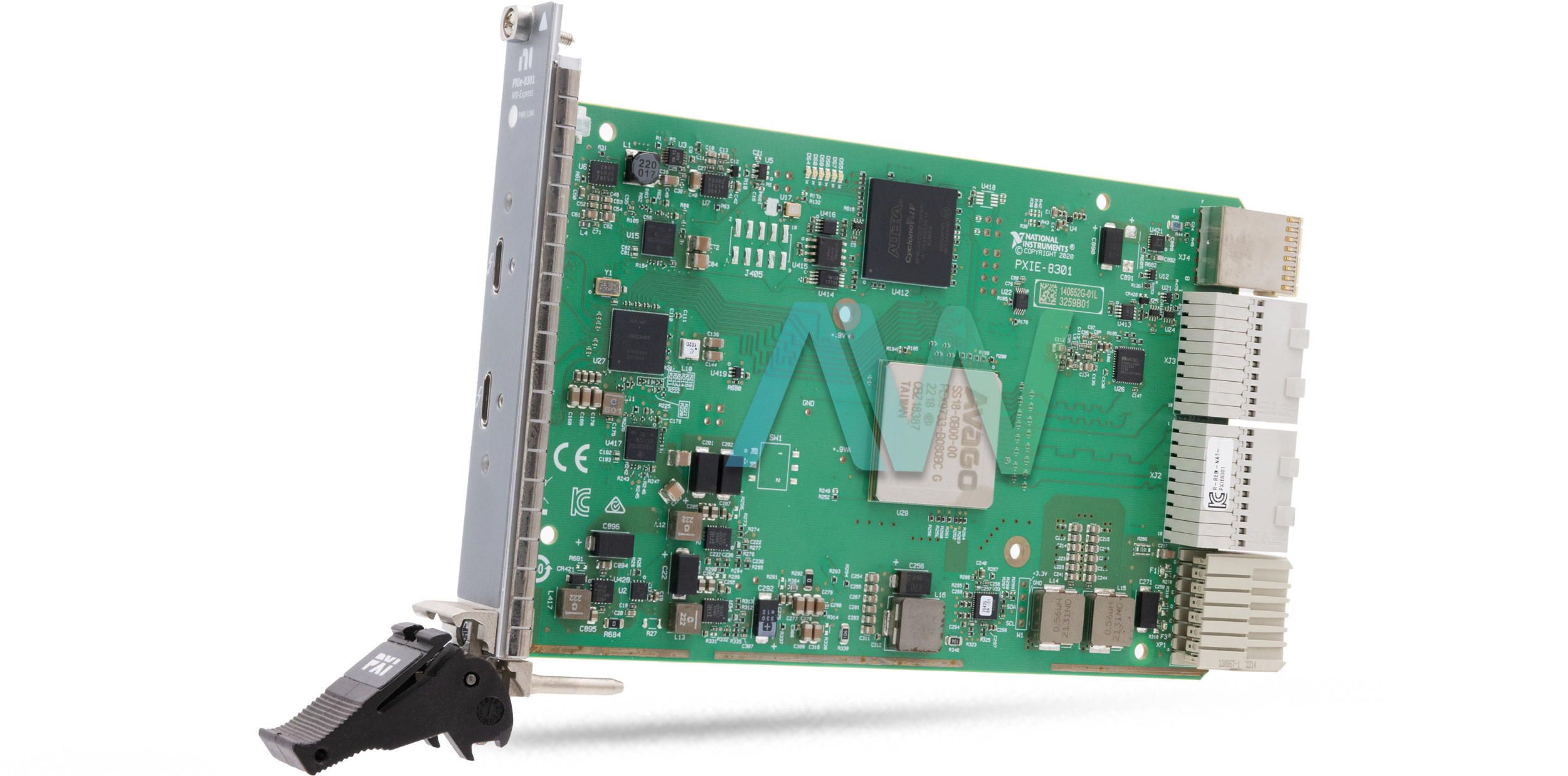

National Instruments PXIe-8301 PXI Remote Control Module
The PXIe-8301 from National Instruments (Part Numbers: 785679-01, 140652E-01L, 140652D-01L ) is a PXI Remote Control Module that empowers laptop control of a PXIe chassis over a Thunderbolt™ 3 association. Utilizing a Gen 3 x4 PCI Express connection, the NI PXIe-8301 permits up to 2.3 GB/s of throughput between the chassis and laptop over to Thunderbolt 3 USB Type-C link. An extra Thunderbolt 3 port takes into account interfacing extra Thunderbolt or USB-C gadgets.
The PXIe-8301 Remote Control Module works well with host PCs that contain a Thunderbolt 3 port and are running a local (non-virtualized) operating framework that supports Thunderbolt availability. Note that while a working framework may support a Thunderbolt association, it might lack support for other National Instruments equipment and programming.
National Instruments suggests interfacing the PXIe-8301 to a Thunderbolt 3 port on the host PC by utilizing a Thunderbolt 3 link. Since Thunderbolt 3 is reverse compatible with past Thunderbolt generations, it might be possible to use adapters to set up associations with host PCs or gadgets with previous generation Thunderbolt ports. Data throughput execution may shift between Thunderbolt generations. The module can be run using the PXI platform services software, and configured with the Measurement & Automation Explorer (MAX) tool.
The user can daisy-chain from a PXI Express chassis controlled by a laptop to an extra Thunderbolt 3 compatible gadget utilizing MXI-Express Thunderbolt items. This model allows the user to create synchronized and data-connected PXI frameworks, and it boasts copper cable options as well as a software-transparent link.
The PXIe-8301 weighs 0.35 lb, and measures 4.4 x 6.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and -40 °C to 71 °C respectively, non-condensing operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz. The NI device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA C22.2 No. 61010-1.
| Model | PXIe-8301 |
|---|---|
| Part Numbers | 785679-01, 140652E-01L, 140652D-01L |
| Manufacturer | National Instruments |
| Type | PXI Remote Control Module |
| MXI Communication Level | Thunderbolt 3.0 |
| Supported Cable Type | Copper |
| MXI Bandwidth | 2.3 GB/s |
| Cable Length | 2 m |
| Slot Requirements | One PXIe System Slot |
| Relative Humidity Range | 10% to 90% (Ambient), 5% to 95% (Storage) |
| Operating Shock | 30 g peak, half-sine, 11 ms pulse |
| Operating Temp Range | 0 °C to 55 °C (Passive), 10 °C to 35 °C (Active) |
| Storage Temp Range | 4.4 x 6.9 in. |
| Dimensions | 4.4 x 6.9 in. 10.7 cm × 17.5 cm) |
| Weight | 0.35 lb. |
| Warranty | Three Year Warranty |
| PXIe-8301 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8301:
National Instruments PXIe-8301 Frequently Asked Questions
Question: What does the MXI-Express Thunderbolt technology incorporated on the PXIe-8301 Controller allow the user to accomplish?
Answer: The PXIe-8301 Controller allows the user to control a PXI Express backplane with a Thunderbolt-enabled PC or laptop and physically isolate the measurement or automation system from a host PC.
Question: What is the rate the Thunderbolt 3 link can transmit on the NI PXIe-8103?
Answer: The Thunderbolt 3 link on the NI PXIe-8103 can transmit 40 Gbps maximum in every direction at the same time.
Question: Is the Thunderbolt 3 link on the PXIe-8103 backwards compatible?
Answer: Yes, the Thunderbolt 3 link on the PXIe-8103 is backwards compatible with the former Thunderbolt generations, although data throughput performance may be different.
Question: What is needed to operate the NI PXIe-8301?
Answer: To operate the NI PXIe-8103, the user needs a Host PC with an available Thunderbolt 3 port, a Thunderbolt 3 cable, and a PXI Express Chassis.
