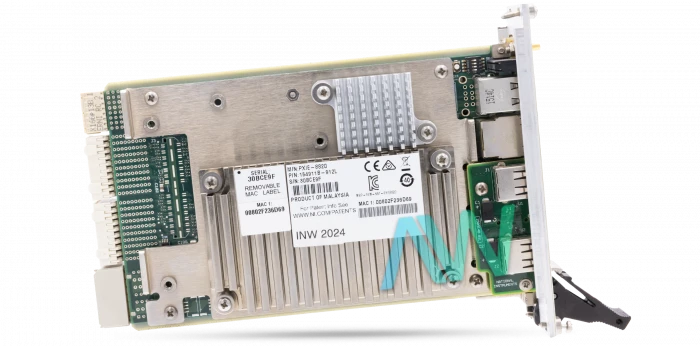

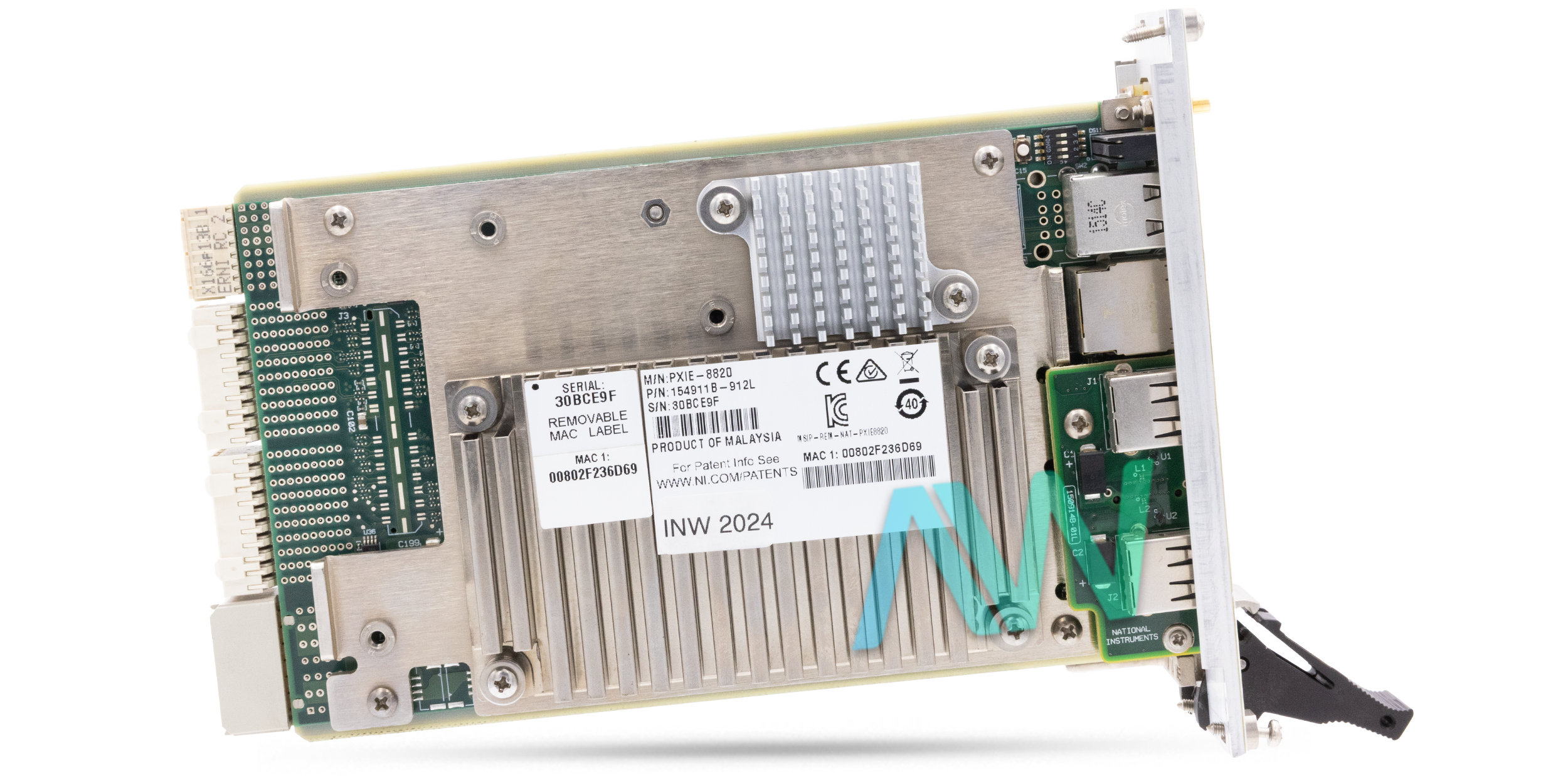

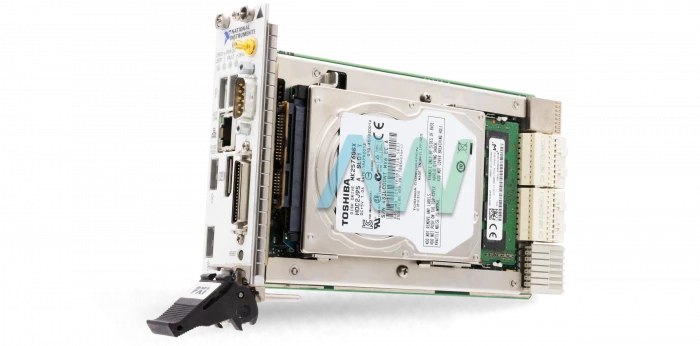

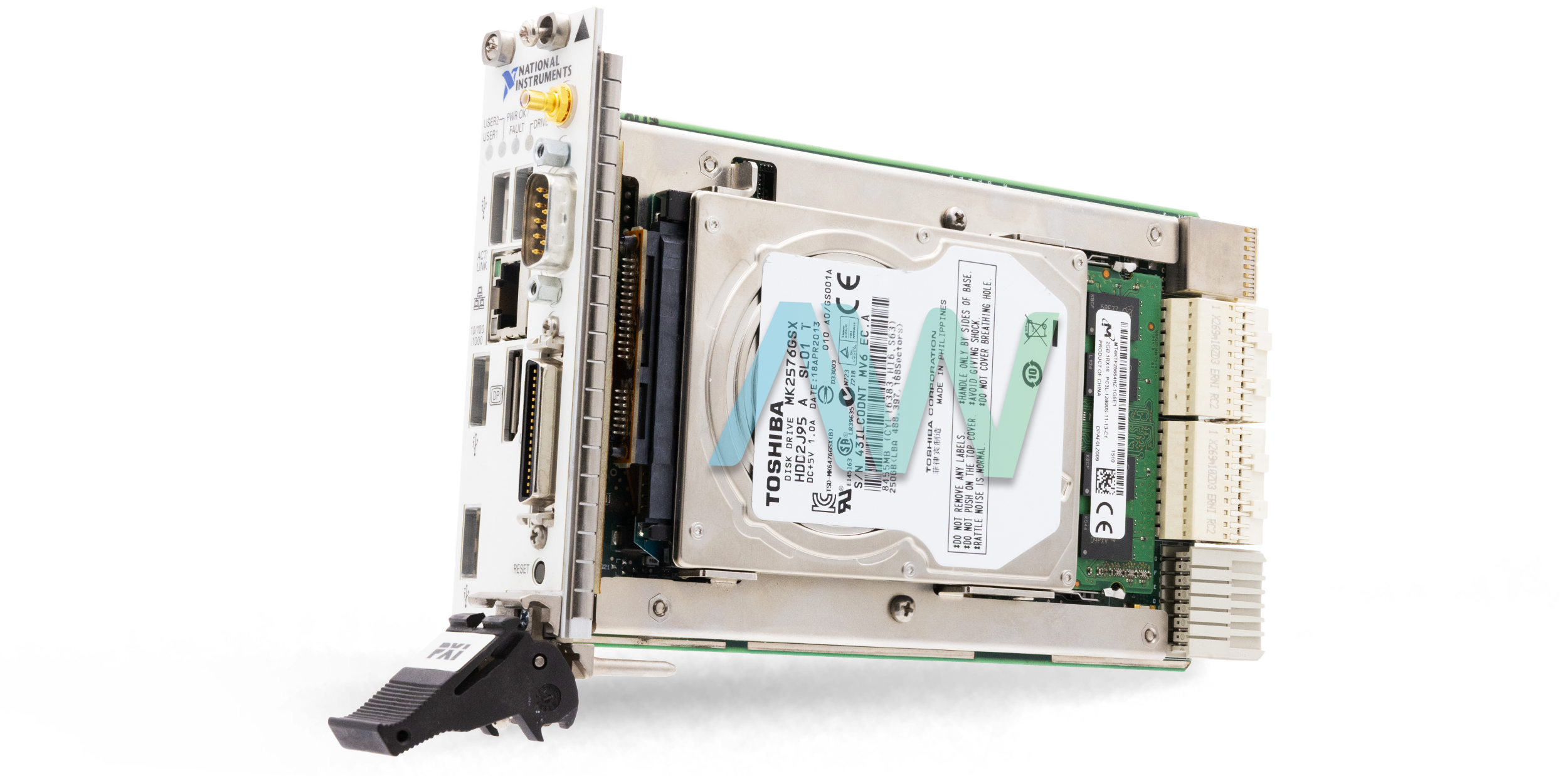

National Instruments PXIe-8820 PXI Controller
The 2.2 GHz Dual-Core PXIe-8820 (Part Numbers:782919-04, and 782919-33) PXI Controller is a member of the RT Series by National Instruments. This PXI Controller gives an adaptable and tough platform for users. With this model, users can build up their NI LabVIEW application with the LabVIEW Real-Time Module in the Windows working framework and download the program to the PXI Controller progressively by means of Ethernet. LabVIEW Real-Time applications running on PXI frameworks accomplish millisecond cycle rates. These ongoing estimation and control frameworks exploit Intel processors joined with the progressed PXI I/O synchronization and synchronization benefits.
To enhance the workability of the NI PXIe-8820, users can easily measure diagnostics in ROM for the hard drive and memory without requiring outside tools. This feature is incredibly helpful since after running these diagnostics, the results can be used to determine if the hard plate or memory should be replaced. The outline of the PXIe-8820 permits the fast field substitution of basic parts, such as hard circle and memory. Users can purchase hard drive and memory updates with the Controller- this greatly boosts the functionality of the device when combined with the analysis in ROM capability.
This Controller offers an Intel Celeron 1020E double core processor with a frequency of 2.2 GHz, boasting a framework data transfer capacity of up to 1 GB/s. In addtion, it features an opening width of 250 MB/s (with four connections x1 PCI Express) and 2 GB of standard RAM on a 1333 MHz DDR3 interface.
The PXIe-8820 is Obsolete and no longer available from the manufacturer NI (National Instruments), but the Controller will still be available in perpetuity for purchase and repairs with Apex Waves!
| Model | PXIe-8820 |
|---|---|
| Part Numbers | 782919-04, 782919-33 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Process Core | Intel Celeron 1020E |
| Maximum Bandwidth | 1 GB/s |
| CPU Frequency | 2.2 GHz |
| Hard Drive | 250 GB Serial ATA |
| Ethernet | 10/100/1000 BaseT |
| On-Die L2 Cache | 2 MB |
| Parallel Port? | Yes |
| USB 2.0 Ports | 4 Hi-Speed Ports |
| Board Dimensions | 2-slot 3U PXI Express module |
| Weight | 1.87 lb. |
| Warranty | 2-3 Year Warranty |
| PXIe-8820 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8820:
National Instruments PXIe-8820 Frequently Asked Questions
Question: What is the difference between the two part numbers for the PXIe-8820?
Answer: Each part number for the PXIe-8820 has a different OS installed. Part number 782919-04 has Windows 7 32-bit installed, while part number 782919-33 has LabVIEW Real-Time installed.
Question: What is the size of the hard drive on the NI PXIe-8820?
Answer: The hard drive on the NI PXIe-8820 is 250 GB or more.
Question: What are the memory options for the NI PXIe 8820?
Answer: The memory options for the NI PXIe 8820 are 2 GB (standard), 4 GB, and 8 GB (recommended).
Question: Does the PXIe-8820 have a removable hard drive?
Answer: No, neither version of the PXIe-8820 has a removable hard drive.
