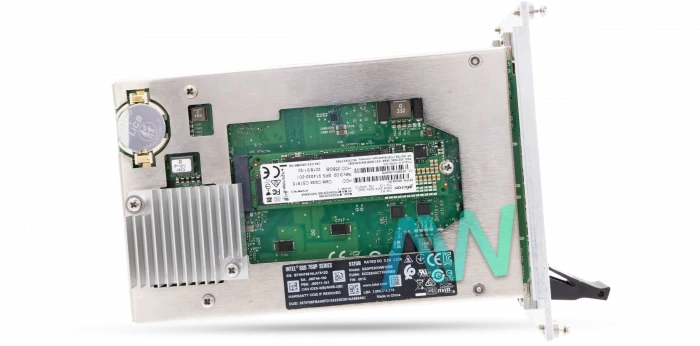

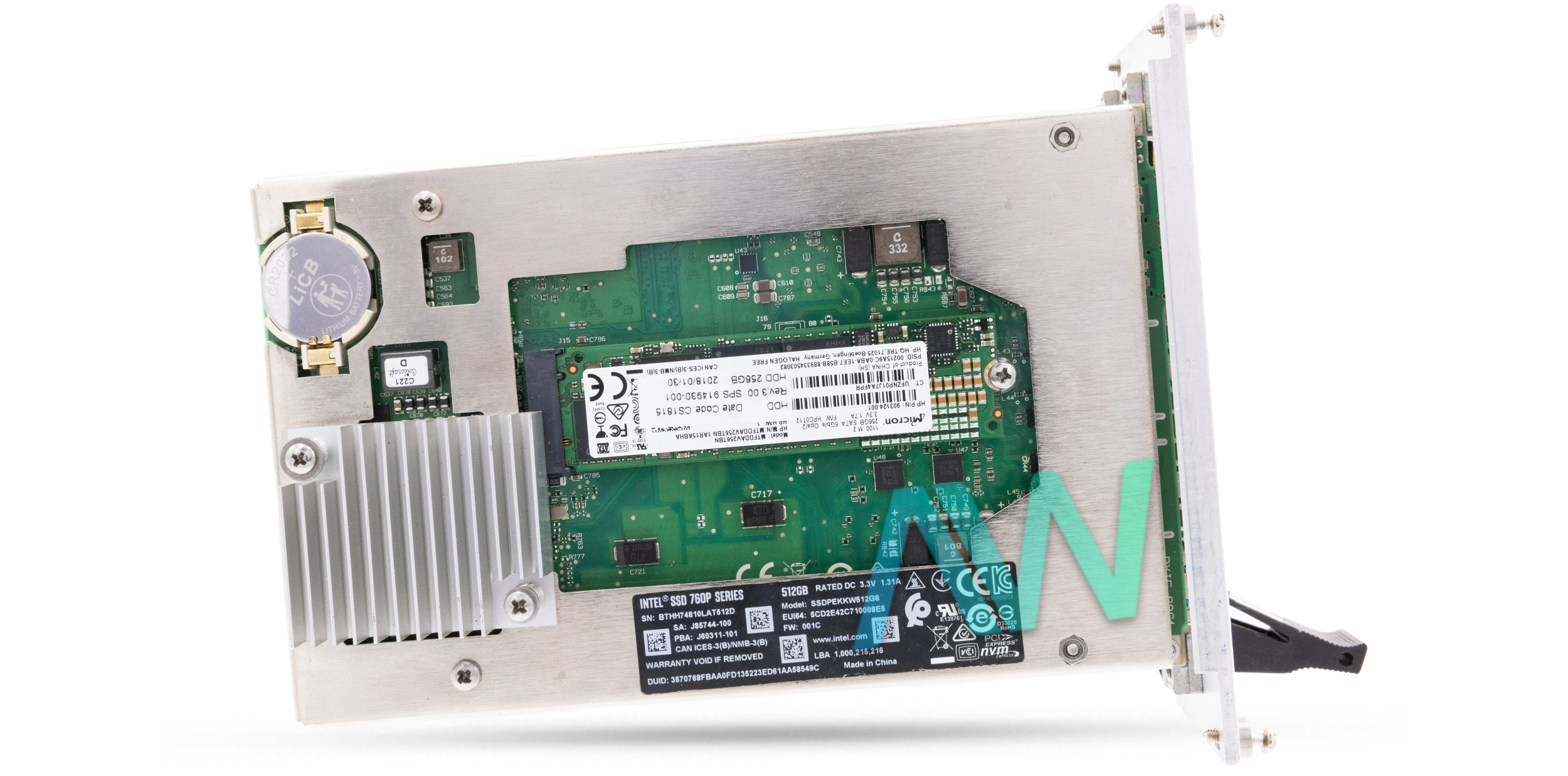

National Instruments PXIe-8861 PXI Controller
The National Instruments PXIe-8861 is a microprocessor based embedded Controller designed for PXI Express systems. This model features an Intel Xeon 4‑Core processer. For a flexible and advanced level connectivity, the NI PXIe-8861 comes equipped with two USB 3.0 ports, two Gigabit Ethernet Ports (10/100/1000BASE‑TX compatible), four USB 2.0 ports, two Thunderbolt™ 3 ports, one serial port, and other types of peripheral I/O.
The processer equipped in this PXI Controller is a Quad-Core 2.8 GHz processer. This model is an ideal choice for various applications, including data acquisition and RF modular instrumentation. The National Instruments PXIe-8861 is a high bandwidth system controller that can easily be combined with any compatible PXI Express chassis like the NI PXIe-1085.
This PXI Controller comes with user accessible RAM, enabling the user to upgrade the amount of factory installed RAM. Moreover, users can also replace the preinstalled operating system through a USB CD-ROM or DVD-ROM. Apart from offering high processing power, this Controller offers high I/O throughput, coupled with up to 24 GB of RAM and a comprehensive set of peripheral I/O ports.

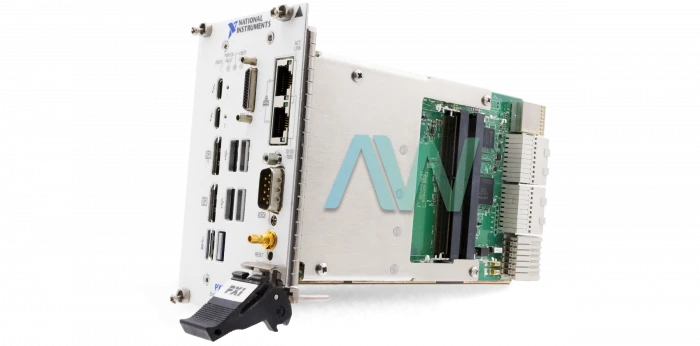

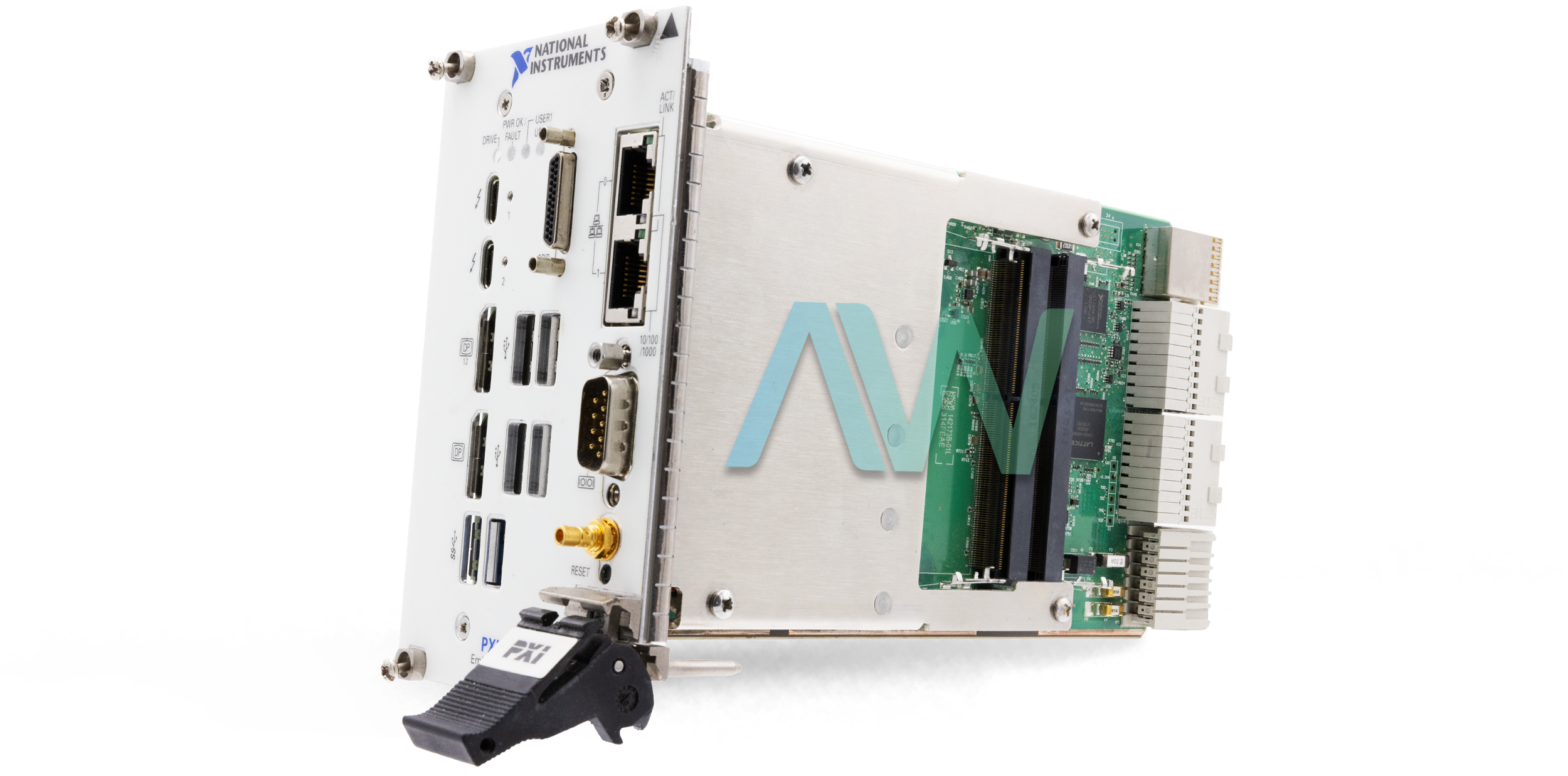

The front panel of the National Instruments PXIe-8861 contains a Display Port v1.2. The highest performance of this PXI Embedded Controller makes it an ideal solution for PXI-based control, measurement, and test systems. The integrated, differential system 100 MHz reference clock provided in this Controller offers seamless synchronization of multiple modules. Moreover, three differential star trigger busses are also provided for the distribution of precise trigger and clock signals. Thus, the demanding synchronization and timing requirements of logging and instrumentation systems are curtailed by the integrated features of the NI PXIe-8861.
| Model | PXIe-8861 |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor | 2.8 GHz Quad-Core |
| Ethernet Ports | 2 |
| USB 3.0 Ports | 2 |
| USB 2.0 Ports | 4 |
| Warranty | 2-3 Year Warranty |
| PXIe-8861 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8861:
National Instruments PXIe-8861 Frequently Asked Questions
Question: Does the NI PXIe-8861 have an integrated hard drive?
Answer: Yes, the NI PXIe-8861 has an integrated hard drive.
Question: What type of controller RAM does the PXIe 8861 have?
Answer: The PXIe 8861 has DDR4 SDRAM.
Question: Does the PXIe-8861 have battery backup?
Answer: The PXIe-8861 has battery backup for the CMOS, but not for the Controller RAM.
