National Instruments PXIe-6570 PXI Digital Pattern Instrument
The PXIe-6570 (Part Number: 785283-01) 100 MVector/s Digital Pattern Instrument is intended to portray semiconductors and make production tests. This Digital Pattern Instrument incorporates the Digital Pattern Editor to design pin maps, specifications, levels, timing, and samples. The PXIe 6570 additionally incorporates debugging tools, which includes the following: Shmoo, digital scope and viewers for History RAM, pin states, and framework states. The NI PXIe-6570 Digital Pattern Instrument delivers digital ATE-class to the business standard PXI platform for testing a wide scope of RF and mixed signal integrated circuits (ICs). The NI PXI platform and NI Semiconductor Test System (STS) are perfect platforms for portrayal and creation trials of RF and mixed signal ICs, from RF front ends and power management ICs to transceivers and Internet.
The NI PXIe 6570 is the highlight of NI's offering for digital generation and production trial of semiconductor gadgets. For essential computerized signals and interfaces, consider PXI Digital I/O Modules or PXI Reconfigurable Digital I/O Modules. The NI PXI Digital Pattern Instruments burst digital information in view of samples that are comprised of individual vectors. The time set incorporates the time of the vector in time, a drive format for the pin, and placement of the digital edges. The drive formats, supported by these instruments are non-return, return to low, return to high, and surround by complement. Being able to utilize these configurations enables specialists to make the most productive digital interface with as few vectors as possible.
| Model | PXIe-6570 |
|---|---|
| Part Number | 785283-01 |
| Manufacturer | National Instruments |
| Type | PXI Digital Pattern Instrument |
| Module Width | 2 |
| Maximum Active Load | 24 mA |
| Input Power | 68 W |
| Dimensions | 5.16 x 1.65 x 8.39 in. |
| Weight | 32.45 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-6570 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6570:
National Instruments PXIe-6570 Frequently Asked Questions
Question: What is the supported measurement range for the PXIe-6570?
Answer: The PXIe-6570 has a supported measurement range of -2 V to 6 V.
Question: What is the PXIe-6570 driver software called?
Answer: NI-Digital Pattern Driver is the PXIe-6570 driver software.
Question: What type of connectors does the PXIe-6570 have?

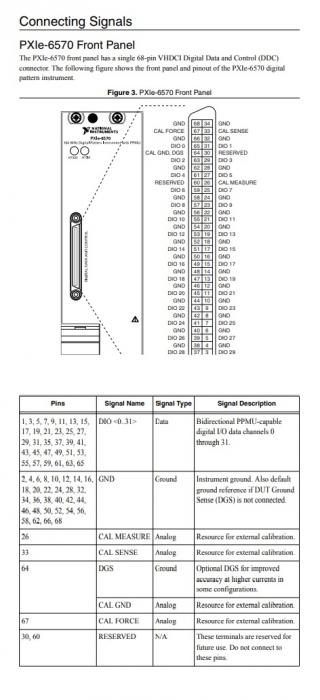

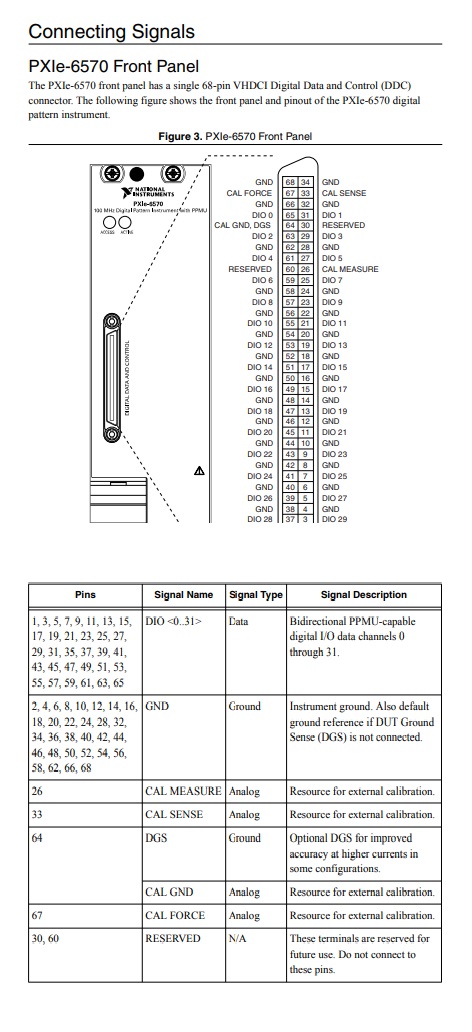

Answer: The front-panel PXIe-6570 connector is a 68-pin VHDCI DDC connector.
Question: What is the source memory size of the NI PXIe-6570?
Answer: The source memory size of the NI PXIe-6570 is 32 MB or 256 Mbit.
PXIe-6570 PDF Manuals
PXIE-6570-GETTING-STARTED-GUIDE.PDF
PXIE-6570-LETTER-OF-VOLATILITY.PDF
PXIE-6570-SAFETY-ENVIRONMENTAL-AND-REGULATORY-INFORMATION.PDF
