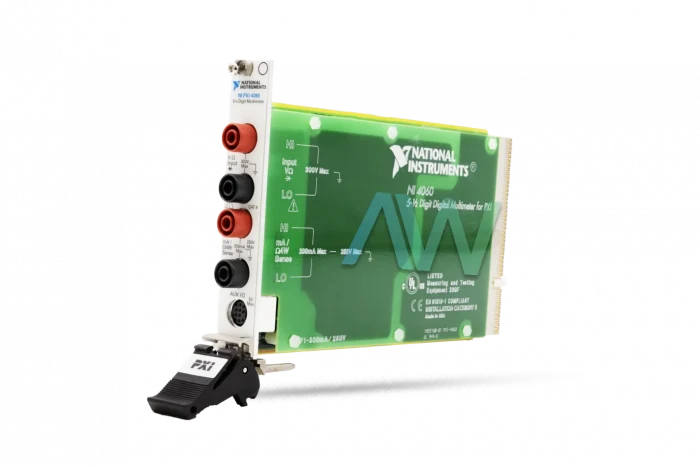

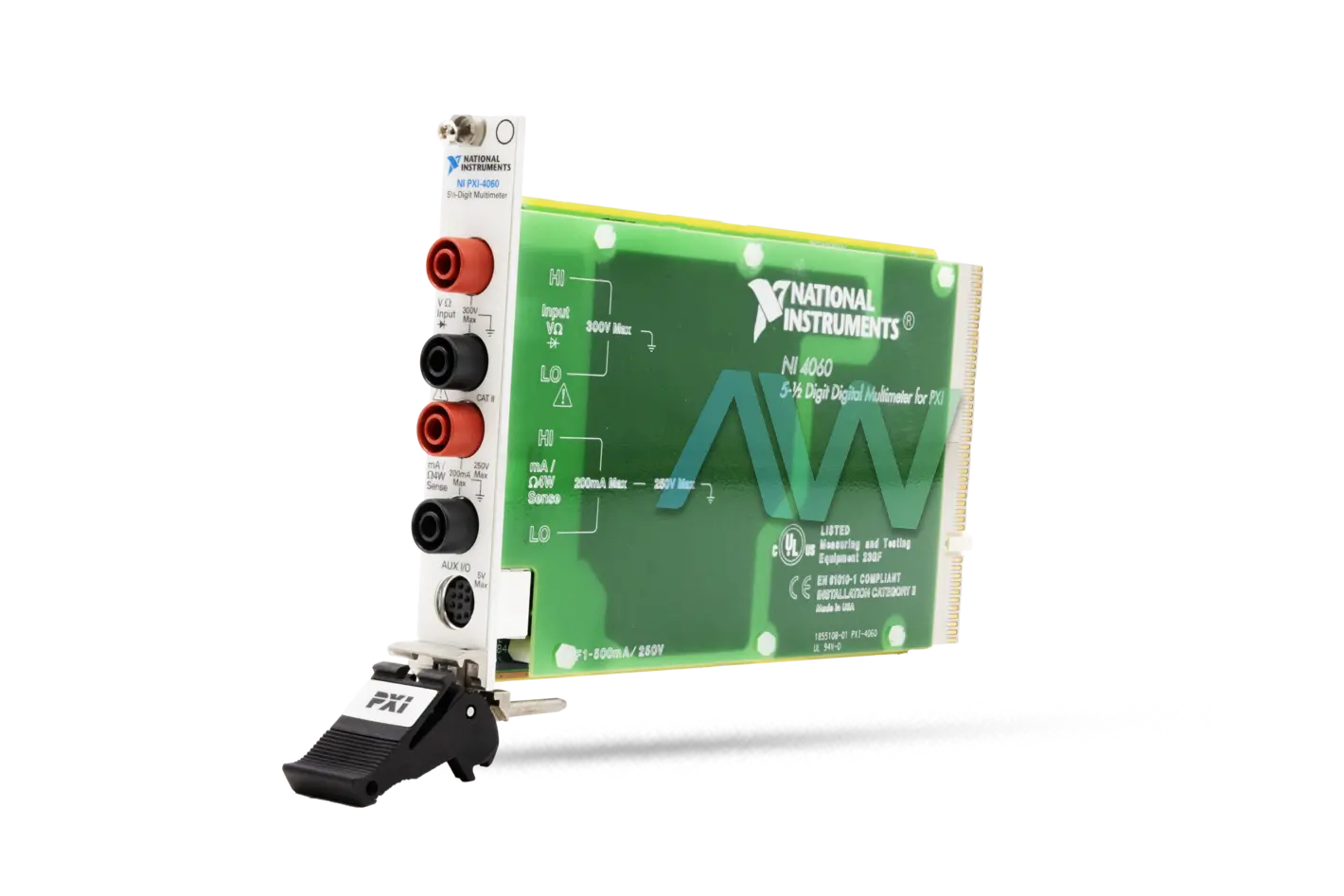

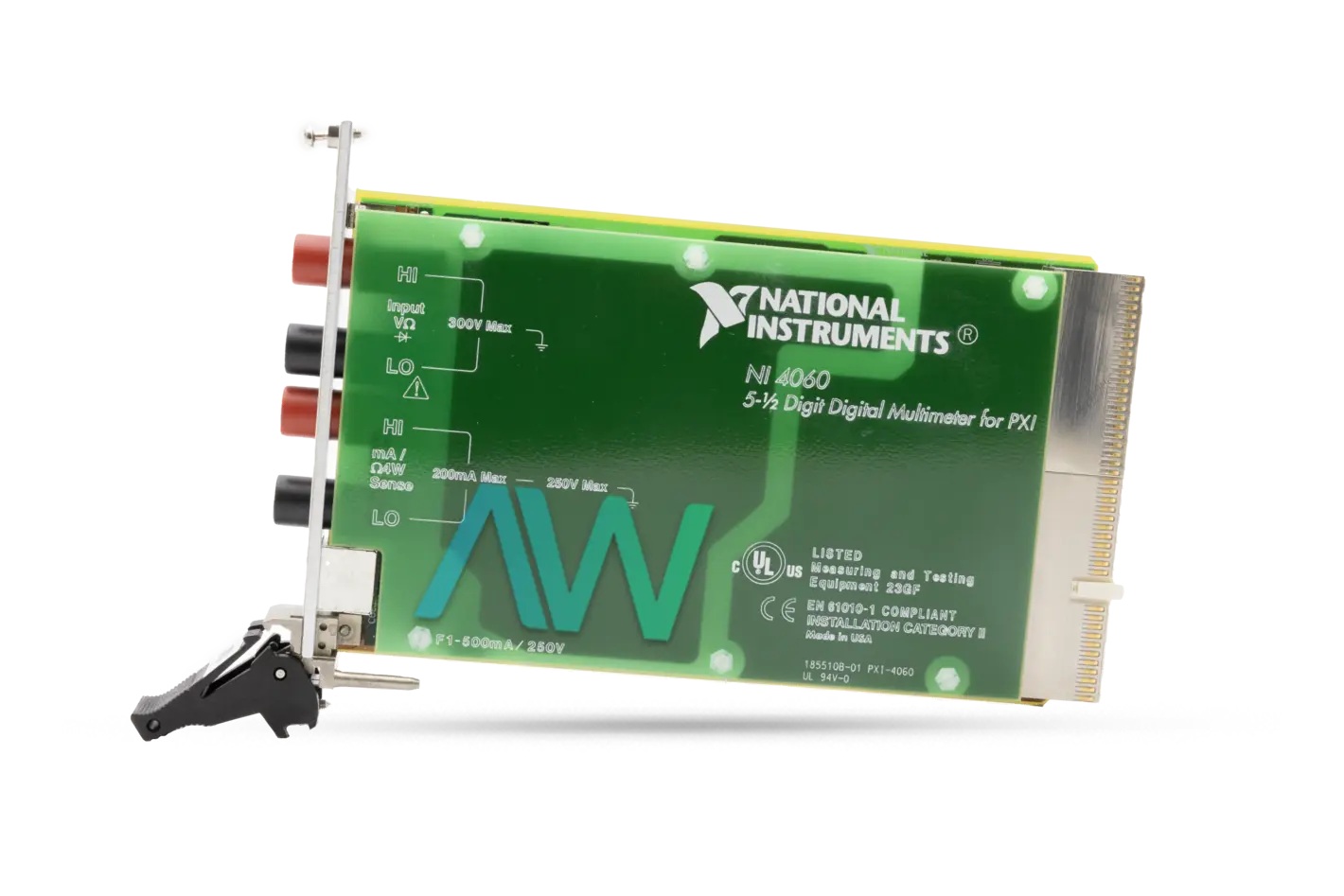

National Instruments PXI-4060 PXI Digital Multimeter
The PXI-4060 (Part number: 777554-01) from National Instruments performs precise estimations of 5½ digits of DC voltage and current, AC rms voltage and current, and resistance (ohms). The NI PXI-4060 multimeter is intended for use in automated production testing, portable field testing and electronic desktop testing. The NI PXI-4060 contains comes with several test probes with security banana plugs. These probes meet global security necessities, including UL 3111 and IEC 1010-1, for the full scope of uses upheld by the PXI-4060. Before utilizing any tests or extras not provided by National Instruments, it is recommended for the user to check that they meet appropriate security necessities for the signal levels that are expected.
The required warm-up time for the NI PXI-4060 is 30 minutes. This warm-up time is essential since estimations made with the NI PXI-4060 Digital Multimeter can change with temperature. This change is known as a thermal drift and is impacted by temperature coefficients. To limit the impacts of thermal drift and guarantee the predefined accuracies, take all estimations after the NI PXI-4060 has an opportunity to completely warm up.
This model includes an Autozeroing feature, which is a technique that evacuates the impact of temperature drift on the estimation exactness. Autozeroing detaches the outer signals from the circuit, internally shorts the input of the NI PXI-4060, and takes an estimation. Ideally, this esteem ought to be zero; autozeroing automatically eliminates this error. By estimating the incentive value with the input leads inside shorted, autozeroing naturally eliminates this mistake. Autozeroing is not upheld in AC voltage, AC current, and diode modes.
| Model | PXI-4060 |
|---|---|
| Part Number | 777554-01 |
| Manufacturer | National Instruments |
| Type | PXI Digital Multimeter |
| Digits of Resolution | 5.5 |
| Reading Rate | 60 readings/s maximum |
| Driver Software | NI-DMM |
| Measurement Modes | 5 |
| Dimensions | 6.33 x 3.3.9 in. |
| Warranty | 2-3 Year Warranty |
| PXI-4060 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-4060:
National Instruments PXI-4060 Frequently Asked Questions
Question: What is the PXI-4060 driver software type?
Answer: The PXI-4060 driver software type is NI-DMM.
Question: What is the maximum input of the PXI NI 4060?
Answer: The maximum input of the PXI NI 4060 is 200 mA/250 V.
Question: What are the resistance measurement modes available on the NI PXI-4060?
Answer: The resistance measurement modes available on the NI PXI-4060 are 2-wire or 4-wire resistance.
Question: Where can I find the NI PXI-4060 manual?
Answer: The NI PXI-4060 manual can be downloaded from www.apexwaves.com.
