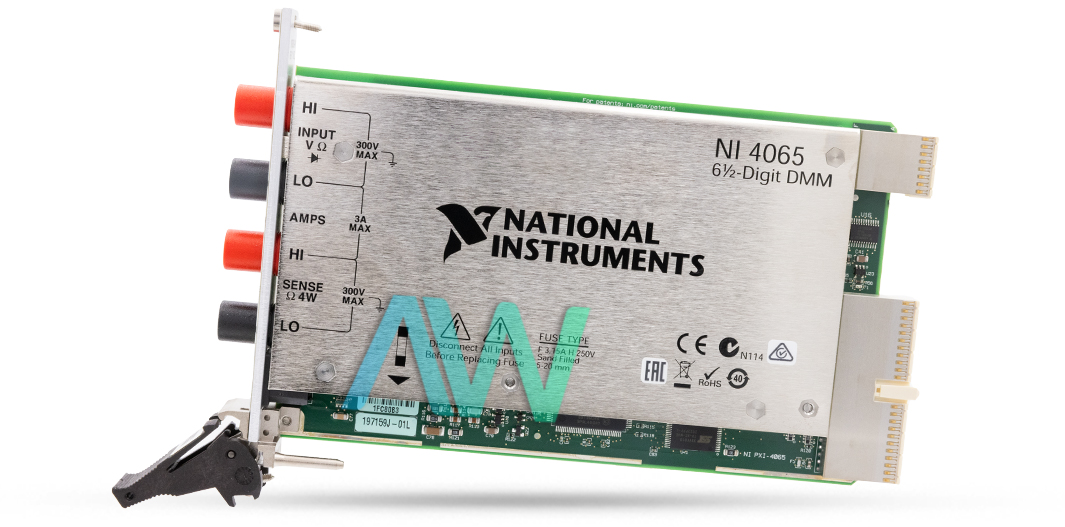

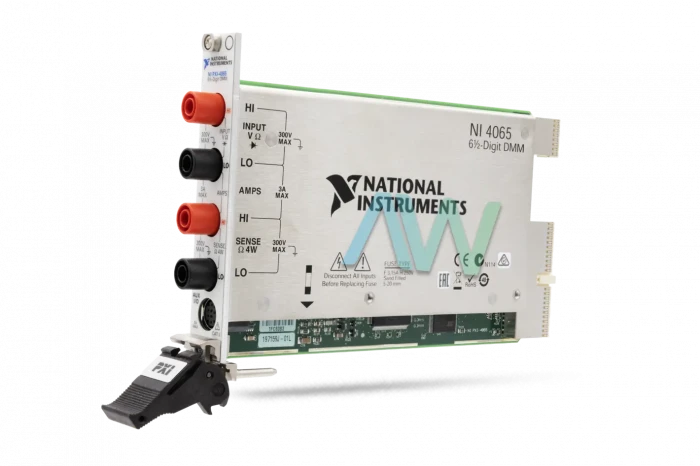

National Instruments PXI-4065 PXI Digital Multimeter
The National Instruments PXI-4065 (Part Numbers: 780011-01, 190310G-01L) is a 300 V, 6½-Digit PXI Digital Multimeter. An ideal choice for educational laboratories, OEMs, or other cost-conscious measurement and test applications, this multimeter is capable of creating 2 wire or 4 wire resistance. In addition, the NI PXI-4065 is able to perform diode tests and can accurately measure current and voltage for both AC and DC. The bandwidth of this DMM ranges from 10 Hz to 100 kHz and it boasts 6.5 digits of resolution.
The PXI-4065 Digital Multimeter is designed with excellent trigger characteristics, as it can receive various types of input triggers through both PXI Trigger lines and a AUX I/O connector. These input triggers are generated at a minimum pulse width of 200 ns. The PXI-4065 DMM is also able to output triggers at a pulse width of 1 μs and a logic level of 3.3 V. The system speeds for both the AC and DC systems of the NI PXI-4065 have a maximum trigger rate of 2.5 kHz and a trigger latency of <1 μs.
The power consumption of the DMM differs depending on the power rail that is used. A rail voltage of 12 V consumes <0.12 W of power, while a rail of 5.0 V consumes <1.50 W. A rail of 3.3 V consumes <0.50 W of power. In any case, the power consumption of the device from the PXI backplane is <3 W. Physically, the NI PXI-4065 is designed as a one slot 3U PXI module that measure dimensions of 21.6 cm × 2.0 cm × 13.0 cm (8.5 in. × 0.8 in. × 5.1 in.) and weighs in at 351.5 g (12.4 oz). The recommended operating temperature range of the device is 0 to 55 °C, and it has a storage temperature range of -40 °C to 70 °C. All of the environmental specifications for the PXI Digital Multimeter were tested in accordance with the standards of IEC 60068-2-1, IEC 60068-2-2, and IEC 60068-2-56. Additional specifications for the PXI-4065 can be found in the user manuals and datasheets under the "Manuals & PDFs" tab.
| Model | PXI-4065 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780011-01, 190310G-01L |
| Type | PXI Digital Multimeter |
| Digits of Resolution | 6.5 |
| DC Voltage Range | -300 V to 300 V |
| DC Current Range | -3 A to 3 A |
| Power Consumption | <3 W from PXI Backplane |
| Input Coupling | AC Coupling |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | -40 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. (21.6 cm × 2.0 cm × 13.0 cm) |
| Weight | 12.4 oz. (351.5 g) |
| Warranty | Three Year Warranty |
| PXI-4065 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for More Information |
Associated part numbers for PXI-4065:
National Instruments PXI-4065 Frequently Asked Questions
Question: What is the sample rate of the NI PXI-4065?
Answer: The Digital Multimeter has a sample rate of 3 kS/s.
Question: What is the basic DC voltage accuracy of the DMM?
Answer: The PXI-4065 has a basic DC voltage accuracy of 90 ppm.
Question: What is the calibration interval of the PXI-4065?
Answer: The recommended calibration interval for the device is one year.
Question: Are L&C measurements available on the DMM?
Answer: No, the NI PXI-4065 does not have L&C measurements.
Question: Is the PXI-4065 capable of self-calibration?
Answer: No, to calibrate the Digital Multimeter, you need an external device with a higher accuracy
