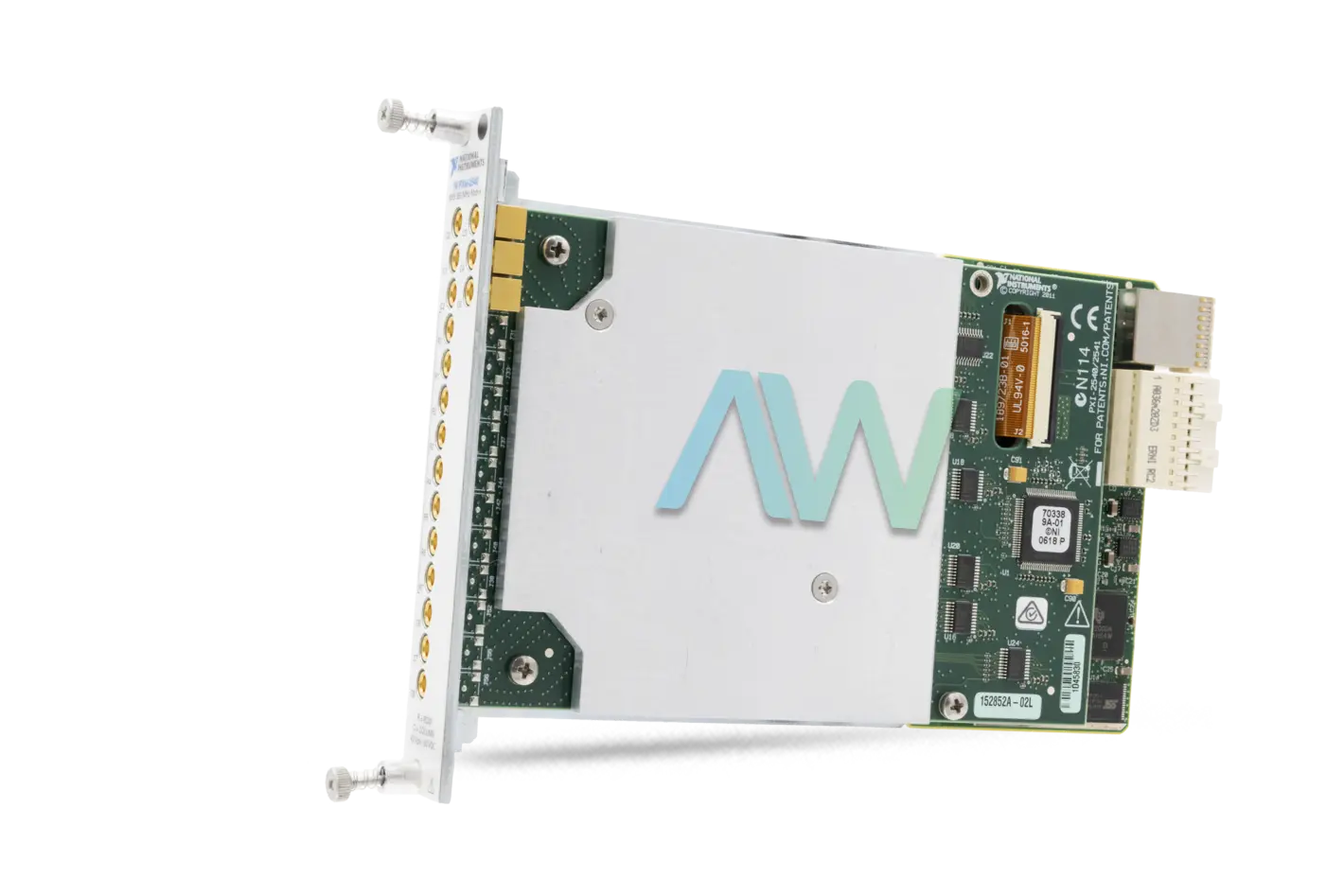

PXIe-2540 National Instruments PXI Matrix Switch Module | Apex Waves | Image

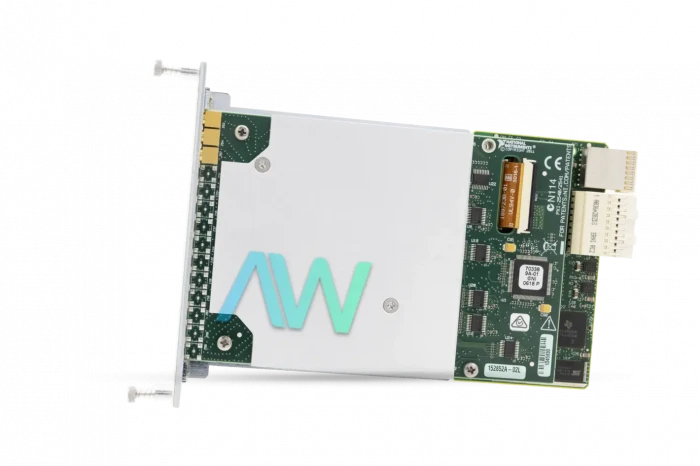

PXIe-2540 National Instruments PXI Matrix Switch Module | Apex Waves | Image
PXIe-2540 New
PXIe-2540 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

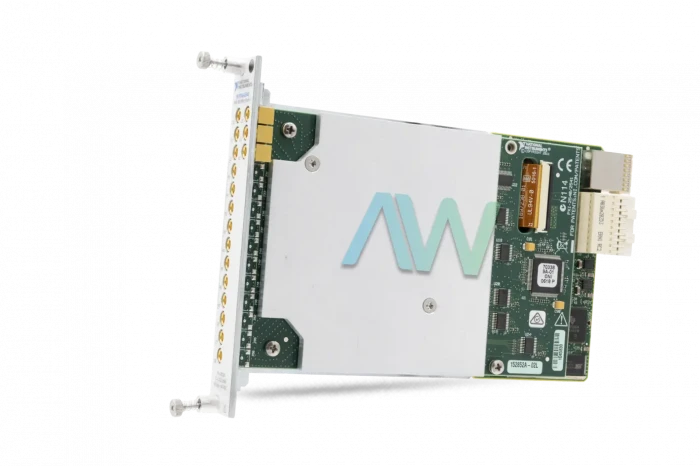

PXIe-2540 National Instruments PXI Matrix Switch Module | Apex Waves | Image

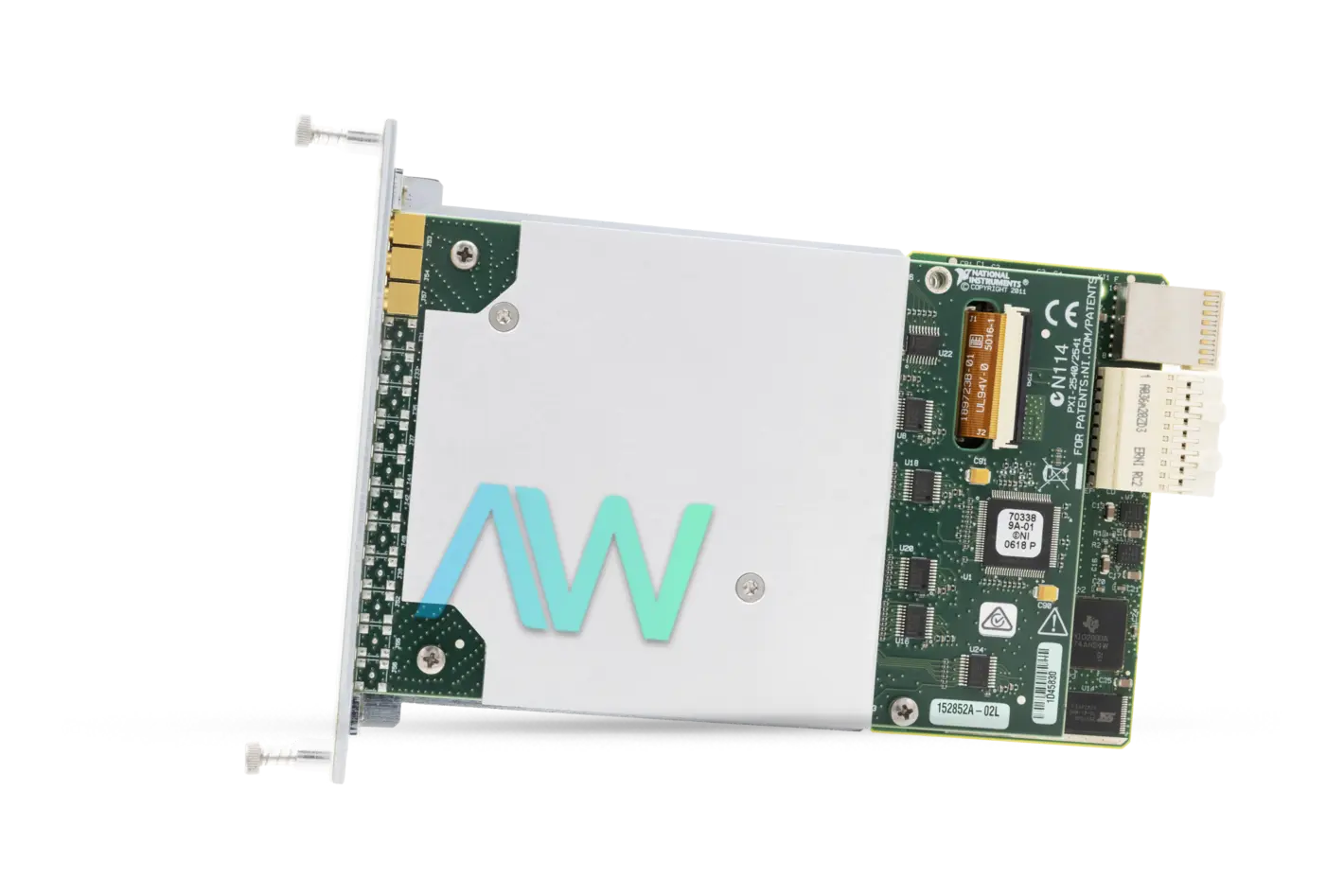

PXIe-2540 National Instruments PXI Matrix Switch Module | Apex Waves | Image
PXIe-2540 New
PXIe-2540 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-2540 PXI Matrix Switch Module

The PXIe‑2540 (Part Number: 780587-40) is a 350 MHz, 8 x 9, PXI RF Matrix Switch Module from National Instruments, with the capability to connect to any row or column within the switching matrix. This module maximizes the flexibility of test systems. The NI PXIe-2540 Matrix Switch Module has isolation relays, which disconnect unused parts of the switching matrix and help maintain RF performance and high isolation. The PXIe 2540 module is perfect for routing signals between digitizers and function generators, as well as routing signals between RF generators and analyzers.

The value for the contact resistance of the NI PXIe-2540 Matrix Switch Module remains low for the whole life cycle of the relay, with an approximate value less than 2.1 ohms. It can elevate rapidly to above 3.1 ohms at the end of the life cycle of the relay. The PXIe-2540 module has a switching power up to 10 Watts. It is controlled by the maximum switching current and the maximum voltage. The value for switching voltage is 60 VDC. The module can also carry maximum current of up to 0.5 amperes per channel. The maximum RF power of the NI PXIe-2540 decreases with an increase in frequency or with an increase in the simultaneous number of operational channels.

The PXIe-2540 Matrix Switch Module comes with structured reed relays, which can deliver up to 40 relay operations in 0.25 microseconds. There are also 17 MCX jack connectors on the front panel. The NI PXIe 2540 additionally has 7 built-in input trigger lines. They offer the pulse width of 150 nanoseconds. The instrument comes with an adjustable pulse width for output trigger lines, which ranges from 1 to 62 microseconds.

PXIe-2540 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXIe-2540
Part Number780587-40
ManufacturerNational Instruments
TypePXI Matrix Switch Module
Crosspoints72
Rows8
Columns9
Dimensions8.5 x 0.8 x 5.1 in.
Weight13.40 oz.
Warranty2-3 Year Warranty
PXIe-2540 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-2540:

National Instruments PXIe-2540 Frequently Asked Questions



Question: What is the maximum switching or carry power for the PXIe-2540?



Answer: The maximum switching or carry power for the PXIe-2540 is 10 W for each channel.



Question: What is the simultaneous drive limit for the NI PXIe-2540?



Answer: The simultaneous drive limit for the NI PXIe-2540 is 40 relays.



Question: What type of relays does the PXIe-2540 have?



Answer: The PXIe-2540 has non-latching reed relays.



Question: What is the bandwidth of the NI PXIe-2540 module?



Answer: The NI PXIe-2540 has 350 MHz bandwidth.
