PXIe-2541, 8 x 12, PXI RF Matrix Switch Module

Rated 4.7/5 | 9 ratings

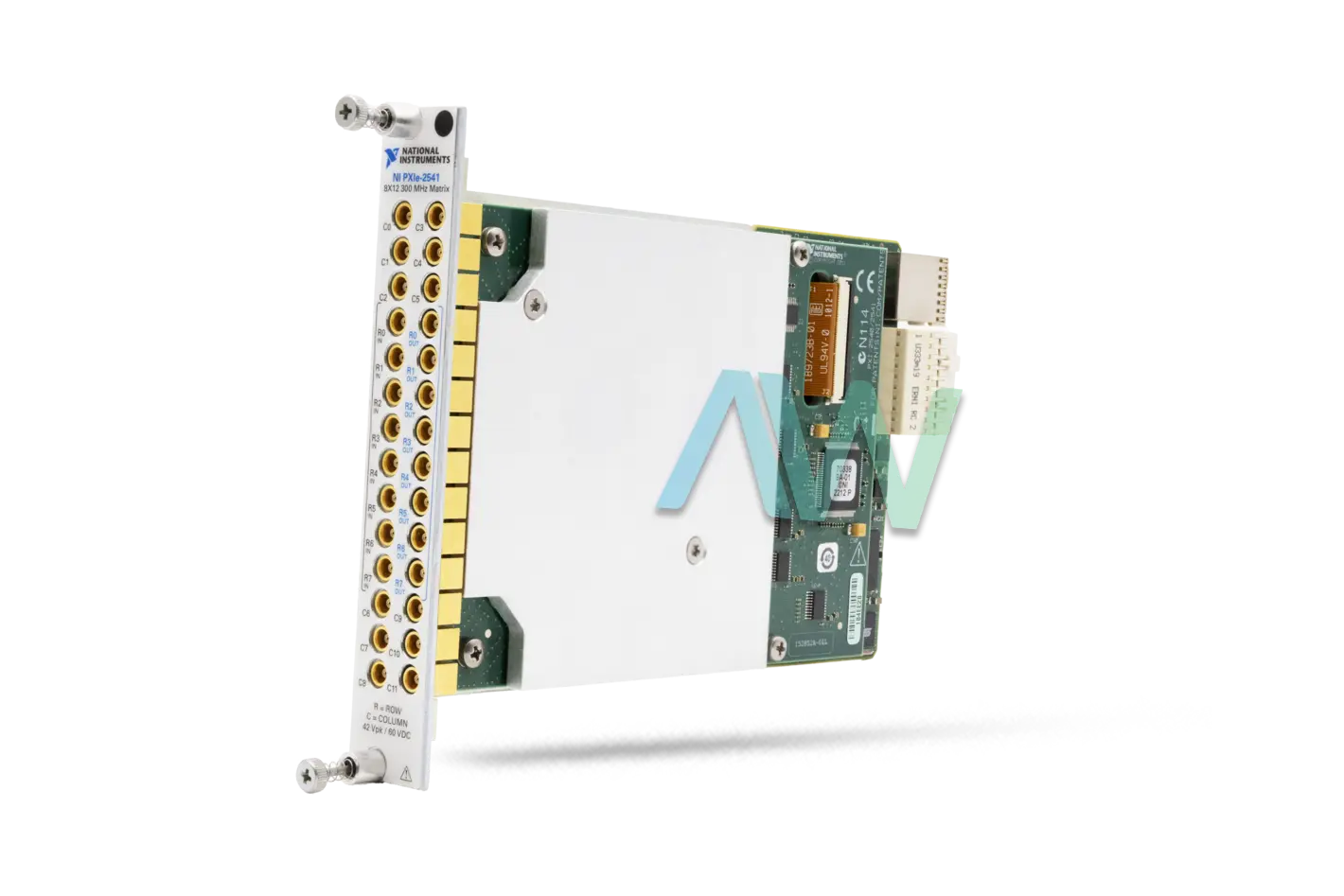

PXIe-2541 National Instruments PXI RF Matrix Switch Module | Apex Waves | Image

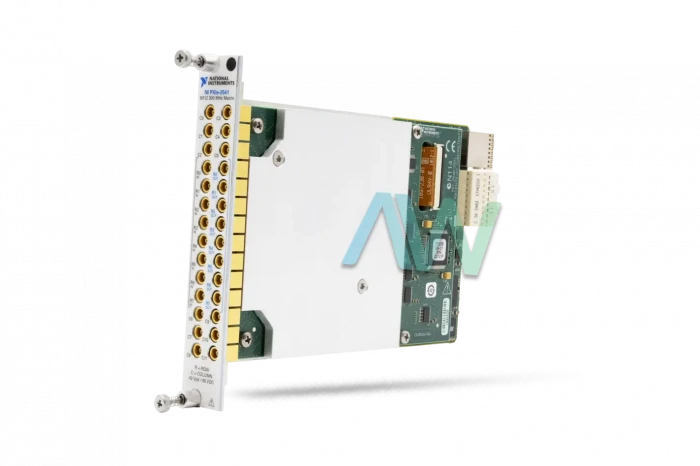

PXIe-2541 National Instruments PXI RF Matrix Switch Module | Apex Waves | Image
PXIe-2541 New
PXIe-2541 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

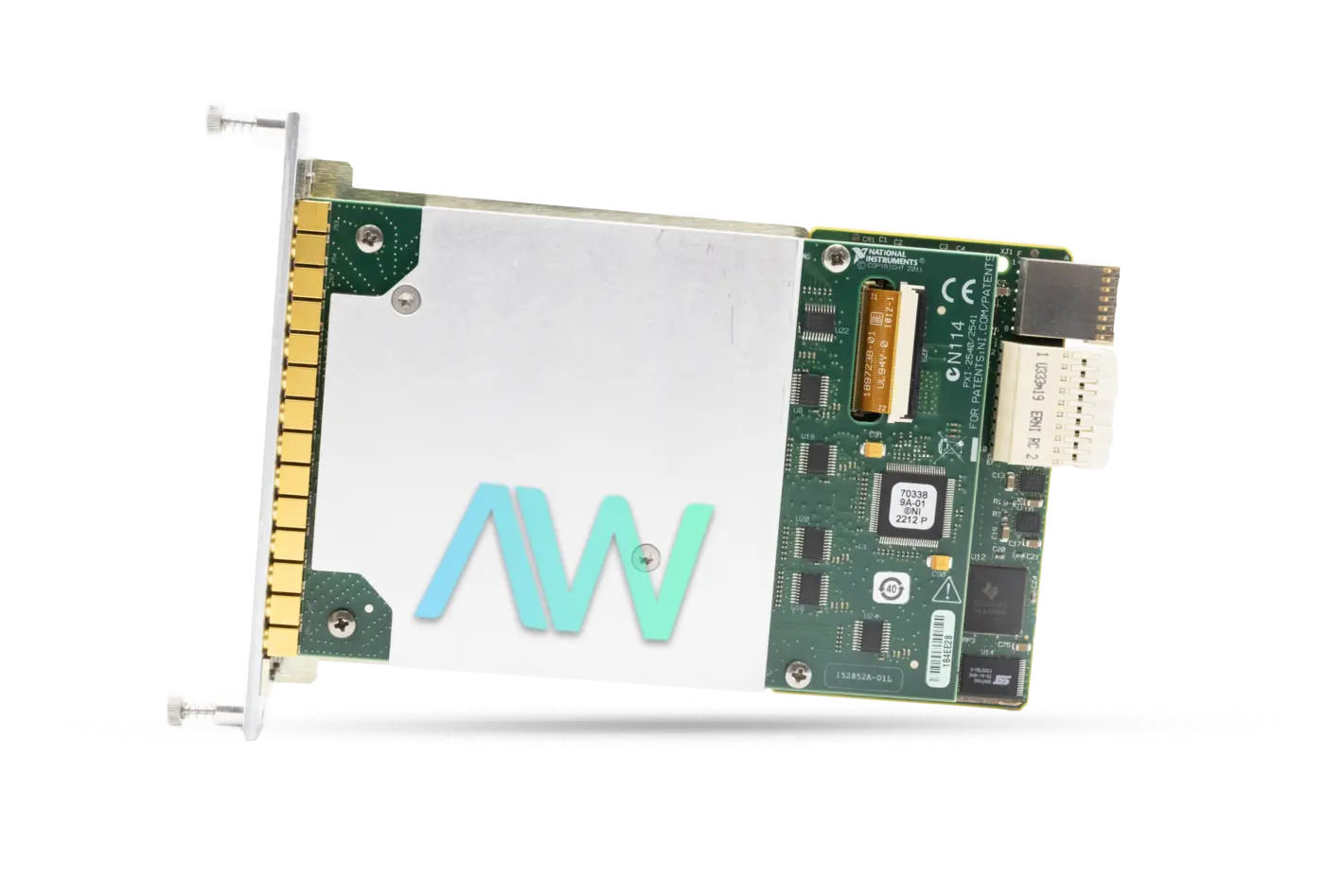

PXIe-2541 National Instruments PXI RF Matrix Switch Module | Apex Waves | Image

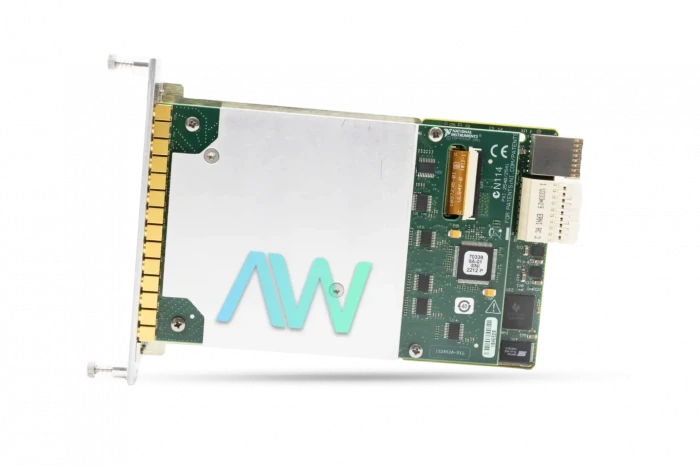

PXIe-2541 National Instruments PXI RF Matrix Switch Module | Apex Waves | Image
PXIe-2541 New
PXIe-2541 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-2541 PXI RF Matrix Switch Module

The PXIe-2541 (Part Number: 780587-41) is a 300 MHz RF Matrix Switch Module from National Instruments with an 8x12 matrix topology. The NI PXIe-2541 RF Matrix Switch Module exhibits a maximum RMS value for AC switching voltage of 42.5 volts. The maximum value of DC switching voltage is 60 volts. The maximum switching or carry current is 0.5 amperes. This value is measured separately for each channel. This module has a special non-blocking design, which allows the user to carry out testing with maximum flexibility. The user can connect any row or matrix within the switching matrix simultaneously.

The PXIe 2541 module offers 50 ohm characteristic impedance. The value for insertion loss is less than 3 dB for Row In – Column configuration. It is less than 1 dB for Row In – Row Out mode of operation. These values are measured for a frequency less than or equal to 300 Megahertz. The module also has a feature for column expansion. The NI PXIe 2541 PXI RF Matrix Switch Module offers a simultaneous relay drive limit of 40 relays maximum. Their maximum operate and release time is 0.25 milliseconds.

The NI PXIe-2541 module incorporates built-in mechanical relays with a typical life duration of 1 x 107 cycles. The module also incorporates 28 MCX jacks for different I/O connections. The accessories for the instrument include various types of connectors, as well as cables of varying lengths along with the connectors. The connector types are MCX-MCX, MCX-BNC, MCX-SMB, MCX-SMA, and 50 ohms MCX terminator. The NI PXIe-2541 RF Matrix Switch Module weighs around 410 grams.

ModelPXIe-2541
Part Number780587-41
ManufacturerNational Instruments
TypePXI RF Matrix Switch Module
Crosspoints96
Rows8
Columns12
Dimensions8.5 x 0.8 x 5.1 in.
Weight14.46 oz.
Warranty2-3 Year Warranty
PXIe-2541 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-2541:

National Instruments PXIe-2541 Frequently Asked Questions



Question: What is the switch bandwidth of the PXIe-2540 RF Matrix Switch Module?

Answer: The PXIe-2540 RF Matrix Switch Module has 300 MHz switch bandwidth.



Question: What is the maximum switching voltage AC of the NI PXIe-2540?

Answer: The NI PXIe-2540 has a maximum switching voltage AC of 42.4 Vpk.



Question: What type of I/O connectors are on the PXIe-2540?

Answer: The PXIe-2540 has 28 MCX jack I/O connectors.



Question: Is the PXIe-2540 an expandable module?

Answer: Yes, the PXIe-2540 has an 8 x 12 topology, but can be expanded to 8 x 24, 8 x 36, etc. with several modules.

Driver Downloads for PXIe-2541
