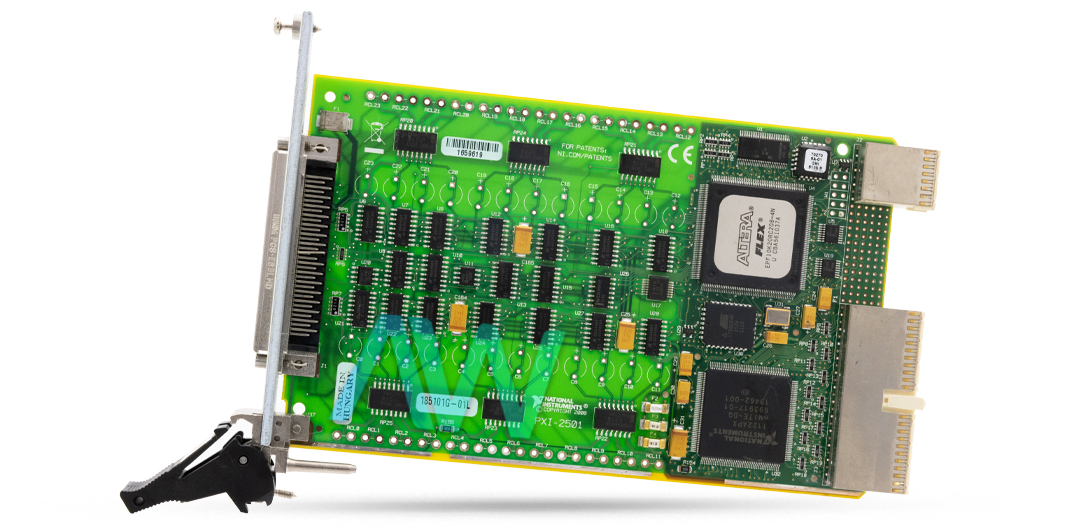

777696-01 PXI-2501 Multiplexer Switch Module | Apex Waves | Image

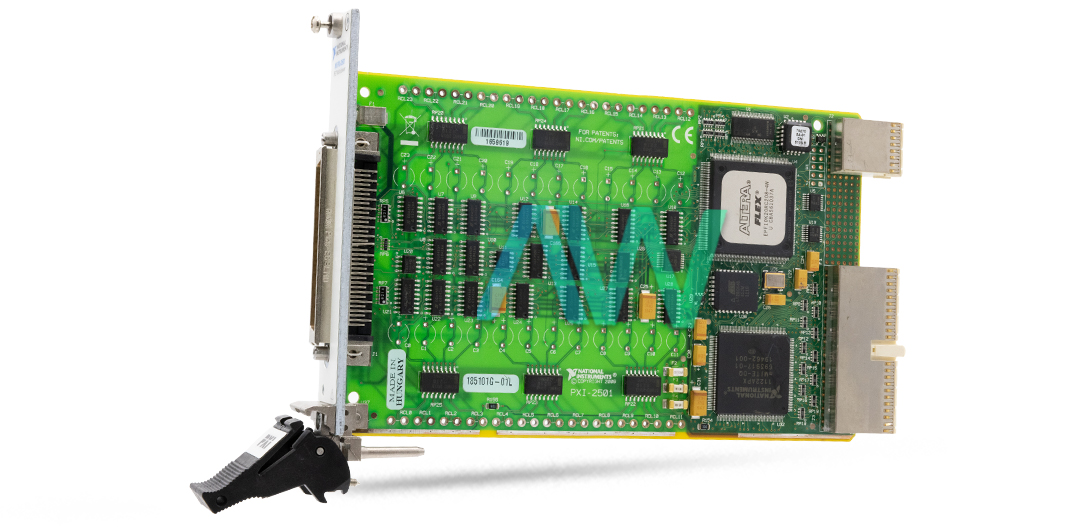

777696-01 PXI-2501 Multiplexer Switch Module | Apex Waves | Image
777696-01 New
777696-01 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

777696-01 PXI-2501 Multiplexer Switch Module | Apex Waves | Image
777696-01 PXI-2501 Multiplexer Switch Module | Apex Waves | Image
777696-01 New
777696-01 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 777696-01 GBIB Multiplexer Switch Module

National Instruments part number 777696-01 is an identifying part number for the PXI-2501, a FET PXI Multiplexer Module with a 48 Channels that supports 1, 2 or 4 wire configuration. This PXI switch module can be configured as either a multiplexer or a matrix switch using various terminal block accessories. It is particularly well-suited for applications requiring high-speed scanning of low-voltage signals due to its use of FET switches with minimal settling times.

Additionally, the NI 777696-01 features a 1,024-step scan list for deterministic scanning. With the 777696-01, users can achieve a maximum scan rate of 15,000 channels per second. This module comes with a 68-pin male SCSI connector for handling I/O connections. Its compact design measures 21.6 cm x 2.0 cm x 13.0 cm and weighs approximately 6.1 ounces. In terms of trigger characteristics, the 777696-01 can handle 70 ns PXI trigger lines and 500 ns front panel trigger lines. The module is capable of generating output triggers through <0...7> PXI trigger lines and the front panel, with a pulse width of 1 μs.

Under typical conditions, the four-wire mode of the 777696-01 is used for resistance measurements. Additionally, the device can be configured as a 2-wire, 6 by 4 crosspoint matrix. The 777696-01switch card is offered in a default two-wire configuration mode. In this mode, the CHx+ and COMx+ channels, as well as the CHx– and COMx– channels, are switched together for the corresponding bank. However, the user can also operate this module in one-wire, three-wire, and four-wire configurations.

Part Number777696-01
Model NamePXI-2501
Part TypeFET PXI Multiplexer Switch Module
Maximum switching voltage (channel-to-ground)±10 VDC, 7 VAC
Switch Bandwidth400 kHz
Banks1, 2, or 4
I/O connector68-pin male SCSI
Channels6, 12, 24, 48
Maximum scan rate15,000 channels/s
Relay TypeFET Switch
