PXI-2545, 4-Channel, PXI RF Multiplexer Switch Module

Rated 5/5 | 13 ratings

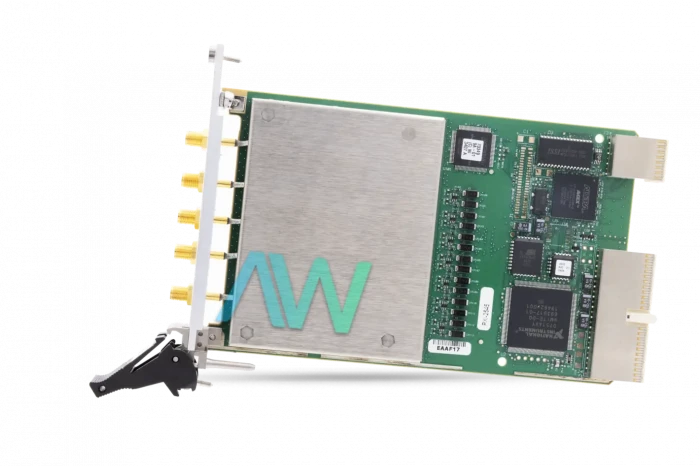

PXI-2545 National Instruments RF Multiplexer Switch Module | Apex Waves | Image

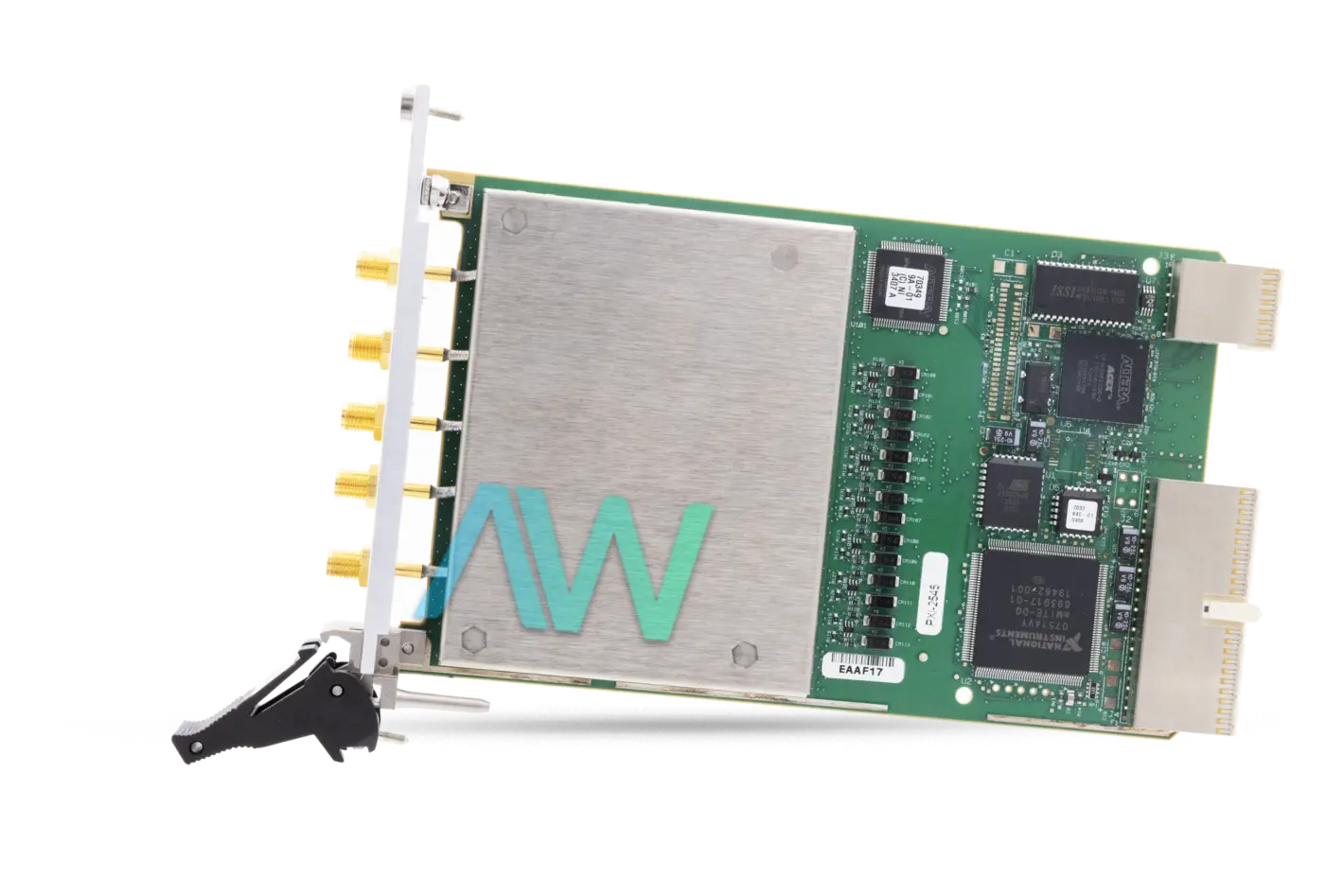

PXI-2545 National Instruments RF Multiplexer Switch Module | Apex Waves | Image
PXI-2545 New
PXI-2545 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

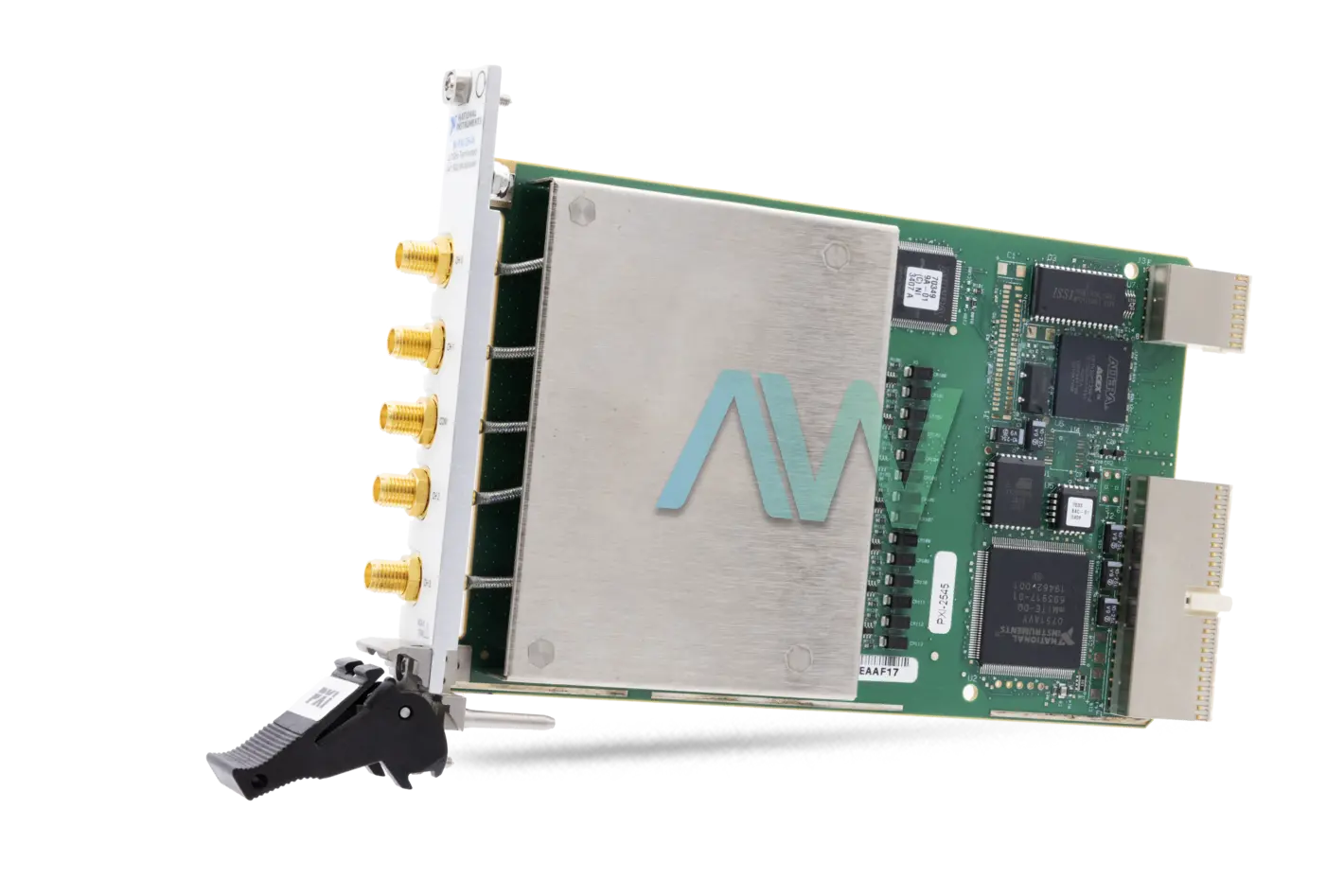

PXI-2545 National Instruments RF Multiplexer Switch Module | Apex Waves | Image

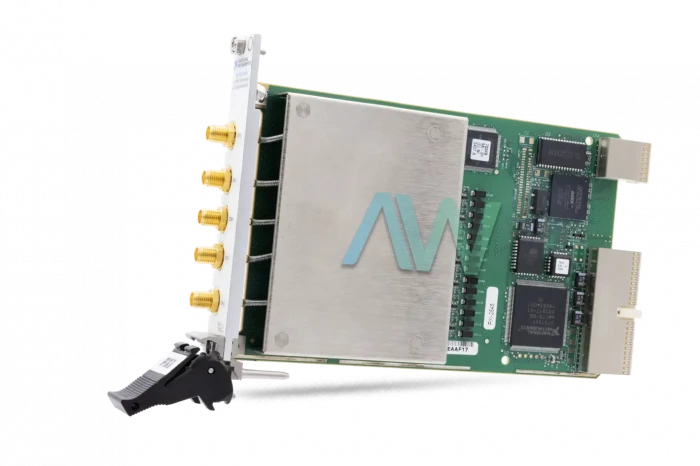

PXI-2545 National Instruments RF Multiplexer Switch Module | Apex Waves | Image
PXI-2545 New
PXI-2545 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-2545 PXI RF Multiplexer Switch Module

The National Instruments PXI-2545 (Part Number: 778572-45) is an RF Signal Multiplexer Switching Module. The inside termination of the PXI-2545, which helps prevent high-power reflections that emerge from open channels in the module, makes it perfect for use with RF applications where reflections can harm the source. The module likewise gives amazing insertion loss, changeless voltage wave ratio (VSWR), and isolation parameters to limit signal degradation. The user can utilize the inner capacity for relay account tracking to anticipate the life of the relay and lessen the dead time in the framework.  It associates various inputs to a single output or different outputs to a single input, to simplify wiring in automated test frameworks.

The PXI-2545 RF Switching Multiplexer Module is perfect for applications with an expansive number of channels or that need to interface estimation or signal generation instruments with a few test focuses in devices or units under test (DUTs or UUTs). PXI RF Multiplexer Switching Modules utilize an assortment of relay types, including armored-type electromechanical relays, reed relays, field-effect transistor relay (FET) and solid-state relays, each with its own advantages enabling the user to pick a multiplexer that meets their necessities. To program the switches, it is possible to utilize the NI-SWITCH controller software compatible with IVI, supplement with help documentation, sample programs, and a front-board application for intelligent control of switches. For clever administration of complex exchanging frameworks, NI Switch Executive gives extra programming devices to enable the user to design, create, and implement their switching framework.

ModelPXI-2545 (778572-45)
ManufacturerNational Instruments
TypePXI RF Multiplexer Switch Module
Banks1
Channels4
Switch Bandwidth2.7 GHz
Dimensions8.5 x 0.8 x 5.1 in.
Weight9 oz.
Warranty2-3 Year Warranty
PXI-2545 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
