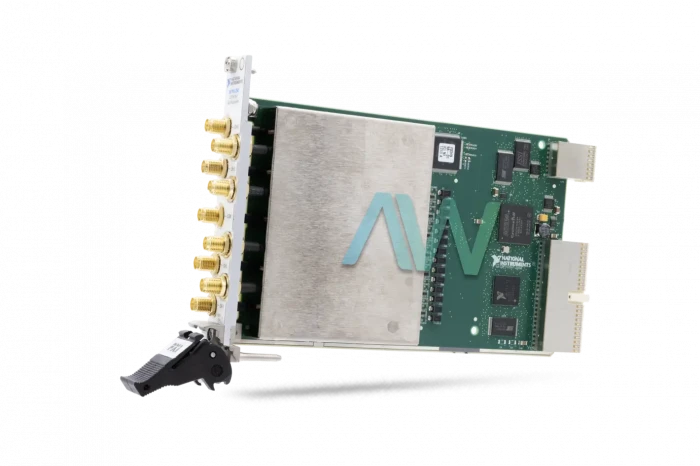

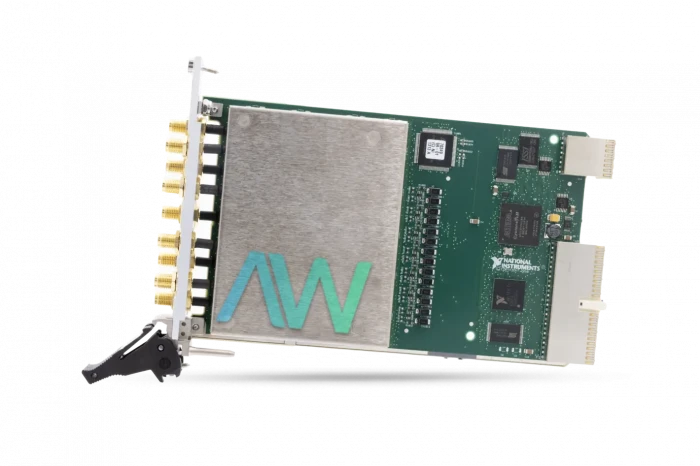

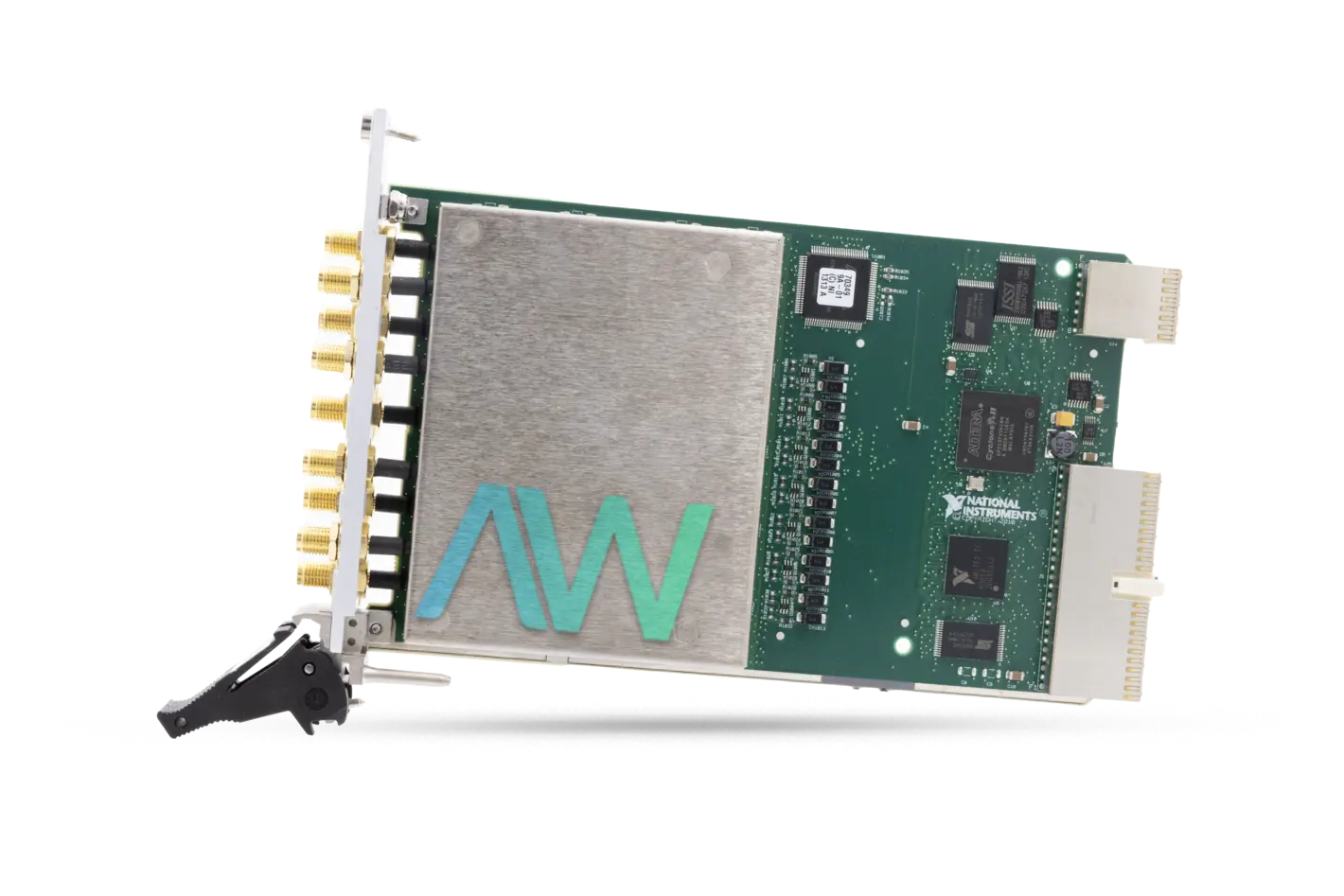

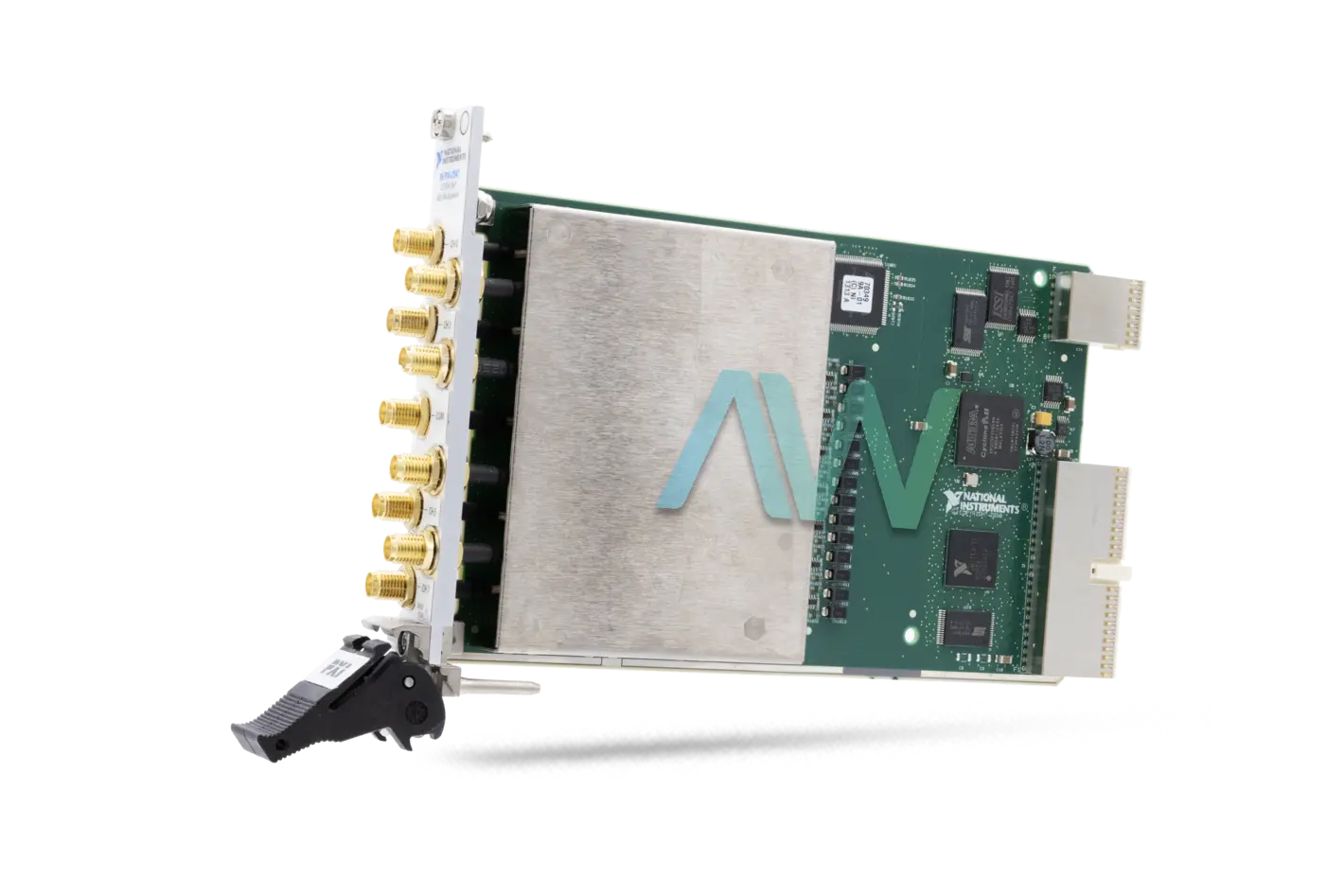

PXI-2547 National Instruments Multiplexer Switch Module | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments PXI-2547 PXI RF Multiplexer Switch Module

The PXI-2547 (Part number: 778572-47) is a 50 Ω, 2.7 GHz, RF PXI Multiplexer Switch Module featured with a higher channel count. This model is an ideal solution for test systems where a significant number of RF signals must be switched. This module is known for its voltage standing wave ratio, excellent insertion loss, and isolation parameters, which results in the minimization of signal degradation. The user can utilize the integrated tracking feature for the relay count to diminish unexpected system downtime and to predict relay lifetime. The PXI-2547 provides 0.5 A maximum switching current (per channel) and 30 V maximum switching voltage.

This switch module comes with an electromechanical, latching relay and gold-plated 9 SMA jacks as I/O connectors. This model is a smart device with 8.5 in. × 0.8 in. × 5.1 in. dimensions and weighs around 9 oz. This model can operate with <0.25 Ω typical DC path resistance initially and ≥1.0 Ω at end-of-life. The characteristic impedance remains 50 Ω nominal, and it is designed to work with <1.05 dB (<0.7 dB typical) and <2.0 dB (<1.6 dB typical) insertion loss while operating at ≤1 GHz and ≤2.7 GHz, respectively.

By design, the NI PXI-2547 comes with SP8T topology. This module is suitable for routing signals from DC to 2.7 GHz. It can also switch up to 30 V or 0.5 A, with a power limit of 10 W maximum. The PXI-2547 can be used for switching multiple devices under test while connected to one channel on the RF analyzer.

Model	PXI-2547
Manufacturer	National Instruments
Part Number	778572-47
Type	PXI RF Multiplexer Switch Module
Topology	8×1 (SP8T)
Characteristic Impedance	50 Ω, nominal
Maximum Switching Voltage	30 V
Maximum Switching Current	0.5 A
Maximum Switching Power	10 W
Insertion Loss (≤2.7 GHz)	<2.0 dB (<1.6 dB typical)
Channel-to-Channel Skew	<15 ps, typical
Rise Time (10% to 90%)	93 ps, typical
Relay Type	Electromechanical, latching
Dimensions	8.5 x 0.8 x 5.1 in.
Weight	9 oz. (255 g)
PXI-2547 Manual	User Manual and Specifications Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for PXI-2547:

National Instruments PXI-2547 Frequently Asked Questions

Question: Is the PXI-2547 a good device to test systems that require switching many RF signals?

Answer: Yes, the PXI-2547 is ideal for test systems that require the switching of many RF signals.

Question: Does the NI PXI-2547 process voltage standing wave ratio?

Answer: No, the PXI-2547 does not process VSWR. However, it is characterized by excellent VSWR performance, which indicates minimal signal reflection and strong signal integrity across its 2.7 GHz bandwidth.

Question: Does the NI PXI-2547 have onboard relay count tracking?

Answer: Yes, the NI PXI-2547 has a relay count tracking feature to help predict relay lifetime.

Question: What is the bandwidth on the PXI 2547?

Answer: The PXI 2547 has 2.7 GHz bandwidth.
