PXI-2594 In Stock | Ships in 3-5 Days

Q: What type of I/O connectors are on the NI PXI-2594?

There are 5 SMA jacks on the NI PXI-2594.

Q: What is the power requirement for the PXI-2594?

The power requirement for the PXI-2594 is 3 W at 5 V and 0.5 W at 3.3 V.

Q: What is the maximum insertion loss for the PXI-2594 module?

The PXI-2594 module has a maximum insertion loss of -1.35 dB.

Q: Which accessories are available for the PXI-2594?

The following accessories are available for the PXI-2594: the SMA-100 12.7 cm (Part number: 763443-01), the SMA-100 38.1 cm (Part number: 763444-01), the SMA Plug (Male) to SMB Jack (Male) Adapter (Part number: 779674-01), the SMA 50 Ohm termination plug (Part number: 778353-01), and the RF Torque Screwdriver and SMA Driver Bit (Part number: 780895-01).

PXI-2594, 4-Channel, PXI RF Multiplexer Switch Module

Rated 4.9/5 | 17 ratings

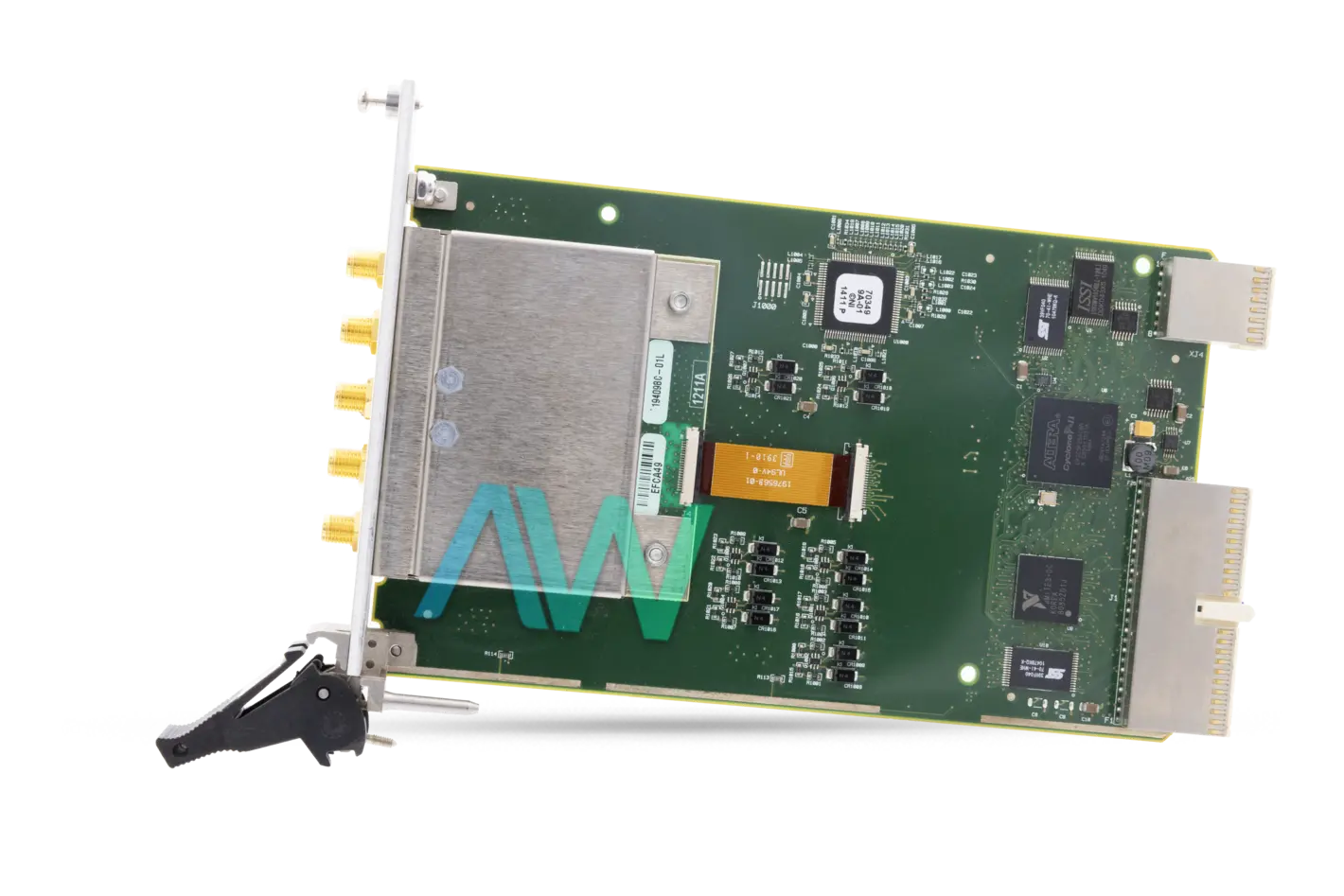

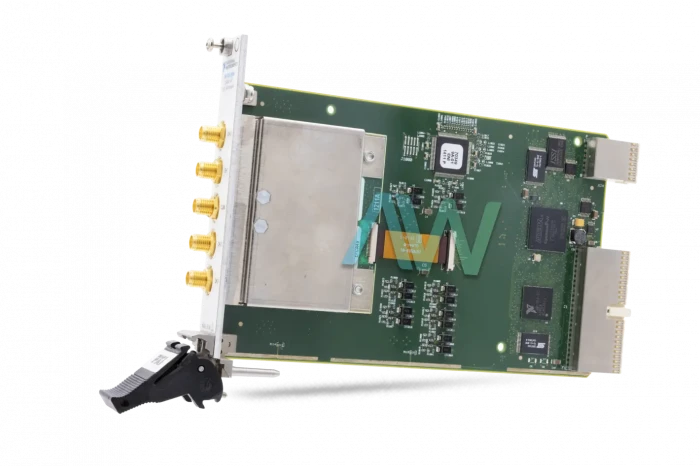

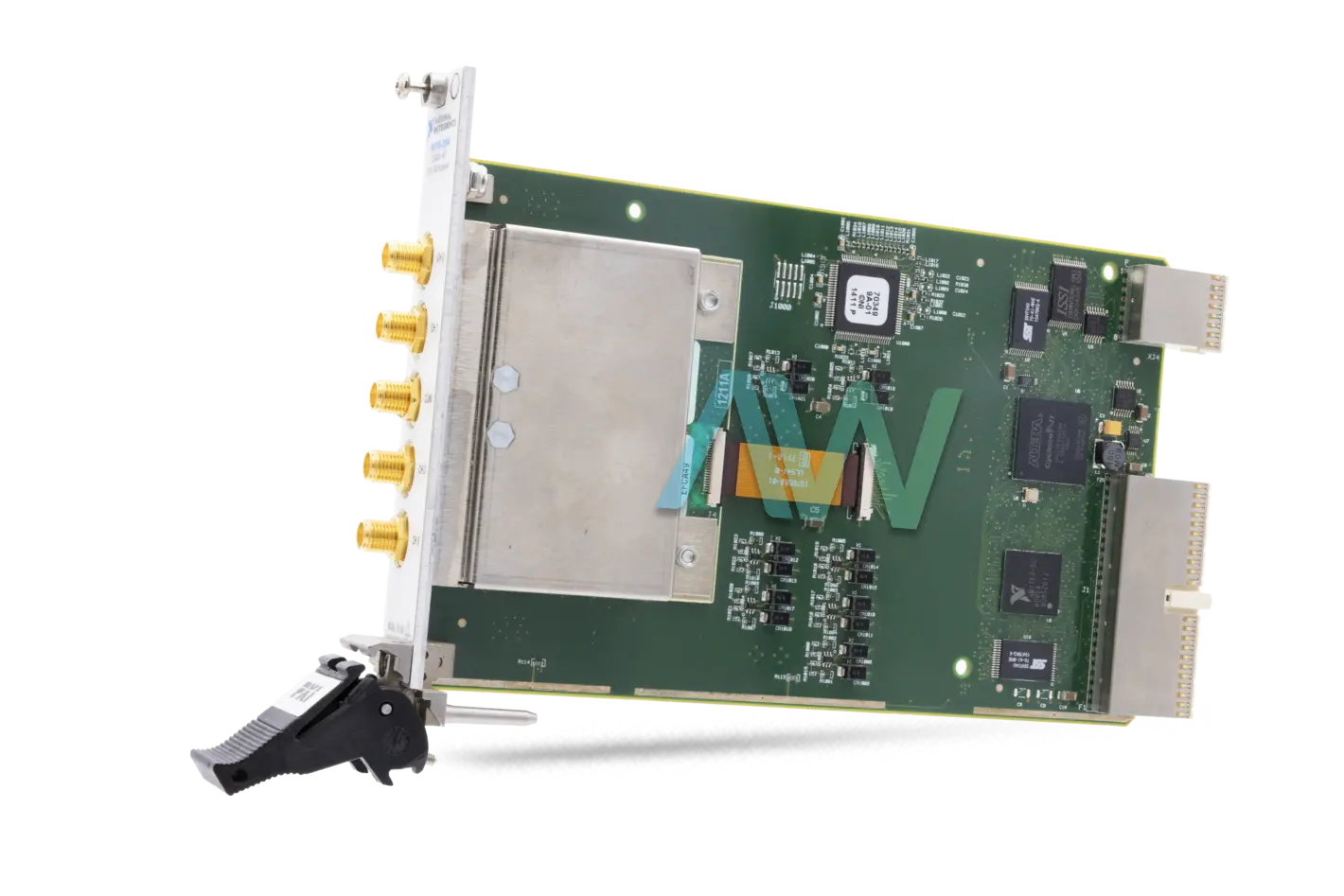

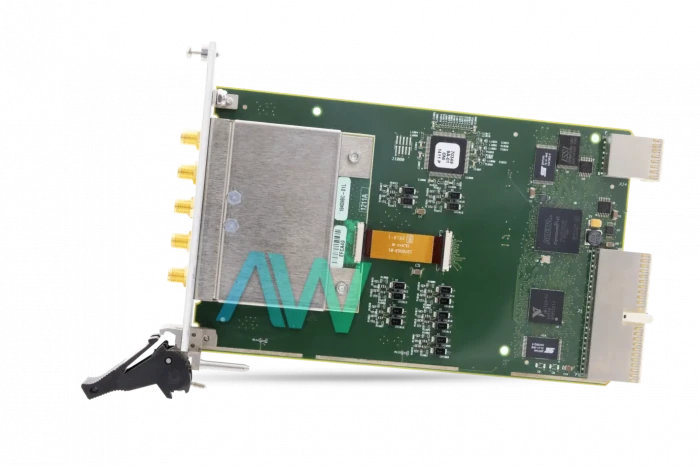

PXI-2594 National Instruments Multiplexer Switch Module | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments PXI-2594 PXI RF Multiplexer Switch Module

The NI PXI-2594 (Part Number: 778572-94) is a 4x1 high-frequency, unterminated, multiplexing switch, ideal for switching signals from DC to 2.5 GHz. The characteristic impedance of the channels on this module is 50 Ohms. The NI PXI-2594 has a maximum voltage rating of 30 Vrms with a maximum switching current of 500 mA. It is appropriate for applications that require the routing of high-recurrence signals inside automated test equipment (ATE) frameworks, since it can switch signals with low insertion loss. In addition, the fantastic voltage standing-wave ratio (VSWR) and isolation parameters make this module the ideal choice in any framework intended for high-recurrence applications. The PXI-2594 also offers relay count tracking to help decrease unexpected framework downtime.

The transmission capacity of a switch module is not an absolute specification and is dictated by seller measures. Although higher recurrence signals can be directed through this switch module, they will experience more corruption than those at lower frequencies. With a specific end goal to decide the best switch module for the user’s application, review the insertion loss, VSWR, and isolation specifications of the item for the data transmission of the application.

Path resistance is a mix of relay contact resistance and trace resistance. Contact resistance regularly stays low for the life of the relay. Toward the end of the relay life, the contact resistance transcends 1.0. The NI PXI-2594 RF Multiplexer Switch Module can also perceive trigger pulse widths under 150ns by disabling digital filtering.

Model	PXI-2594 (778572-94)
Manufacturer	National Instruments
Type	PXI RF Multiplexer Switch Module
Banks	1
Channels	4
Switch Bandwidth	2.5 GHz
Dimensions	8.5 x 0.8 x 5.1 in.
Weight	6.95 oz.
Warranty	2-3 Year Warranty
PXI-2594 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for PXI-2594:

National Instruments PXI-2594 Frequently Asked Questions

Question: What type of I/O connectors are on the NI PXI-2594?

Answer: There are 5 SMA jacks on the NI PXI-2594.

Question: What is the power requirement for the PXI-2594?

Answer: The power requirement for the PXI-2594 is 3 W at 5 V and 0.5 W at 3.3 V.

Question: What is the maximum insertion loss for the PXI-2594 module?

Answer: The PXI-2594 module has a maximum insertion loss of -1.35 dB.

Question: Which accessories are available for the PXI-2594?

Answer: The following accessories are available for the PXI-2594: the SMA-100 12.7 cm (Part number: 763443-01), the SMA-100 38.1 cm (Part number: 763444-01), the SMA Plug (Male) to SMB Jack (Male) Adapter (Part number: 779674-01), the SMA 50 Ohm termination plug (Part number: 778353-01), and the RF Torque Screwdriver and SMA Driver Bit (Part number: 780895-01).
