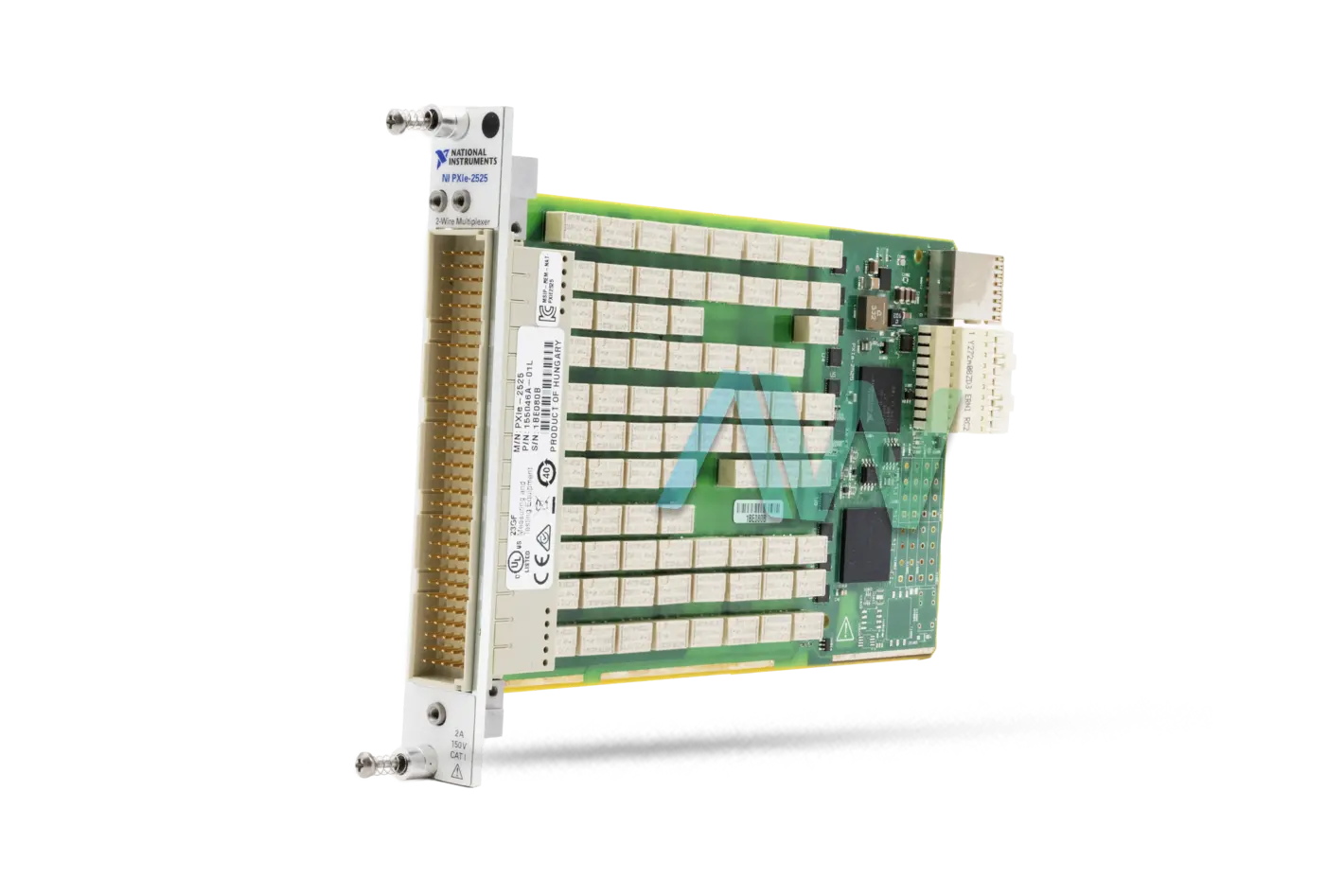

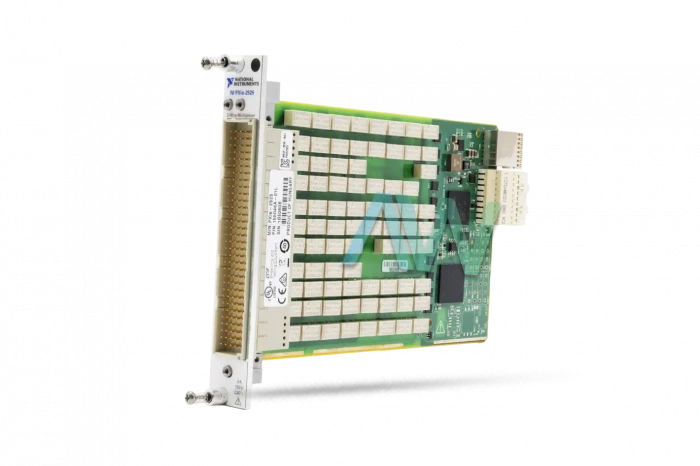

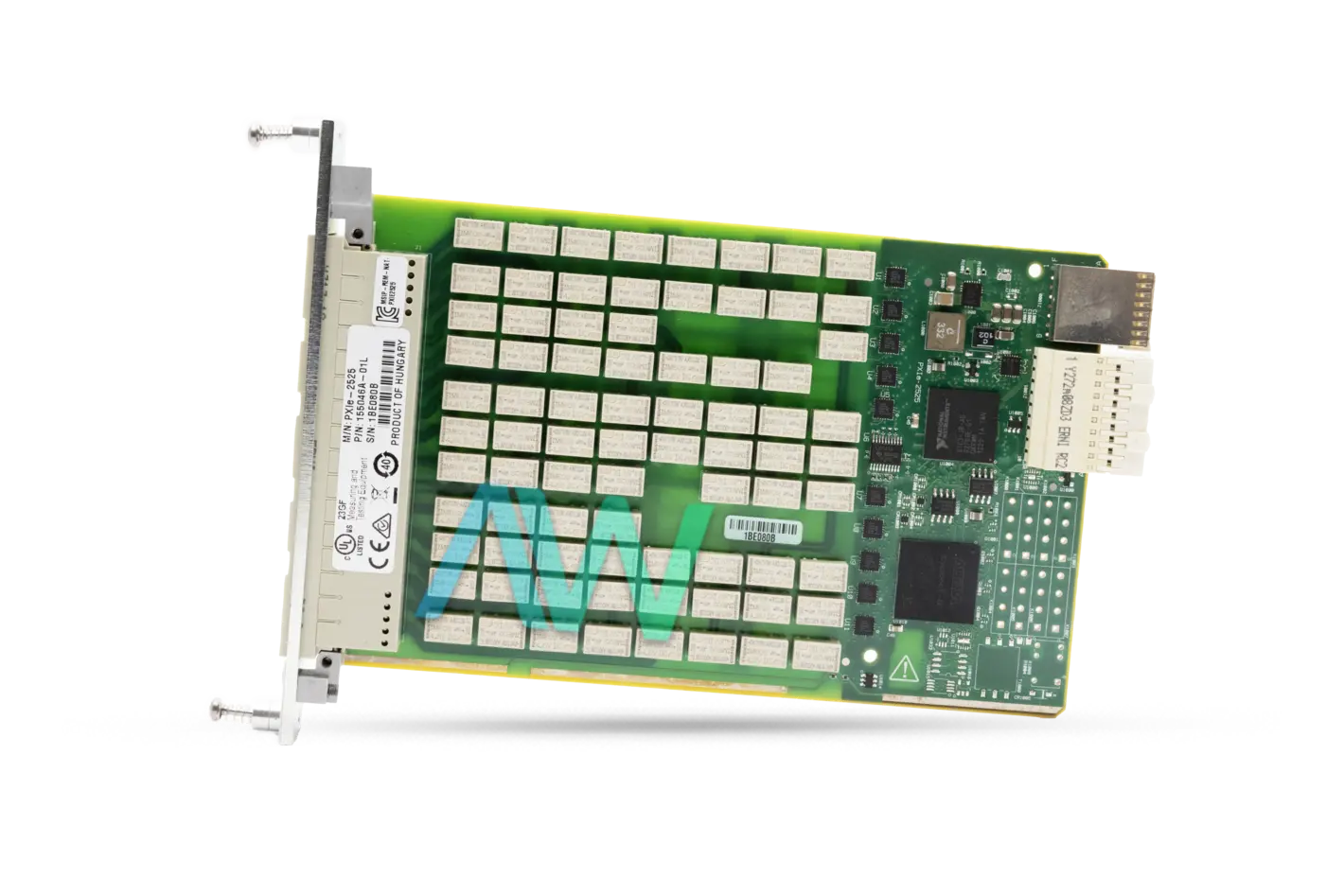

National Instruments PXIe-2525 PXI Multiplexer Switch Module
The PXIe-2525 (Part Number: 780587-25) is a 64-Channel Multiplexer Switch Module from National Instruments. This module implements an efficient mechanism to route signals within an automated test system. Designed with a 2-wire topology, the module incorporates 16 bank 4x1, octal 8x1, quad 16x1, dual 32x1, and 64x1 configuration schemes. These enable the NI PXIe-2525 to implement the switching mechanism for various testing requirements alongside a built-in relay counting mechanism for relay monitoring. The Multiplexer Switch Module offers a channel to channel maximum switching voltage of up to 150 volts. This measurement is the same as the voltage specifications for the channel to ground switching.
The NI PXIe 2525 Multiplexer Switch Module incorporates CH-COM DC isolation resistance with a typical value of 1 Giga-ohms 25 degrees Celsius. The bandwidth for RF measurements is less than or equal to 10 MHz- while the built-in relays of the module are electromechanical, non-latching, and field replaceable. The contact material of the relays is palladium-ruthenium and covered in gold. The PXI express device has a power requirement of 20 W at 12 V, and 3.4 W at 3.3 V. In addition, the NI device is run using the NI-SWITCH driver software.
The PXIe-2525 Multiplexer Switch Module has a pollution degree level of 2 and is meant for indoor use only. The device is compatible with switch cables and an NI relay replacement kit (sold separately). Any additional accessories enable users to carry out measurements with ease. The instrument also complies with various safety standards, including IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1 specifications.
The NI device weighs 8.1 oz and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of -40 °C to 71 °C. The non-condensing humidity ranges for both operating and storage range 10% to 90% RH and 5% to 95% RH respectively. In addition, the operating and non-operating random vibrations of the device are 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
| Model | PXIe-2525 |
|---|---|
| Part Number | 780587-25 |
| Manufacturer | National Instruments |
| Type | PXI Multiplexer Switch Module |
| Banks | 1, 16, 2, 4, 8 |
| Channels | 64 |
| Topology | 2-Wire |
| Maximum Switching Voltage | 60 W, 62.5 VA |
| RF Bandwidth | ≤10 MHz |
| Relay Type | Non-latching, Electromechanical |
| Power Requirement | 20 W at 12 V, 3.4 W at 3.3 V |
| Maximum Switching Voltage DC | 150 V |
| Maximum Switching Current DC | 2 A |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 8.1 oz. |
| Warranty | Three Year Warranty |
| PXIe-2525 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-2525:
National Instruments PXIe-2525 Frequently Asked Questions
Question: What type of relays does the PXIe-2525 have?
Answer: The module has electromechanical relays.
Question: What is the switch bandwidth for the NI PXIe-2525 module?
Answer: 10 MHz is the switch bandwidth for the NI module.
Question: What is the simultaneous drive limit for the device?
Answer: The simultaneous drive limit is 79 relays for the PXIe-2525.
Question: What is the minimum switch load for the NI PXIe-2525?
Answer: The minimum switch load for the module is 20 mV/1 mA.
Driver Downloads for PXIe-2525
